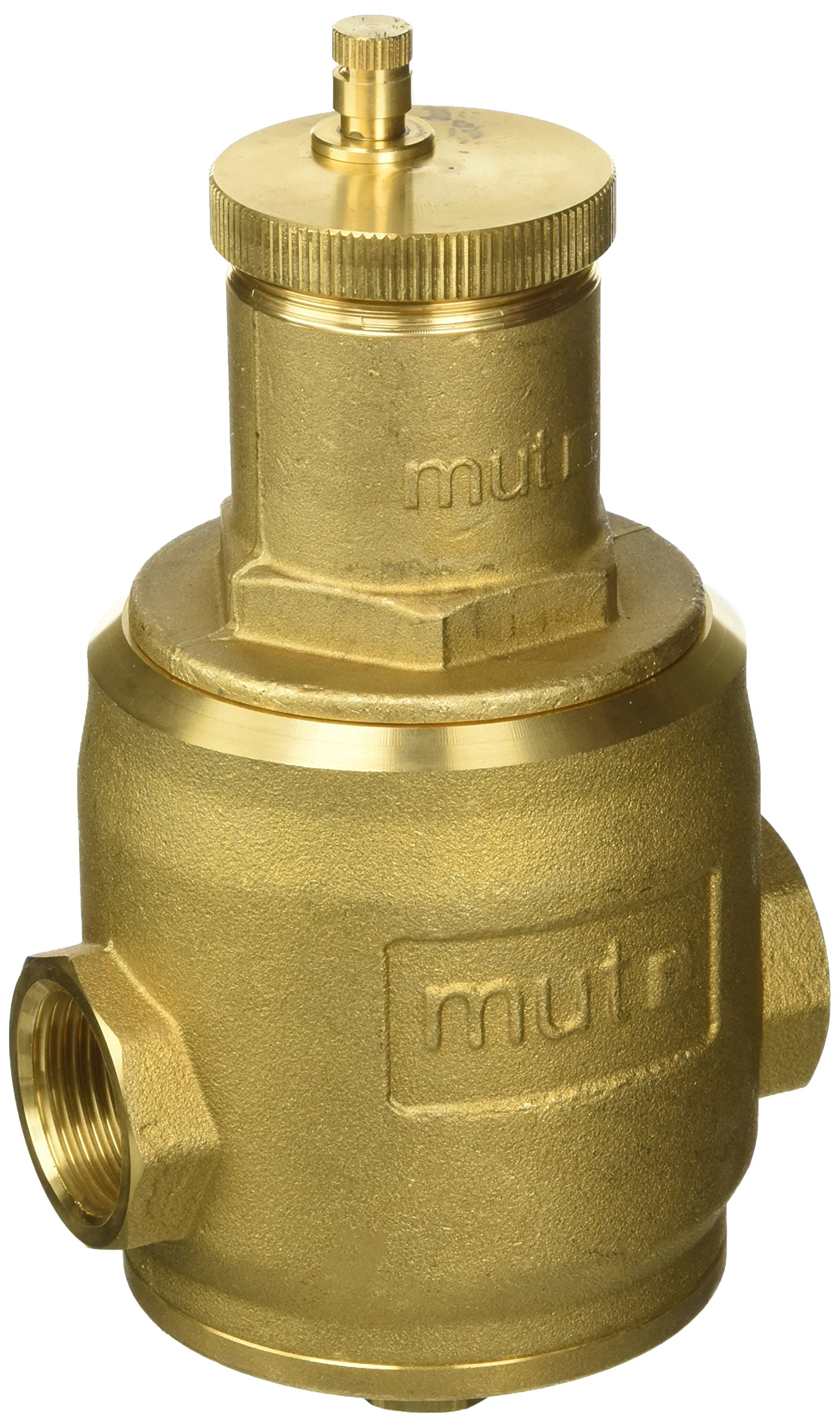

Mut 703001982 disaeratore

• disaeratore Brass g 1 1/2, for heating/Air-conditioning systems
• Model DS g 1 1/2 "
• For installations of heating and air-conditioning
• Female, attacks with insulation

Installations in which the water is correctly disaerata are more efficient, and produce less noise and have a longer life. The disaeratori Mod. DS the mut are used to remove continuously in the air (Mod. DS), contained hydraulic circuits. They are able to automatically throughout the air this in circuits. Inside the "bleeder, in position transverse direction of the flow, there is a perforated grill: the fluid urtando the grill is a further reduction of speed and therefore allows a separation of air bubbles, which are gone automatically by the Bleed Valve. The disaeratori DS are supplied complete with a insulation to shell, pre-formed to warm, to ensure the perfect thermal isolation both in use with hot water that frozen. Technical Data Fluid of use: water with glycol; Water, solutions glicolate dangerous not excluded from the scope of Directive 67/548/EC; Maximum percentage of glycol: 30% max operating pressure of female threaded coupling PN: 10 bar Operating temperature: 0 ÷ 110 °C Field attacks: ISO228 materials Body: Brass en 1982: 2000 Brass Internal Components: en 12165 CW617 N internal filter: PA66 Thermal Insulation of body: PE-X polyethylene closed cell foam sp. 10 mm Thermal Conductivity insulation: 0.034 W/mK to 10 °C; 0.038 W/mK to 40 °C (iso8301) Coeff. Resistance to steam (din52615): > 1300.
