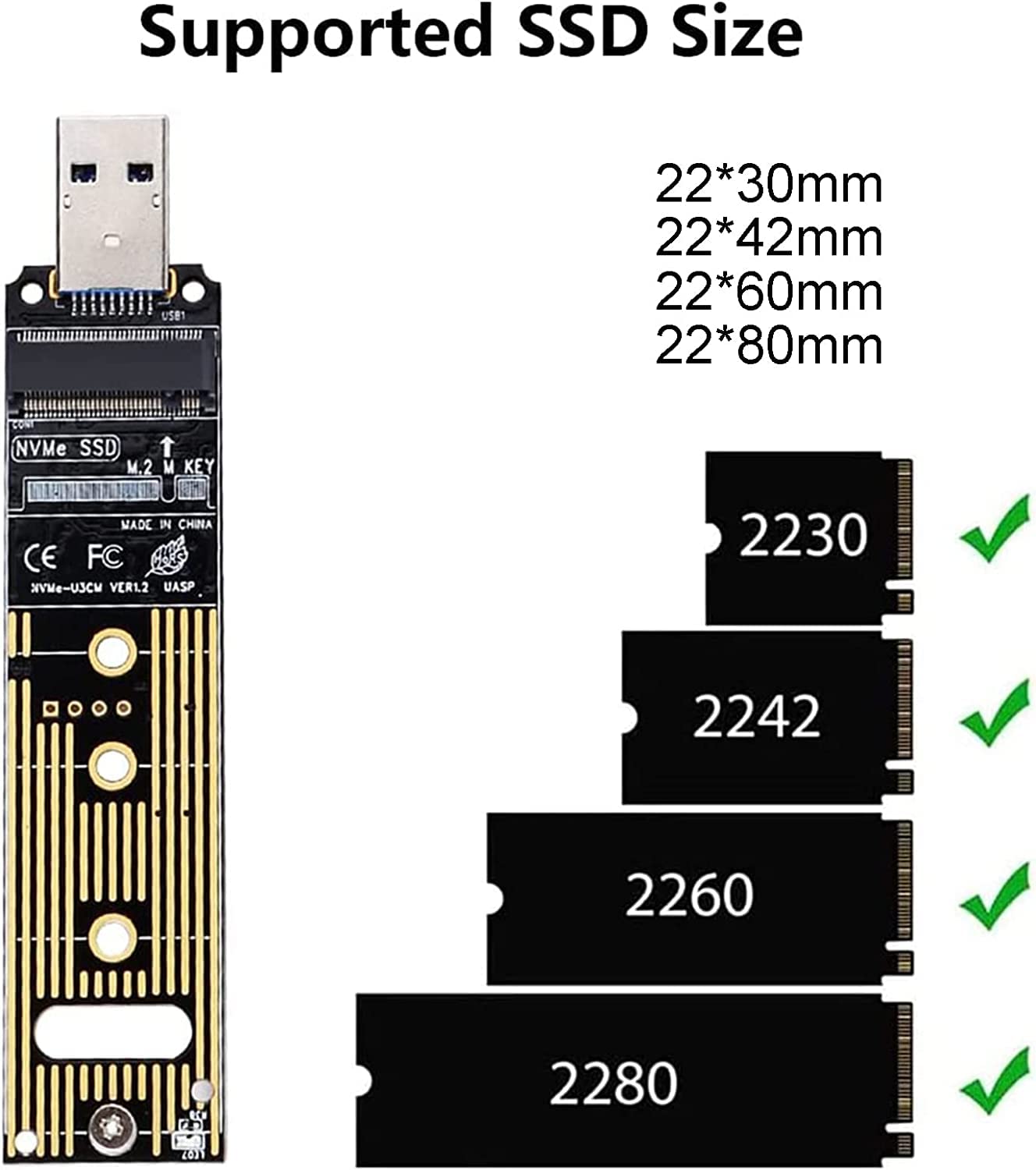

Multibao M.2 NVME SSD to USB3.1 TYPE-A Adapter, Support 2242/2260/2280 Hard Disk Specifications

• Not not support B+M key SATA, M.2 NGFF SSD. Product Name: NVME to USB3.1 type-A in-line

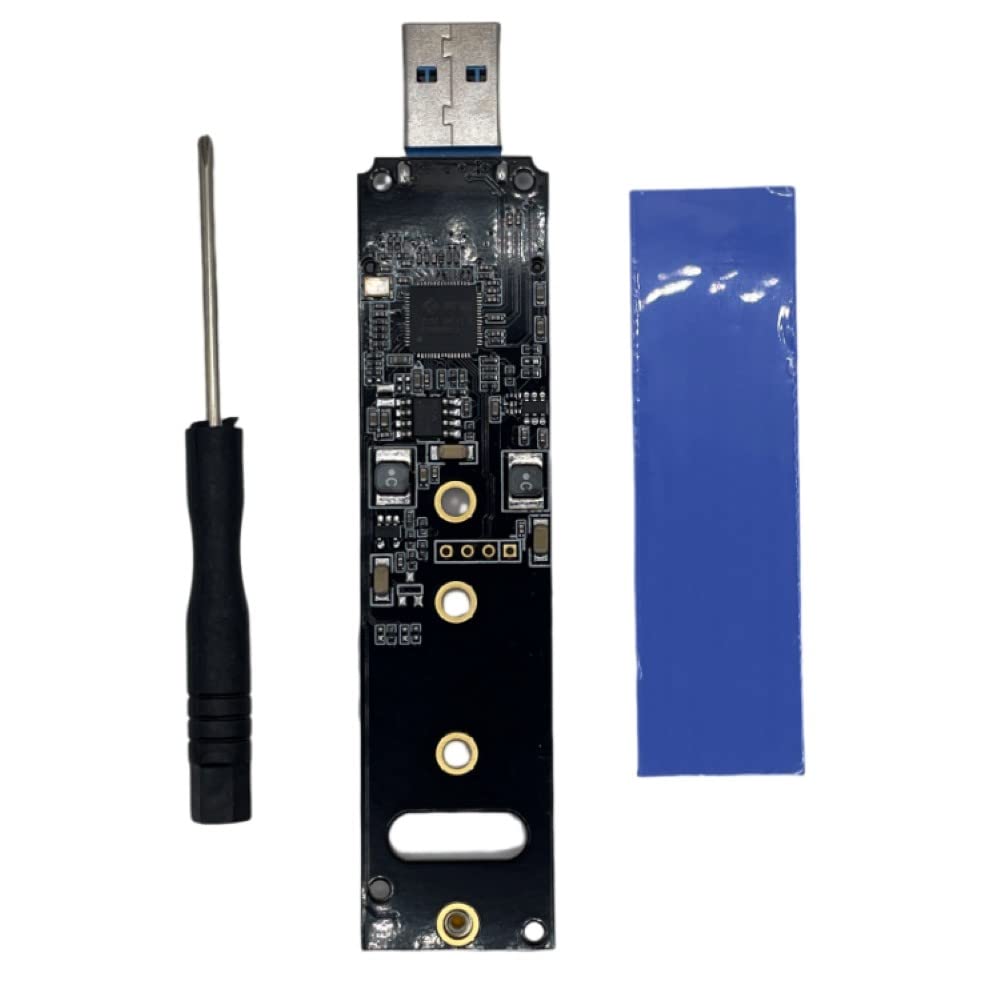

• Chip: RTL9210 TYPEC 3.1 chip, support the mainstream nvme pcie m2 hard disk on the market
• Support SSD: M.2 NVME protocol solid state drive

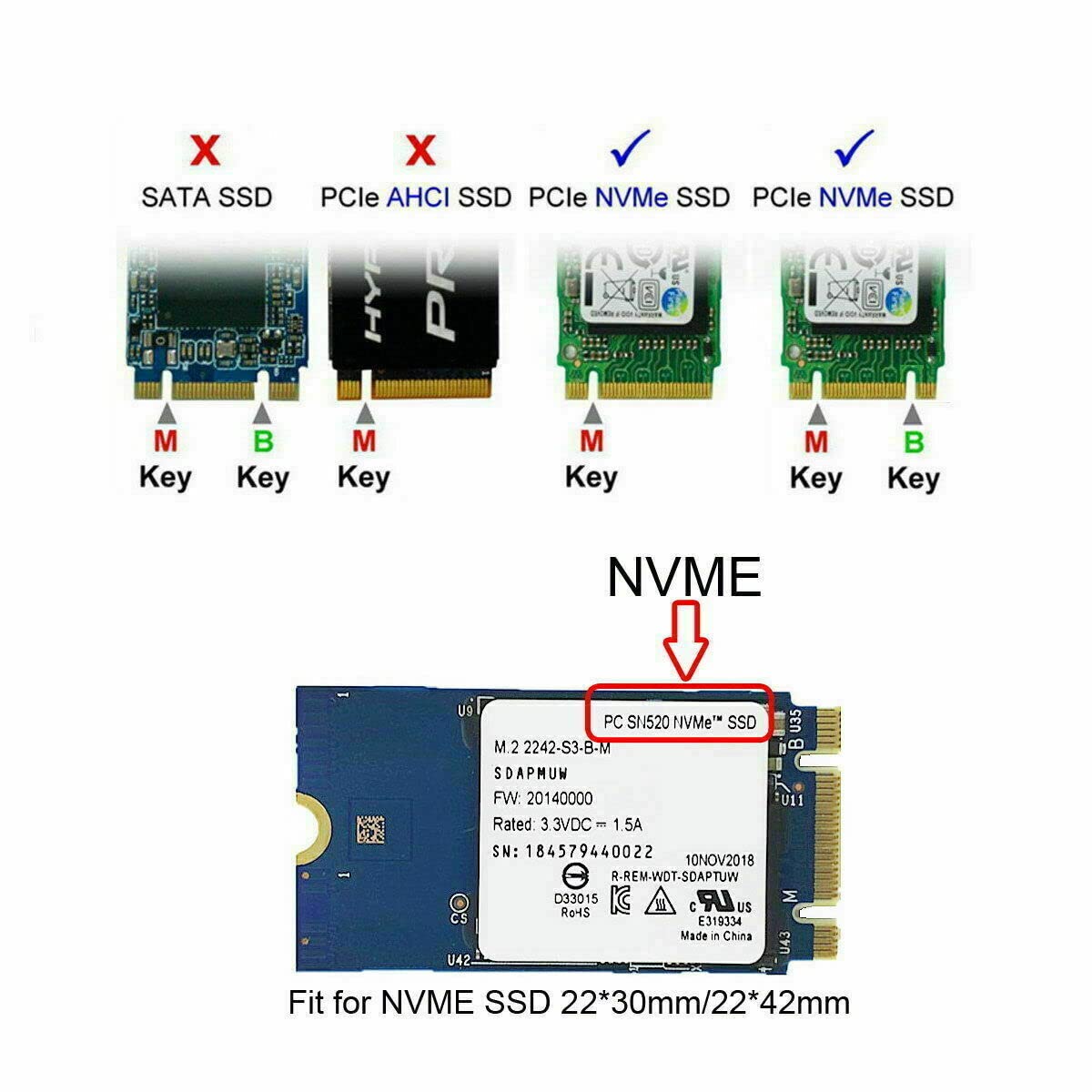

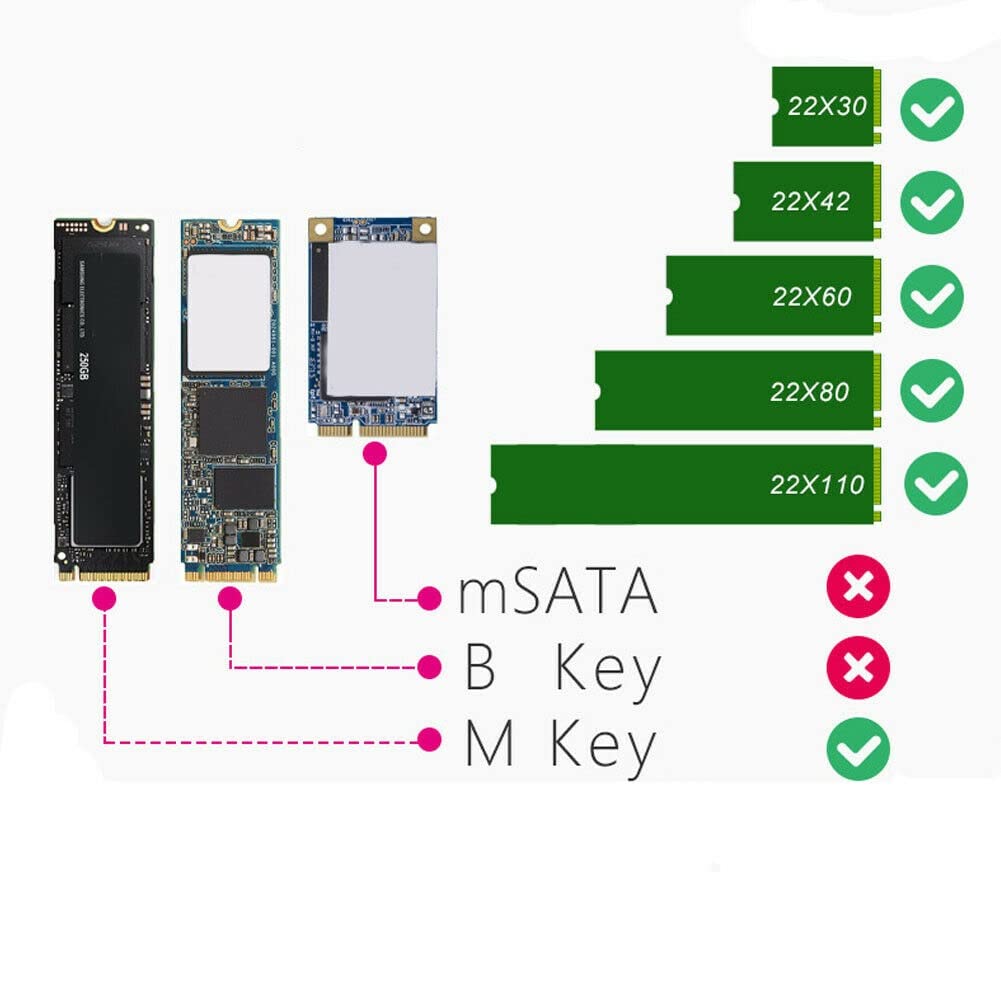

• Supports only PCIe x2 and PCIe x4 NVME protocol M.2 NGFF SSD, does not support PCIe x2 and PCIe x4 AHCI protocol M.2 NGFF SSD, does not support B+M key SATA protocol M.2 NGFF SSD
• Chip advantage: The main control is low power consumption. Compared with the old JMS583, the main control temperature will be lower, and the current consumption will be much smaller. That is to say, the high temperature in the use of NVME SSD is relatively reduced, and we The obtained data test shows that the same device of the same SSD is tested with JMS583 /RTL9210, which is about 200MB/s faster than the former.

M.2 NVME To USB Adapter, SSD To USB3.1 TYPE-A Plug in adapter card Features: Support SSD： M.2 NVME Protocol SSD （only support PCIe x2 and PCIe x4 NVME, M.2 NGFF SSD，not support PCIe x2, PCIe x4 AHCI M.2 NGFF SSD，not support B+M key SATA, M.2 NGFF SSD） Chip: RTL9210 TYPEC 3.1，support nvme pcie m2 in the market Chip advantages: the main controller is low power consumption, and the temperature of the main controller is lower than that of the old jms583, and the current consumption is also much smaller. That is to say, the high temperature of nvme SSD is relatively reduced. At the same time, the data test we get shows that the same SSD and the same device are tested with jms583 / rtl9210, and the latter is about 200MB / s faster than the former External interface: usb3.1 type-A plug-in interface is downward compatible with USB3.0 and USB2.0 interfaces (supports USB2.0 and 3.0 interfaces, of course, you can run 2.0 and 3.0 when you connect 2.0) Read speed: 1000mb / S (this data is for reference only) the actual read speed is mainly related to SSD and devices, and the test results of different SSDs with the same device are not the same. Product details: Size:110mmX24mm Gross weight：13g Package included: 1. Transfer card X1 as shown in the figure 2. Heat dissipation silicone patch x1 3. Screw driver x1
