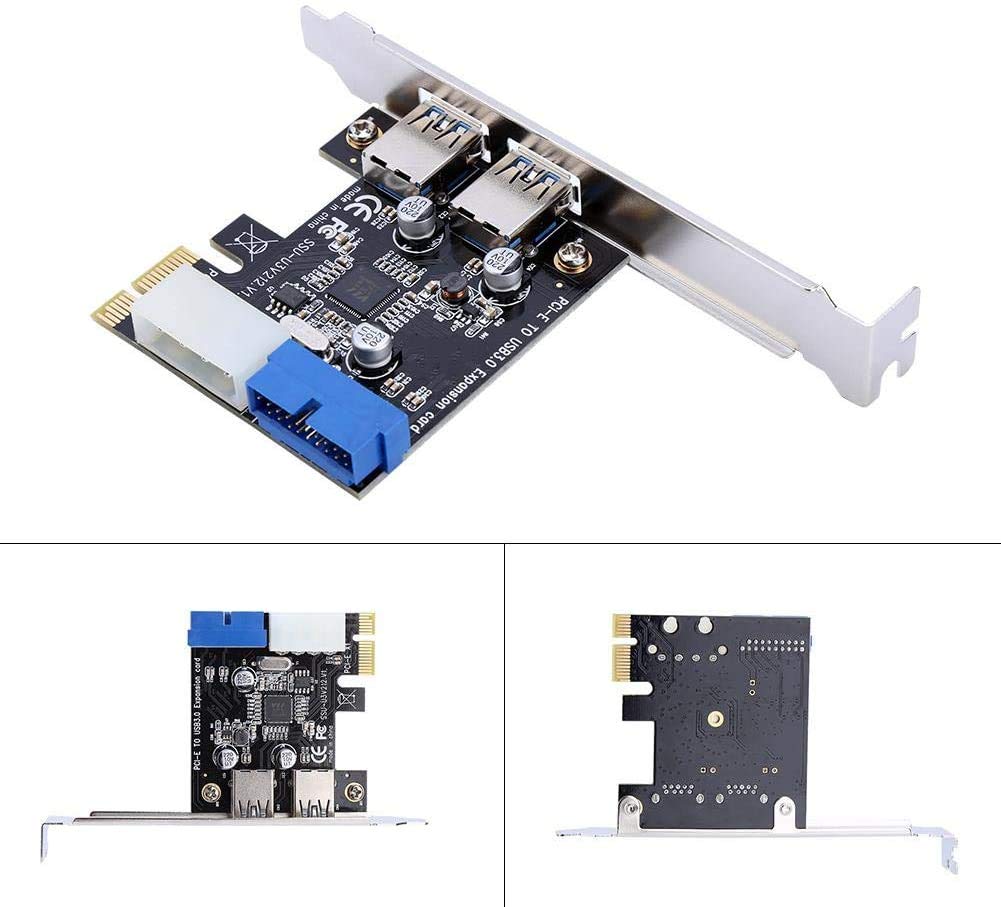

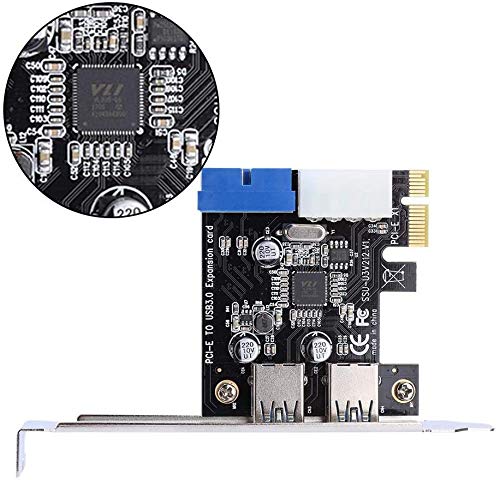

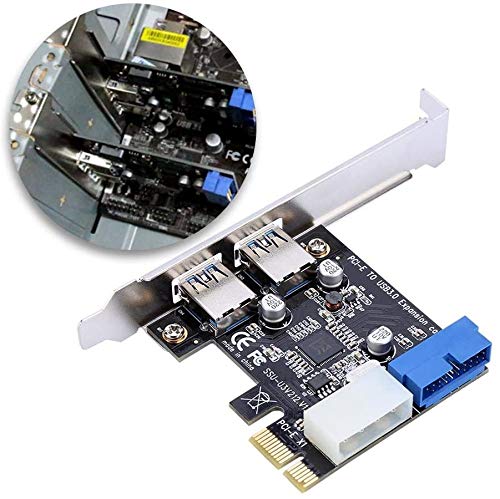

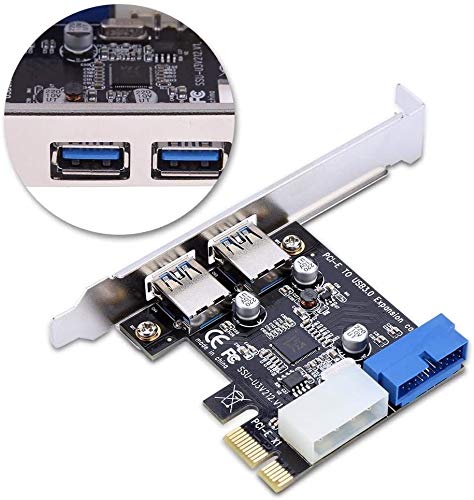

Multibao 2 Ports PCI-E USB 3.0 with 4 Pin molex and 19Pin 20Pin Interface PCI Express Card Adapter for Windows XP/Vista/7/8/10

• This pci express usb 3.0 expansion card will allow users add on two USB 3.0 ports on desktop computers though PCIE slot .The USB 3.0 ports will provide 5Gbps max data(total) transfer speed for video ,audio ,photos or files. Full height bracket included works on Slim Size PCs and Standard Size PCs.
• When the external USB device has a short-circuit, excessive current and other faults. This usb 3.0 pcie card can cut off the power instantly to protect the peripherals and the computer from damage. After troubleshooting, it will automatically return to normal! Equipped with 2 independent power management modules, free of external power supply, the two interfaces can work independently without interference with each other.
• The thickened gold immersion technology is adopted to make the contact more reliable, the transmission more stable, and the phenomenon of packet loss and distortion is not prone to occur, and it can easily achieve ten thousand plugs and unplugs.
• The PCI express usb 3.0 expansion card adopts NEC main control chip, to reach USB 3.0 Max 5Gbps transmission speed, 2 USB 3.0 port can work at the same time.
• WIN10 system is plug and play, no driver installation is required. If it is not available, please contact us. Win 7/8/XP/Vista need to install the driver. Applicable to PCI-E X4, X8, X16, not applicable to PCI-E X1 and PCI.

Description: PCI Express USB 3.0 2 Ports Front Panel with 4-Pin & 20 Pin Control Card Adapter Compliant with USB 3.0 specification Revision 1.0 Up to 5Gbps transferring speed Supports Windows Xp/Server 2003/Vista.Server 2008/Windows 7 8 10 Built in 4-pin molex power for better support on power hungry bus-powered devices USB 3.0 is backwards compatible with USB 1.0/1.1/2.0 devices Ideal connection for hard disk drives, digital cameras, scanners, printers, external CD/DVD/Blu-ray writers, flash memory drives and etc. 4-pin molex power Super-speed 5Gbps transfer rate Interface: 3.0 USB Fully Plug-N-Play and Hot Swap compatible Supports Windows XP/Server 2003/Vista/Server 2008/Windows 7 8 10 PCB Size:(L*W) 6.80*6.50cm/2.68"*2.56" (Approx.) Package Included: 1x PCI-Express 2 Ports USB 3.0 Controller Card Adapter
