Multi gauge track tester, DCC, DC, AC, DC reverse N,OO-HO, TT

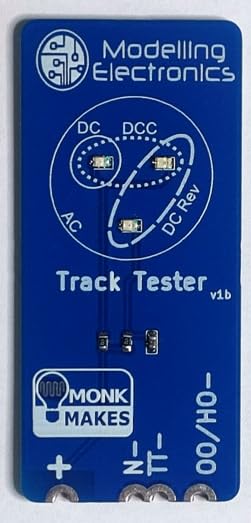

• The ME Track Tester is a basic track tester that uses three LEDs to indicate the status of the track. The tester is suitable for gauges N to OO/HO.
• Hold the tester firmly onto the rails being tested, with the + connection to the right-hand rail (facing forward). The other rail should meet one of the marked connectors indicating the gauge. Which combinations of LEDs light up will tell you the kind of layout.
• DC, AC (non DCC) or if the track is DCC.
• The polarity of a DC track, so you know + is on the correct rail.

Product description Track Tester 301-063 – Instructions The ME Track Tester is a basic track tester that uses three LEDs to indicate the status of the track. The tester is suitable for gauges N to OO/HO. The tester will tell you: Whether the track is DC, AC (non DCC) or if the track is DCC. The polarity of a DC track, so you know + is on the correct rail. The gauge of the rail. General Use Hold the tester firmly onto the rails being tested, with the + connection to the right-hand rail (facing forward). The other rail should meet one of the marked connectors indicating the gauge. Which combinations of LEDs light up will tell you the kind of layout. Green LED Red LED Orange LED Meaning On Off Off DC layout, Correct polarity Off On On DC layout, reversed polarity On On On AC layout (50/60Hz low frequency) On On Off DCC layout (High frequency AC) Safety Warning no warnings
