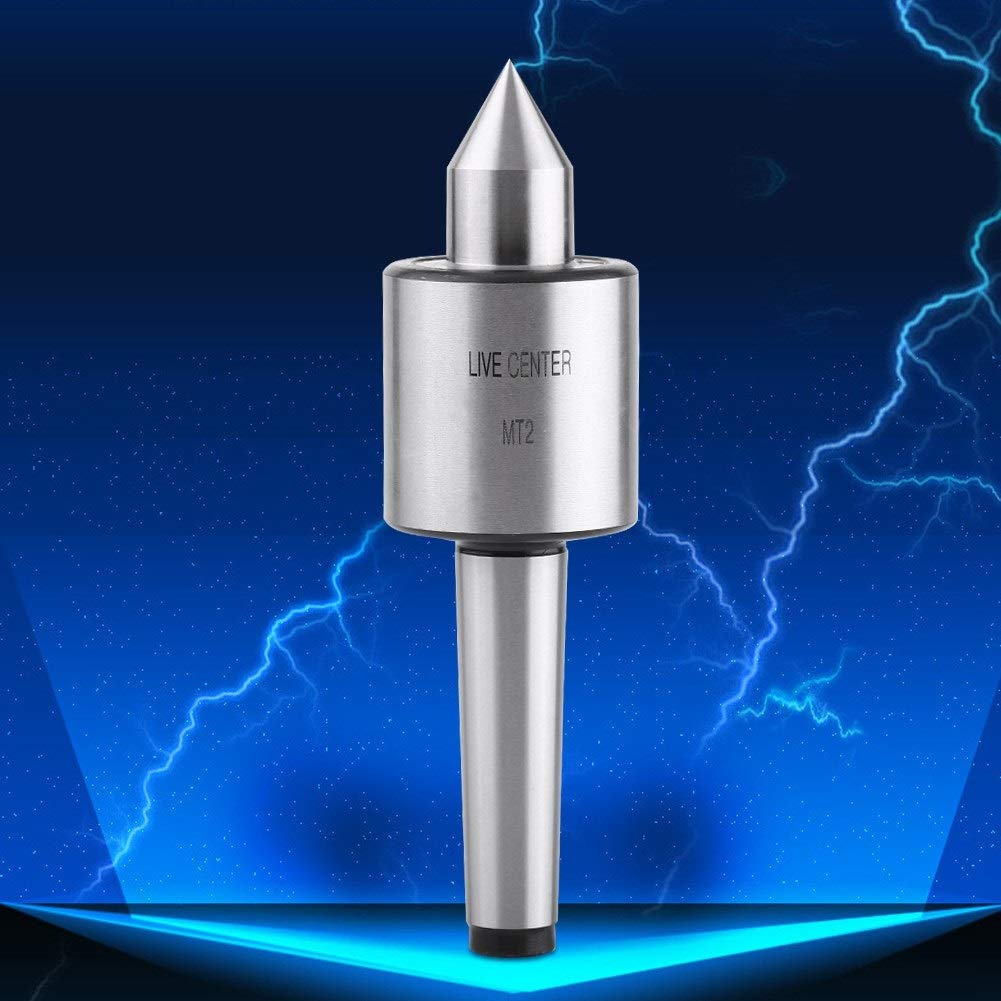

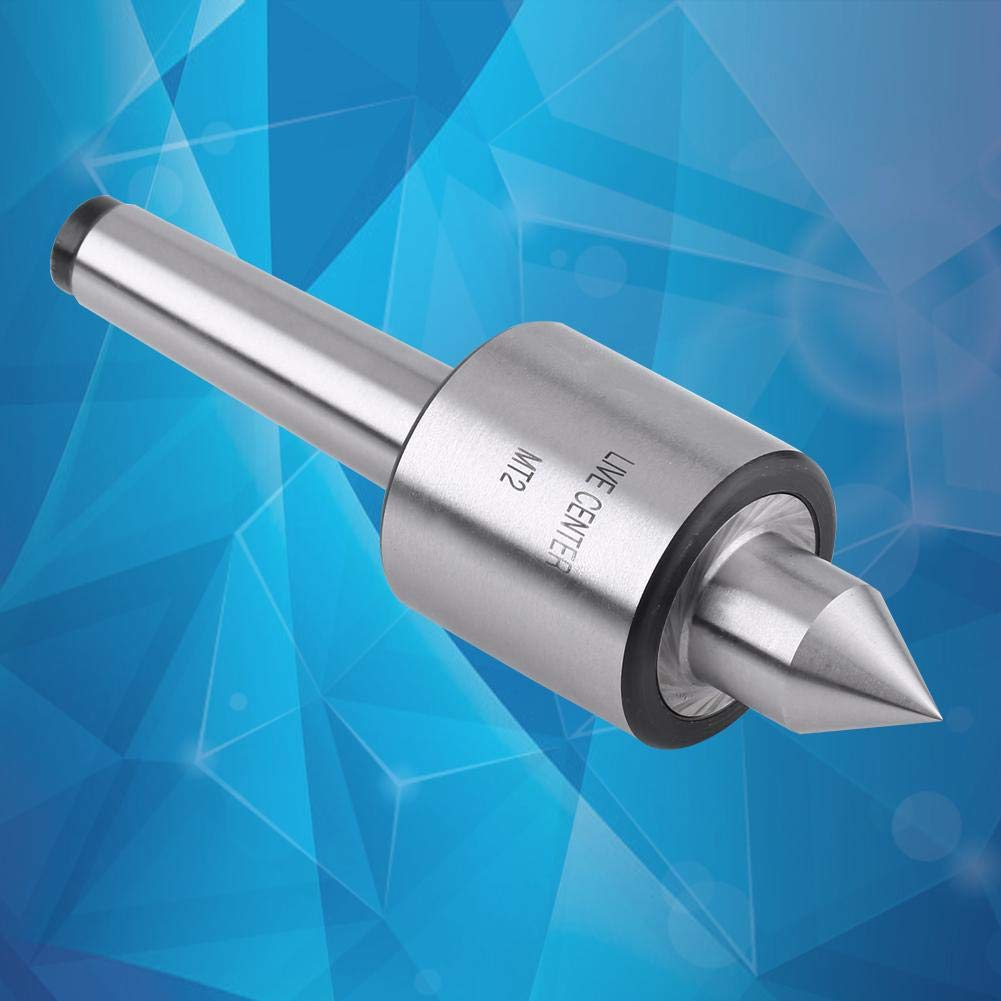

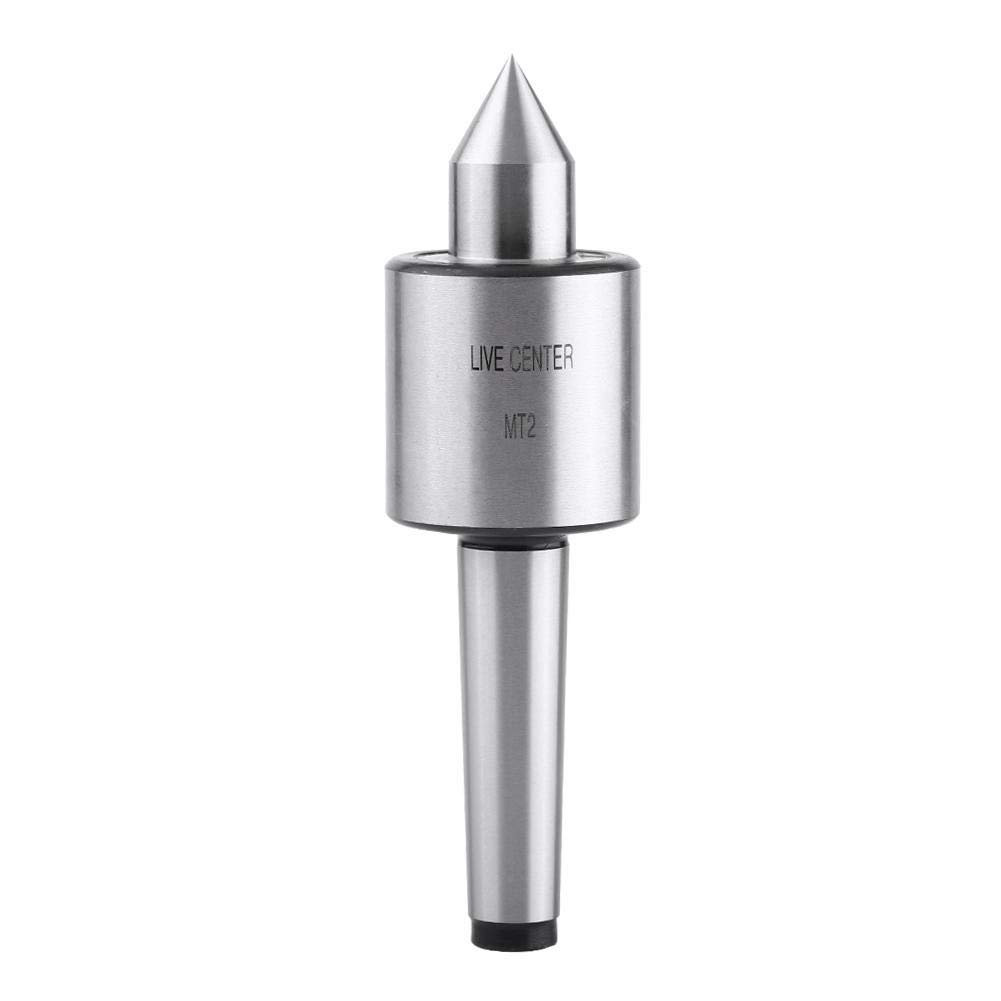

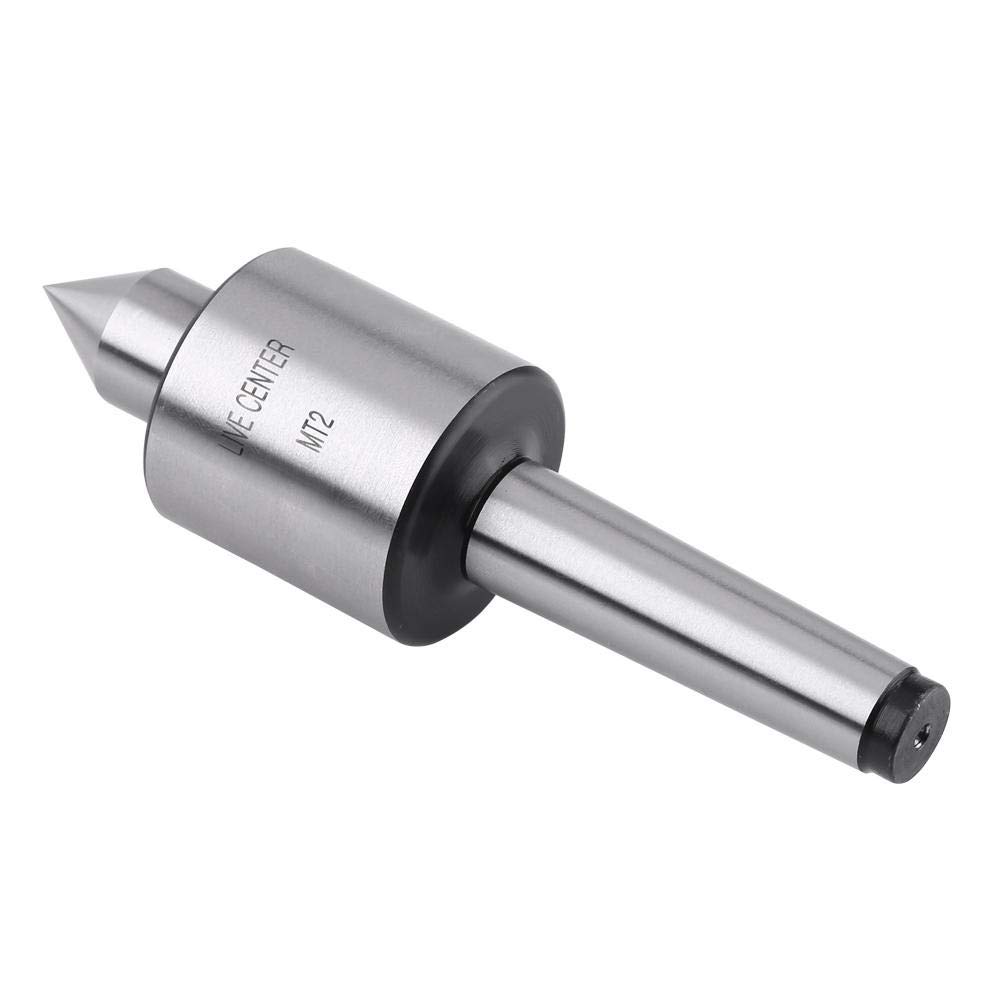

MT2 Live Revolving Center, Rotary Milling Center Taper Turning Tools Parts for Lathe Tailstock Machine Engine

• 【High Quality Bearing Design】A lathe center is a tool that has been ground to a point to accurately position a workpiece on an axis.The lathe tools using high speed bearing for high accuracy, designed for lathe in medium speed and medium load environment.
• 【High Quality Bearing Design】A lathe center is a tool that has been ground to a point to accurately position a workpiece on an axis.The lathe tools using high speed bearing for high accuracy, designed for lathe in medium speed and medium load environment.
• 【High Practicality】A part may be turned in a lathe, sent off for hardening and tempering and then ground between centers in a cylindrical grinder. Well balanced and smooth for effective turning. Ideal to support your work at the tailstock end of your lathe.
• 【Durable In Use】A rolling center is also used to support longer workpieces where the cutting forces would deflect the work excessively, reducing the finish and accuracy of the workpiece.

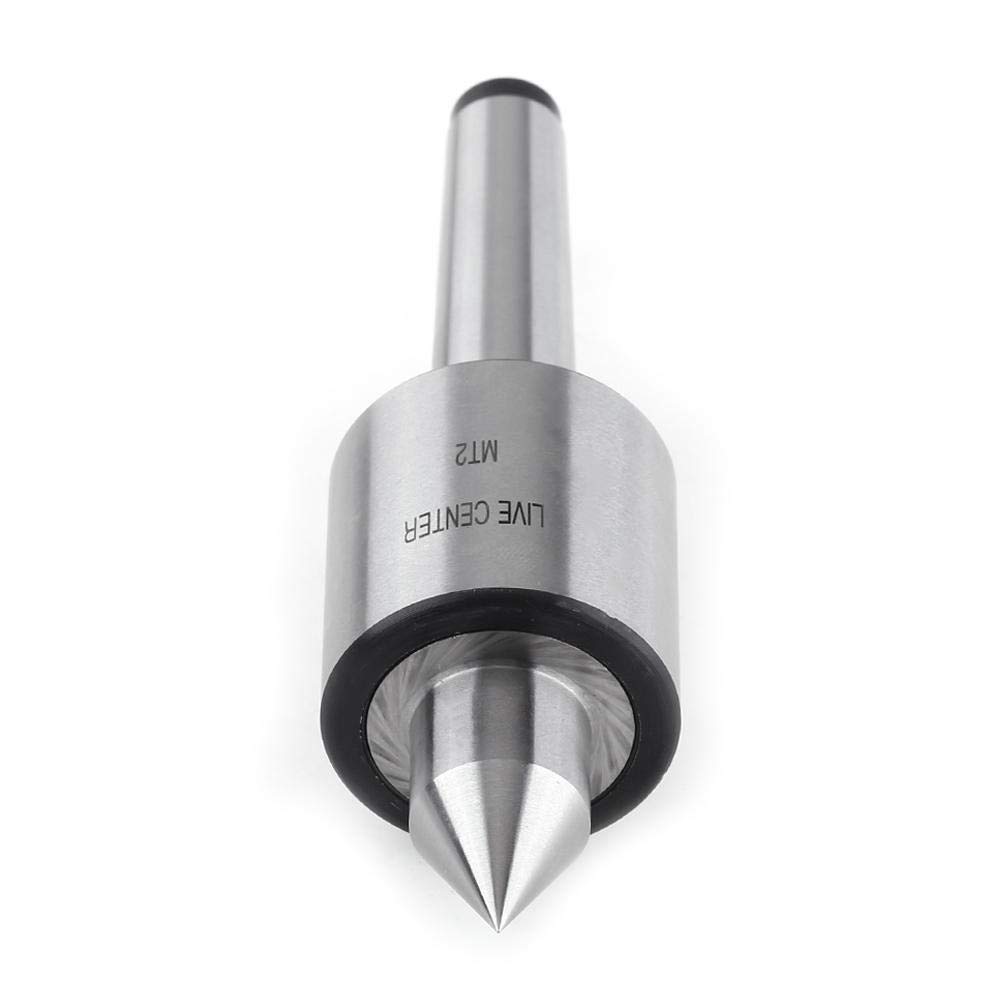

• 【High Quality】Conical part is made from T10 steel, quenching hardness 55 to 60 HRC, the main body part is made from 40Cr steel, quenching hardness 45 to 50 HRC. Dust proof seal preventing cutting dust enter into bearing thus prolong service time.

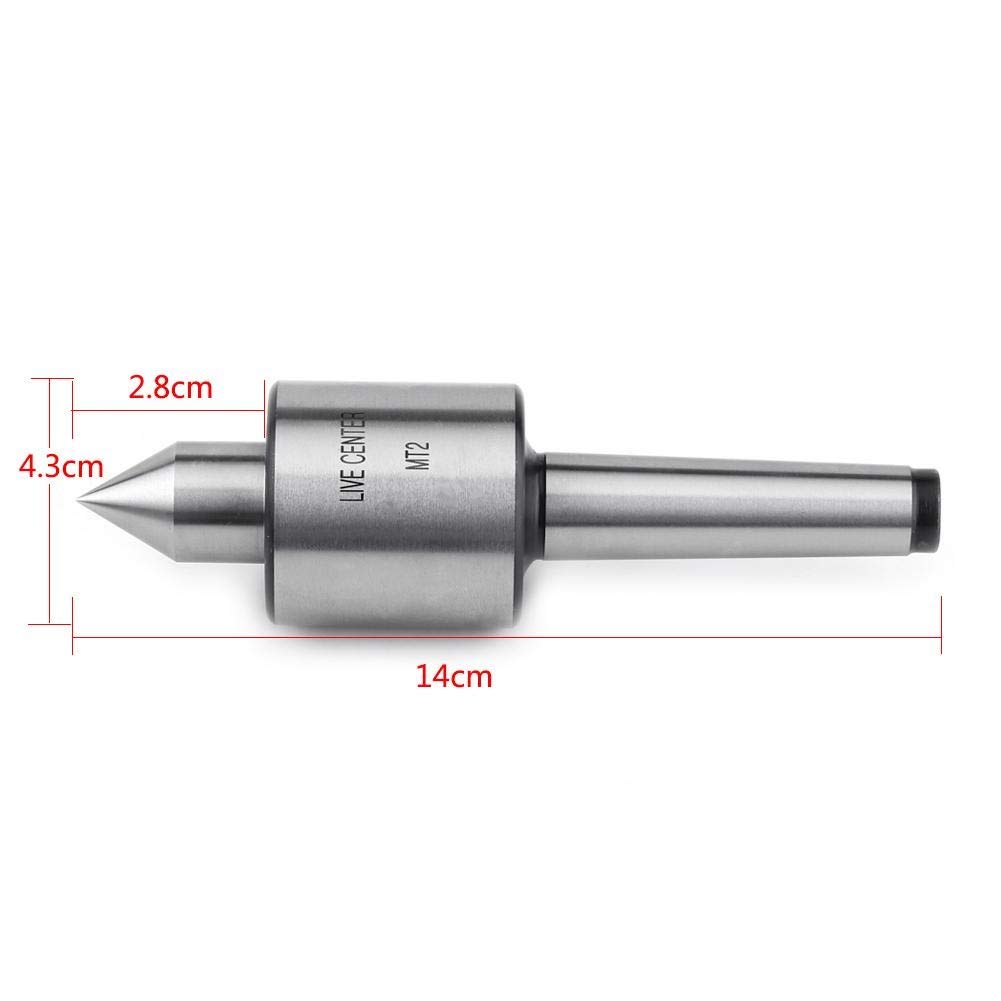

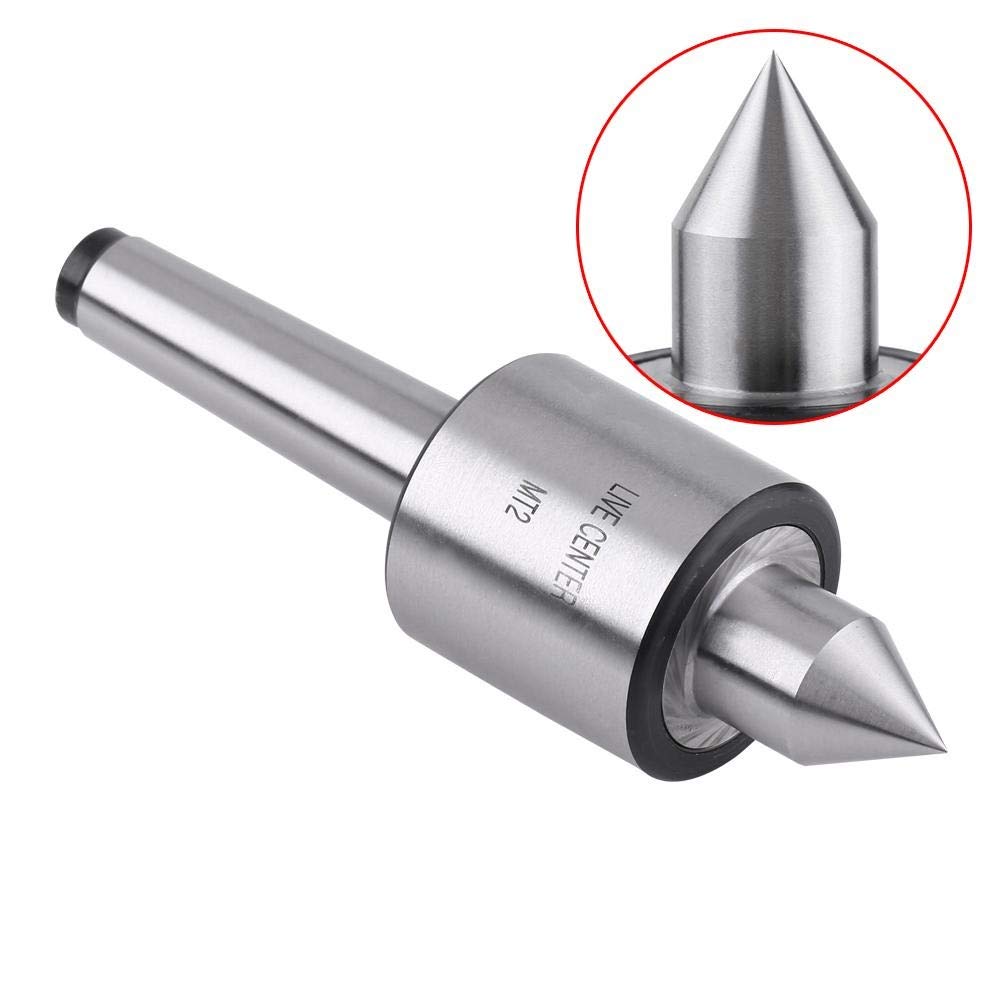

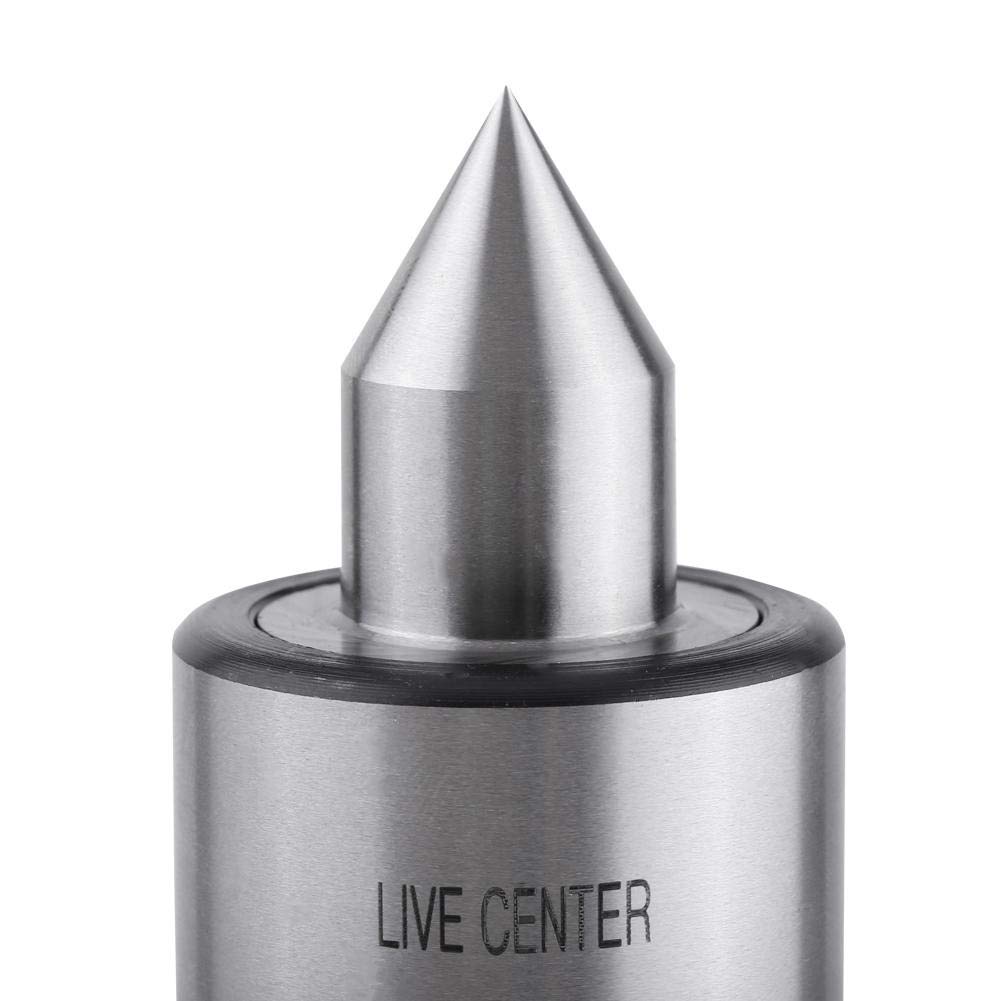

Description: A turning center is a tool that has been sharpened to the point in order to accurately position a workpiece on an axis. It has an included angle of 60°. The main use of a center is to ensure the concentricity of the work, which allows the workpiece to be transferred between machining operations without loss of accuracy. A workpiece can be rotated in a lathe, sent to be quenched and tempered, and then ground between tips in a cylindrical grinder. A tip is also used to support longer workpieces where cutting forces would excessively deflect the workpiece, reducing the workpiece finish and accuracy. Features: The tapered part is T10 steel, with quenching hardness of 55-60HRC, the main part is 40Cr steel, with quenching hardness of 45-50HRC. Bearing design, using high speed bearing for high precision. Dust seal prevents cutting dust from entering the bearing, extending service life. Designed for medium speed and medium load laps. Well balanced and smooth for efficient shooting. Ideal for supporting your work at the end of the moving doll of your tower. Specifications: Type: MT2 Material: tool steel (T10, 40Cr) Accuracy: 0.01 Angle: 60° Weight: 557g (approx.) Package includes: 1 x MT2 rotating centre. Note: 1. Please allow 1-3 mm error due to manual measurement. Thank you for your understanding. 2. Due to differences in monitor settings, the picture may not reflect the actual colour of the item. Please refer to the actual item as standard.
