MRI-24TR/INV NPN PNP Signal Converter PLC Sensor IO Level Conversion Module PNP Signal Converter PLC Sensor Polarity IO Level Conversion Module

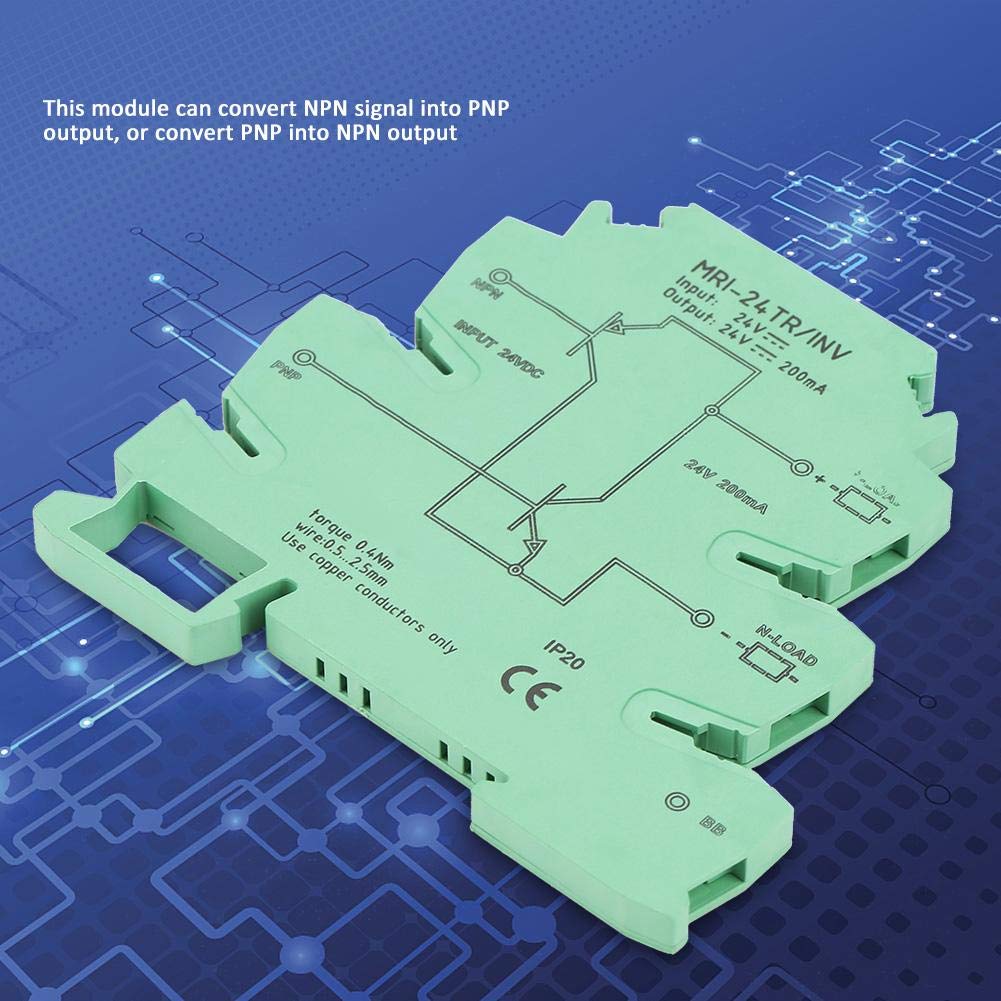

• ✅【Good Practicality】This NPN PNP converter module can convert NPN into PNP output, or convert PNP into NPN output.

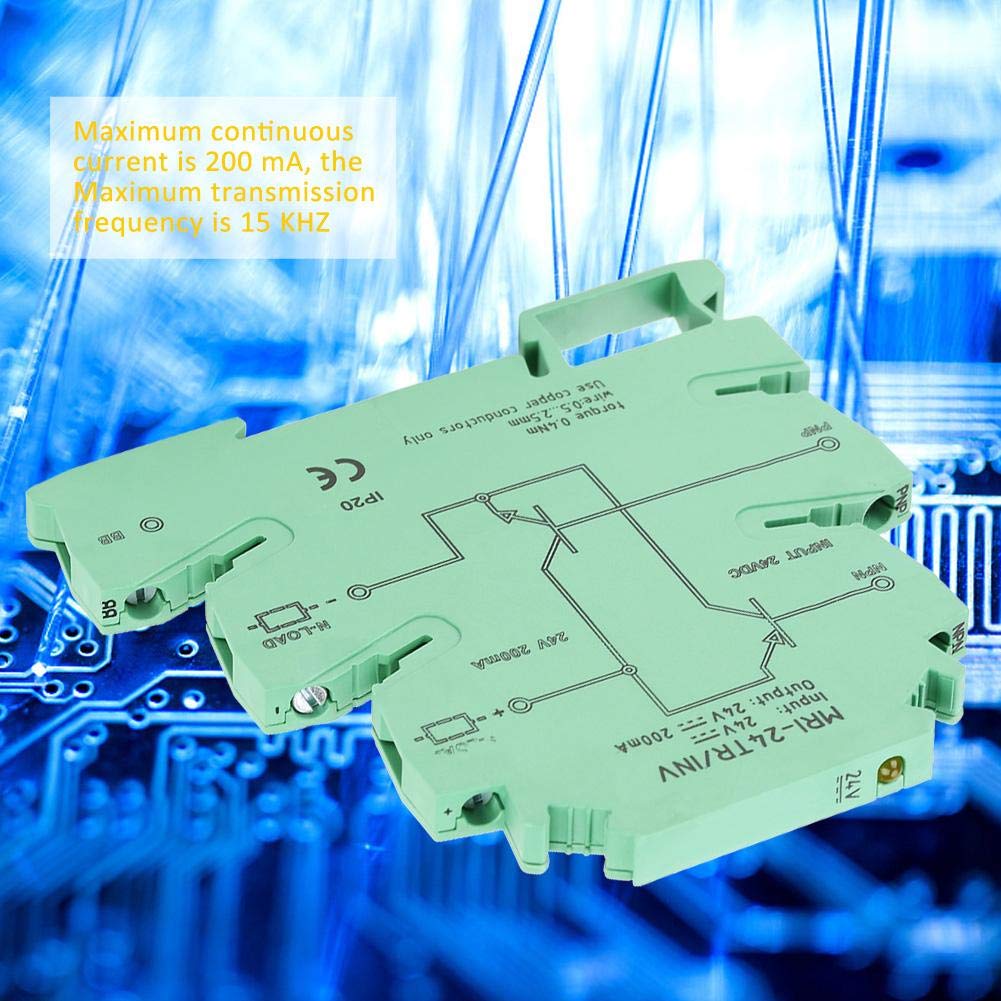

• ✅【Features】Maximum continuous current is 200 mA, the Maximum transmission frequency is 15 KHZ. Please choose to buy according to actual needs.
• ✅【Professional Design】The width is only 6.2mm,which saves 60% of installation space. You can buy and use with confidence.
• ✅【Convenient to Use】Plug-in bridging type.Convenient DIN rail installation. Can be used as a non-contact switch. Bring you a comfortable and convenient experience.
• ✅【Service Guarantee】If you have any question or any unsatisfactory about the converter relay, you can contact our customer service at any time, our team will response you in 24 hours.

Specification: Operating voltage: 20-30 VDC maximum . sustained current: 200 mA Voltage drop: <1 v Leakage current: <1 mA Transmission frequency: maximum .15 KHZ NPN Input /PNP output Connect threshold: <5 v (UV = 24 v; <(UV - 19 v)) Disconnect threshold: > 15 v (UV = 24 v; > (UV - 9 v)) Min. limit value: - 2 v maximum . Limit value: 26 v (UV = 24 v; UV + 2 v) Control circuit Connect threshold: > 19 v Disconnect threshold: <9 v Min. limit value: - 2 v maximum . Limit value: 26 v (UV = 24 v; UV + 2 v) Working environment temperature: - 20 ~ 50℃ Connection: screw Connection Size: 81*6.2*78mm/3.2*0.2*3.1in Weight: Approx.31g/1.1oz Package list: 1 x NPN PNP signal converter
