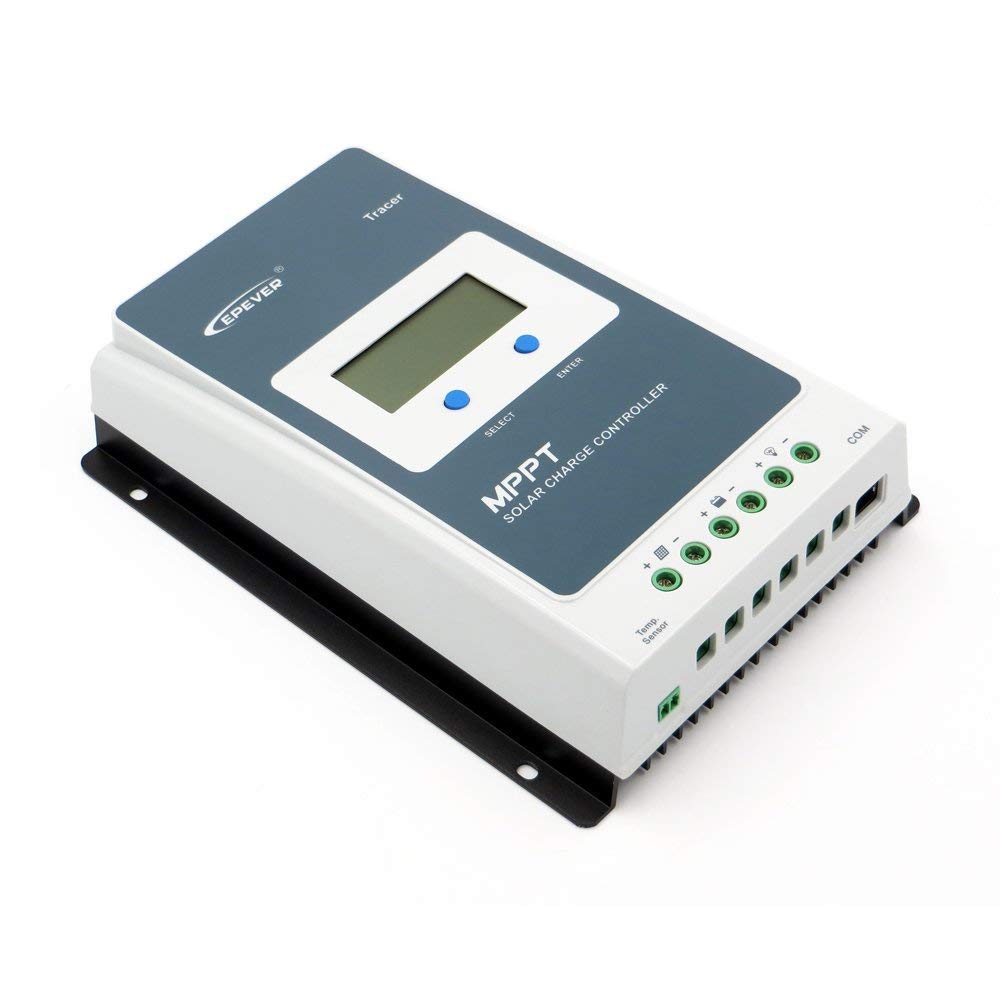

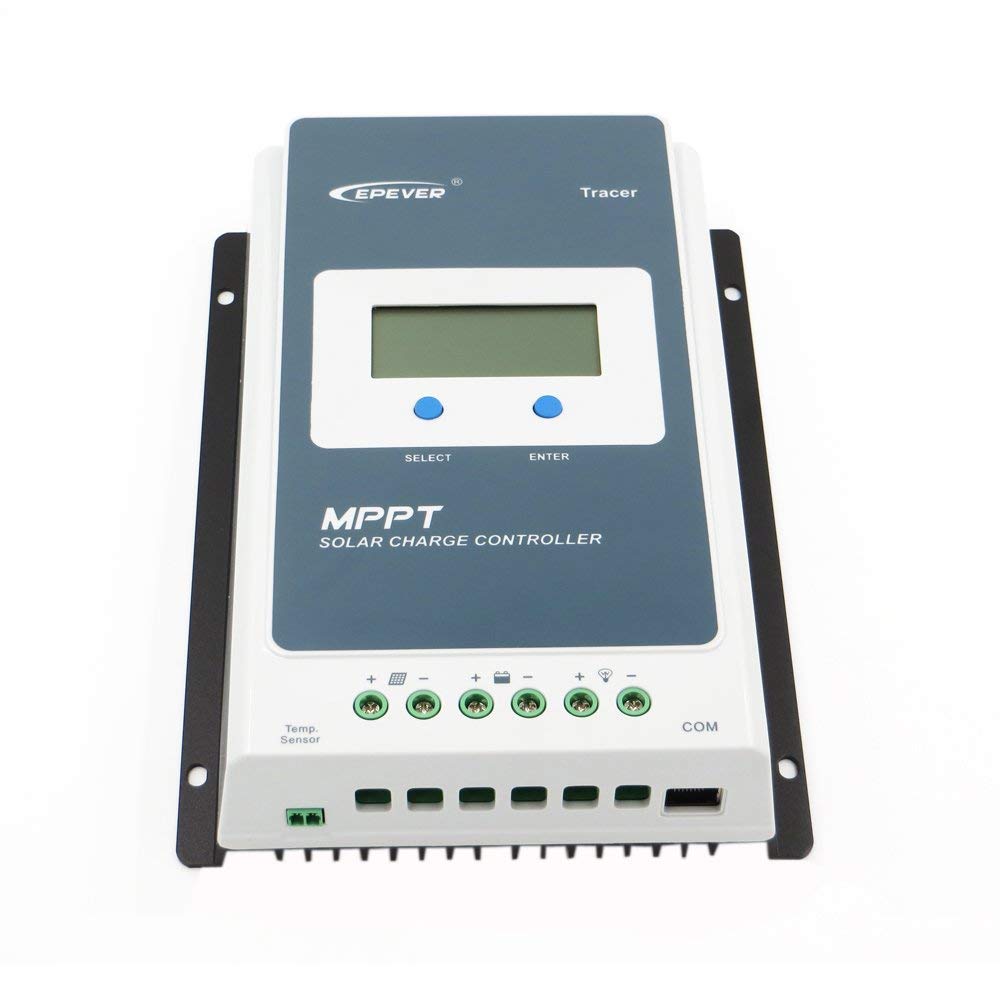

EPEVER MPPT 20A Solar Charge Controller 12V 24V Auto, 20 amp Solar Charge Regulator for Lead-Acid Lithium Batteries and Load Timer Setting (2210AN+RTS+150U)

• Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.

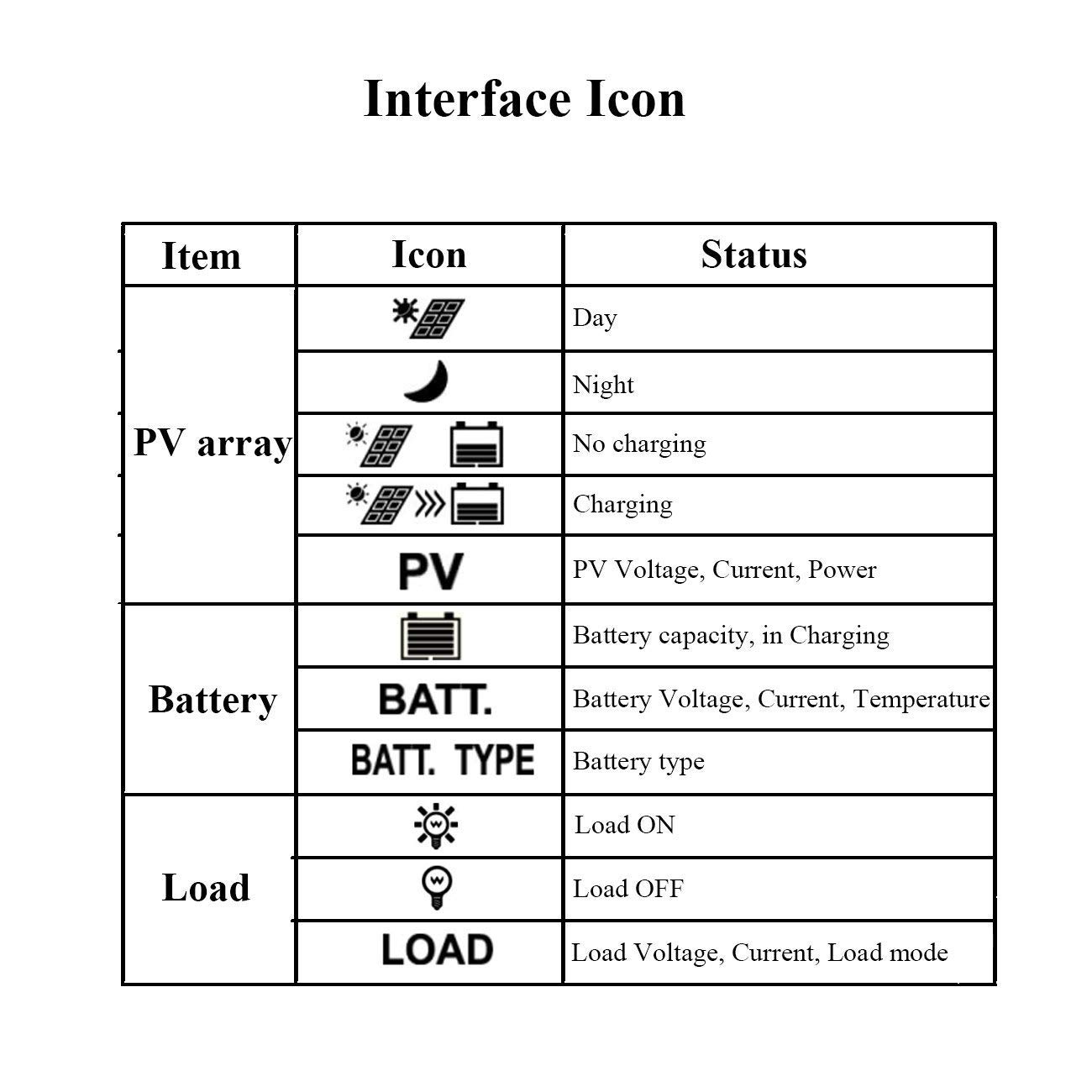

• LCD panel display design, dynamically displaying tool's operating data and working condition.
• Multuple load control modes: manual mode, light ON/OFF, light On+Timer and test mode.
• RS485 port with industrial standard MODBUS open architecture .
• Fully programmable function via PC software or remote meter MT50(Not included,Included the Temperature Sensor and Communication Cable).

EPSOLAR MPPT Solar Charge Controller,Tracer2210A. 20A,12V/24VDC AUTO, Max 100V PV Input,with LCD display. Battery : Sealed, Gel, Flooded. With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, including overcharging and over discharging protection to minimize damages to components of the system caused by incorrect installation or system failure at the utmost, and effectively ensure safer and more reliable operation of the solar power supply system for a longer service time. This modular solar controller can be widely used for different applications. Features£º Advanced MPPT technology, with efficiency no less than 99.5% Ultra-fast tracking speed and guaranteed tracking efficiency Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time Wide MPP operating voltage range High quality components, perfecting system performance, with maximum conversion efficiency of 98% Accurate recognition and tracking of multiple-peaks maximum power point International famous brands of ST and IR's components of high quality and low failure rate are used, which can ensure the product¡¯s service life Battery temperature compensation function£¨only for Lead-acid battery£ Real-time energy statistics function Multiple load work modes The communication port adopts professional protection chip With RS-485 communication bus interface and Modbus communication protocol. Monitor and set the parameters via mobile phone APP or PC software Full-load operation without any drop in capacity within the range of working environment temperature Extensive electronic protection Package Content: 1*MPPT Solar Charge Control
