Mophorn Air Hydraulic Pump 10000 PSI 1/2 Gal Reservoir Hydraulic Foot Pump Air Treadle Foot Actuated Hydraulic Pump 103 in 3Cap

• Premium Quality & Parameters: The shell and pump core of this air hydraulic foot pump is made of high-quality material for rust resistance. Baked Powder TUFF COAT finish maximizes assembly non-corrosion. This hydraulic pump's maximum output hydraulic pressure is 10,000 PSI with 0.85 liters/0.22 gallons per minute flow and 120 PSI Max Input Air Pressure.

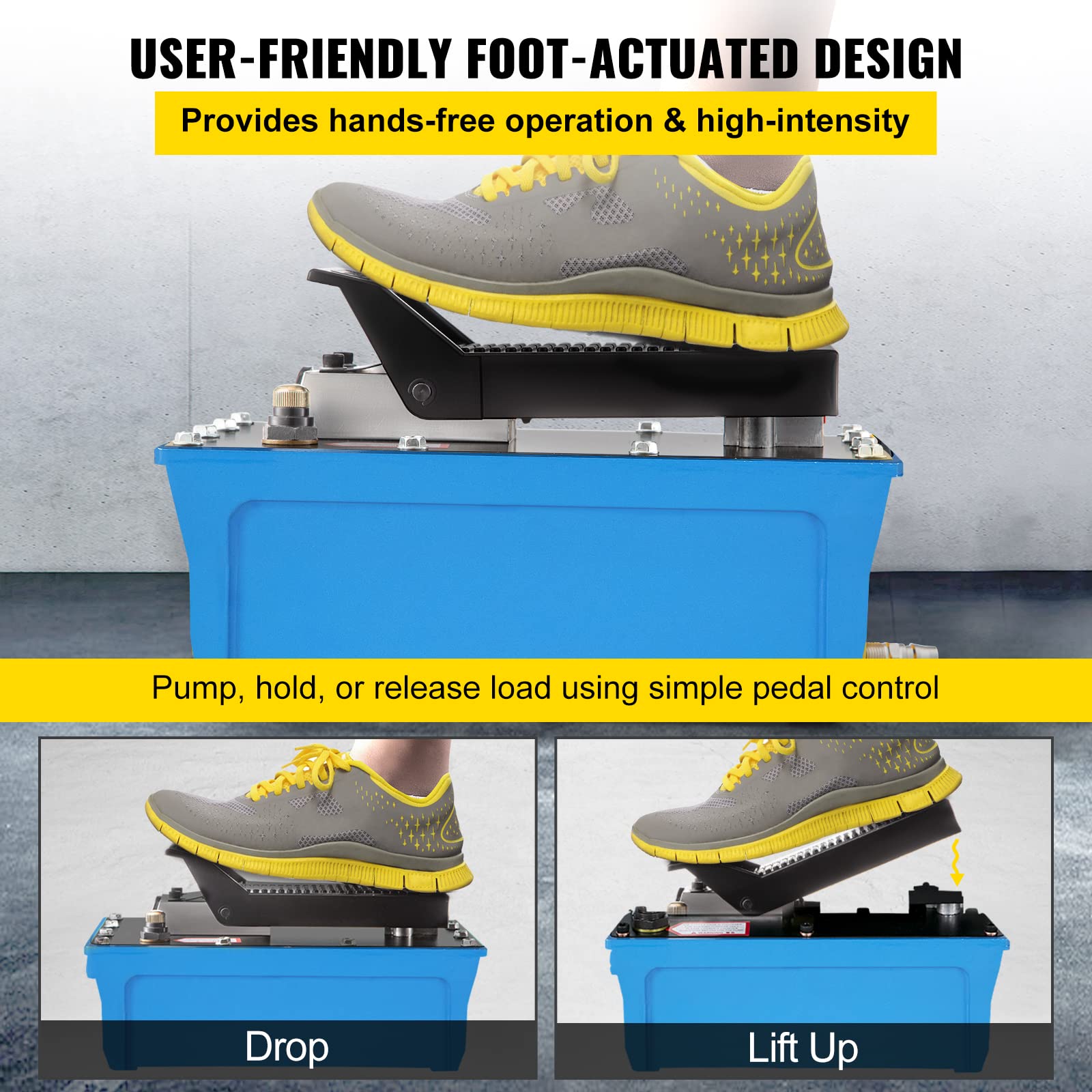

• Foot-actuated Design: This air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation, which is able to save the operator's time and effort with strong power and high output pressure. It is easier to use simple pedal control to pump, hold, or release the load.

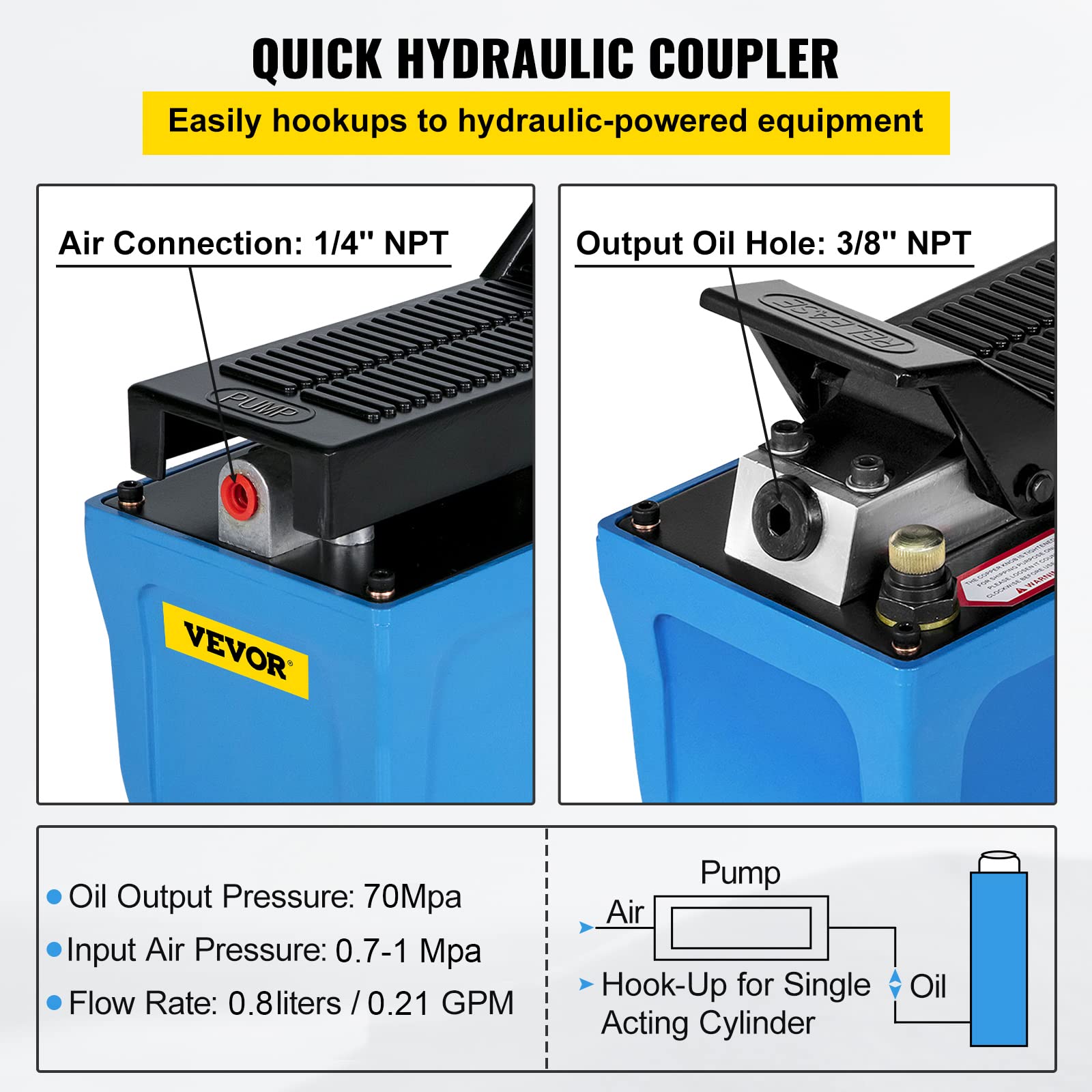

• Standard Connector Type: The pump features a 3/8" NPT connector quick hydraulic coupler with dust cap and the cast steel oil port, which will not leak oil easily and is abrasion-proof. Air Connection: 1/4" Female NPT; Oil Capacity: 103 in³ (1.7 liters / 1700 cc), 0.45 gallons.

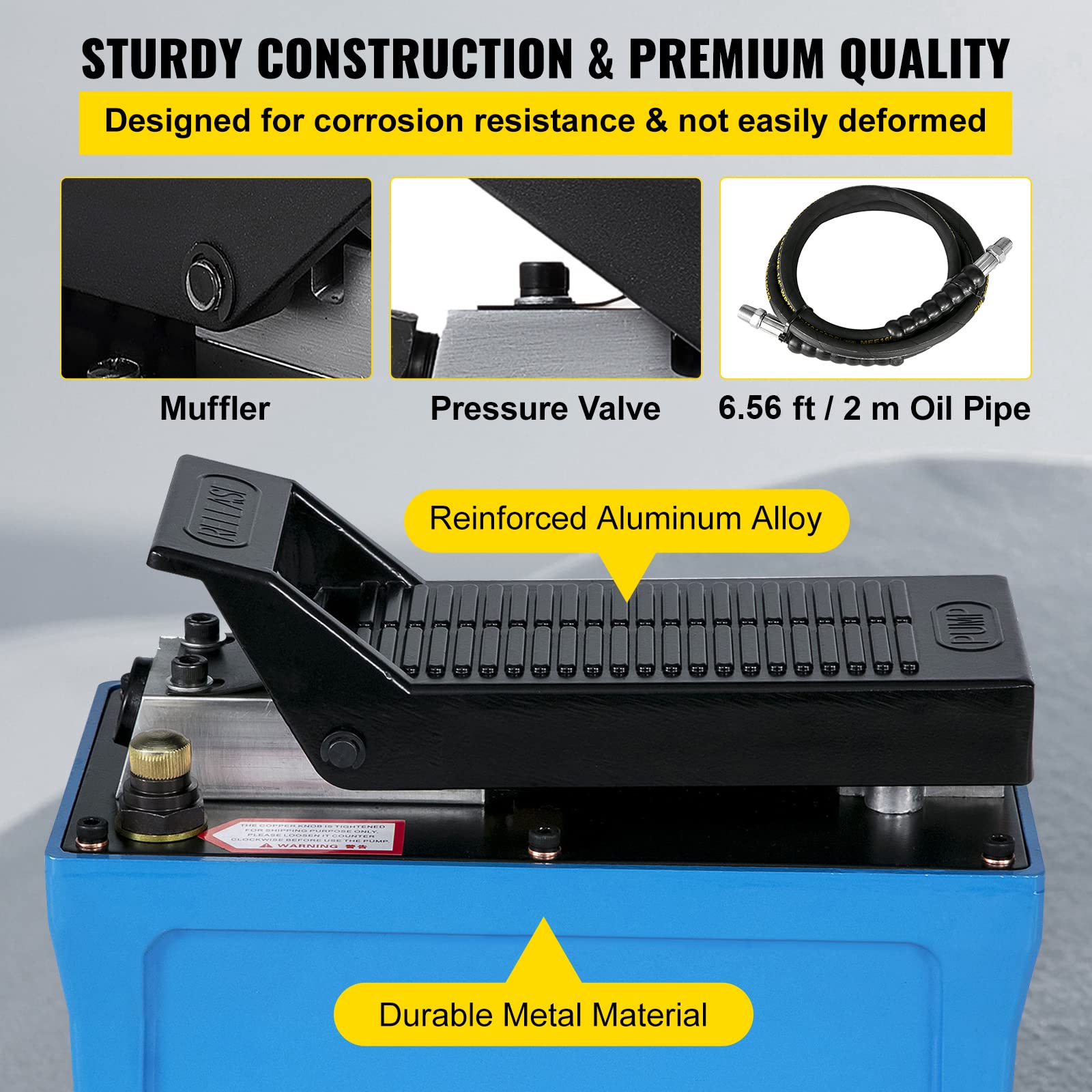

• Durable Oil Pipeline: Durable Oil PipelineThis hydraulic ram pump is equipped with a high-pressure oil pipe that applies double protection of embedded steel wires and a thickened outer layer. The oil port is made of cast steel to resist oxidation, compression, and deformation, no worry about the oil leak.

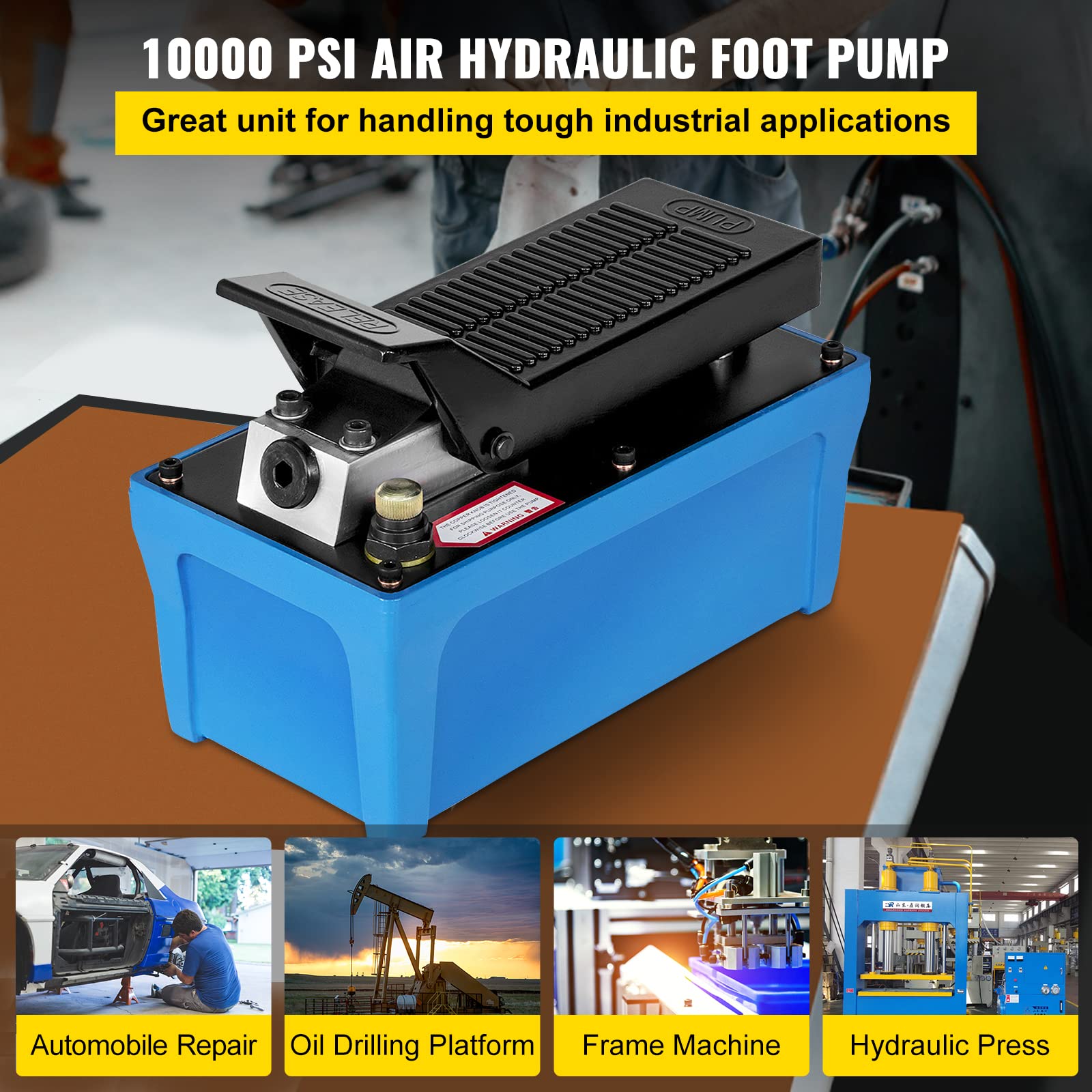

• Extensive Use: This hydraulic foot pump is designed for various plungers, presses, and hydraulic pullers. It is ideal for massive machinery rigging and moving, auto repair, automobile manufacturing, oil rigging, machine maintenance, and single-acting cylinders.

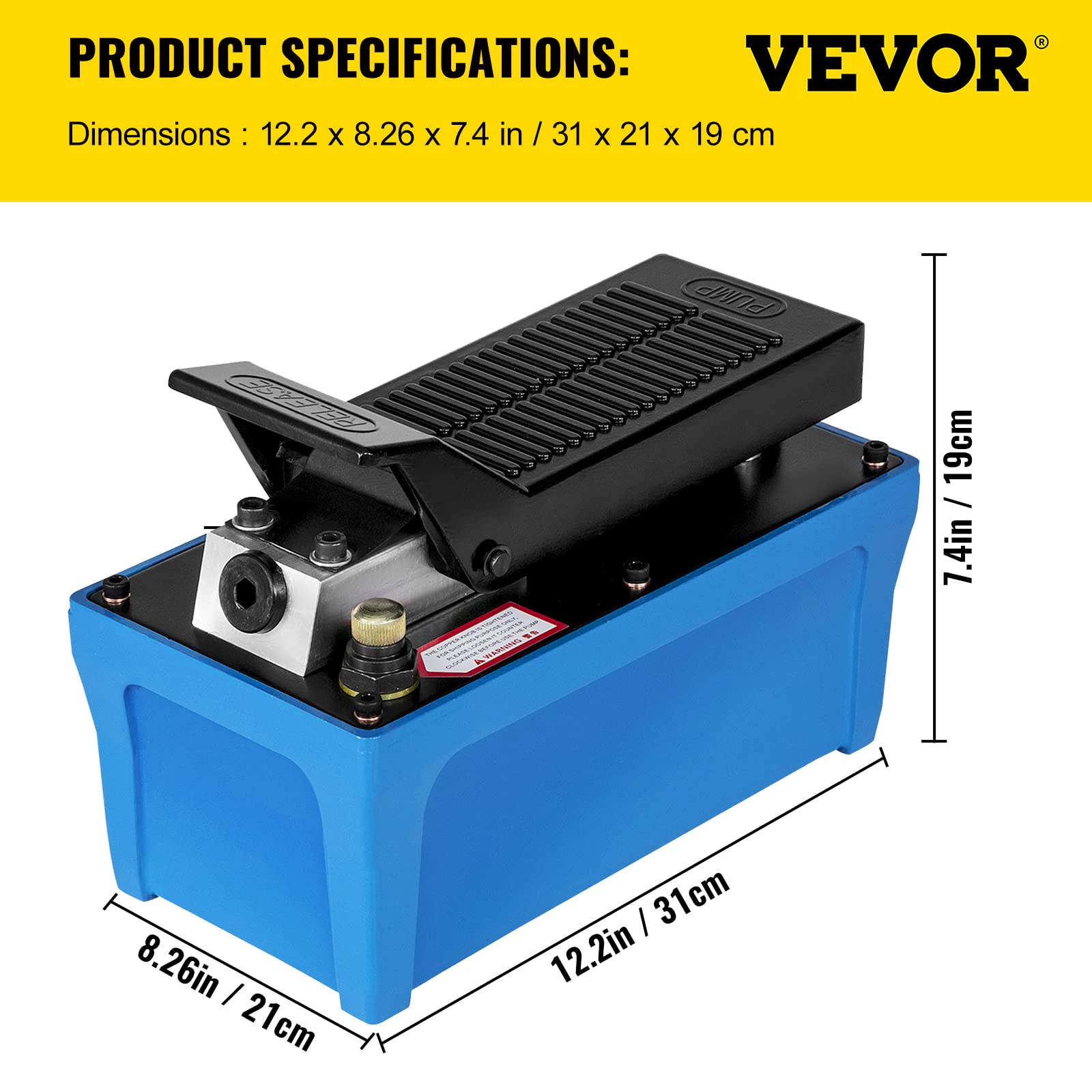

Air Hydraulic Foot Pump This machine is made of rugged construction parts are built for long life and easy service. Baked Powder TUFF COAT finish maximizes assembly corrosion resistance and 5ft with 3/8 NPT quick hydraulic coupler with dust cap. key Features All Metal Construction This hydraulic foot pump is built to handle tough industrial applications with all metal construction. Foot Control Foot pedal pump release pressure to return fluid. It can release and remove foot as release / return takes effect by release lock plate. Standard 3/8 NPT All threads on all components in set are standard 3/8 NPT with dust cap. Built-In Security 3/8 NPT oil output, safely builds to 10,000 pounds and has a built in safety overload pump saver. Long Lasting Seal Designed to absorb the high pressure from pump with a Teflon back up for long lasting seal performance. Specifications Action: Single acting Control: Foot pedal pump - Release pressure to return fluid Includes Hydraulic Hose: 5 ft with 3/8 NPT - Quick hydraulic coupler with dust cap Flow Rate: 0.85 liters (0.22 gallons) per minute Air Connection: 1/4" Female NPT Hydraulic Oil Type: AW-46 Oil Capacity: 103 in³ (1.7 liters / 1700 cc), 0.45 gallons Max Input Air Pressure: 120 PSI Max Output Hydraulic Pressure: 10,000 PSI Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap Weight: 17.72lb (8.04kg) Dimensions (L* W* H): 12.2"*8.26"* 7.4" (31*21*19cm) Package Content 1x Blue foot pump 1x High pressure oil pipe 2x Quick connector 1x Air gun connector with air pipe 1x Manual
