MONACOR SP-302PA Universal 100 Watt Rated 8 Ohm Impedance Bass Speaker - Black

• As a convincing building block for low-frequency applications, the MONACOR SP-302PA sound transmitter offers excellent sound as a woofer and can be easily installed in matching devices or speaker boxes
• The Hi-Fi chassis can also be installed in power boxes, as long as the dimensions of diameter 303 mm x 125 mm and the magnetic weight of 850 g are observed
• The audio amplifier has an output power of 8 Ω, a frequency range of f3 - 4000 Hz, a speaker sound pressure of 90 dB/W/m and a resonant frequency of 45 Hz
• Other sound indicators of the subwoofer boxes are measured with a compliance of 0.15 mm/N, a mechanical quality of 2.2, a total quality of 0.89 and a force factor of 10.50 Tm
• The audio woofers have an aluminium voice coil carrier, a voice coil inductance of 0.5 mH and a linear deflection of 2.5 mm (item number: 10.3310)

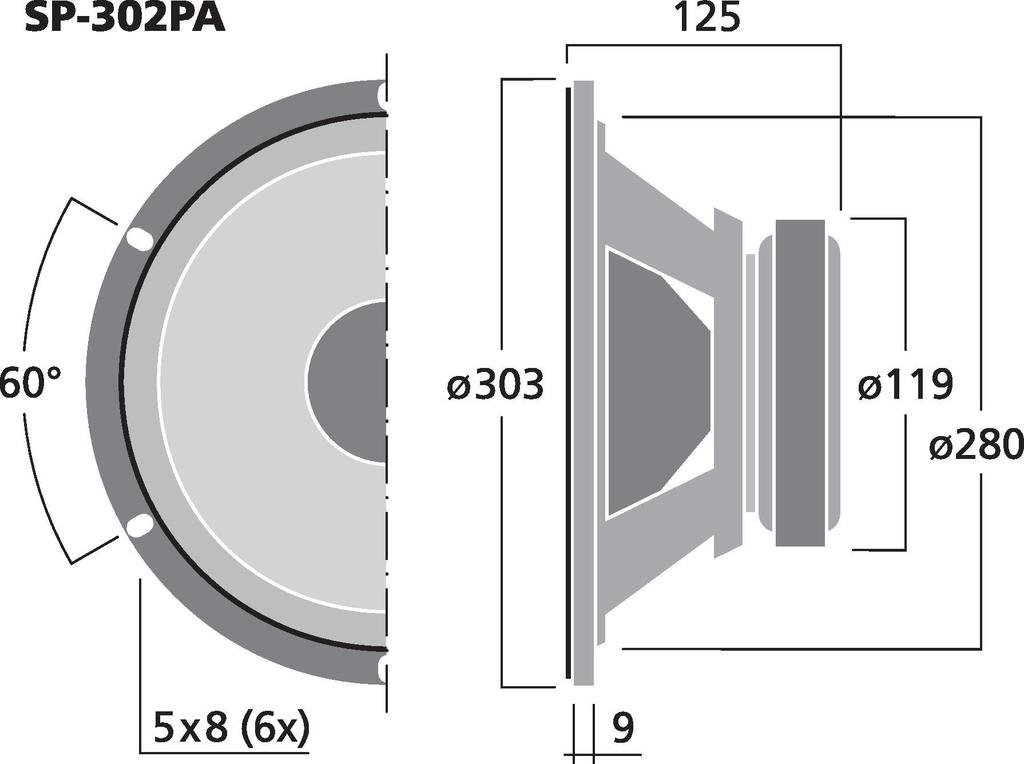

Special features of the universal woofer For low frequency applications Can be installed in power boxes. 100 watts. 12 inches. Technical data SP-302PA. Impedance (Z): 8Ω Frequency range: f3 - 4000 Hz. Resonant frequency (fs): 45 Hz. Rated power (RMS): 100 W Music power (MAX): 200 W Sound pressure: 90 dB/W/m. Compliance (Cms): 0.15mm/N Moving mass (mms): 57 g Mechanical quality (Qms): 2, 2. Electrical Grade (Qes): 1.47 Total quality (Qts): 0.89 Equivalent volume (vas): 51 L. DC Resistor. (Re): 7.7Ω Force factor (W x L): 10.50 Tm. Voice coil ind. (Le): 0.5 mH. Voice coil diameter Diameter: 38 mm. Voice coil support: aluminium. Linear deflection (XMAX): 2.5 mm. Eff. Membrane area (Sd): 542 cm². Magnet Weight: 850g Magnet diameter: 119 mm. Installation opening: diameter 280 mm. Installation depth: 116 mm. Dimensions: diameter 303 mm x 125 mm. Outer diameter: 303 mm. Width: diameter 303 mm. Depth: 125 mm. Permitted Operating temperature: 0 - 40 °C. Weight: 2.36 kg. Box contents: 1 Speaker type: 12" MONACOR In terms of quality, MONACOR International leaves nothing to chance and relies on its own strengths. We ensure maximum safety through an offensive quality policy. Tight tolerance limits as well as extensive goods controls are supported and documented by accredited test laboratories. This means for you: high standards, for all items .
