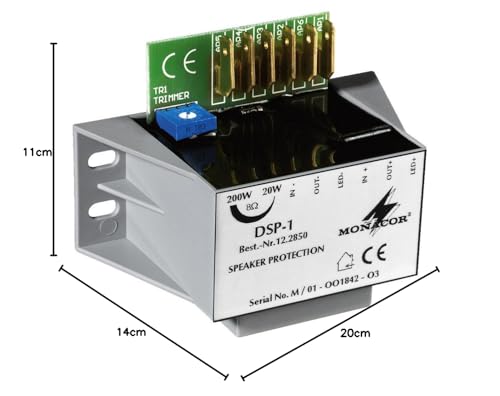

MONACOR DSP-1 Mono Speaker Protection Module, Against Overload of Middle and Tweeter Speakers. All Impedances due to Overlevel Tips

• The DSP-1 module is used to protect sensitive speakers in case of overload due to overlevel peaks
• The maximum permissible power is adjustable from 20-200 W
• The module is specially used for tweeters, but can also protect midrange or smaller multi-way speaker boxes in the entire audio range from 20 Hz to 20 kHz
• Subsequent installation in existing systems is possible without any problems

The DSP-1 module is used to protect sensitive speakers in case of overloading due to over-level tips. The maximum permissible power is adjustable. The positive line to the speaker is interrupted by a relay when the set power is exceeded. There is no impairment such as loss of power or sound affection. The module is specially used for tweeters, but can also protect midrange or smaller multi-way speaker boxes throughout the audio range from 20 Hz to 20 kHz. A subsequent installation in existing systems is possible without any problems. • Against overload of medium and tweeter speakers of all impedances due to over-level peaks. • Maximum permissible power 20-200 W adjustable. • Subsequent installation in existing systems is easily possible. • Secure LS protection for satellites and other full-range small speakers throughout the audio range of 20-20000 Hz. • Below the switching threshold, the sound quality is not affected. • After removing the power spikes, the module switches on independently
