MONACOR AIRMT-130 High-End Air-Motion Transformer Tweeter 60 W

• The main feature is a special folding of the membrane film and its harmonica-like swinging when the sound signal is applied.
• AMTs are characterised by a very dynamic sound image, excellent impulse behavior, high efficiency and low harmonic distortions
• A high-performance neodymium magnet system is equipped with
• High stability is guaranteed by an aluminium front plate

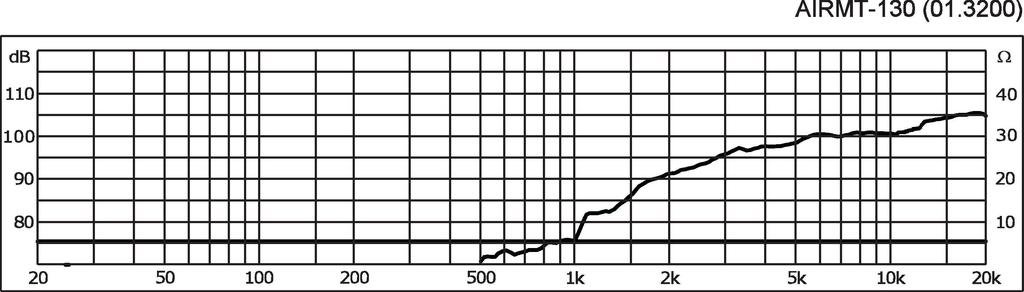

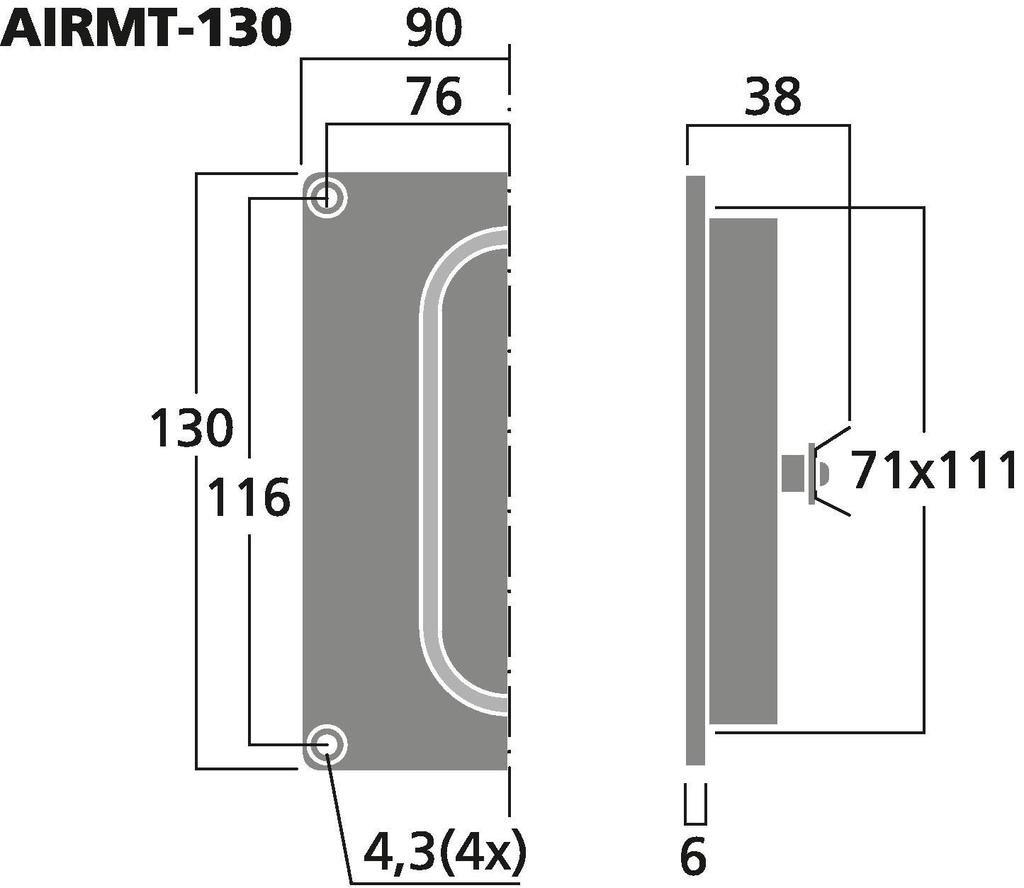

AIRMT-130 Air Motion Transformers are a special type of tweeter system developed by the German physicist Oskar Heil in his research on the characteristics of human hearing. The main feature is a special folding of the membrane film and its accordia-like swings when the sound signal is applied. Due to this folding, a very large membrane area can be accommodated in the smallest space. AMTs feature a very dynamic sound pattern, excellent pulse response, high efficiency and low harmonic distortion. Air motion transformer tweeters High performance neodymium magnet system Brilliant, dynamic and fine tweeter reproduction Folded capton and aluminum High Efficiency and high resilience Can be used from 3000 Hz Sturdy aluminium front panel Technical data:Impedance (Z): 8 ΩFrequency range: 2500-30000 HzEmpf. Separation Req. (fmax.) (12 dB/oct.): > 3000 HzRute capacity: 60 WMusical load capacity: 120 wSound pressure: 98 dB/W/mDC resistance. (Re.): 5.2 Ωmagnet diameter: neodymium bar opening: 71 x 111 mmMounting depth: 40 mmHole distance X: 76 mmHole spacing Y: 116 mmWidth: 90 mmHeight: 130 mmDepth: 38 mmZUL. Operating temperature: 0-40 °cWeight: 0.585 kGlautspekter Type: AMT
