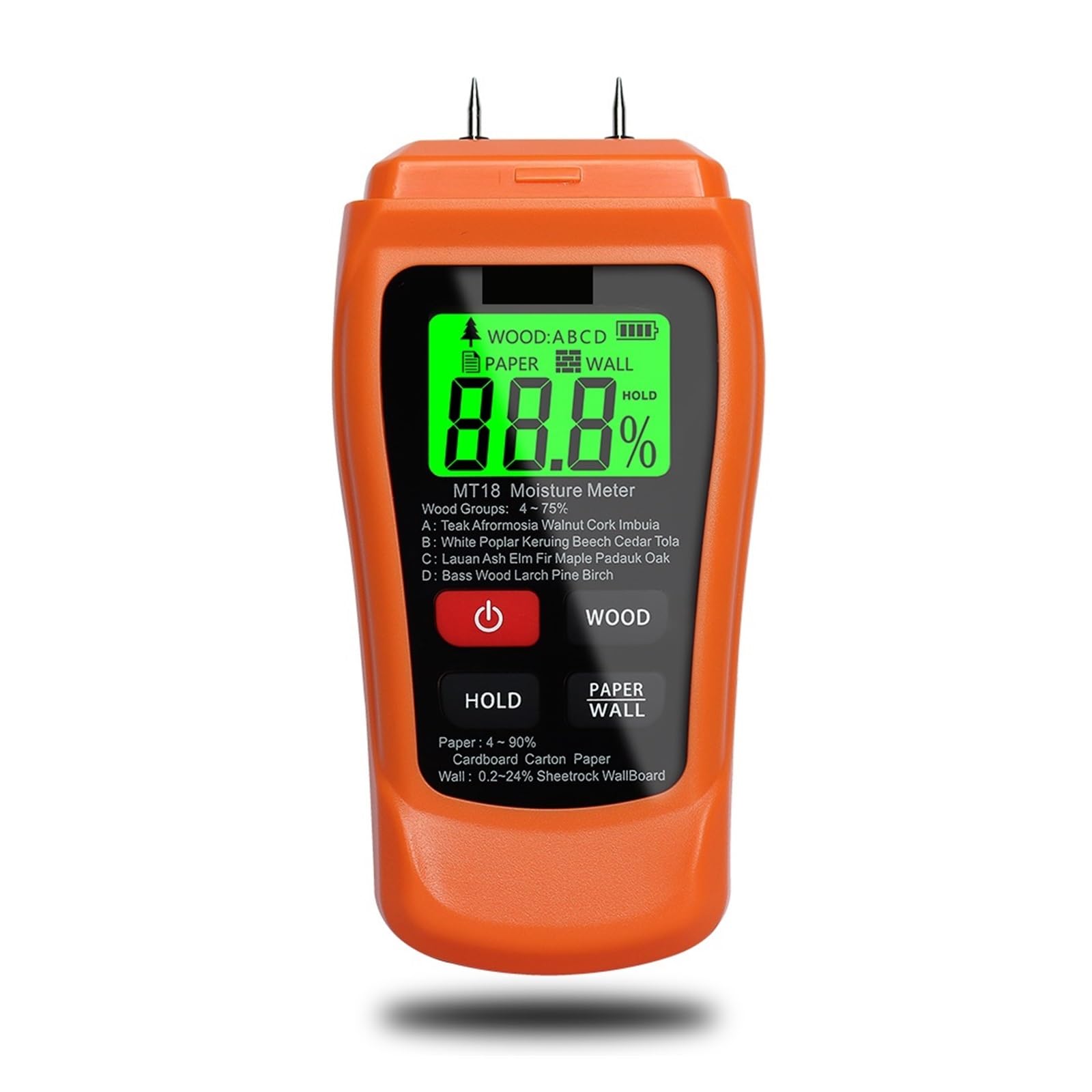

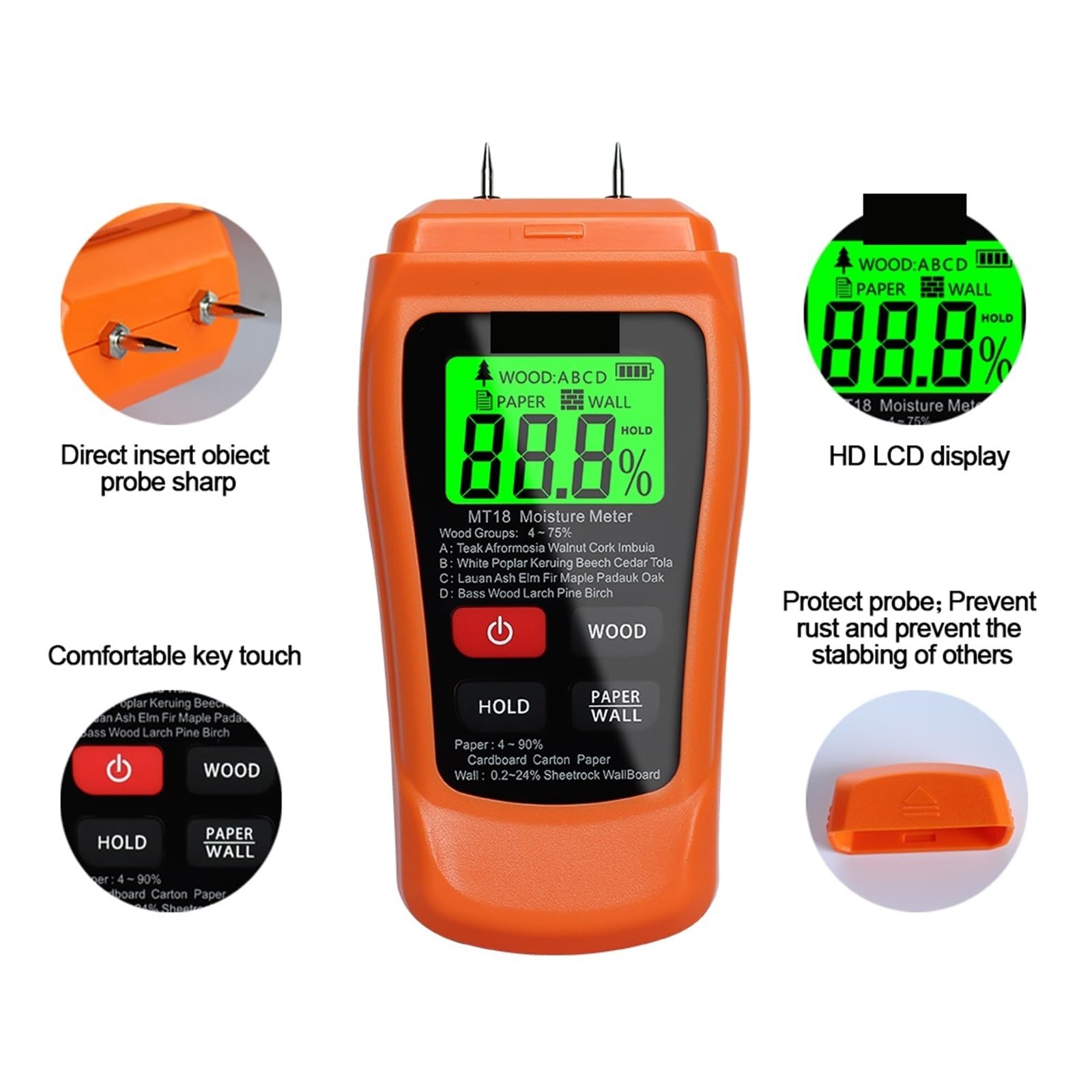

Moisture Meter MT-18 Orange 0-99.9% Two Pins Digital Wood Moisture Meter Paper Humidity Tester Wall Hygrometer Timber Damp Detector (Color : Nero, Size : D)

• Paper Range: 4~90%
• Wall Range: 0.2~24%
• Resolution: 0.1%
• This instrument will be Auto Power OFF if there is no any button pressing in 5 minutes.
• This design is for saving battery power consumption.

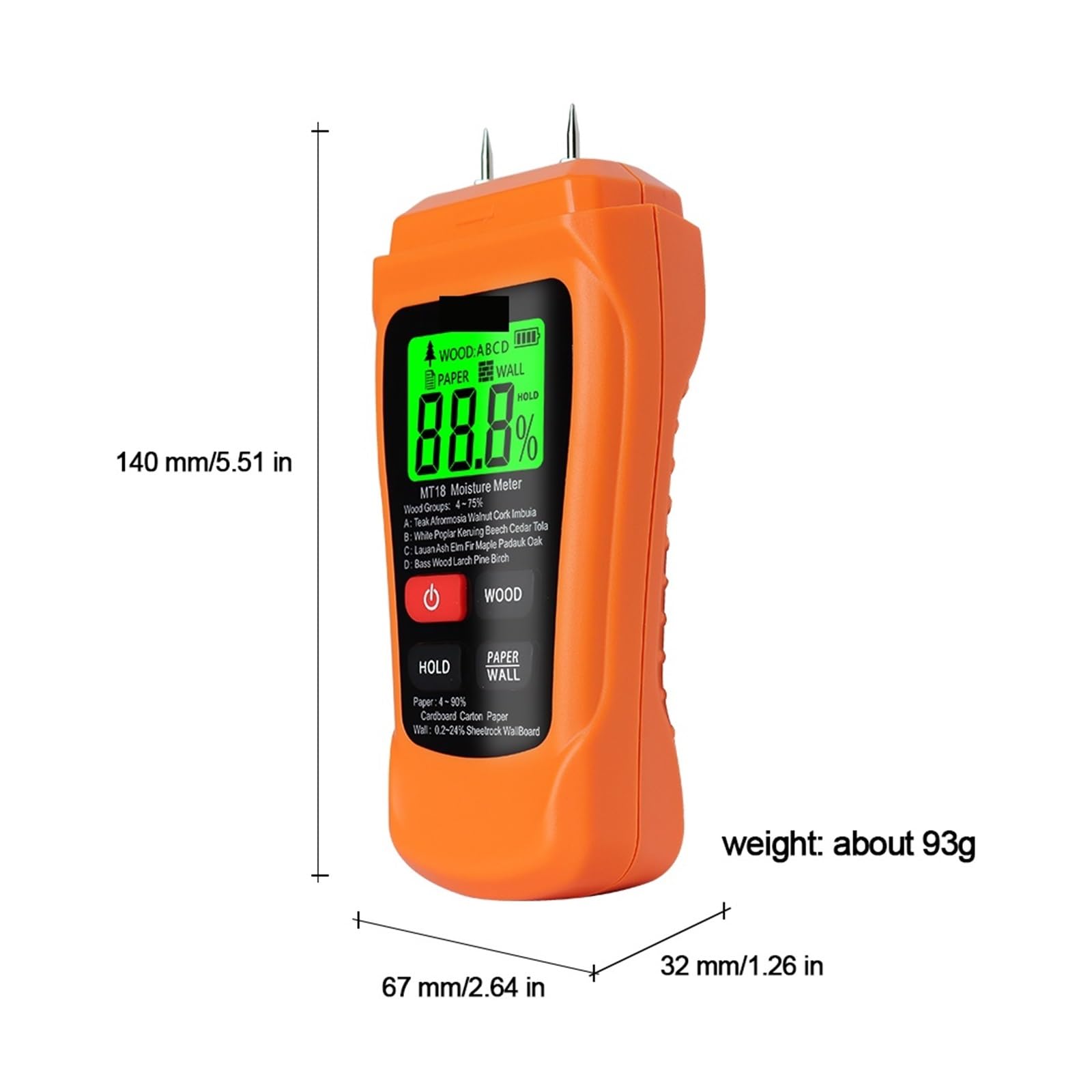

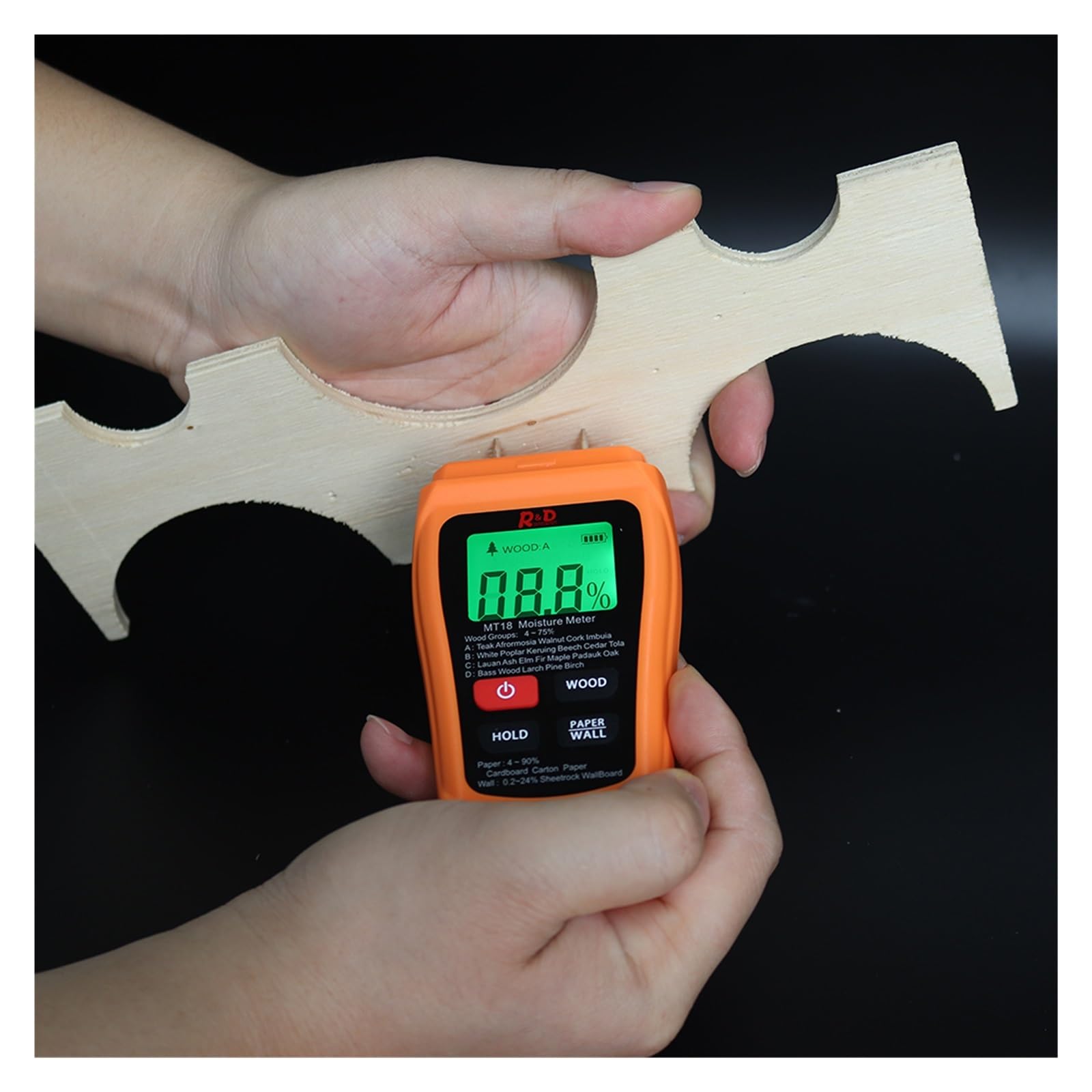

Measurement Instructions: 1. Remove the cap to expose the needle electrodes. 2. Power ON the Instrument. 3. Select the appropriate wood calibration scale A, B, C, D (See the Wood Calibration Tables later in this guide) Using "WOOD" button. 4. Or Press "PAPER/WALL" key to Choose Paper Mode or Wall Mode. Paper mode is used for testing Cardboard/Carton. Wall mode is used for testing Sheetrock/Wall Board/Floor. 4. Push the needle pins into the material and observe the reading. 5. Power OFF the instrument. Specifications: LCD Display With Backlight Principle: Electrical resistance Wood Range: 4~75% Electrode length: 10mm(0.4") Electrode pins: Integrated Auto Power OFF: After approx.5 minutes Power Supply: 2*AAA batteries Meter housing: ABS plastic Operating Temperature: 0 to 40 (32 to 104) Dimensions: 145 X 67 X 32mm (5.7" x 2.6" x 1.3") Weight: 200g (7.0 oz) Accuracy: ±0.5%
