1pc Boost Module 400W DC-DC Power Module Constant Current Boost Converter Boost Driver LED

• DESIGNED WITH SCREW TERMINALS: The input and output are designed with screw terminals to facilitate the connection and disconnection of wires
• High efficiency: High efficiency, maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference
• INSTRUCTIONS: This is a large 400W DC to DC power supply module for electrical equipment, digital products, laptop, etc.
• Better heat dissipation: There are 2 heat sinks that would ensure better heat dissipation
• OTHER USES: It can also be used as a driver for high power LED lights or a voltage regulator for solar panels

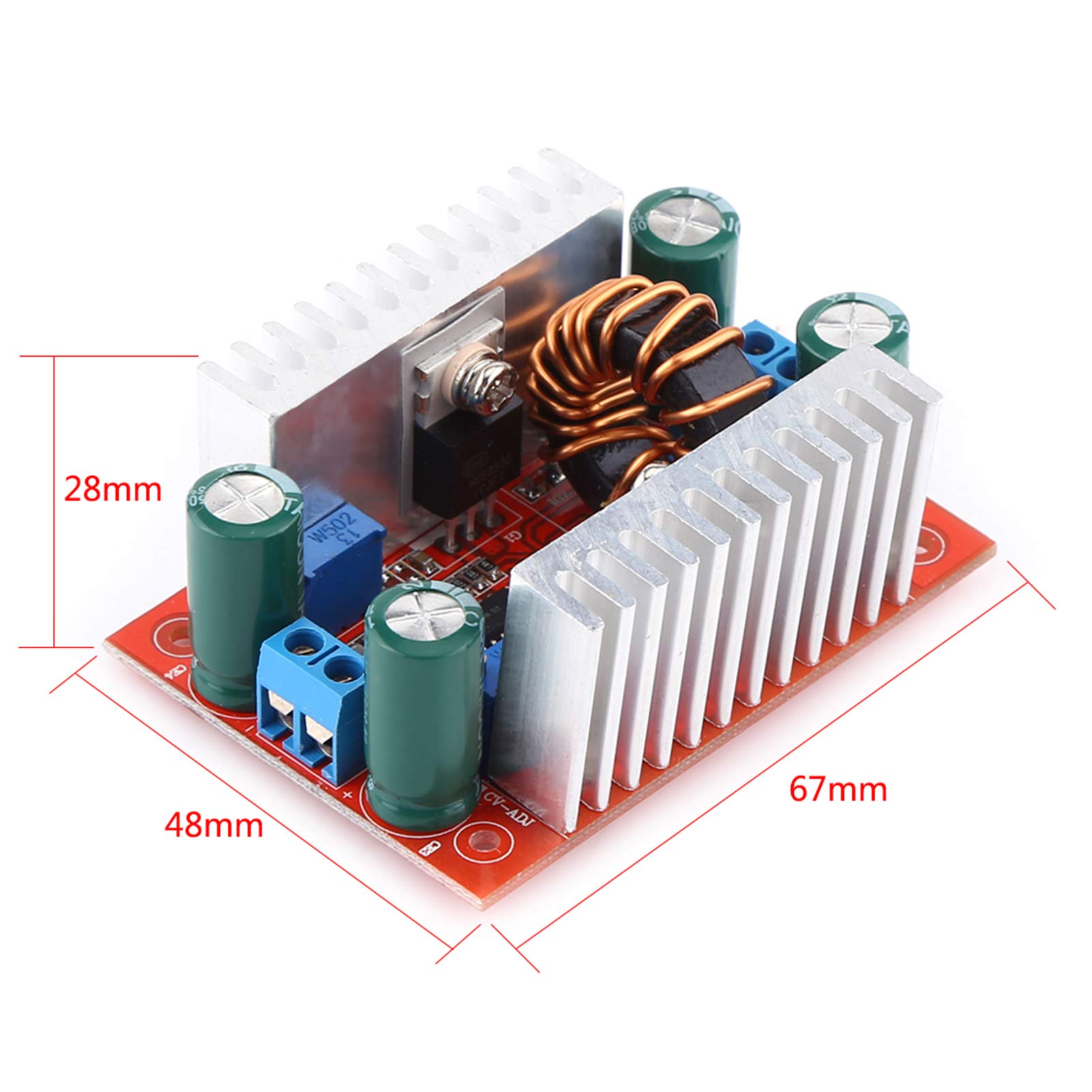

Budget: Type: Memory momentum not isolated Input Voltage: dc8.5 V to 50 V Output Voltage: DC10 V to 60 V (continuously adjustable, default 19 V) Max. Input Current: 15 A (increase the heat dissipation if more of 8 A) Max. Output Current: 12 A (related to the difference of input voltage and output voltage, the higher the difference, the lower the output current. Improve the dissipation of heat when the current exceeds the 7 A) Standby current: 10 mA (when will become 12 V to 20 V) Constant current range: 0.2 to 12 A Output Power = Input Voltage * Current Operating Temperature: -40 ℃ to 85 ℃ (if the temperature is too high, improve the heat dissipation) Frequency: 150 KHz Max. Conversion efficiency: 96% (the efficiency is related with the input/output voltage, the current and voltage difference) Size: 67 x 48 x 28 mm/2.63 x 1.89 x 1.1 \ Output Voltage/Current adjustment: 1, adjust the potentiometer \ "cv-adj \ in the direction of clockwise to reduce the voltage, in either direction to increase the voltage. 2, adjust the potentiometer \ "cc-adj \" in either direction about 30 circles to minimise the current output before connecting to the load (in the direction of clockwise to increase the current, in either direction to reduce the current). Then fit \ "cc-adj \ in the direction of clockwise to current value that you need. If you use the module to charge the battery, connect to the output once the battery is completely discharged. Because if more energy is left in the battery, the lower the charging current. The package includes: 1 x Module
