Boost Module 1500W 30A DC-DC Boost Module Power Supply Step-Up Converter 10~60V to 12~90V

• NOTE: The power module uses double sendust magnets wound with 1.2mm copper wires
• Suitable for: 100 V/210 A low MOS resistance with high power and current input, suitable for large LED power, motors
• REVERSE INPUT WITH MOS: Support reverse input with MOS to avoid any risk of bad input and power wire

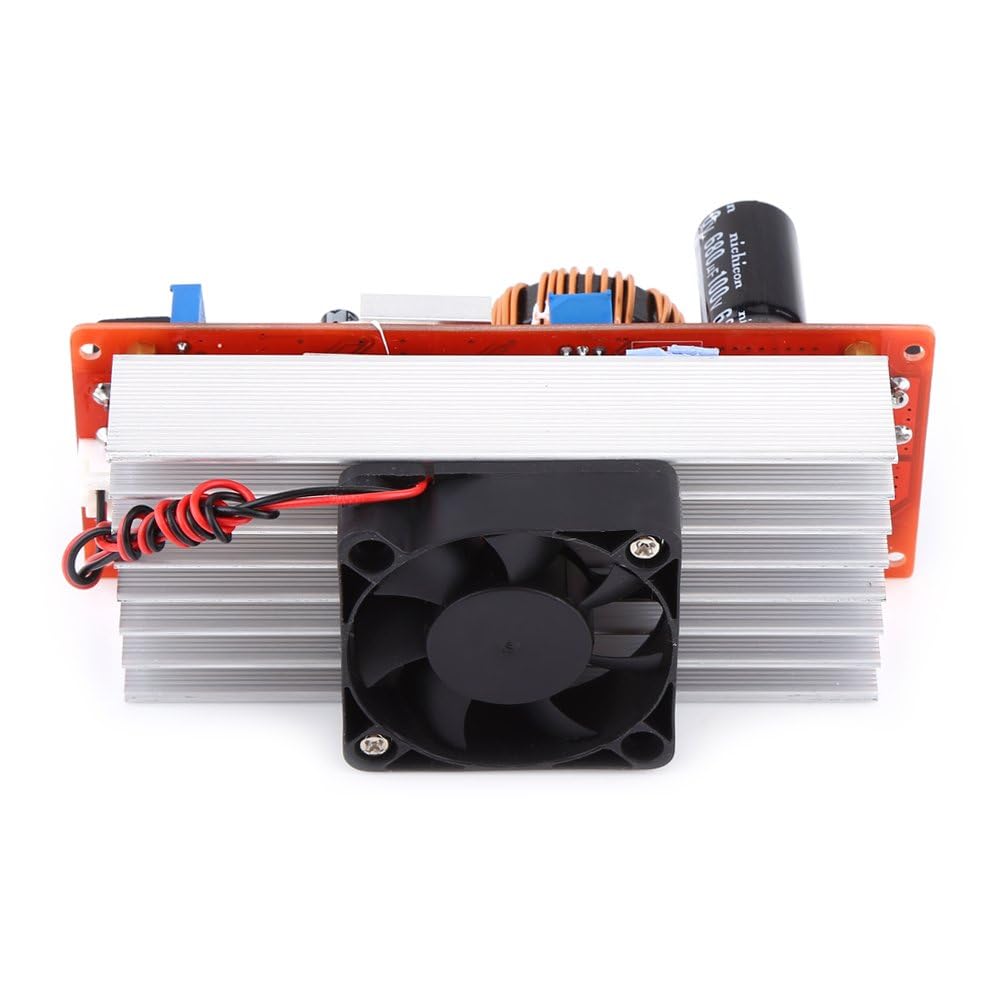

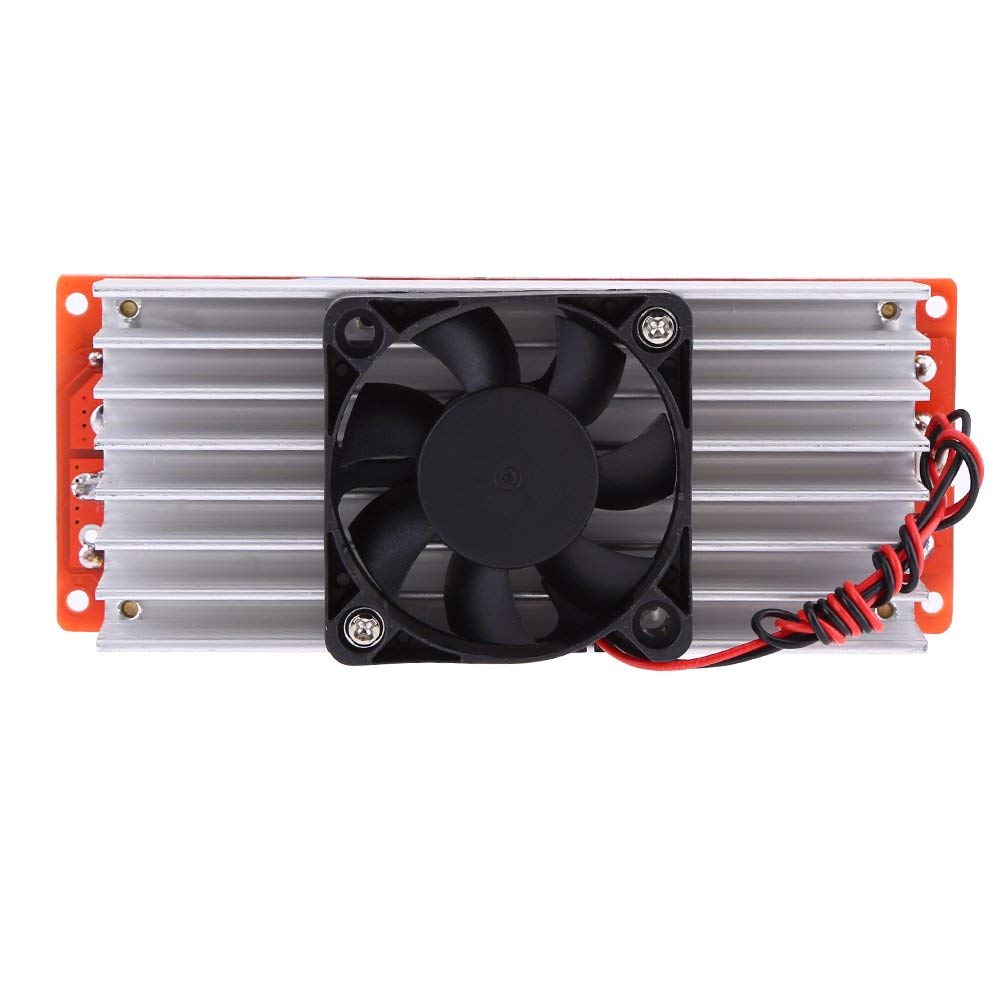

• BETTER HEAT DISSIPATION: Thickened heat sink and intelligent temperature control fan dissipate heat better
• LOW VOLTAGE PROTECTION: The low voltage will protect the module and battery from damage due to excessive discharge when using an input storage battery

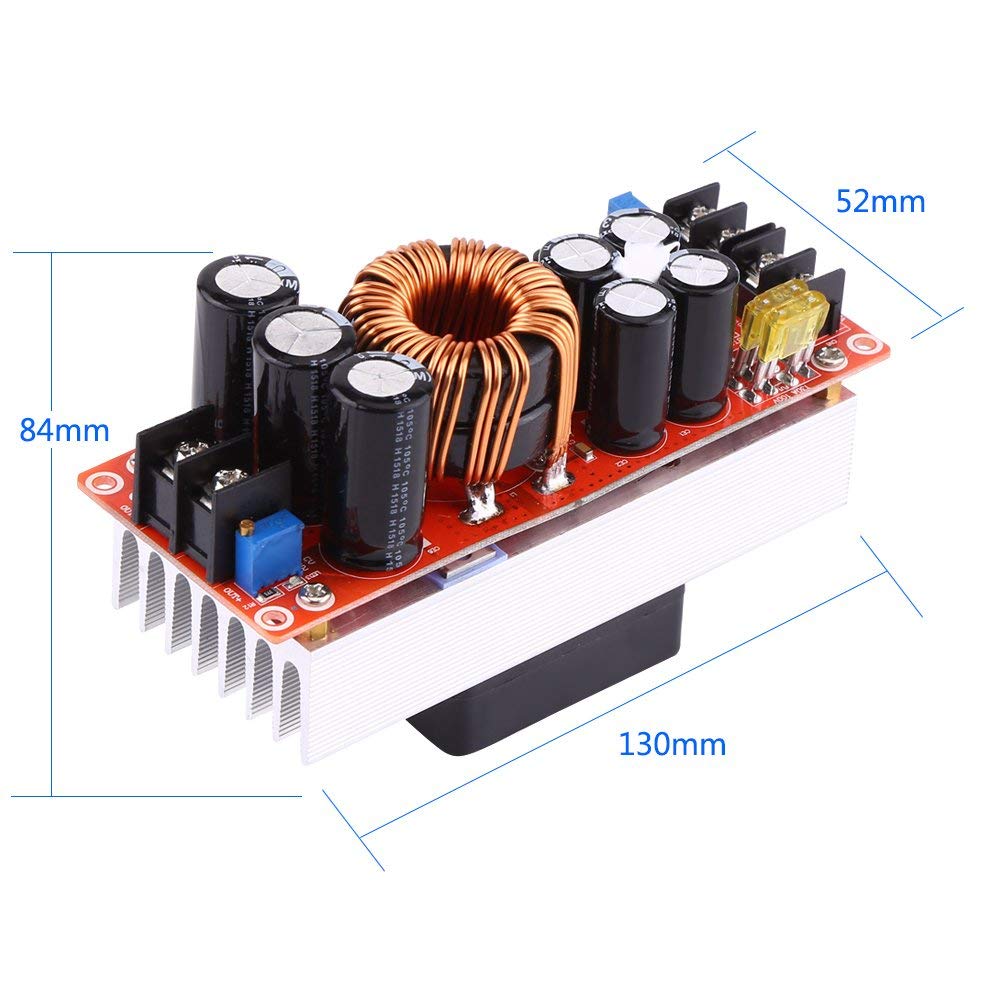

Budget: Type: Intensifier not isolated module (boost) Input Voltage: DC10 V to 60 V Max. Input Current: 30 A (Input Voltage 10 V to 30 V) 25 to 31 V to 60 V (Input Voltage) Standby current: 15 mA (when will become 12 V to 20 V) Output Voltage: 12 V to 90 V (Adjustable, default 19 V) Max. Output Current: 20 A (related to the difference of input voltage and output voltage, the higher the difference, the lower the output current. Improve the dissipation of heat when the current exceeds 15 to) range of constant current: 0.8 A to 20 A (+/-0.3 A) Input Reverse protection: Yes (150 to mos) Lower voltage protection: Yes (V8 to 50 V adjustable, Auto Recovery) Operating Temperature: – 40 ℃ to + 85 ℃ (if the temperature is too high, improve the heat dissipation) Frequency: 150 KHz Conversion efficiency: 92% to 97% (the efficiency is related with the input/output voltage, the difference of current and voltage. The minor difference is that the greater efficiency will be) Max. Output Power = Input Voltage * Maximum current (if the input is 12 V, the maximum output power = 12 V * 30 to = 360 W) Size: 130 x 84 x 52 mm/5.11 x 3.3 x 2.04 \ Note: 1. The output can not be reversed cabling or bypassing. 2.If the module is connected to inductive load, the minimum voltage input should be greater (For example, 24 V) and the Maximum output power should be less (For example, 500 W). 3.If you are using a battery storage, a source of power switch, a solar panel or an electric generator as source of power input, the value of protection of low voltage must be adjusted more low. The package includes: 1 x Module
