MK 32A RCBO Type AC 30mA B Curve 6kA 1P+N Single Module Sentry H7936s

• 32A TYPE AC RCBO: Rated at 32A with Type AC 30mA residual current protection for combined circuit and earth fault protection.
• B CURVE WITH 6KA BREAKING CAPACITY: Provides B curve tripping characteristics and 6kA short-circuit breaking capacity for dependable fault response.
• SINGLE MODULE FORMAT: Compact single-module design helps save space in compatible MK Sentry consumer units and enclosures.
• COMBINED OVERCURRENT & EARTH FAULT PROTECTION: RCBO design allows both overcurrent protection and earth fault protection and detection in one unit.
• MEETS BS EN & IEE WIRING REGULATION REQUIREMENTS: Designed to support compliance-focused installations in line with recognised wiring and product standards. BS EN 61009-1, BS IEC 61 009-2-2, BS 61543 (EMC)

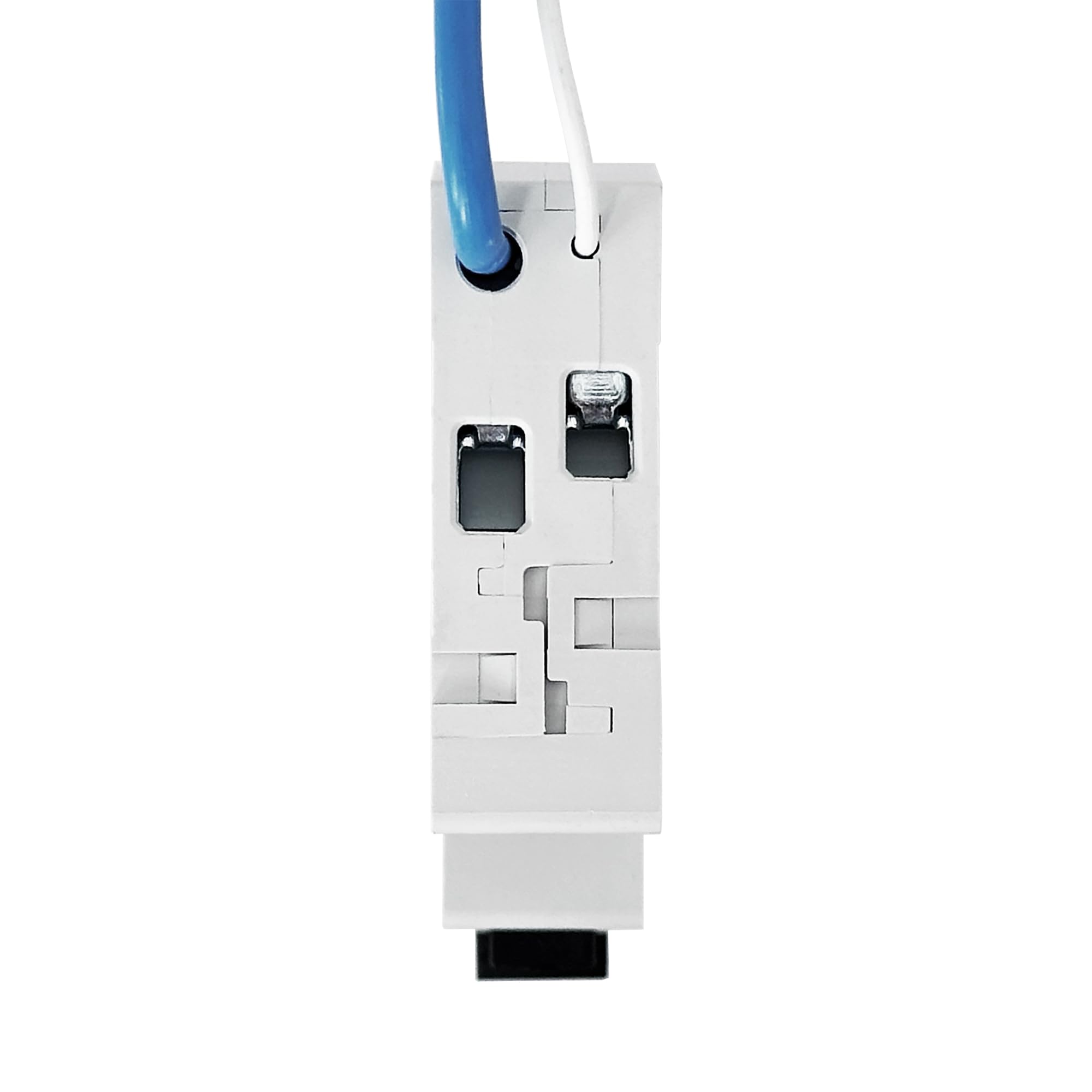

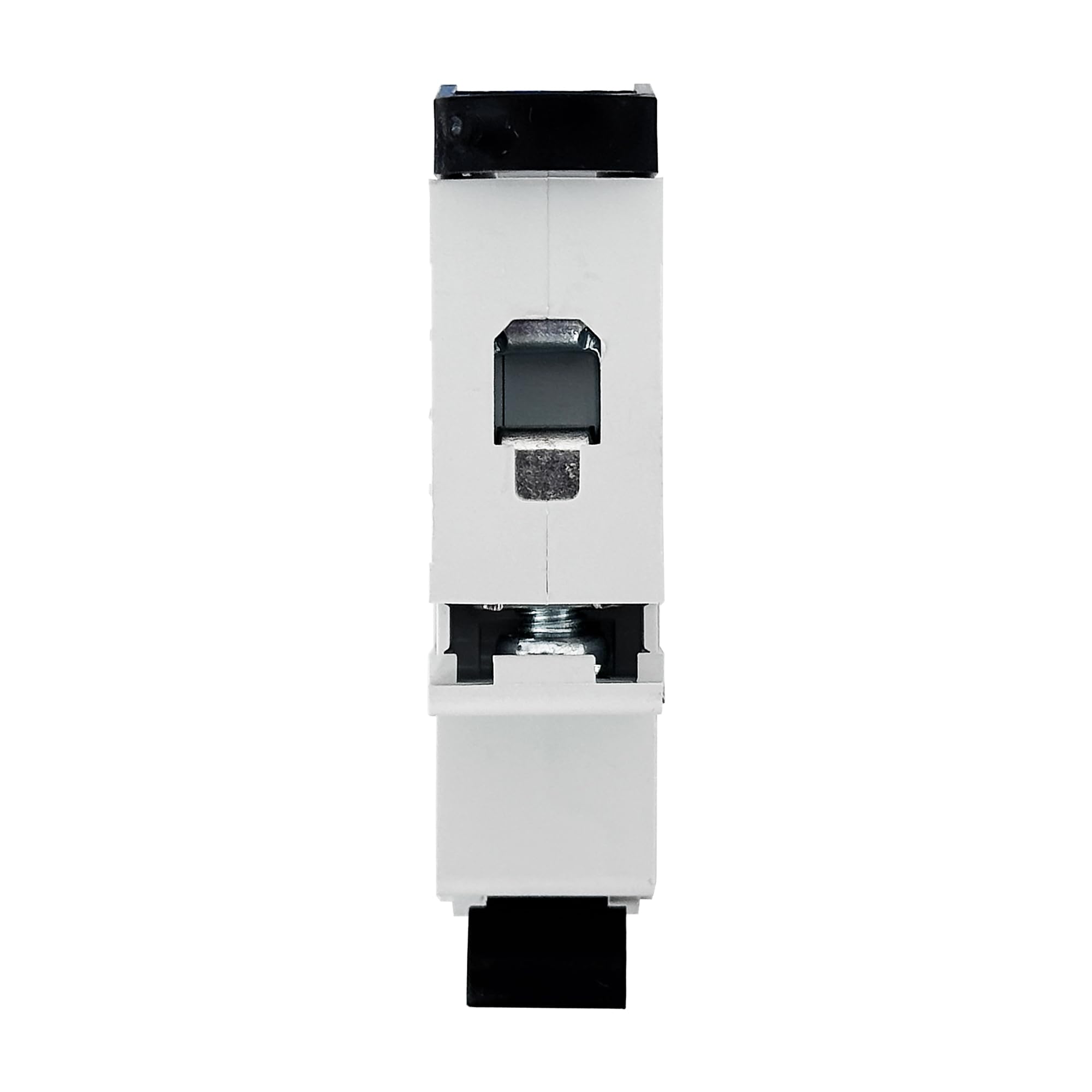

The MK Sentry range features solid neutral type single pole RCBOs in one module format. The one module MK Sentry RCBOs are a combination of a Type B MCB and a Residual Current Device. This enables both overcurrent protection and earth fault current protection to be provided by a single unit. This combination allows earth fault protection to be restricted to a single circuit, thus ensuring that only the circuit with the fault is interrupted. (When groups of circuits are protected by an RCD, all circuits would be interrupted under fault conditions, which may cause unnecessary inconvenience). The operating switch on all MK Sentry RCBOs may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate. MK Sentry RCBOs feature tunnel terminals of generous capacity, with 25mm2 for live supply terminals and 10mm2 for live and neutral load terminals. The neutral supply (blue) and earth supply (white/cream) are provided via flying leads.
