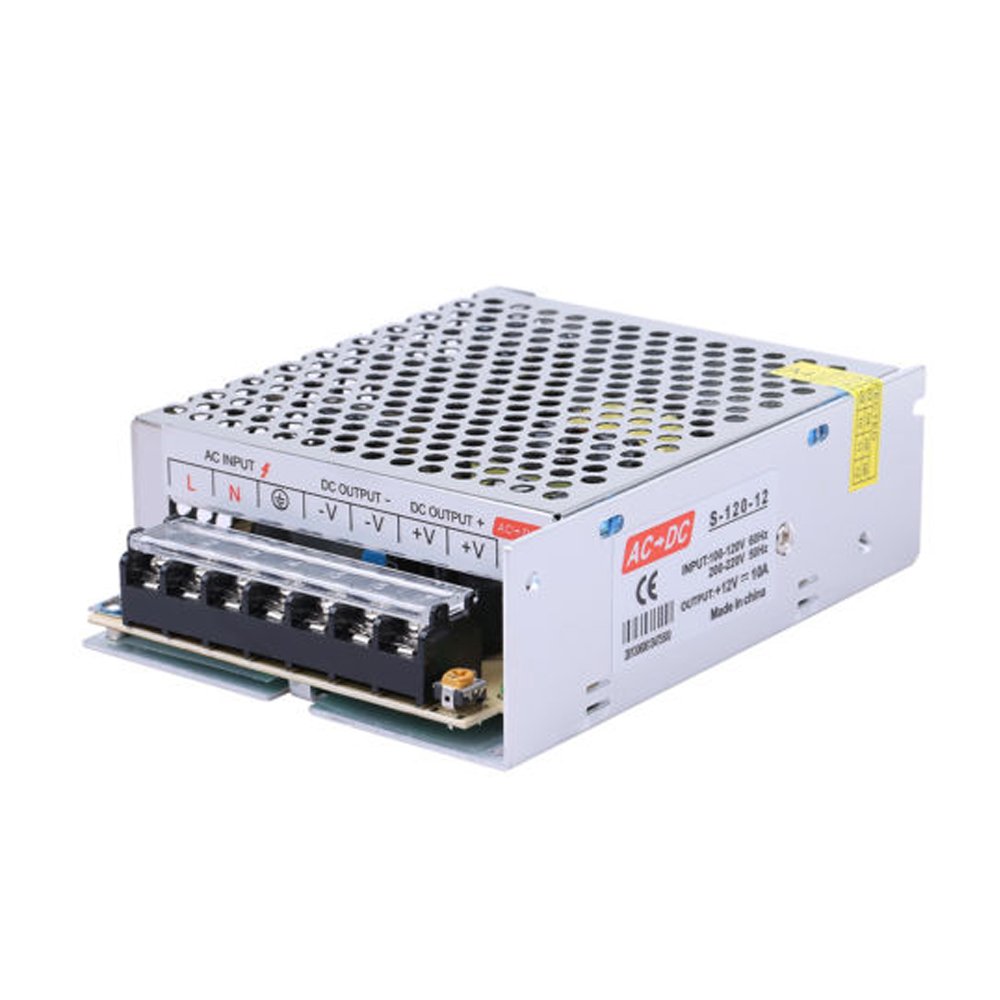

Mintice Universal Converter AC 110V-220V to DC 12V 10A 120W Switching Power Supply Transformer Adapter Switch Driver Source Regulated for LED Strip

• This is a DC12V Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc.
• Safety design with shortage protection, overload protection and auto voltage switching.
• Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED.
• Full range of current output is possible for LED lighting with dimmable function.
• Voltage output fine adjustment is available for different power condition. About Calculate Method: If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED ¡Á 60LEDs/m=12W/m, 24W(this listing)¡Â12W/m=2m, So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m

Features: 1. Built-in over voltage, over current, and short circuit protection. 2. High price-effective, reliability with industry standards. 3. Make sure the stability and high efficiency of power supply. 4. Constant voltage output, assume stable power supply for LED lightings to reach long lifetime. 5. Widely used in Industrial automation, LED display, communications, etc. Specification: Input:AC110-220V 50/60Hz. 100% full load burn-in test. Shell Material: Metal case. Safety Compliance: FCC / CE . Ambient Humidity: 0~95% Non-Condensation. Working Temperature: 0~40 deg. Storage Temperature: -20~60 deg. Cooling by free air convection. Protections: overload/ over voltage/ short circuit. Connection: 1. L, N: AC power input 2. GND: DC power output "-" 3. V: DC power output "+" 4. +V / ADJ: Adjust the output voltage 10% Package Include: 1 x 12V 10A 120W Switch Power Supply
