Mintice 5Pcs 3PDT 9 Pins Box Stomp Guitar Effect Pedal Foot Switch True Bypass Foot Pedal Control Switch Electric Guitar Metal Black

• Function: For rewiring vintage padals or effect boxes. For unbuffered bypassing/true bypass of the effect circuit without coloring the tone of the instrument or other components in the signal chain.
• Quality Material: Made of high temperature plastic casing; High quality internal components. Good electrical conductivity and wear resistance, Electrical Life:50000 Cycles.

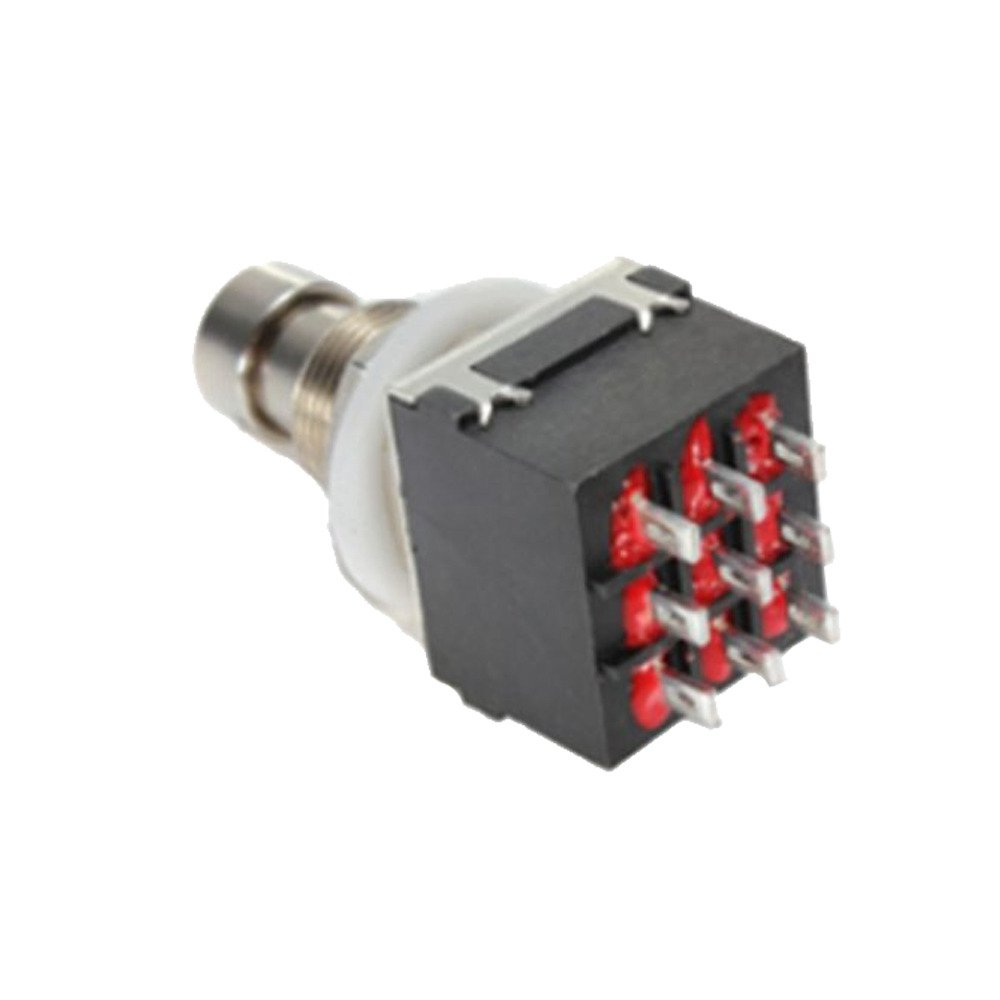

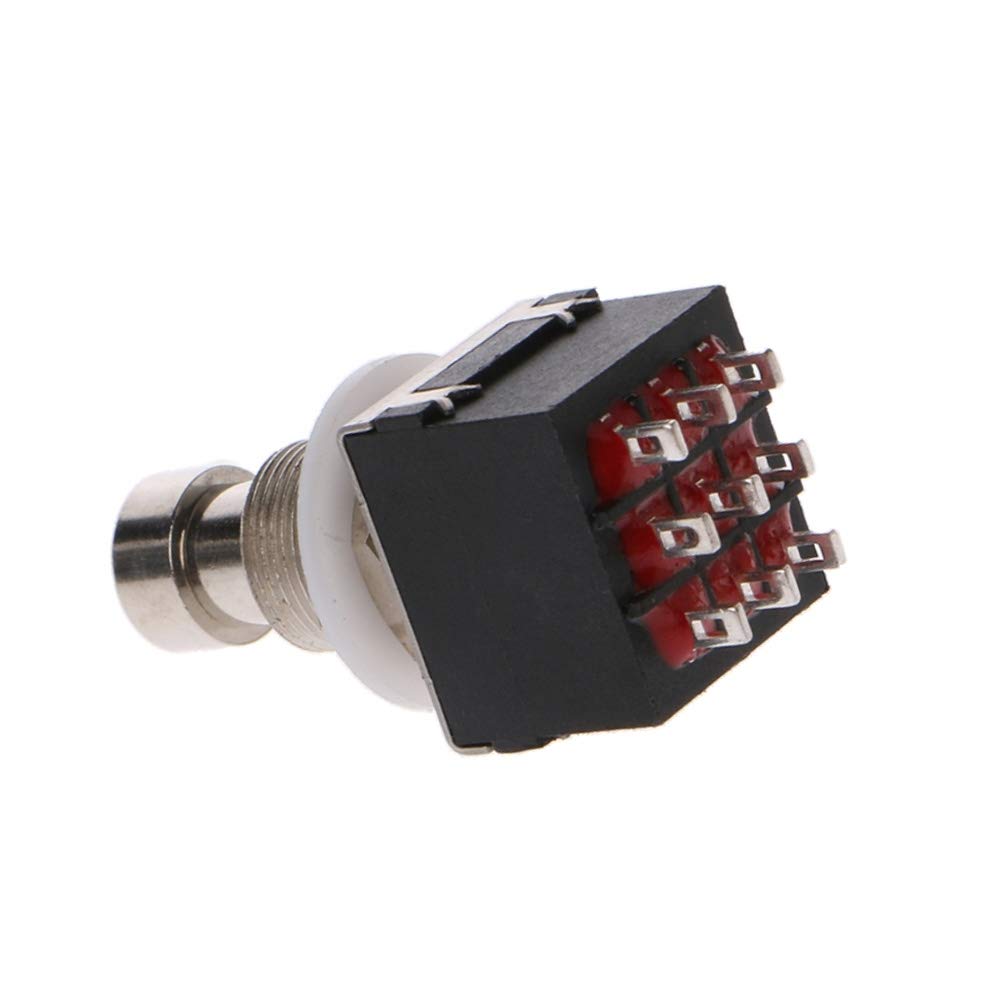

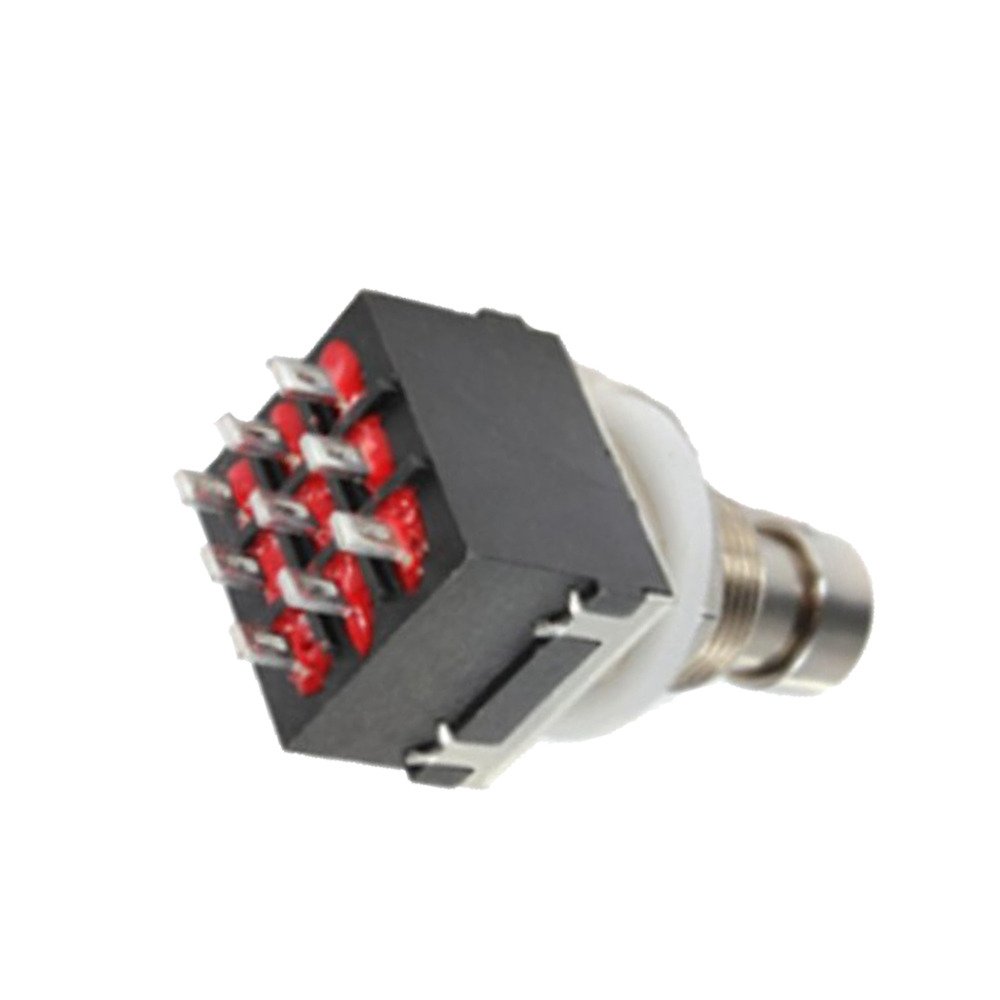

• Various Connection Methods: There are a total of nine lugs on each switch, three per pole. 3 poles allows true bypass as well as switching an light. You can also use this as a 2 pole switch just leave 3 of the pins disconnected.

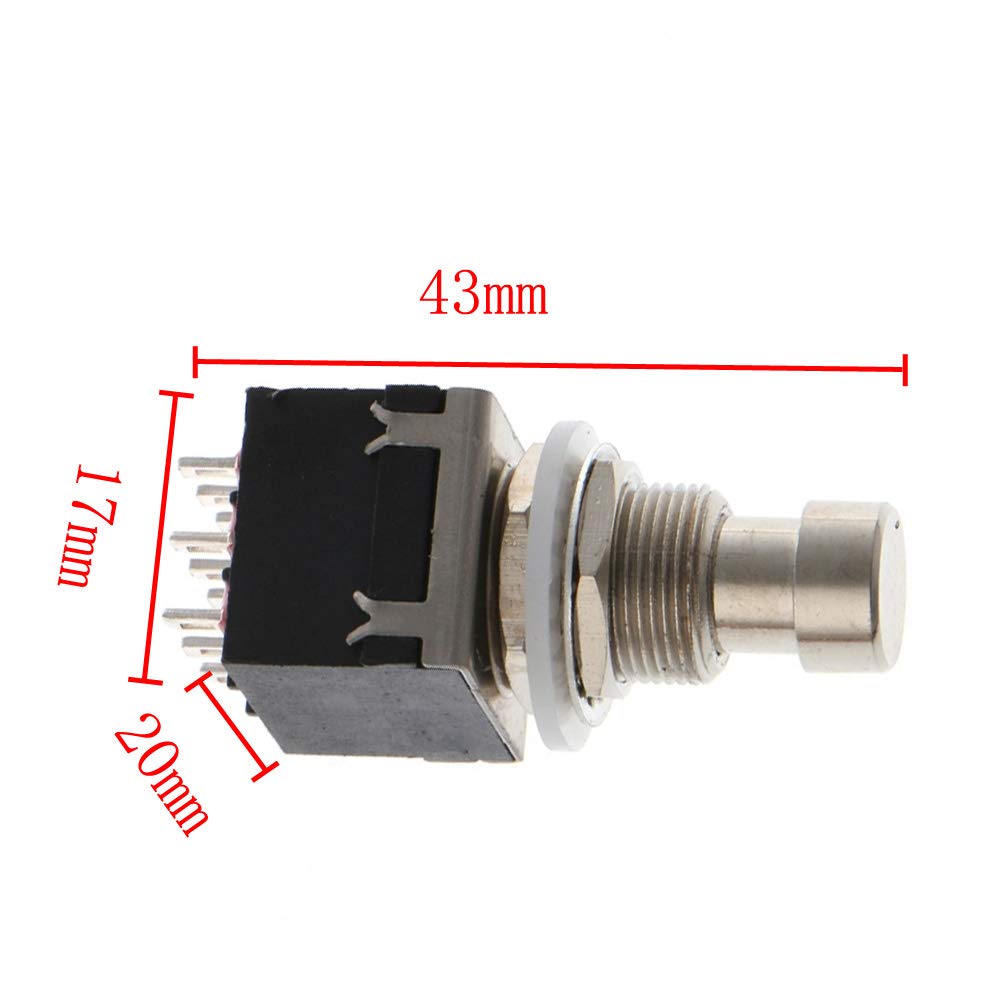

• Easy Installation: Just need 7/8" depth and 1/2" diameter mounting hole are required. the threaded portion is 7/16" tall. very convenience.
• Widely Application: Use for Electro-Harmonix, T Rex,Retro FX,Radial Bigshot,ect effects pedals. Most commonly used in guitar effects pedals and audio equipment.

1.AT least 7/8" depth and 1/2"-diameter mounting hole are required.the threaded portion is 7/16" tall. Hex nuts,lock washer,flat washer inculded. 2.the 9-lug switch can be used to rewire vintage padals or effect boxes, for unbuffered bypassing/true bypass of the effect circuit without coloring the tone of the instrument or other components in the signal chain.The third pole can be wired to control an LED status light or other custom function. 3.there are a total of nine lugs on each switch,three per pole. 4.at least 7/8" depth and 1/2"-diameter mounting hole are required.the threaded portion is 7/16" tall. Hex nuts,lock washer,flat washer inculded. Package Include: 5 X 9-pin Guitar Switch
