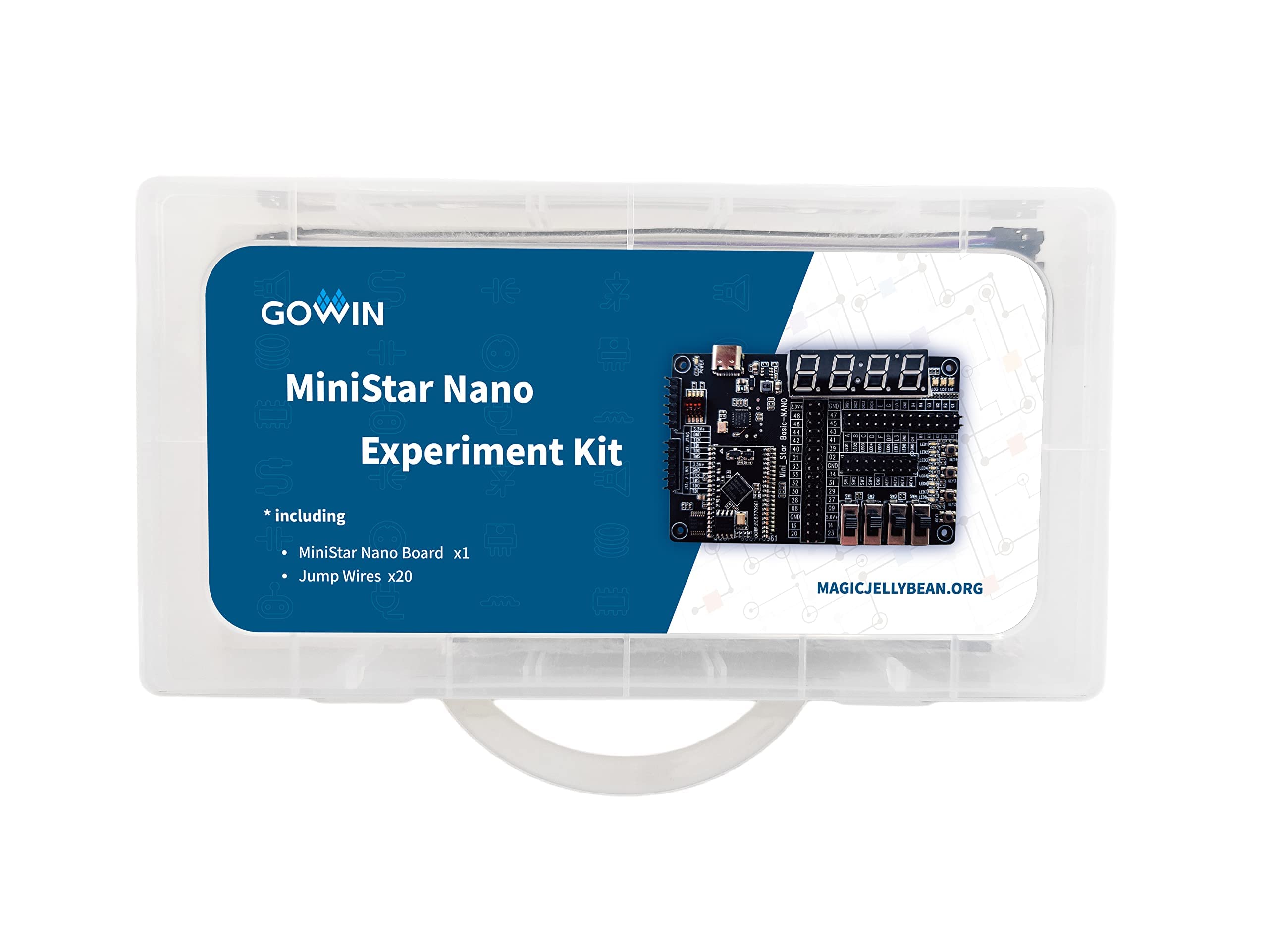

MiniStar Nano Experiment Kit

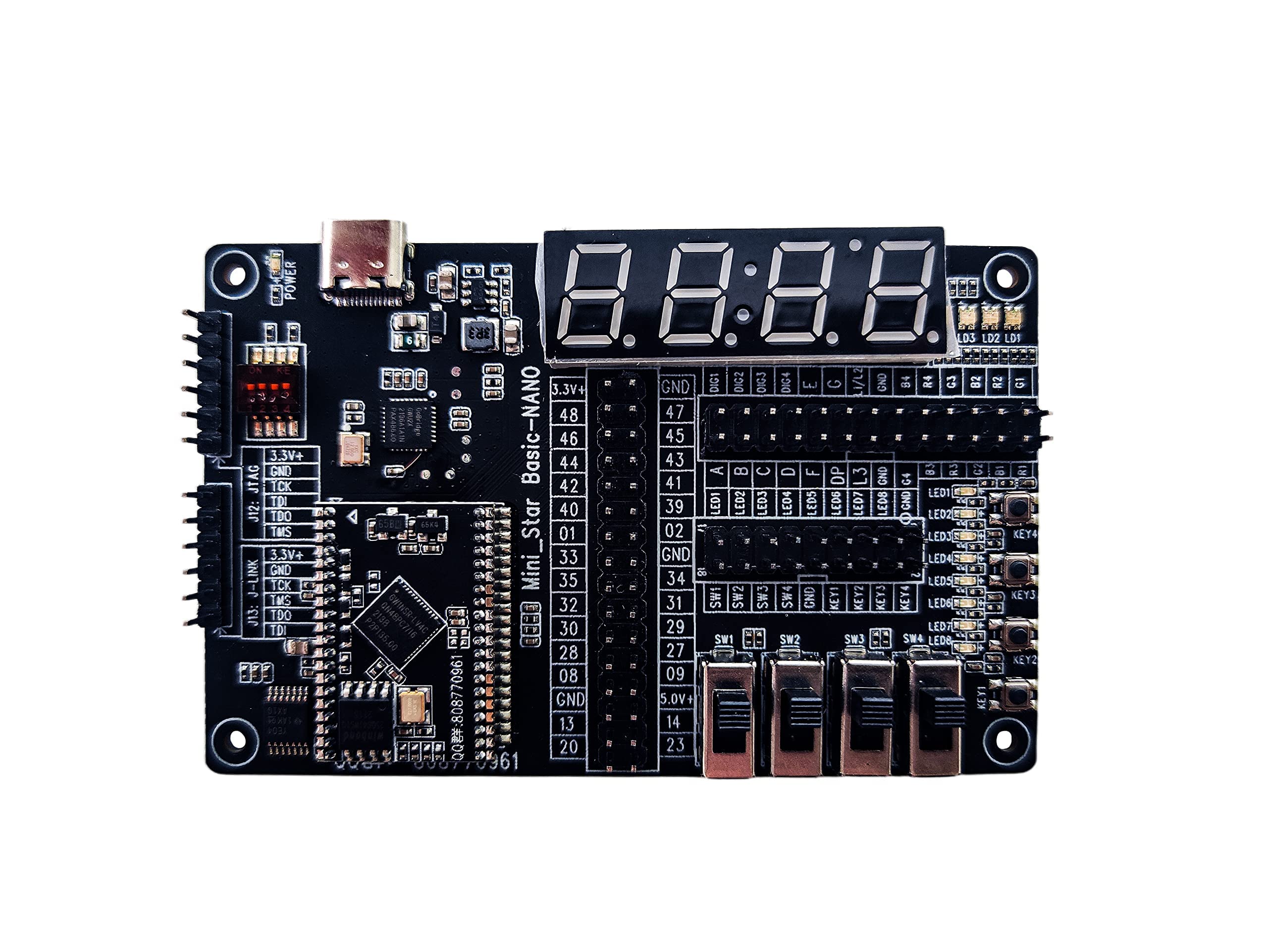

The structure and features of the development board are as follows: 1.FPGA: - QN48P package -Embedded ARM Cortex-M3 hardcore processor 2.FPGA configuration mode: -JTAG - Internal Flash 3.Clock resource: 27MHz clock crystal oscillator 4.Memory: -External 64 Mbit SPI Flash -Embedded 256 Kbit User Flash 5.Key: Four keys 6.LED: -One power indicator (green) -Eight user indicators (green) 7.Digital tube: One 4-bit 8-segment digital tube 8. RGB LED: Four RGB LEDs 9. Dip switch: Four dip switches 10. JTAG extended: 6-pin header 11. 3rd party Jtag cable 12.Power Supply: - Inverse voltage protection - 5V supported
