Mini Gear Motor, Micro- Worm Gear Motor N20 Gear Reduction Motor, for Electronic Locks Smart Cars Robots and Cameras(DC3V 30RPM) (DC3V 16RPM)

• 【Metal Gear】The brushed DC motor is all-metal gear, high temperature resistance, strong output and strong load capacity
• 【No-Load Speed ​​Difference】3V 16RPM Load Speed ​​is 13RPM, 120g.cm, 2.6kg.cm; 3V 30RPM Load Speed ​​is 25RPM, 160g.cm, 2.2kg.CM; 6V 35rpm load speed is 28rpm, 220rpm, 222220g.cm, 1.5kg.cm; 6V 70V. Load speed: 61rpm, 320g, 2.2kg
• 【Advantages】1218GE-N20 motor with encoder has stable gear transmission, large gear torque, low noise, stable performance, high efficiency and easy operation

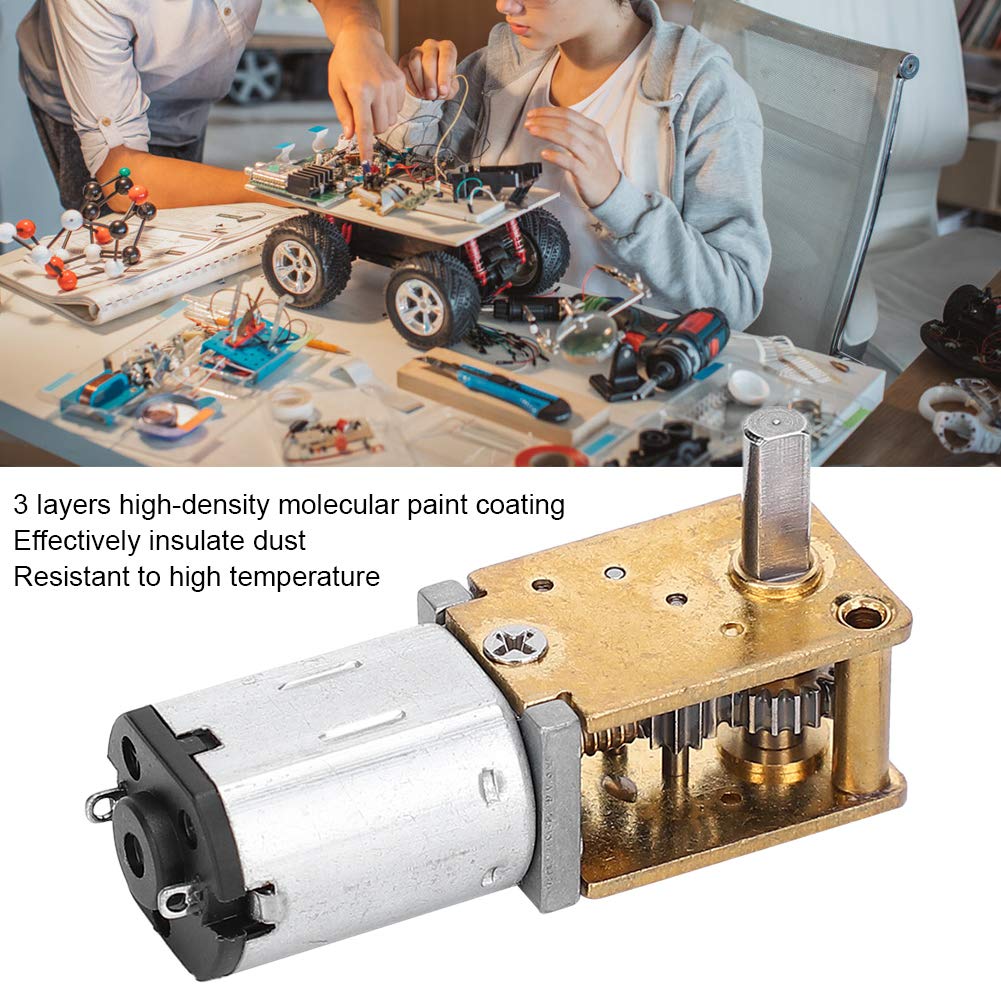

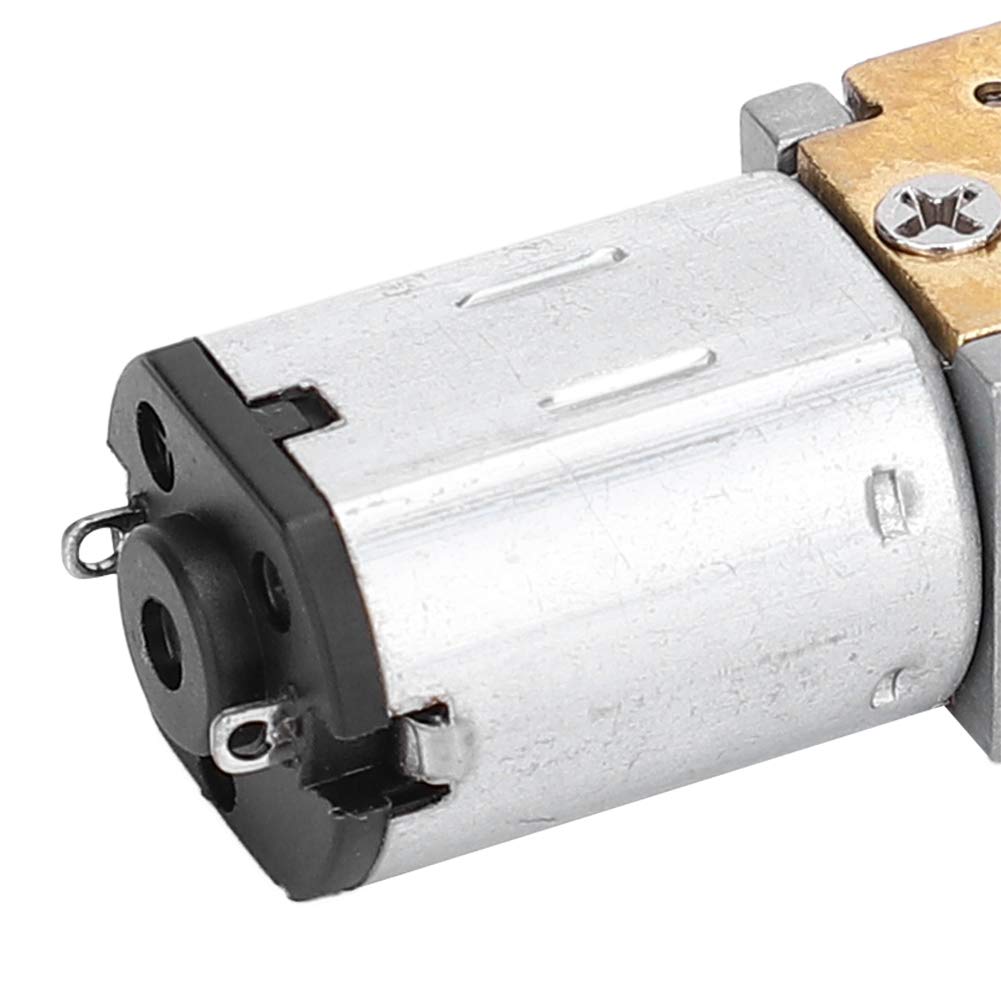

• 【Brushed DC Motor】The miniature gear motor is a brushed DC motor with 3 layers of high-density molecular paint coating, which is strong and durable
• 【Application】DC6V worm gear motors are widely used in smart cars, robots, grills, ovens, washing machines, etc

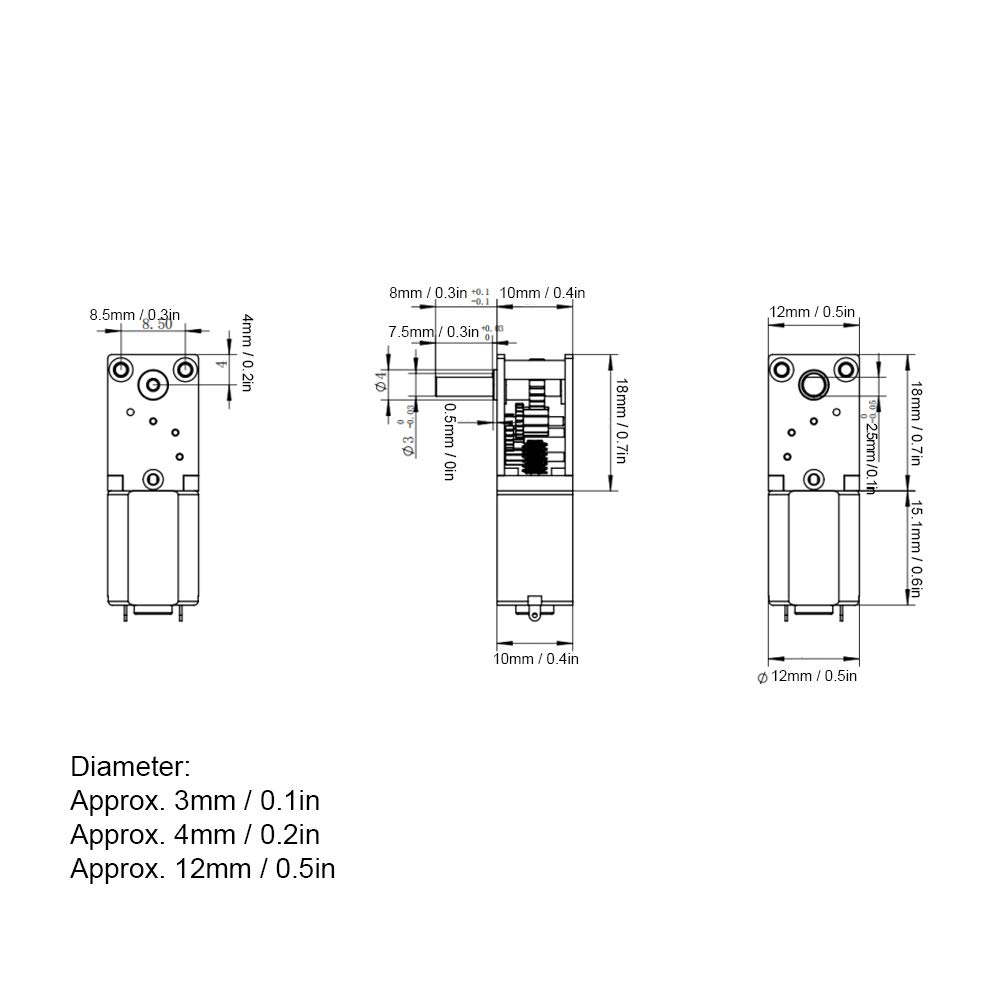

Function: 1. Gear transmission is stable, wear-resistant and has large transmission torsion 2. 3 layers of high-density molecular paint coating can effectively isolate dust and is resistant to high temperature This brush DC motor has strong motor power, which is powerful and practical. Constructed of copper, brass and zinc alloy material, sturdy and durable for long lasting use. The product is mainly used for electronic locks, smart cars, robots, cameras, etc. Specification: Item Type: Mini Gear Motor Material: Copper, Brass, Zinc Alloy /> Model: 1218GE-N20 br/>Speed Current Speed Current Torsion Current Torsion 3V 1:236 16RPM ≤30MA 13RPM ≤40MA 120g.cm ≤0.4A 2.6KG.CM 3V 1 :236 30RPM ≤30MA 25RPM ≤40MA 160g. cm ≤0.4A 2.2KG.CM 6V 1:236 35RPM ≤50MA 28RPM ≤40MA 220g.cm ≤0.4A 1.5KG.CM 6V 1:236 70RPM ≤60MA 61RPM ≤40MA 320g.cm ≤ 0.4A 2.2KG.CM Size: Approx. 8.5mm / 0.3 inch Approx. 4mm / 0.2in Approx. 8mm / 0.3in Approx. 10mm / 0.4 inch Approx. 7.5mm / 0.3 inch Approx. 0.5mm / 0 inch Approx. 18mm / 0.7 inch Approx. 10mm / 0.4 inch Approx. 12mm / 0.5 inch Approx. 2.5mm / 0.1 inch Approx. 18mm / 0.7 inch Approx. 15.1mm Diameter: Approx. 3mm / 0.1in 4mm / 0.2in Approx. 12mm / 0.5inch Package List: 1 x Mini Gear Motor Note: Please allow 0.1mm error due to manual Measurement. Thank you for your understanding.
