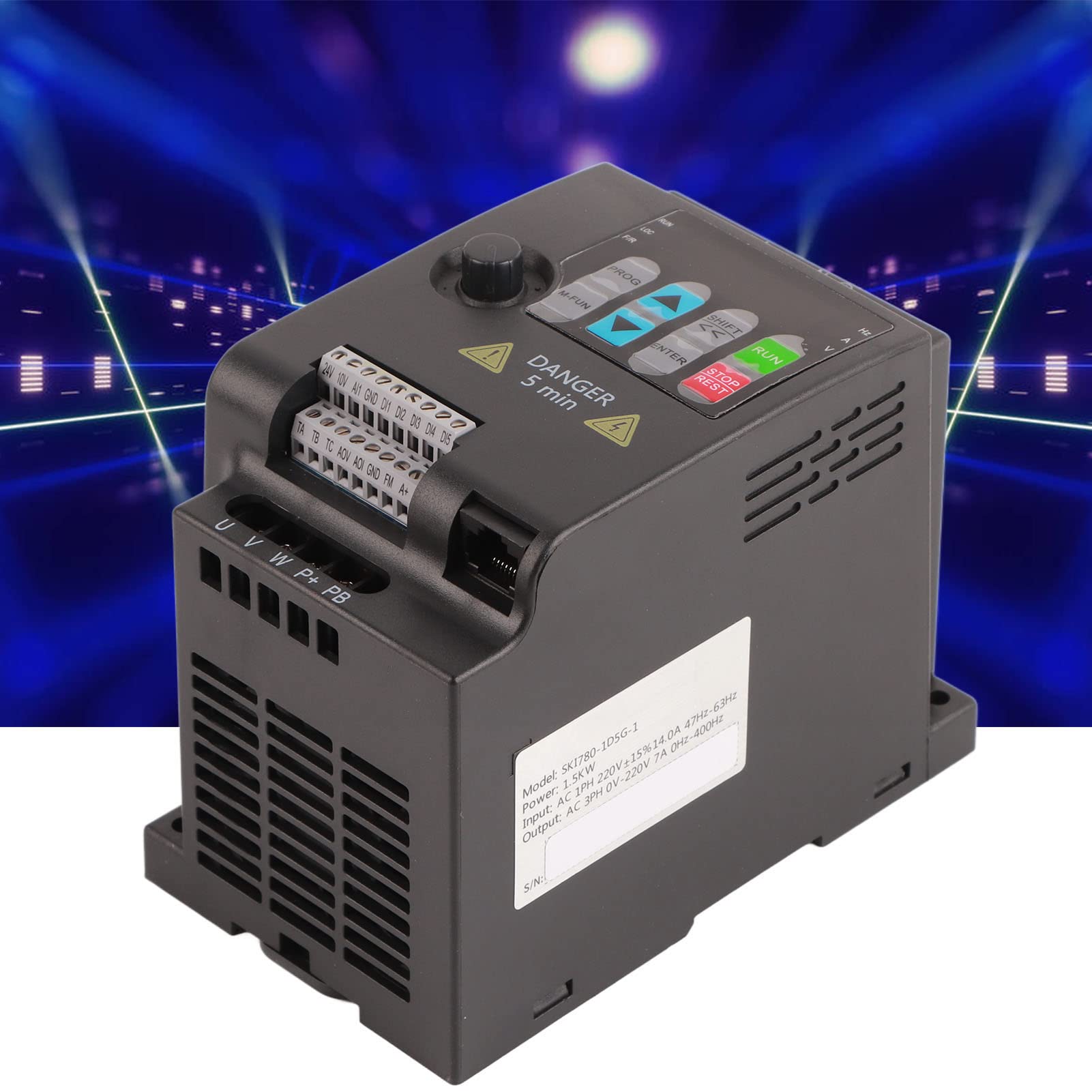

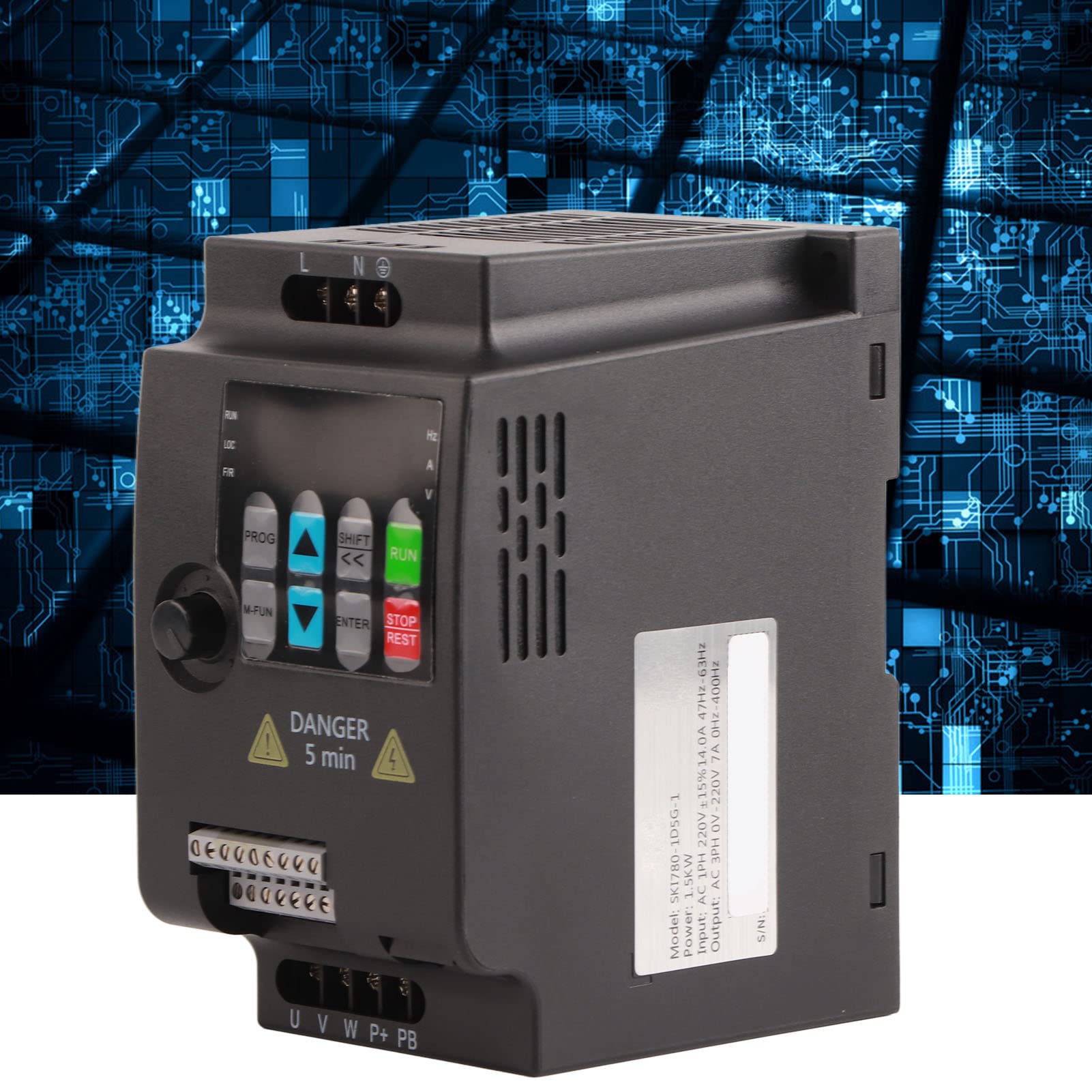

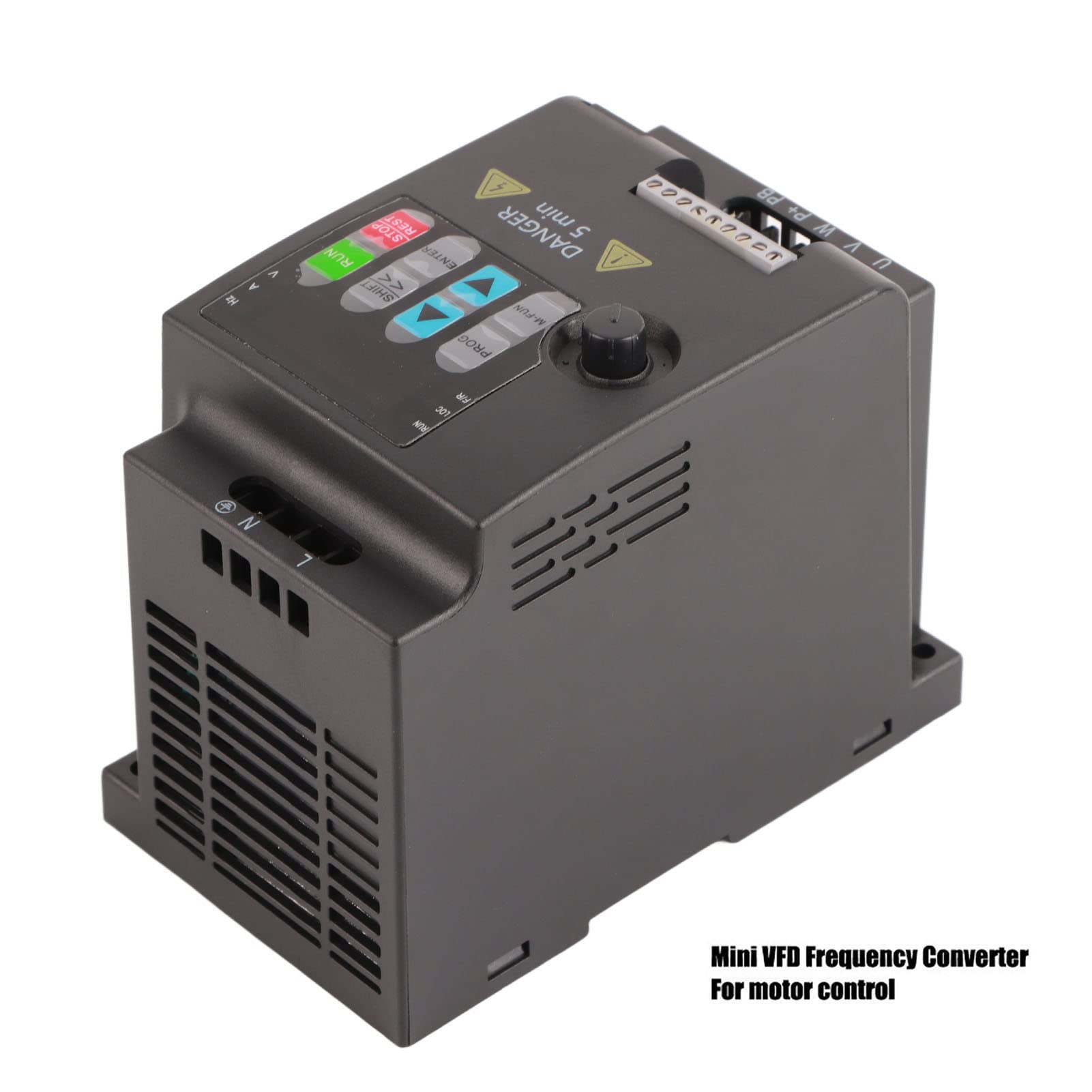

Garsent Mini Frequency Converter, 3 Phase Output AC Speed Controller Frequency Converter VFD Drive Inverter for Motor 220V / 380V 0.75/1.5/2.2KW(220VAC 1.5kW)

• V / F control, vector control and output torque control. Built-in RS-485 communication interface. With a speed potentiometer and an external control panel.
• Built-in synchronous control and proportional sync control. 6 speed control modes, can run automatically.
• Can select multiple running commands or frequency channel. Can be a part or all buttons locked (analog potentiometer release) Relay normally open or closed and two high configuration outputs provide 100 different types of options.

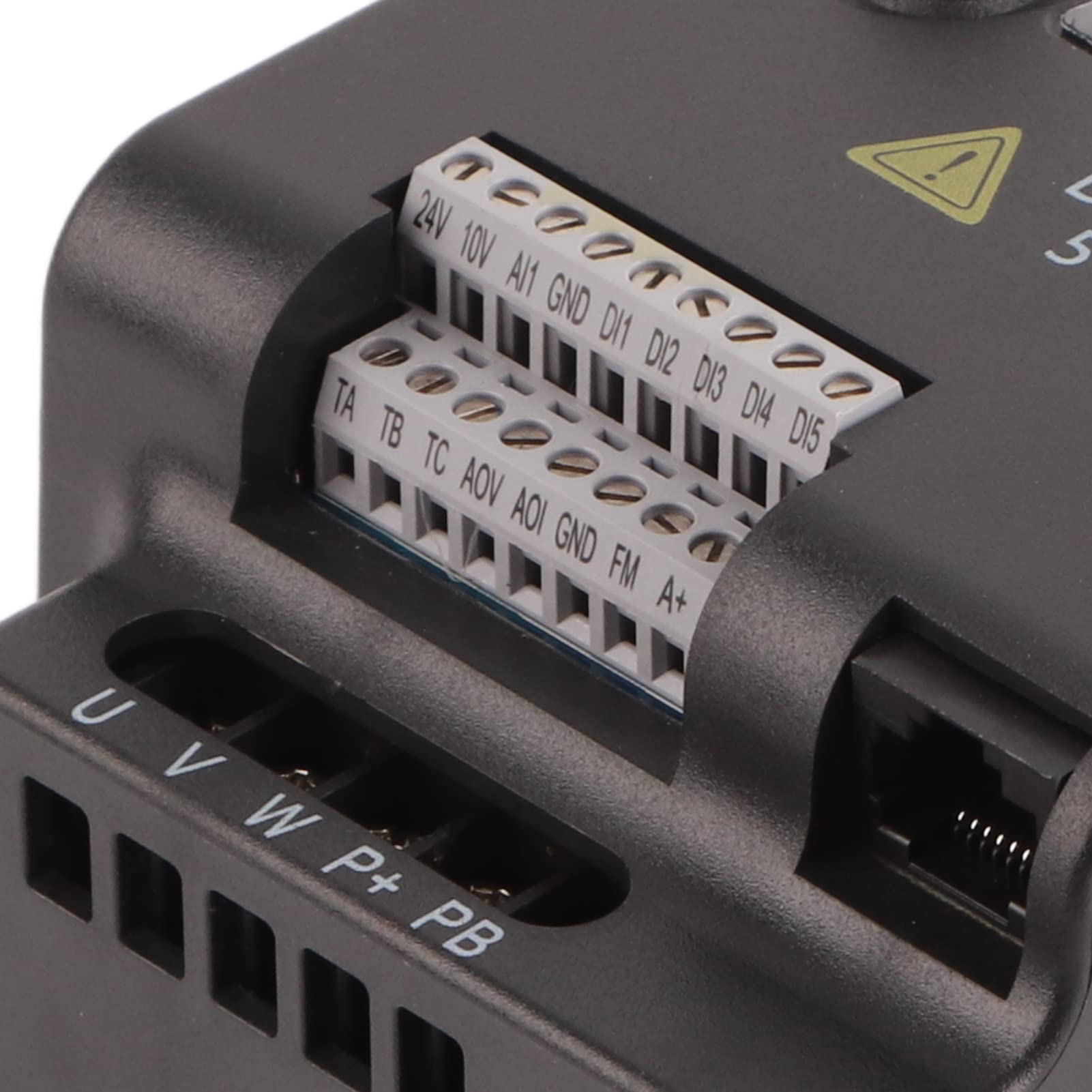

• 6 digital opto-insulated inputs, 100 different types optional. 3 analog input, 1 analog output channel. textile pendulum frequency function, it can be widely used for textile equipment. Built-in custom timer/counter.
• Built-in PID control function allows you to control temperature, pressure and voltage in the closed circuit. At zero speed, 0-100% of the adjustable torque can be outputed, with the brake function zero speed.

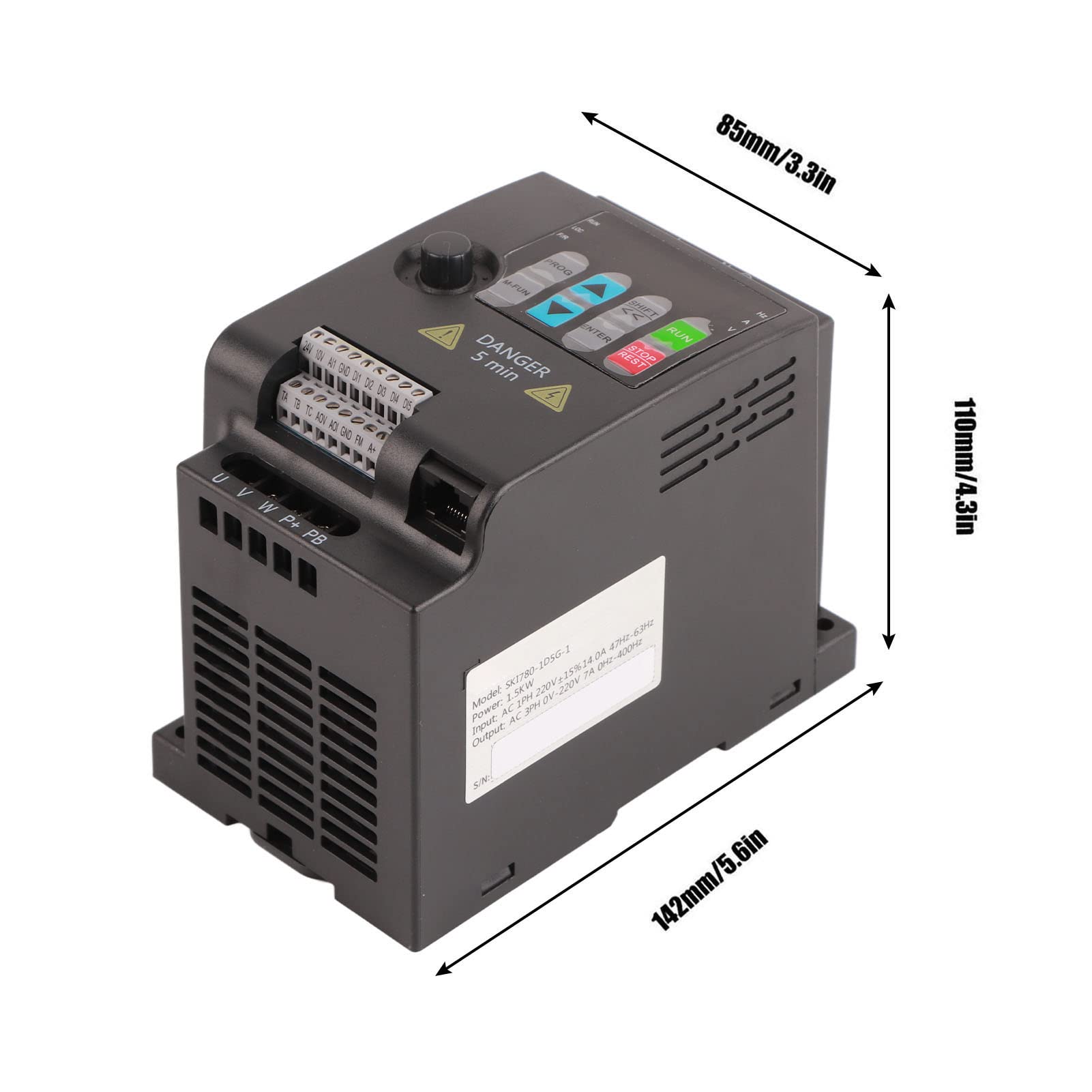

Specifications: Model: SKI780 Rated Voltage (Optional): 1-phase 220V to 3-phase 220V, 3-phase 380V to 3-phase 380V Output Power (Optional): 0.75/1.5/2.2kW Rated Current: 9.6A Control Way: Current vector Output Voltage Regulation Mode: PWM control Size: 110*85*142mm / 4.3*3.3*5.6in Weight: Approx. 1000-1042g / 35.3-36.7oz Package List: 1 * Frequency Converte
