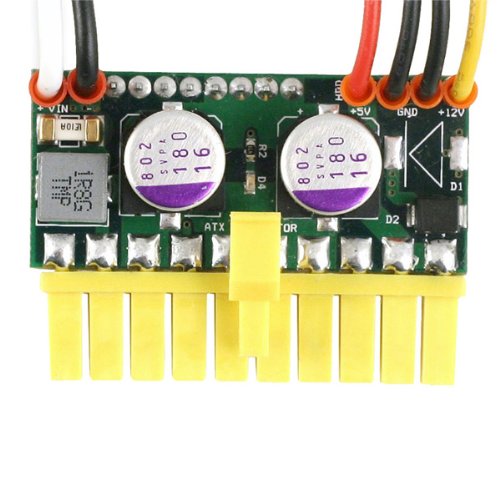

Mini-Box picoPSU-120, world's tiniest 12V DC-DC ATX power supply unit (PSU)

• Tiniest DC-DC ATX PSU - 120 Watts - 12V input - 100% silent, fanless
• - Over 96% efficiency - Plugs directly into the ATX connector -
• Long Life, Solid Polymer Caps, Japan - Perfect for mini-ITX boards

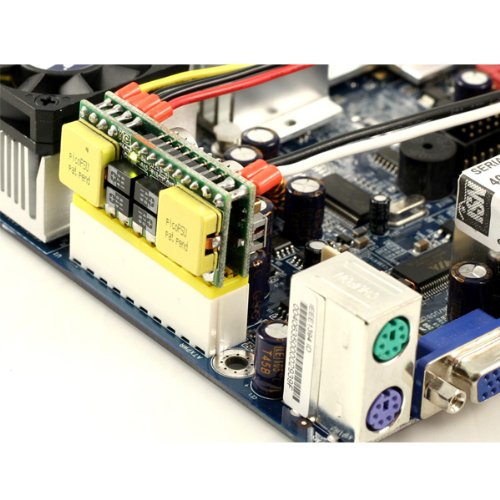

U.S. Patent no. 7,539,023, other US and Intl patents pending. Introducing Cyncronix PicoPSU-120, world's tiniest 12V DC-DC ATX power supply unit (PSU) Compact design, less cables. Compatible with an entire range of mini-itx motherboards as well as regular boards. Cool, silent 120 Watts of power for small PC designs using a single 12V power source. Patent Pending HyperWatt[TM] technologies packs an impressive amount of power relative with its very small footprint. Cyncronix PicoPSU-120 has several key advantages over traditional power supplies: - Very small, can build unltra-compact PC enclosures and slim server enclosures. - Fits any motherboard equipped with a 20 or 24pin ATX connector. - 100% silent, fanless, no moving parts. - Operates at only 12V. - Highly efficient design, does not produce a lot of heat. - Ideal for low power Intel Core Duo as well as all VIA C7/nano or AMD motherboards. Reduce space. Eliminate 20 unnecessary wires by plugging in directly into the motherboard ATX connector. Dsigned from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements. Cool power. Cyncronix PicoPSU provides plenty of power (via ATX connector and HDD cable harness) for CPU and an entire range of peripherals. 100% Silent. No fans, no noise, just power for small and silent PCs. Cyncronix PicoPSU-120 is a fully compliant DC-DC ATX PC PSU. It can power VIA mini-ITX boards with C3 or C7 processors, P3, P4, Pentium-M, Core Duo Mobile or Desktop versions and low power AMD processors. Very small, measuring just 31x45x20mm, about the size of two AA batteries, Cyncronix PicoPSU-120 is also 1U ServerRack compliant. CE / FCC / VCCI Certifications: EN55024, EN55022 Class B (CE certification), Australia / New Zealand (using CISPR 22, EN55022), Japan (VCCI: using CISPR 22, ANSI C63.4), United States (FCC Part 15, Subpart B, Class B), Canada (ICES-003 using CISPR 22, ANSI C63.4).
