Mini 2 Way HiFi Stereo Audio XLR A/B Passive Switcher Box & Mixer Sound Splitter (1-IN-2-OUT)

• KN102 is a 2-way passive XLR splitter with 1-IN-2-OUT and 2-IN-1-OUT version.You can choose freely according to your audio device. This is 1-IN-2-OUT version.
• KN102 is designed for customers have several audio equipment with XLR balanced output. It is conveniently for you to switch different sound sources and compare their sound performance.

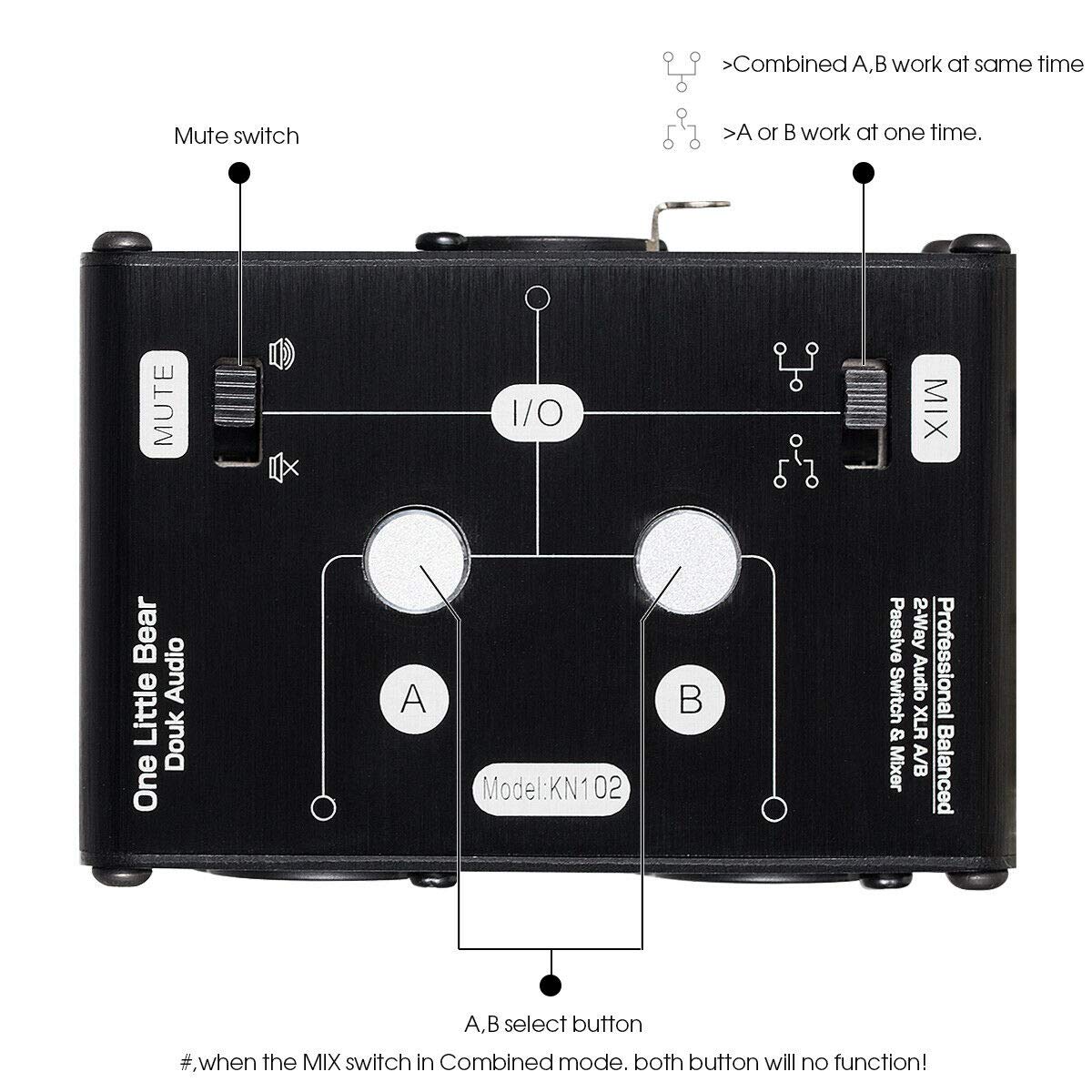

• With MIX switch, A and B independent selector and one key mute function, you can freely choose A Mode/ B Mode /Mix mode(A and B output at the same time).
• All aluminum shell to effectively avoid external noise and guarantee high-quality signal transmission; gold-plated XLR ports to ensure high reliability electric connection and minimize signal attenuation during its transmission.

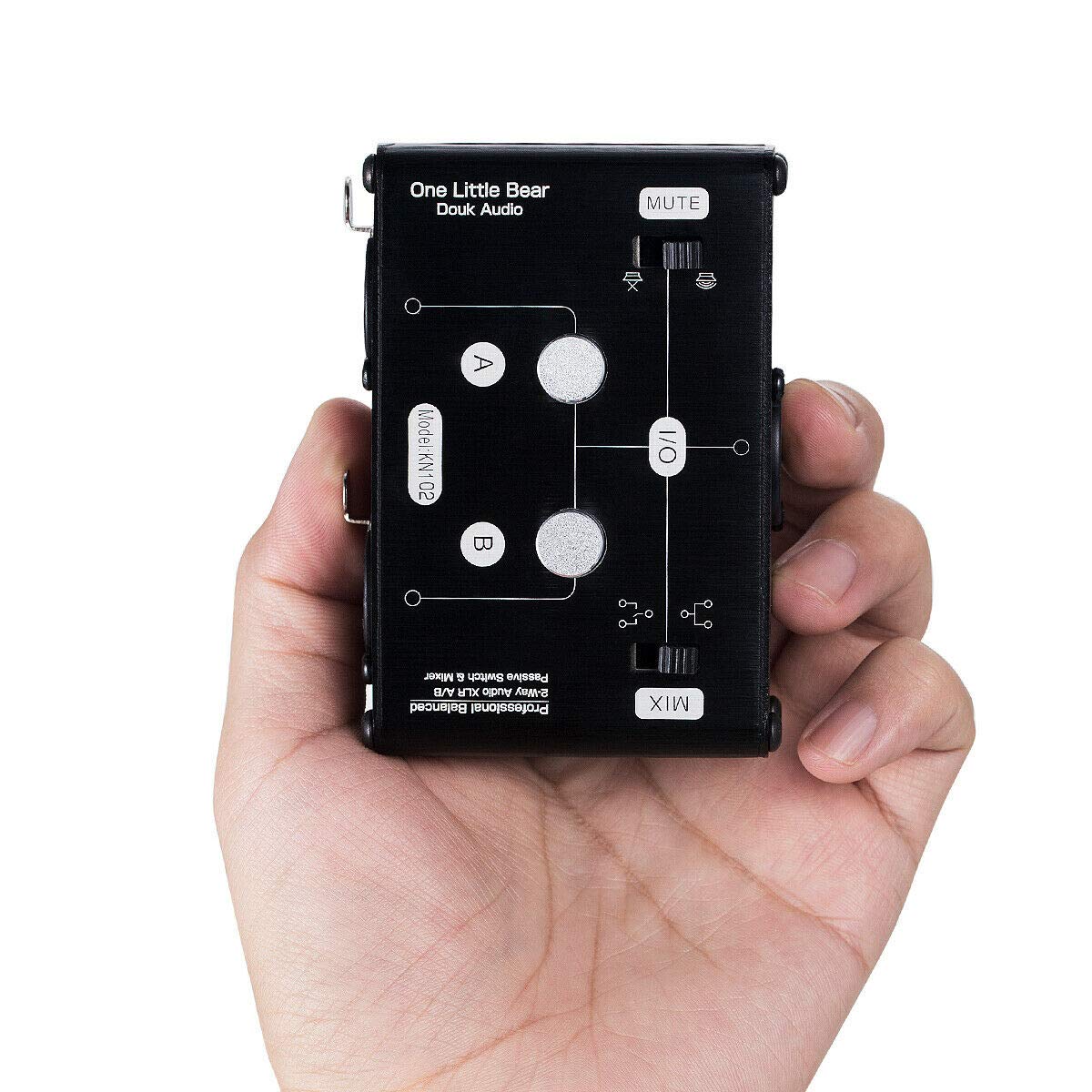

• Exquisite appearance with mini size; can be easily placed and carried to enjoy the charming of music everywhere.

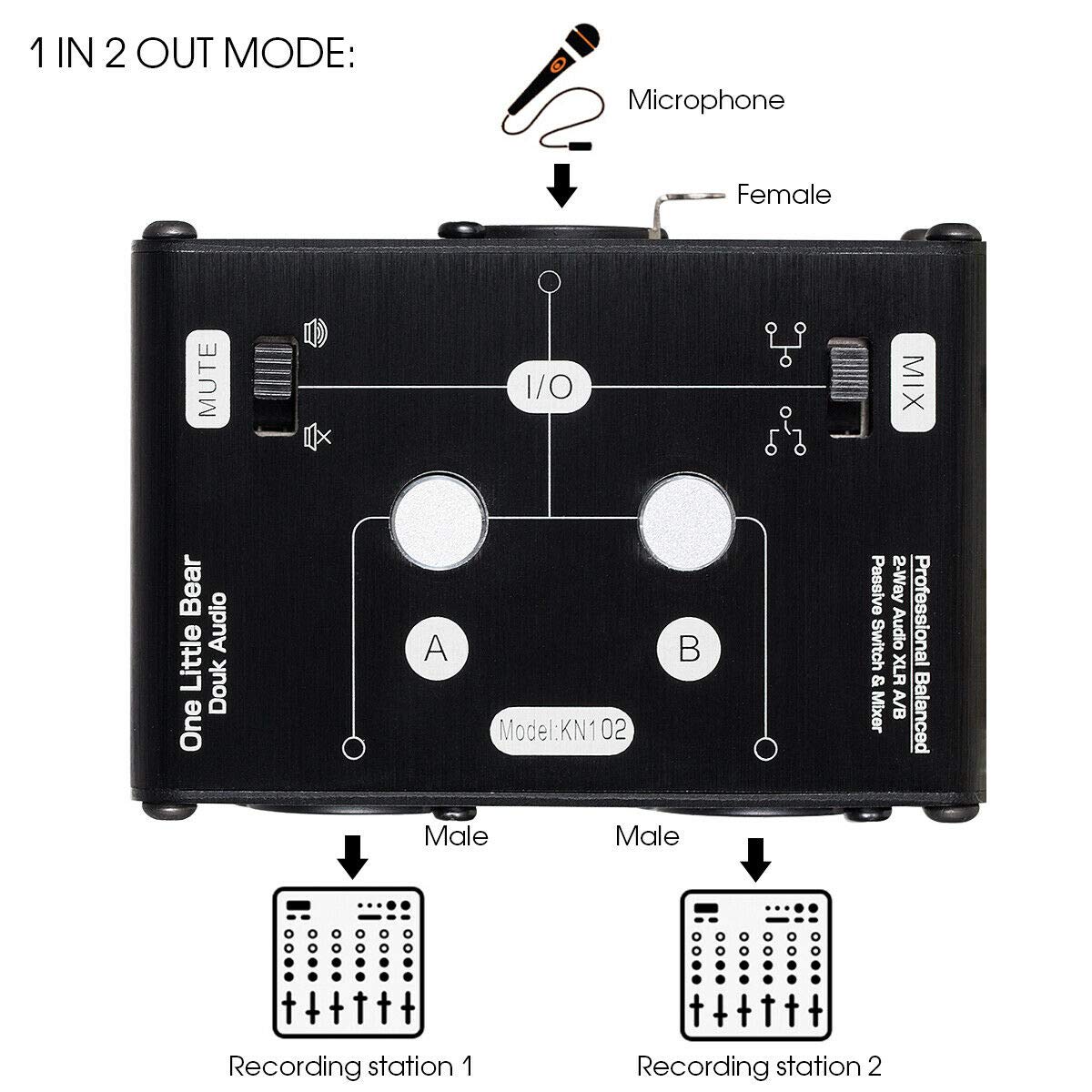

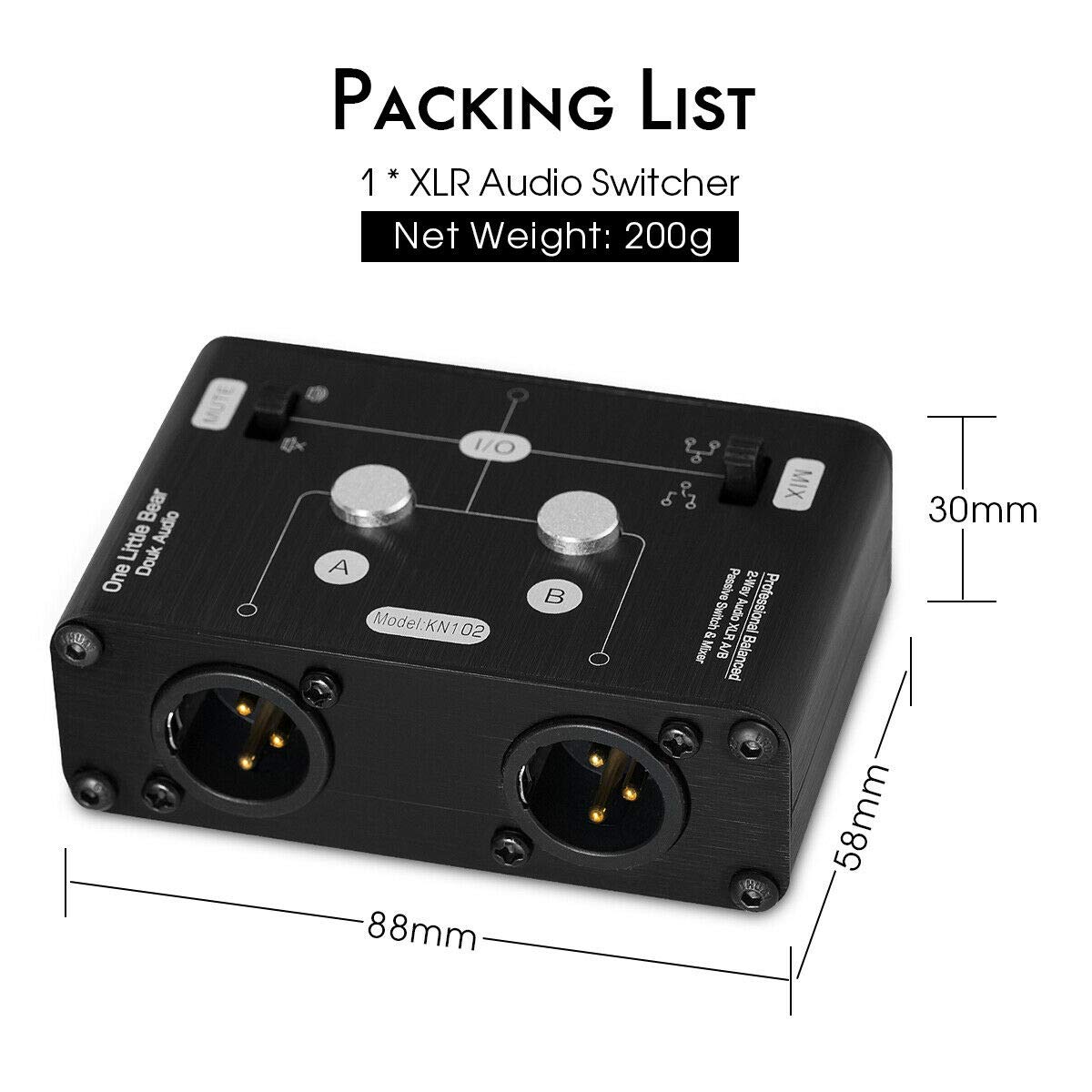

How to use: 1-IN-2-OUT: Connecting 1 audio source (like active microphone or MIDI key board) to I/O port and 2 audio receiver device (like recorder / microphone mixer) to A/B ports. A/B selector: select audio input or output from A or B channel. MIX switch function: set the KN102 work at Mixer mode or A/B selector. Notice: 1. In normal mode, A or B channel will input or output independently. While in mixer mode, A and B channel will combined input or output at same time(A/B selector will not work). 2. When A and B channel input at the same time, two input audio device must be the same type otherwise they will interfere each other. Parameters: Connector: 1*Female XLR and 2*Male XLR (1-IN-2-OUT) Material: aluminum Color: black Dimensions: (L)58mm*(W)88mm*(H)30mm Net Weight: 200g Packing List: 1 * XLR Audio Switcher
