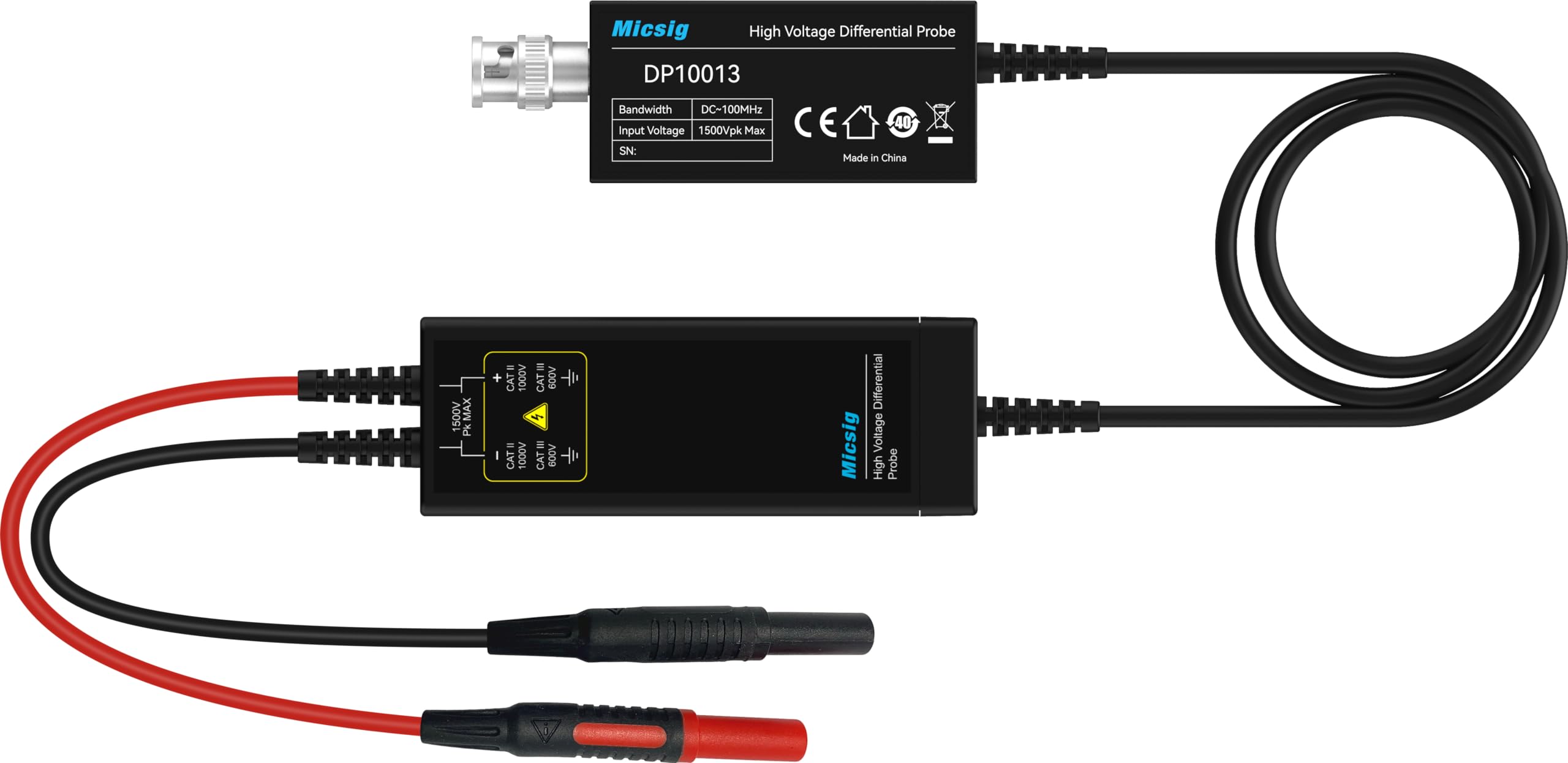

Micsig DP10013 High Voltage Differential Probe 1300V 100MHz 3.5ns Rise Time 20X/200X Attenuation, Tektronix P5200A P5205A P5210A,White
About this item
- Lightweight and portable, easy to carry.
- Designed for the measurement of high voltage differential signal, to meet the demand for floating measurement.
- Power supply USB DC 5V output, more portable while Oscilloscope have USB interface.
- Simple design, it is easy and safe to use.
- Maximum differential test voltage (DC+ACPK-PK): 130V (50X), 1300V (500X)
Product description
Floating measurements Typical applications: switching power supply design, motor control, voltage converters... Bandwidth : 100MHz Rise Time : 3.5ns Attenuation : 50X / 500X Gain accurecy : ±2% Maximum Differential Test Voltage (DC+AC PK-PK):130V(50X)- 1300V(500X) Maximum input common mode voltage (DC+AC PK-PK) : 130V(50X)- 1300V(500X) Input referred noise : ≤40mVrms(50X)- ≤230 mVrms(500X) Common Mode Rejection Ratio : >80dB(DC) - >60dB (100KHz)- >50dB(1MHz) Input Impedance : 10MΩ/1pF (differential) 5MΩ/2pF (single-ended to ground) Output Voltage : ≤3V Overrange Alarm : Button light flashes Power Supply : DC 5V,USB Supply Power : 0.85W Dimension : 14.5cm*6cm*2.7cm Garranty 1 year
