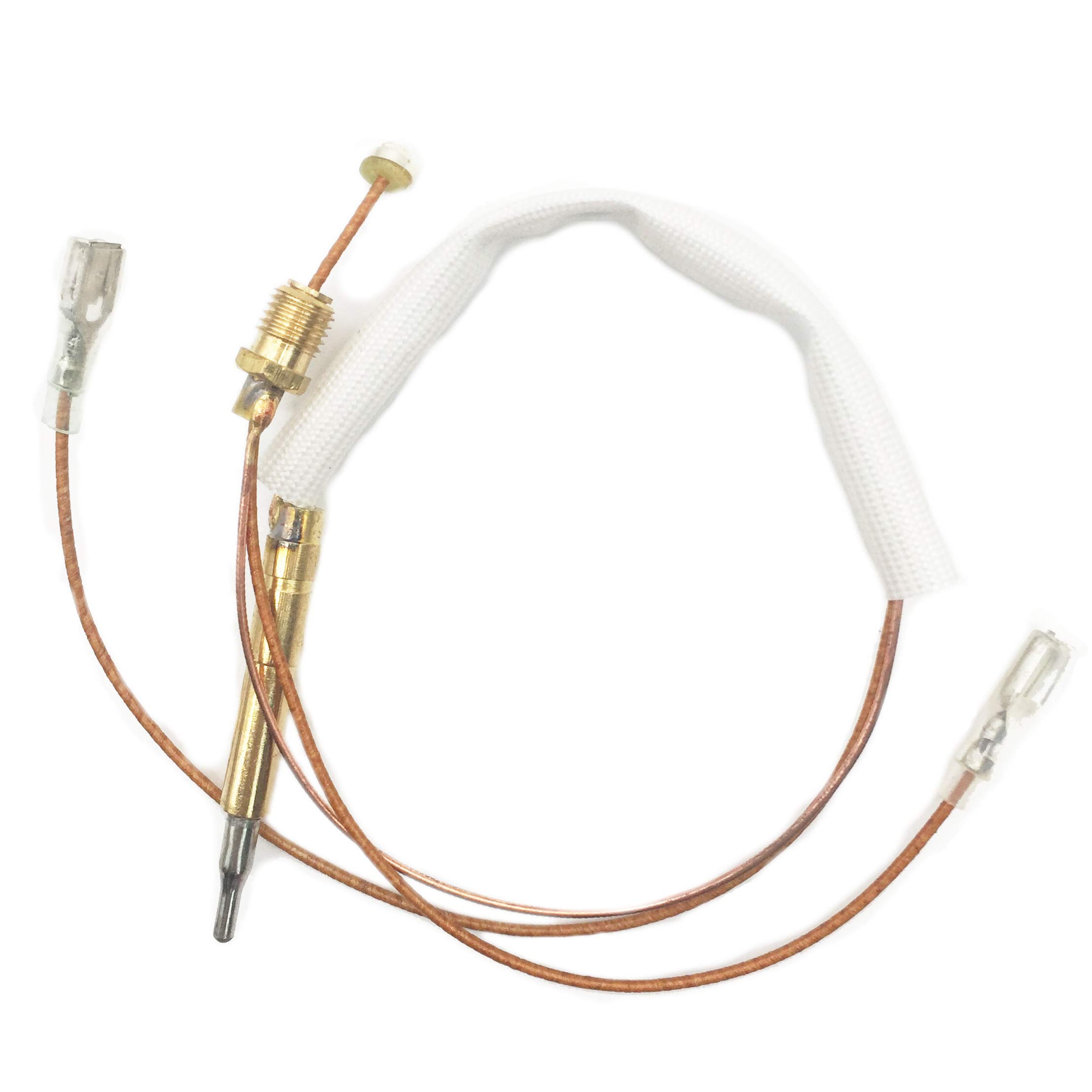

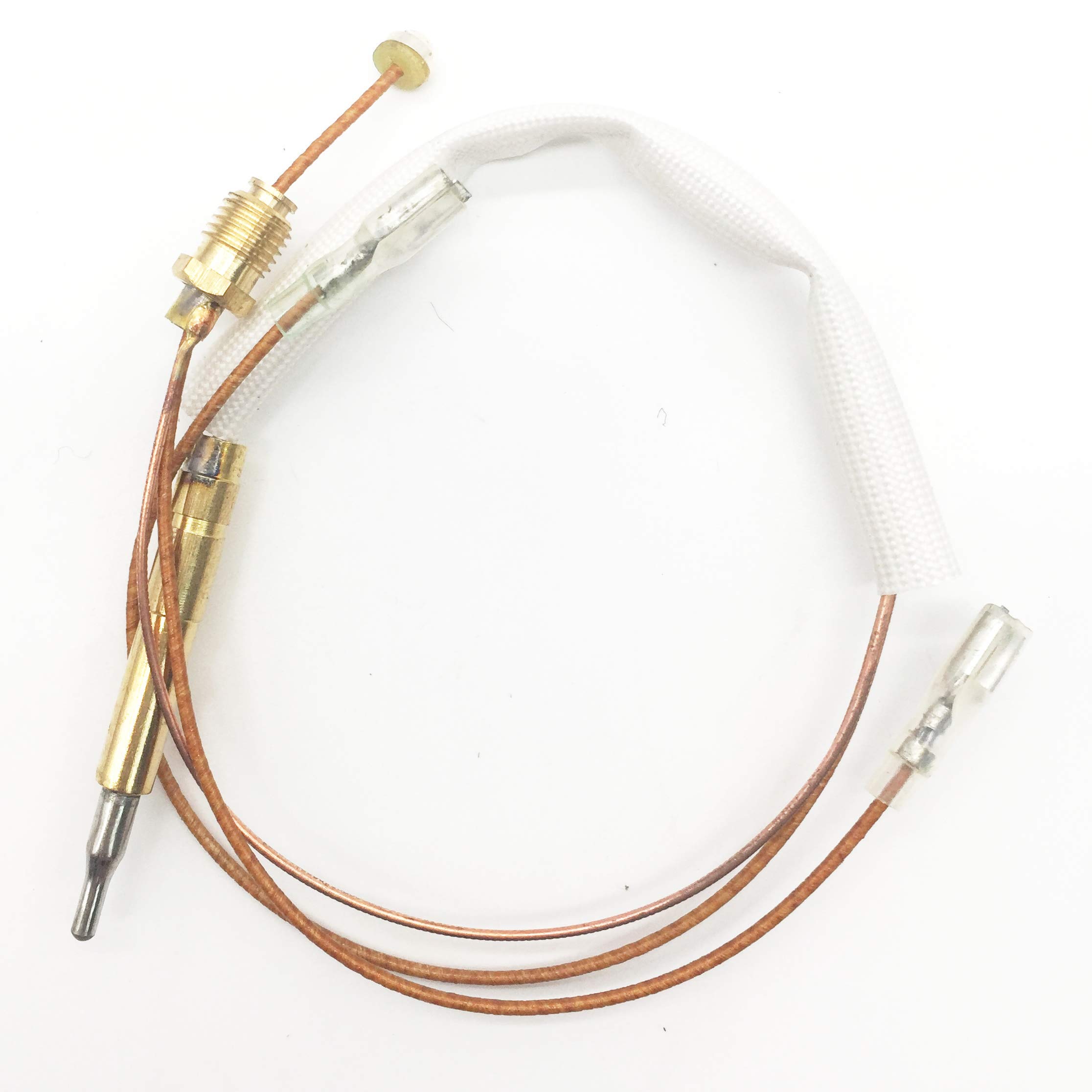

METER STAR Gas Thermocouple Outdoor Heater 350mm 8mm Gas Valve Nuts Two 4.8mm Wide Flat Square Terminals for Tilt Switch

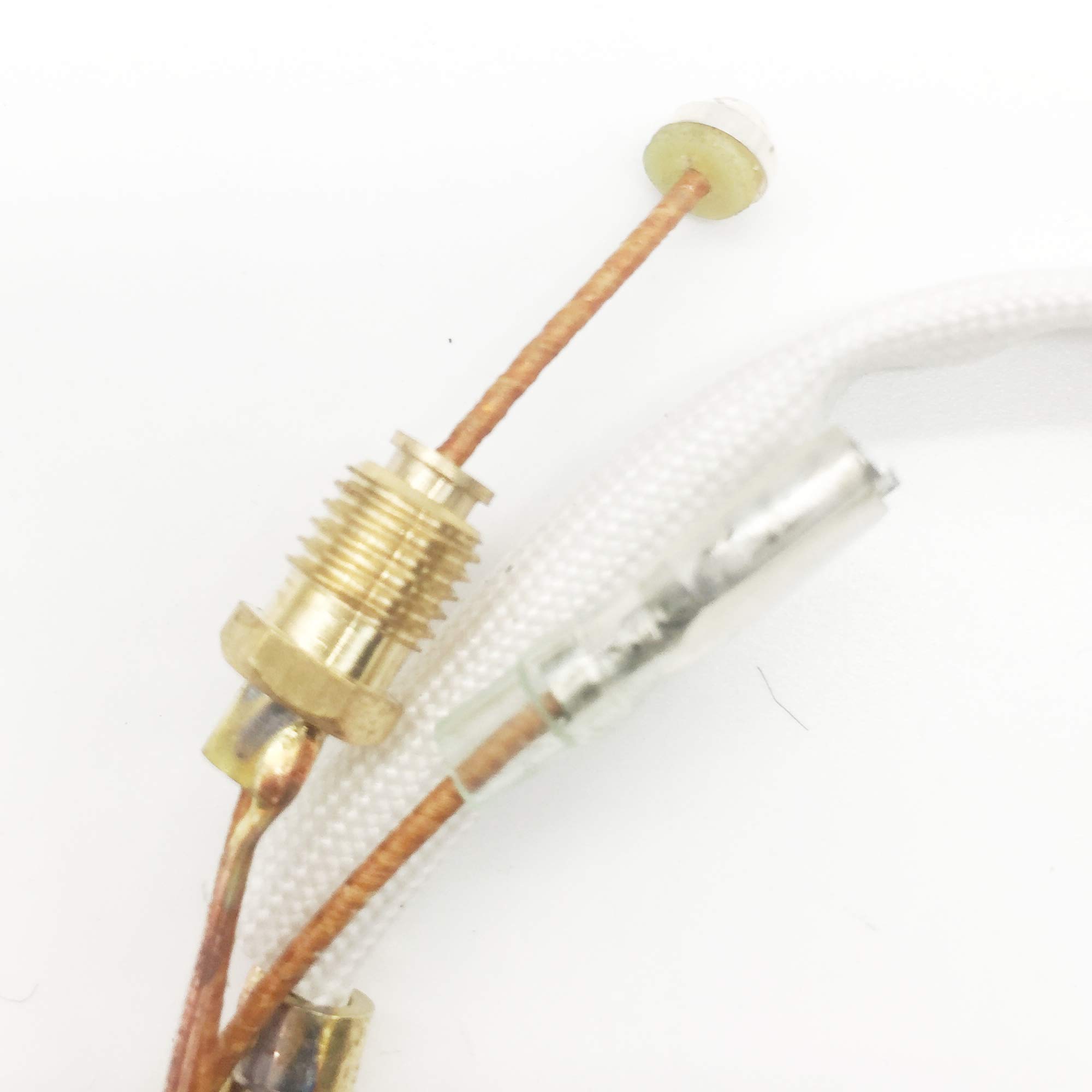

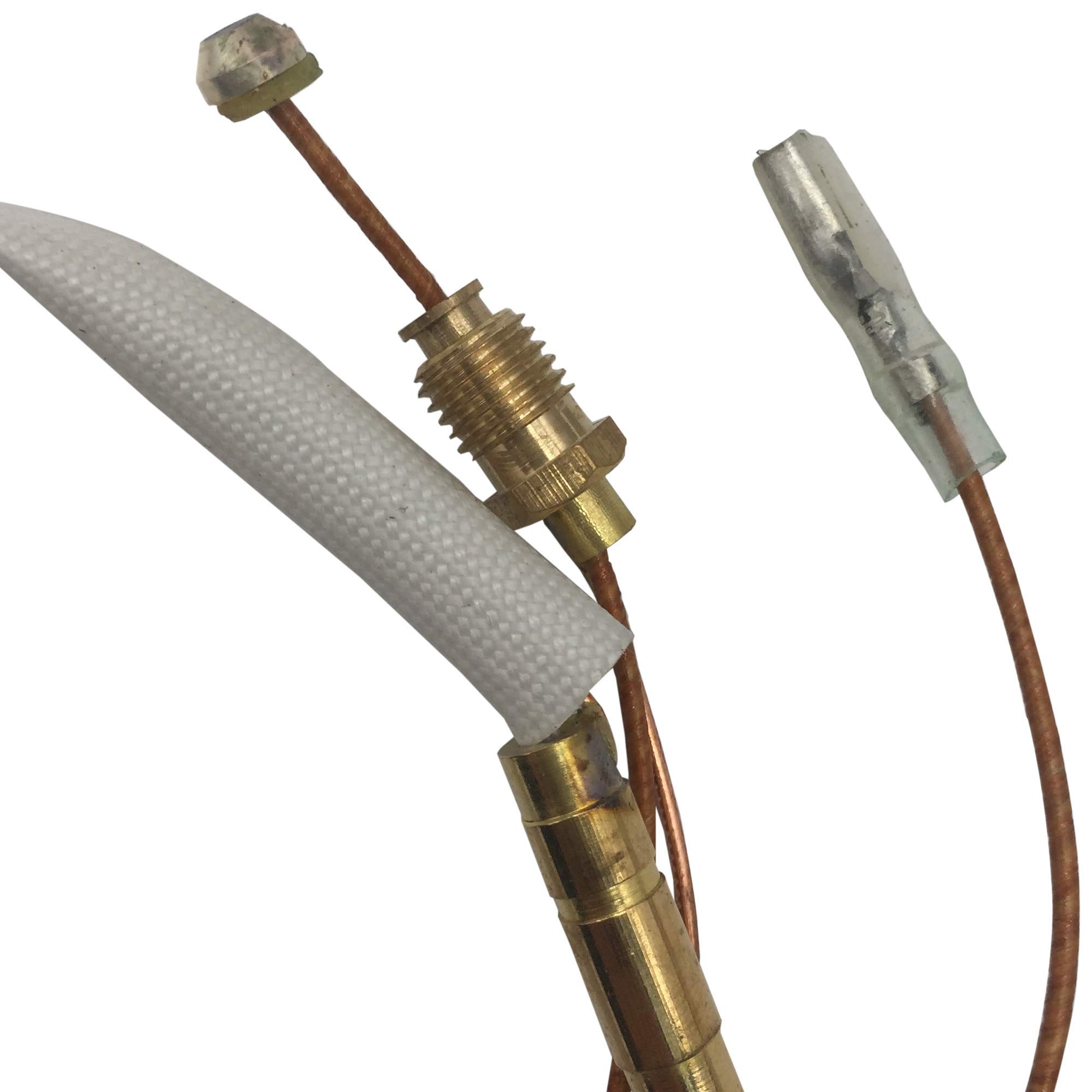

• 8mm Gas Valve End Nuts, Two 4.8mm Width Flat Square Terminals for Tilt Switch
• Total length: 350 mm for patio heater
• Thermocouple head is common groove type fixed by clips
• High temperature resistant protective sleeve
• Terminal connection anti-drop switch

Features: 8mm gas valve end nuts, two 4.8mm width flat square terminals for tilt switch. Total length: 350 mm for patio heaters. The thermocouple head is common groove type fixed by clips. High temperature resistant protective sleeve. Anti-drop switch. Instructions for use: 1). Install the tip of the thermocouple on a board and use two nuts to fix its location. 2) Keep the tip about 5mm away from the burner hole at the correct height. 3) Firmly attach the M8 thermocouple nut to the end of the valve (check if the thread of your valve is 8mm before buying). 4). Connect two flat terminals well with the current terminals of the tilt switch. 5) Open the gas and push your valve about 5-10 seconds until the thermocouple head is heated enough. 6). Release your hand and it works properly. If when you release your hand, the gas valve will turn off again, please check a. If your thermocouple is still heated on the flame b. If the end of the thermocouple is well connected to the valve c. If the terminals connect well the tilt switch.
