16mm Anchor Screw with Metal Sleeve, 16 mm x 110 mm Hex Head Rawl Bolt with Expansion Plug and Washer, 8 Grade Zinc Plated Steel Fixings Set for Concrete, Masonryand Brick Wall Pack of 2 pcs

• SLEEVE ANCHORS: are by far the most versatile fastener and can be employed in a plethora of projects, including those that include concrete as the base material. In fact, they are commonly utilized in securing heavy weighted items of up to 200 pounds to a concrete surface
• INSTALLATION: The expansion tube is produced by tightening a bolt. The bolt draws a tapered cone to expand the sleeve against the hole wall.

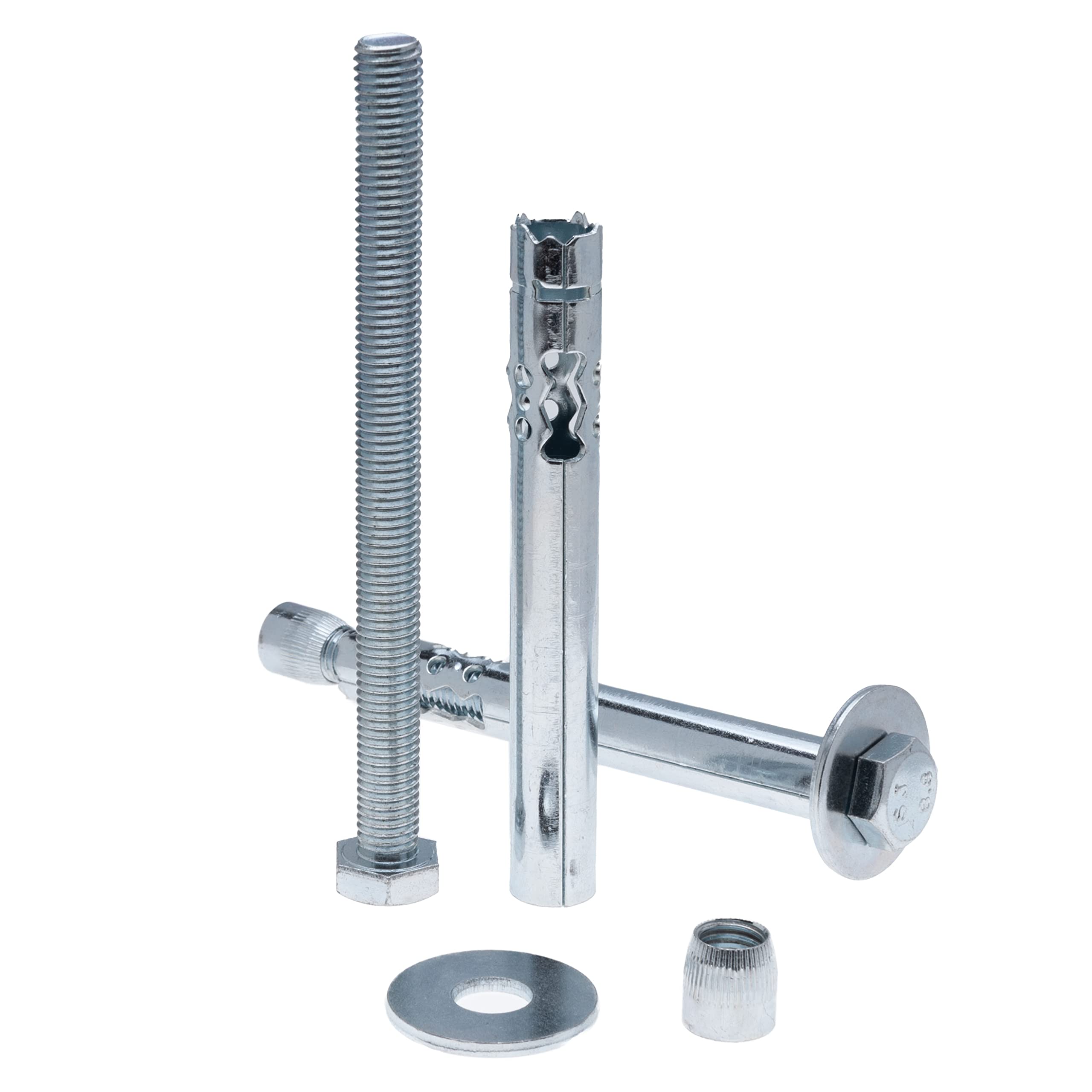

• EXPANSION DESIGN: Sleeve Anchor bolt consists of Expansion Sleeve (metal sheet). Threaded stud with cone (steel grade 5.8 ISO 898/1). Flanged nut (DIN 6923 grade 8). Hex screw (DIN 933 steel grade 8.8). Washer (width DIN 9021 – HV200), Hex socket countersunk head screw DIN 7991 steel grade 8.8.

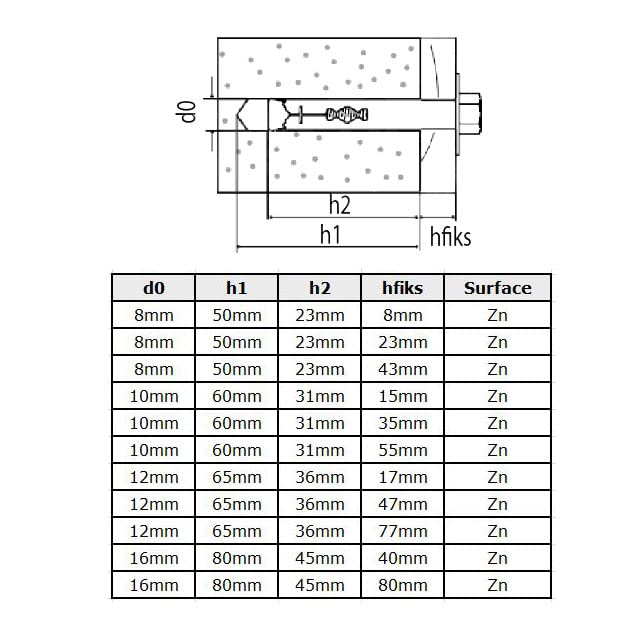

• DIMENSIONS: Hex Head Type: Material: 5.8 and 8.8 Steel grade White Zinc Plated. Certified standard: DIN6334. Equivalent norms: Hole diameter - 16 mm. Maximum Thickness of Material to be Fixed – 40 mm. Pack of 2pcs.
• WIDE APPLICATION: Expansion bolts can be used in concrete and masonry. They are suitable for installation of awnings, water heater installation, air conditioning fixing, fences, security doors and windows, home decoration, industrial projects, workshops, garages, etc. Air bricks, foam concrete blocks, autoclaved aerated concrete are not suitable for these expansion bolts.

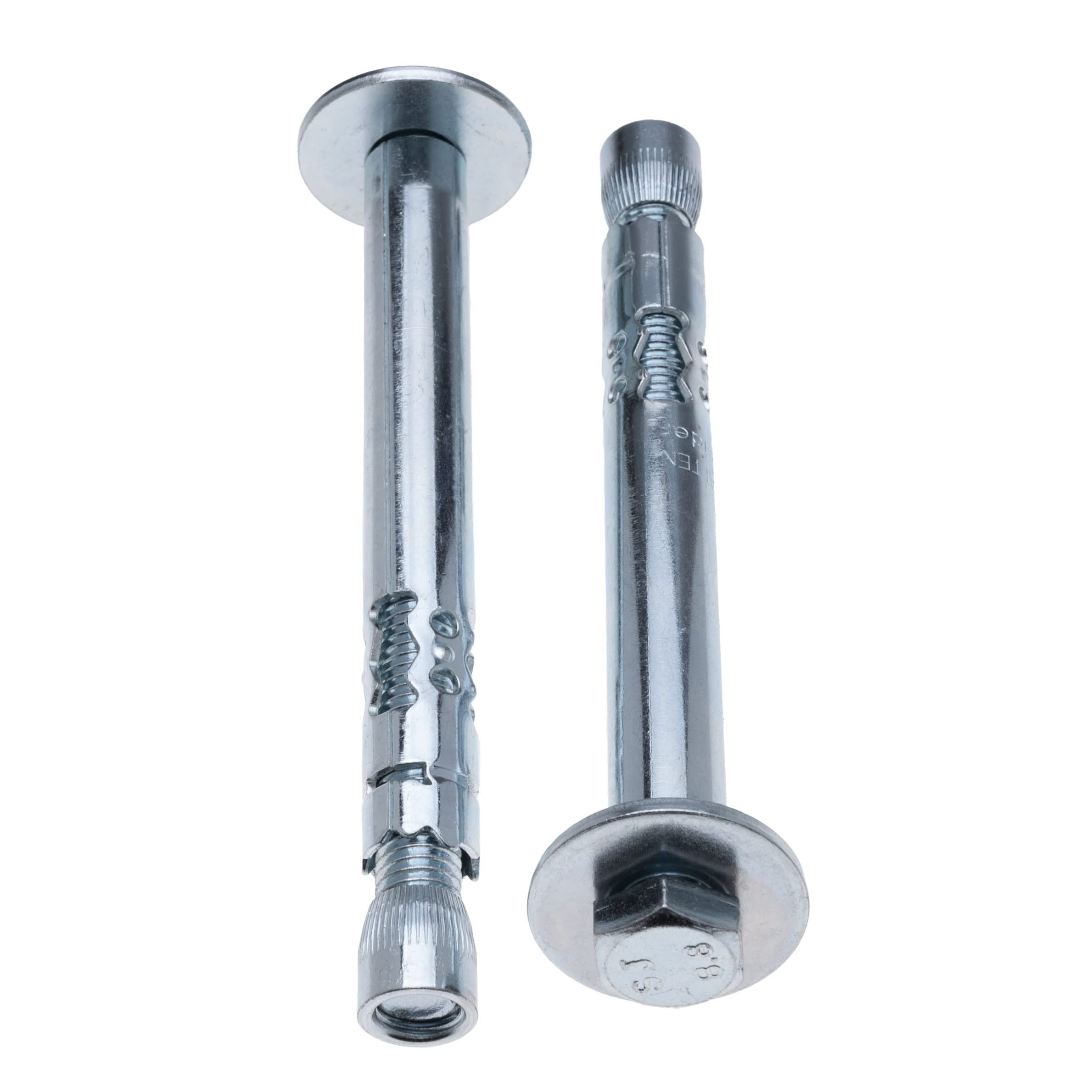

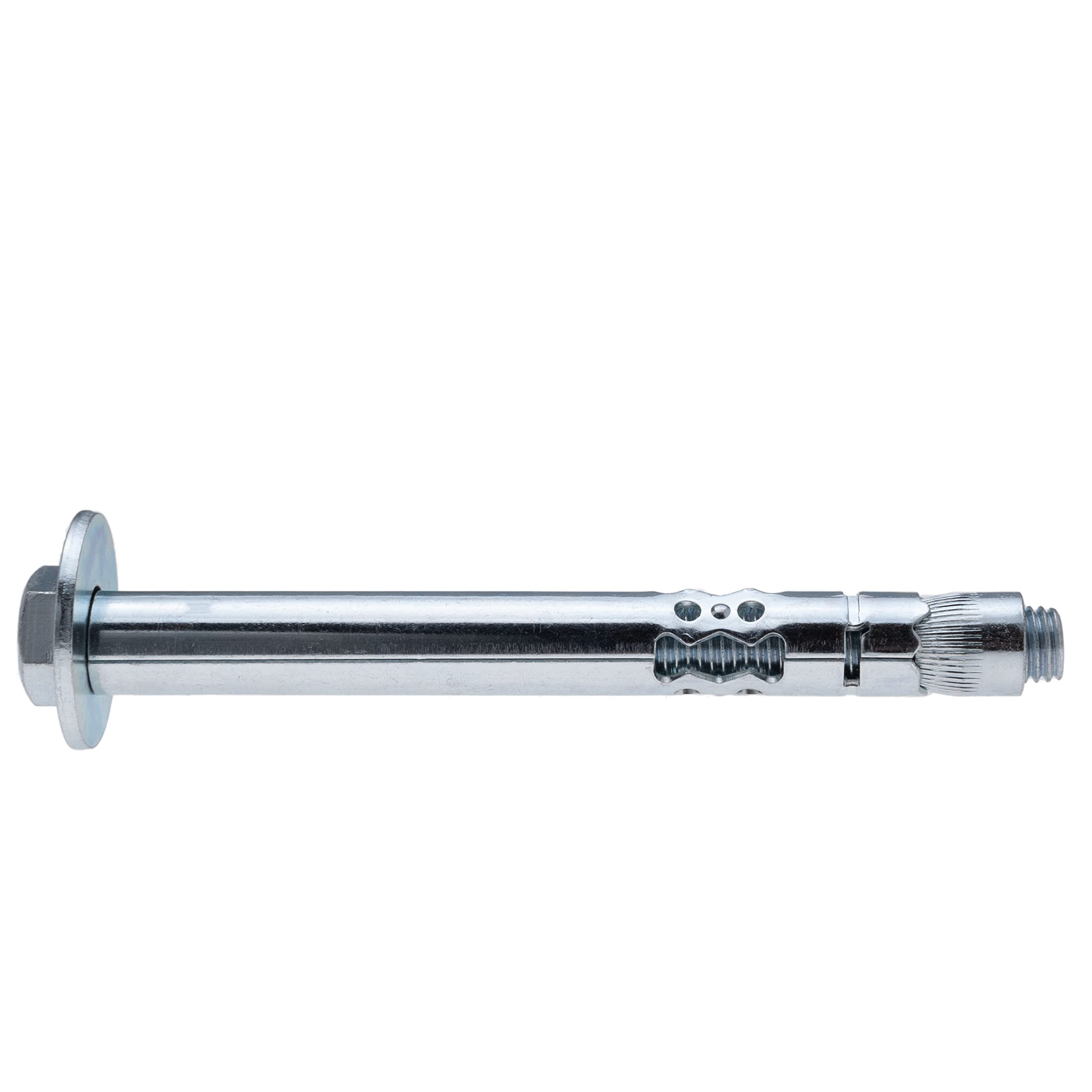

HIGH-QUALITY HEX HEAD SLEEVE ANCHORS OF STEEL BY KEPLE Standard Hex Head Sleeve Anchors are medium-duty pre-assembled expansion anchors, consisting of a threaded plow bolt and pressed steel sleeve which expands when tightened pressing the sleeve against the wall of the hole. Suited to base materials such as concrete and solid brick. Hex Sleeve Anchor Zinc Plated is for use in dry, indoor applications, and will provide excellent holding values in most masonry materials. How to install? Drill a hole in the wall. Clean the sand and soil in the hole. Insert the expansion screw into the hole. Use a wrench to tighten the nut of the expansion bolt outside the wall hole. EXPANSION DESIGN: The sleeve Anchor bolt consists of an Expansion Sleeve (metal sheet). Threaded stud with cone (steel grade 5.8 ISO 898/1). Flanged nut (DIN 6923 grade 8). Hex screw (DIN 933 steel grade 8.8). Washer (width DIN 9021 – HV200), Hex socket is countersunk head screw DIN 7991 steel grade 8.8. Pack of 2 pcs.
