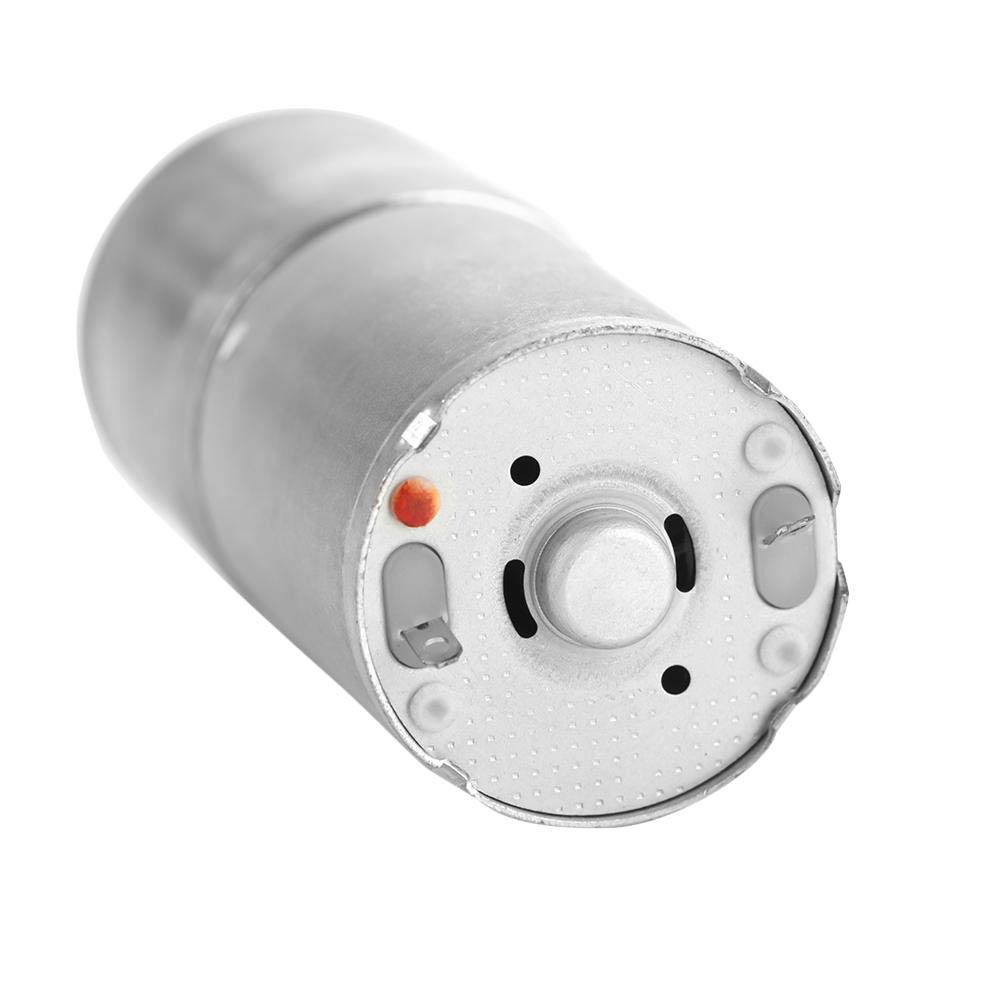

Yanmis Metal Gear Box Motor,DC 12V 25GA-370 25mm Large Torque, Low Speed and Noise for Electronic Lock, Robot, Electric Curtain, Electric Door, Micro Mixer,etc(12V 500RPM)

• ★★★【High Performance 】This product is a DC gear motor with high precision metal gear, stable working.
• ★★★【Features】This DC motor features large moment of force, low speed, and low noise.This motor is adopted of pure copper wire coil, with low heat and low loss.
• ★★★【Widely Used】The metal gear motor is widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine.
• ★★★【Specification】Model: GA25YN370;Rated power: 3.5 (W);Product type: Brush dc motor;Rated voltage: 5-12 (V);Rated current: 0.06 (A)
• ★★★【Long Lifespan】The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.

Description Specification:Model: GA25YN370 Rated power: 3.5 (W) Product type: Brush dc motor Rated voltage: 5-12 (V) Rated current: 0.06 (A) Type(Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM Outer diameter: 25 mm/1.0in Shaft diameter: 3 mm /0.1in Shaft length: 10 mm/0.4in Weight: 96g/3.4oz Voltage Gear ratio no load load Stall speed Current speed Current toqure Current toqure 12V 1:650 5RPM ≤150MA 3RPM ≤70MA 1150gf.cm ≤2.1A 15.4kgf.cm 12V 1:150 10RPM ≤170MA 7RPM ≤100MA 980gf.cm ≤2.1A 14.8kgf.cm 12V 1:150 30RPM ≤170MA 25RPM ≤100MA 770gf.cm ≤2.1A 12.0kgf.cm 12V 1:200 60RPM ≤170MA 51RPM ≤100MA 750gf.cm ≤2.1A 11.8kgf.cm 12V 1:100 100RPM ≤150MA 73RPM ≤185MA 660gf.cm ≤2.1A 10.5kgf.cm 12V 1:50 200RPM ≤180MA 165RPM ≤105MA 580gf.cm ≤2.1A 8.8kgf.cm 12V 1:30 300RPM ≤190MA 254RPM ≤145MA 180gf.cm ≤2.1A 7.8kgf.cm 12V 1:25 400RPM ≤190MA 344RPM ≤145MA 170gf.cm ≤2.1A 7.7kgf.cm 12V 1:20 500RPM ≤190MA 460RPM ≤145MA 150gf.cm ≤2.1A 7.5kgf.cm 12V 1:10 1000RPM ≤190MA 820RPM ≤145MA 88gf.cm ≤2.1A 7.2kgf.cm Package list: 1 x gear motor
