Schneider Electric Merten MEG5165-0000 - Flush-Mounted Roller Shutter, Awning and Blind Control - Blind Switch Insert - Metallic

• Application: blind switch. This insert is used to control a lock and the blind motors.
• Easy to assemble – screw fastening. The visualisation of connection options, as well as alignment markings, markings and the quick thread screws and the long claws allow for easy and simple installation.
• Multifunctional – The blind control insert is a PlusLink control system insert and can be used in such PlusLink solutions
• Easy check: checking already installed switches is possible without switch disassembly.
• Specifications: blind control insert, AC 220/230 V, 50/60 Hz at a switching capacity of Mx. 1000 V of a motor. Protection class: IP20. Contents: 1 x MEG5165-0000

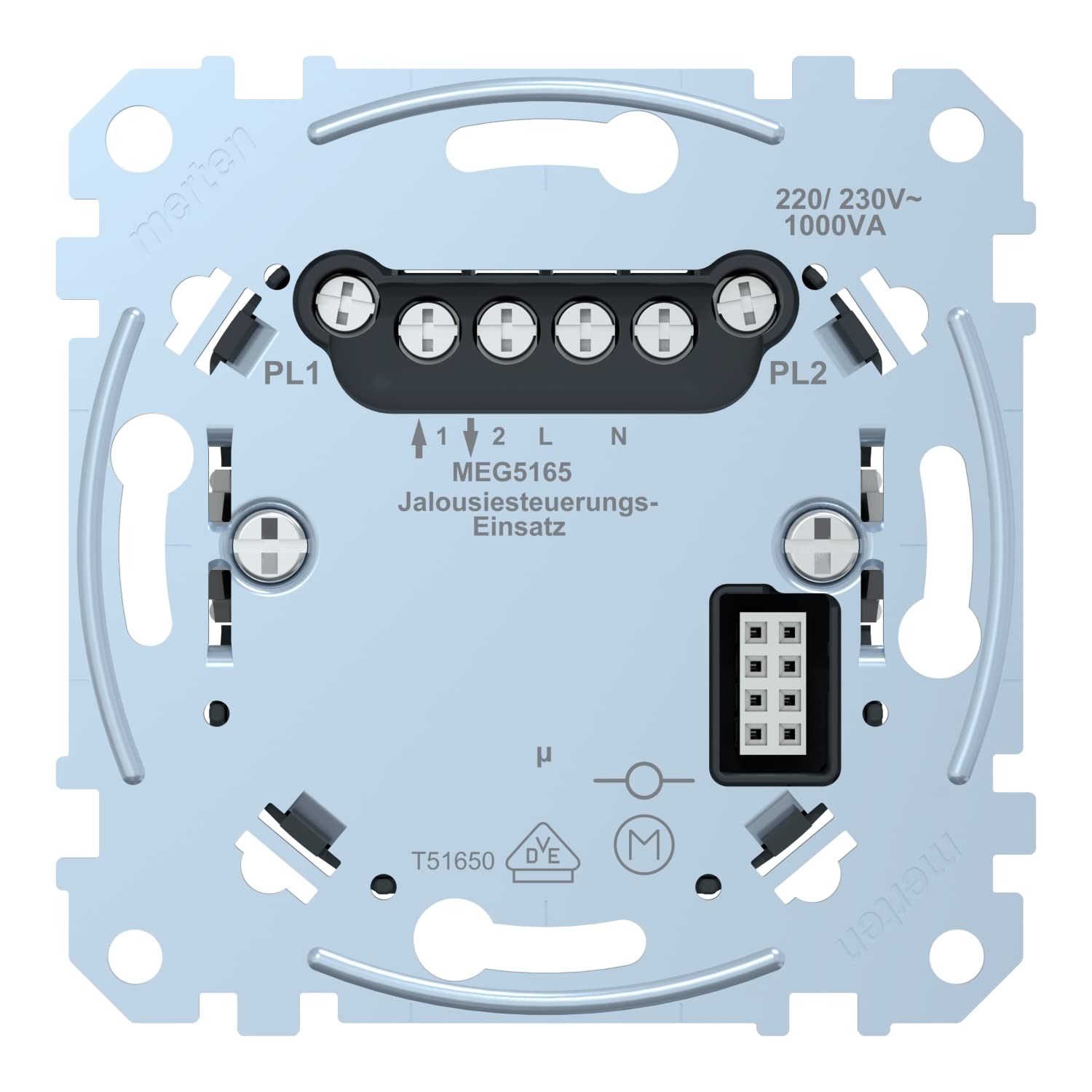

Merten MEG5165-0000 | Blind Control Insert - Shutters/Blind Accessories - Metallic | Made in Germany The blind control insert (called below) allows you to control a blind or roller shutter motor equipped with a limit position switch. The insert has two electrically locked relay contacts, which reliably prevent the simultaneous control of both relay outputs. This prevents damage to the connected engine. The insert also has two PlusLink inputs that allow you to control the use from other places. The insert, complete with a module, is the receiving device and is controlled by transmitting devices via PlusLink (PL). Transmitting devices are e.g. - Central point insert (complete with corresponding modules) Extension Plus 1 x / 2 x Mechanical double button External sensors. To use the PlusLink you need a separate wire in your installation.
