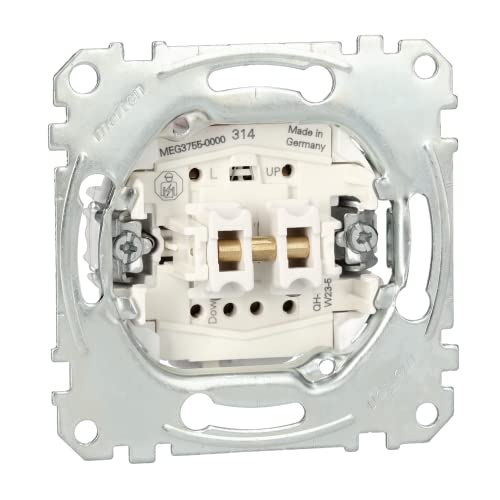

Merten MEG3755-0000 Roller shutter push-button insert 1 pole, 10 A, AC 250 V, plug-in terminals

• Roller shutter button insert
• Voltage: 250.0
• Package Dimensions: 7.4 L x 4.0 H x 9.4 W (centimeters)

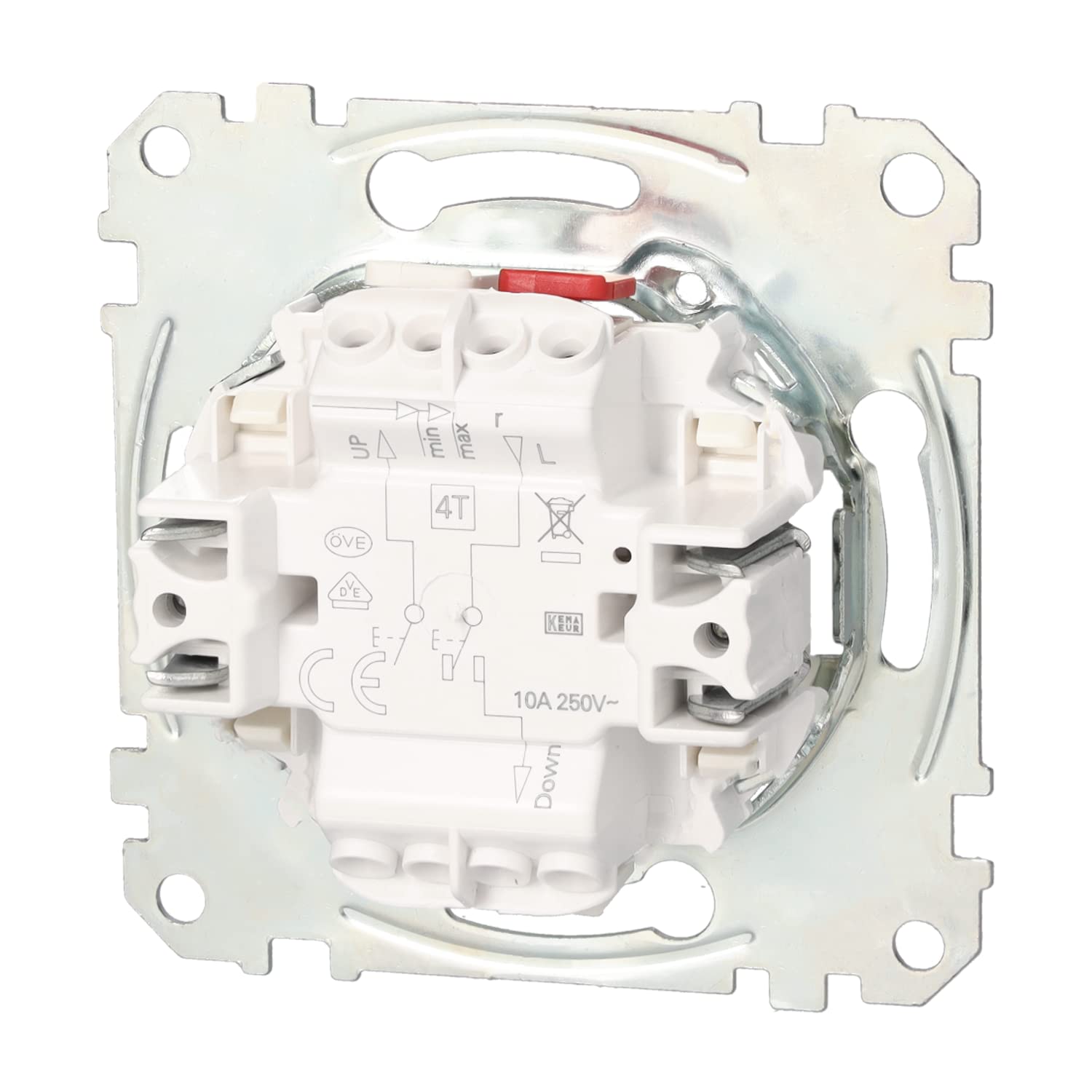

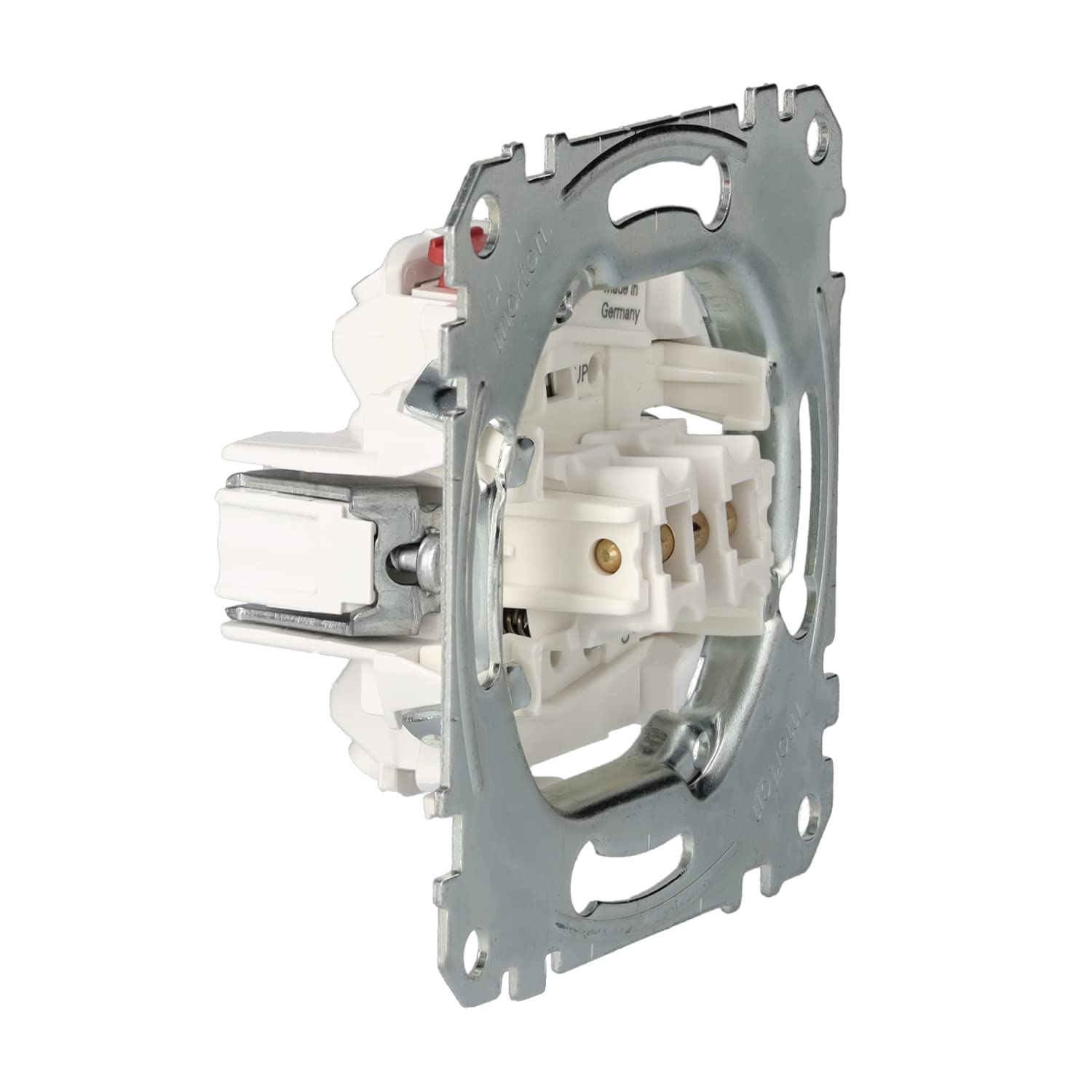

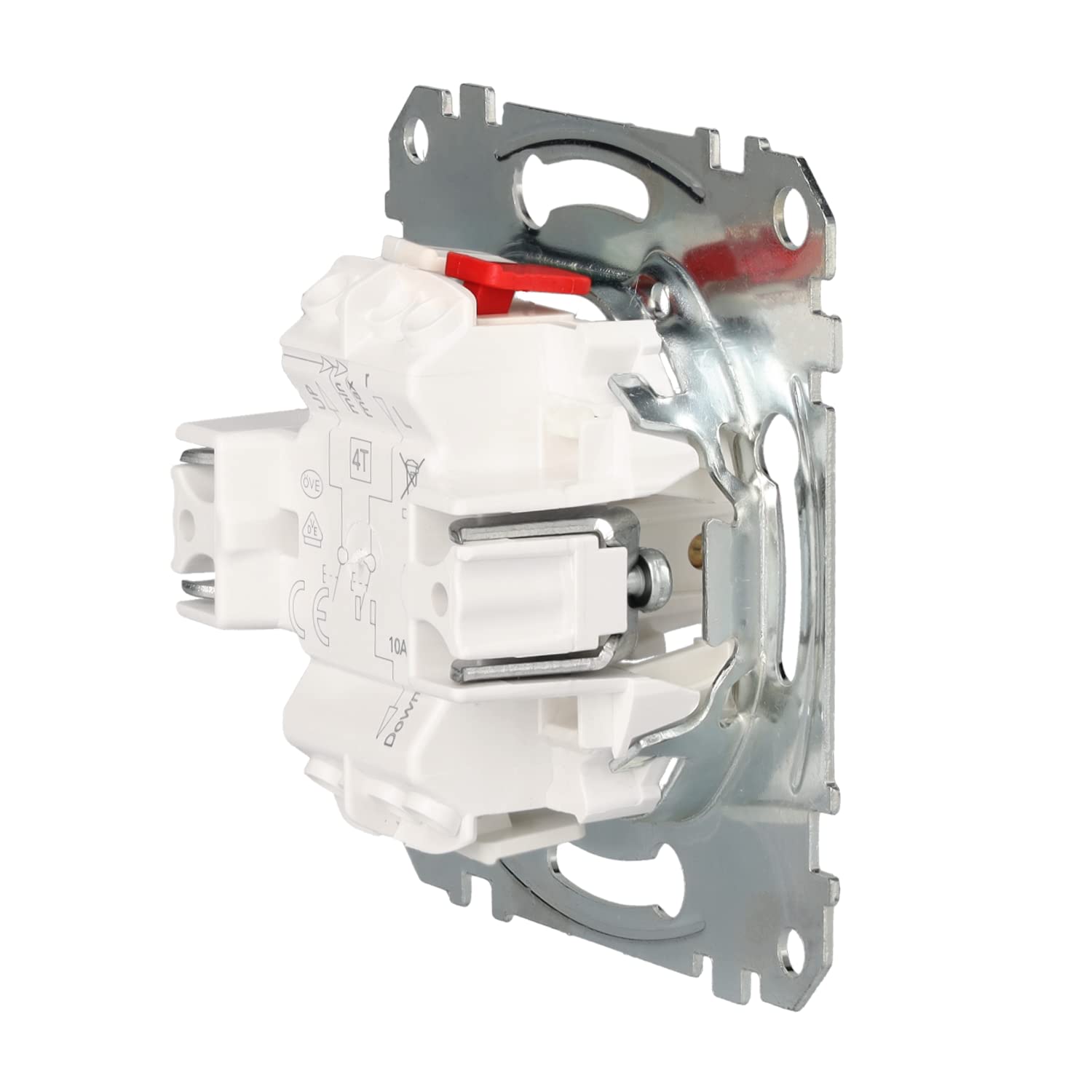

Merten MEG3755-0000 Roller Shutter Switch Insert - 1-Pole - 10 A - AC 250 V - Plug-In Terminals | Made in Germany QuickFlex switch overview Connecting made easy: Plug-in terminals with funnel-shaped cable entries ensure quick and easy wiring. Ergonomically useful: the connections are angled at 35° and facilitate installation considerably. The rear circuit diagram provides a secure overview of the wiring. Easy to use, easily accessible release levers. The low installation depth ensures maximum freedom of movement. Connect Quickly & Safely Align The indestructible 1 mm steel support ring always stays in shape even on uneven walls. Rounded edges make installation even safer. Thanks to the highly galvanised surface, the alignment markings and markings are even more visible. With the proven teeth of the support rings, multiple combinations are quickly and easily aligned. Super fast attachment. With three short turns of the quick-thread screws, the base sits firmly in the can. 100% safety thanks to fully insulated carrying ring. 100% recessed claws ensure easy and secure installation in cavity wall sockets. Easy claw reset makes assembly changes and re-alignment a breeze. Comfortable check from the front. Clear and clearly recognisable identification of the connections. Test contacts allow convenient testing and measuring from the front – without removing the switch base. Intelligent additional functions can be retrofitted without disassembly. · The sockets are equipped for LED lighting modules: simply plug in and you're done. The LED lighting modules in red or multicolour can be used as a control light or orientation light, more visible. With the proven teeth of the support rings, multiple combinations are quickly and easily aligned.
