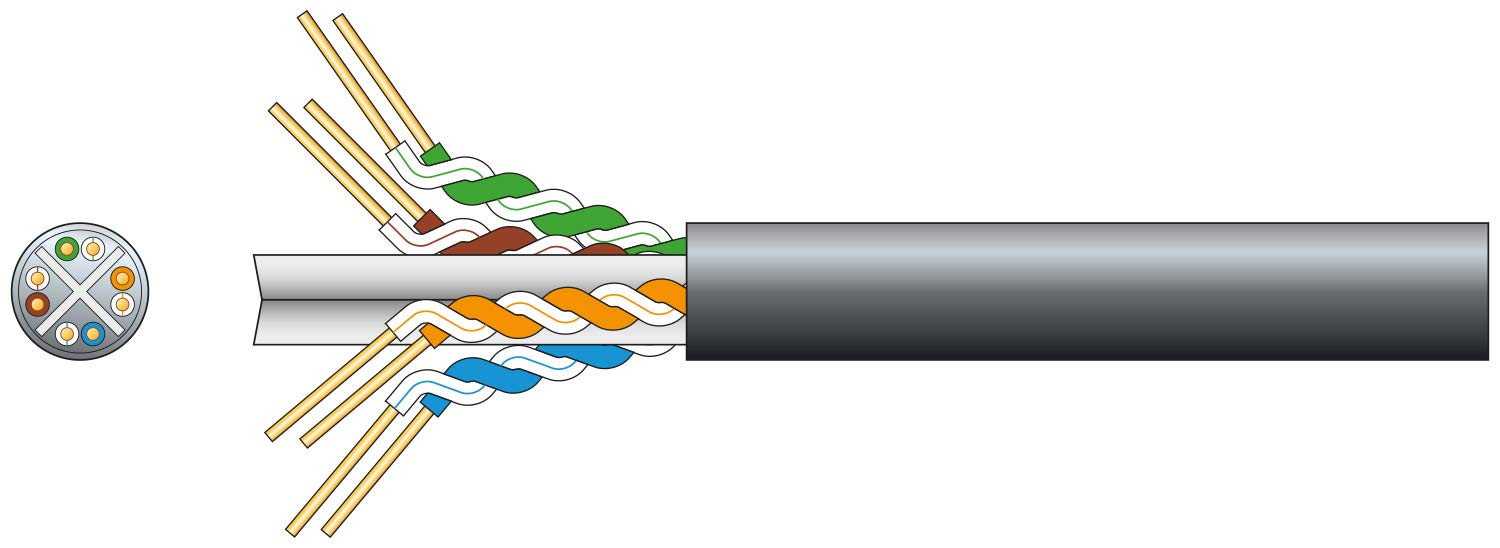

Mercury | Cat6 Outdoor Oxygen Free Copper Twisted Pair | 305M Drum

• LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
• Oxygen free solid copper conductor
• Supplied in an easy-pull dispensing box and marked at 1m intervals
• Passes Cat6 fluke test 100m at 250MHz
• Complies to TIA/EIA-568 Cat6 standard

Cat6 Outdoor Networking Cable Cat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment. PRODUCT FEATURES: Oxygen free solid copper conductor LDPE sheath and UV resistant properties make this cable ideal for outdoor installations Supplied in an easy-pull dispensing box and marked at 1m intervals Passes Cat6 fluke test 100m at 250MHz Complies to TIA/EIA-568 Cat6 standard SPECIFICATION: Conductor Solid OFC Strands 8 x 0.53mmØ ±2% Cable : diameter 6.0±0.05mm Insulation HDPE 0.93±0.05mm Sheath LDPE 0.55±0.05mm thickness DC resistance @ 20°C <9.38 ohms/100m Impedance (1 to 250MHz)100±15 ohms Return loss >20.1dB @ 100MHz Attenuation >19.8dB @ 100MHz NEXT >44.3dB @ 100MHz Phase delay >537.60ns @ 100MHz PSNEXT >42.3dB @ 100MHz ELFEXT >27.8dB @ 100MHz PSELFEXT >24.8dB @ 100MHz Cable colour Black
