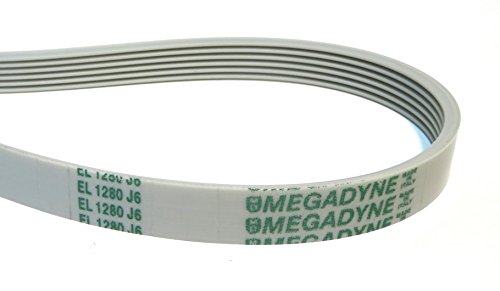

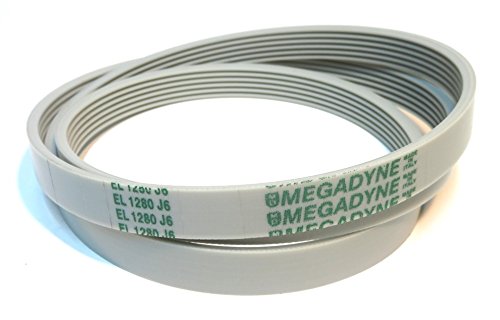

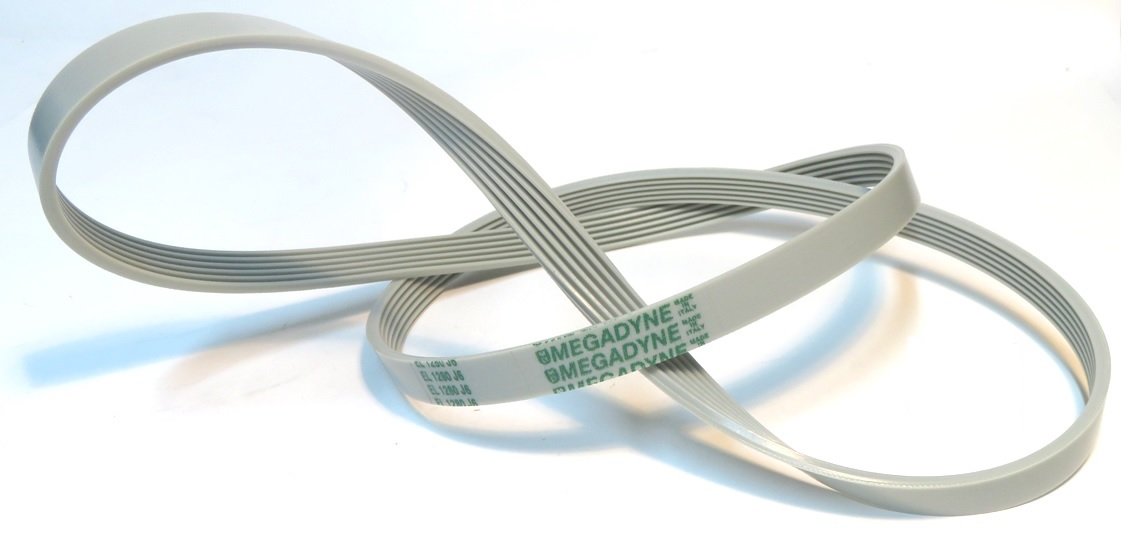

Megadyne - Washing machine drive belt EL 1280 J6 (124021020)

• Development 1280mm Transmission Belt
• Responsible for transmitting motor movement to washing machine drum
• Slot: Type J / Teeth: 6 / Channels: 5 / Elasticity: EL
• Assembly instructions included

1280 mm drive belt development, responsible for transmitting the movement of the motor to the washing machine drum. Mounted in washing machines of the brands AEG, Corberó Electrolux, Zanussi, Arthur Martin, Miele, Zoppas, Ariston, Ignis, Philips, Indesit, Hotpoint, creda, Scholtes, Whirlpool, Amana, among many other brands. Length: 1280 mm / V-belt / Elasticity: EL / Slot: Type J / Teeth: 6 / Channels: 5 / Code: 124021020 / Manufacturer: Megadyne / Reference: 302.92.34 Assembly instructions (English language not guaranteed). Once you have accessed the back of the washing machine: 1. Pass the belt through the pulley of the motor. 2. Then drive the belt to the large pulley (the one of the basket) 3. And start spinning slowly and strong. The strap will be attached as the elasticity is given. That is, it is mounted like a bicycle chain. (See photo). WHY DO THE STRAPS BREAK? Most washing machine straps break for one reason because they burn. You will know that the belt of your washing machine has been burnt because the ends of the strap have been slightly curved inwards and the inner groove has been lowered. To prevent the strap from breaking for this reason, it is best not to overload the washing machine or wash shoes or sports shoes. This will prevent the drum from being locked while the motor pulley turns.
