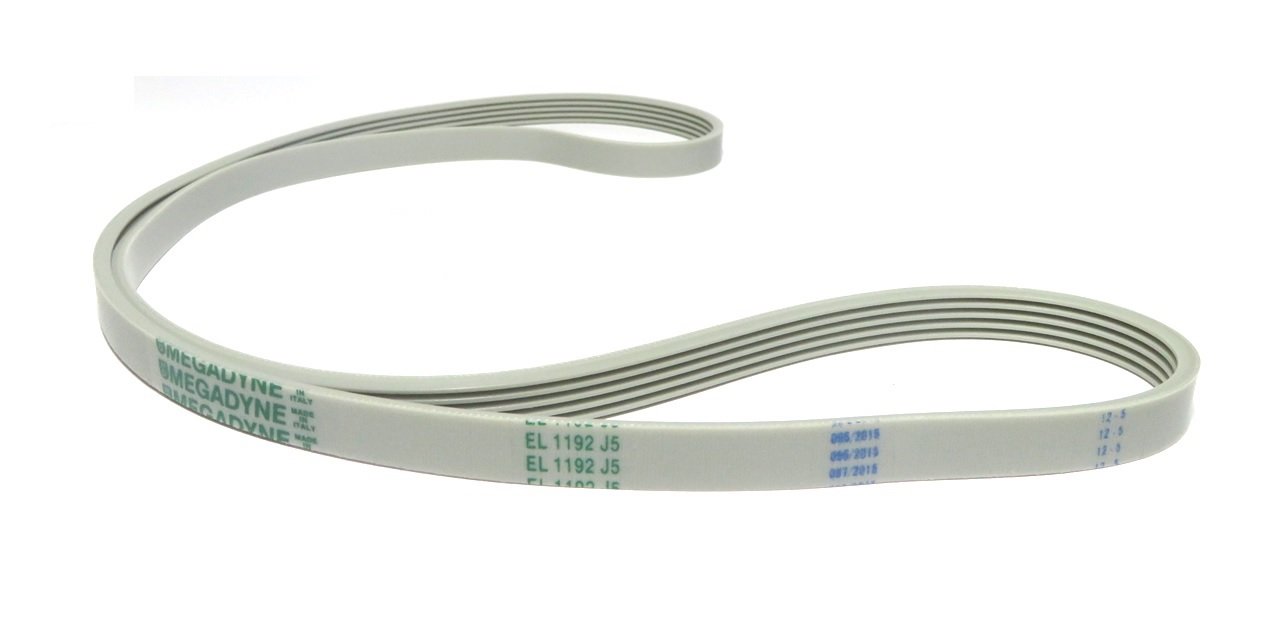

Megadyne - Washing machine drive belt EL 1192 J5 (36060200)

• Ribbed transmission belt, 1192 m development
• Its function is to transmit the movement of the engine to the washing machine drum
• Teeth: 5 / Channels: 4 / Elasticity: EL type/Slots: J type
• Compatibility: perfectly replaces the 1192 J5 belt
• Please find attached placement instructions

Ribbed drive belt, 1192 miles of development, with the function of transmitting the movement of the engine to the drum of the washing machine. It is installed in washing machines from Indesit Ariston Hotpoint Baumatic Caple White Westinghouse CDA among many other brands. Length: 1192 mm / Elasticity: Type EL / Slots: Type J / Teeth Height: 3.3 mm / Channel Width: 2.35 mm / Teeth: 5 / Channels: 4 / Code: 36060200 / Manufacturer: Megadyne / Reference: 302.90.13 Placement instructions: Once you have accessed the inside of the washing machine: 1. Drive the belt into the engine pulley. 2. Then drive the belt to the large pulley. It is important not to try to fit the belt by the higher part of the pulley. What to do is press the belt into a corner of the pulley. 3. And start to spin slowly and with force. The belt will become elastic (it is mounted like a bike chain). (see photo)
