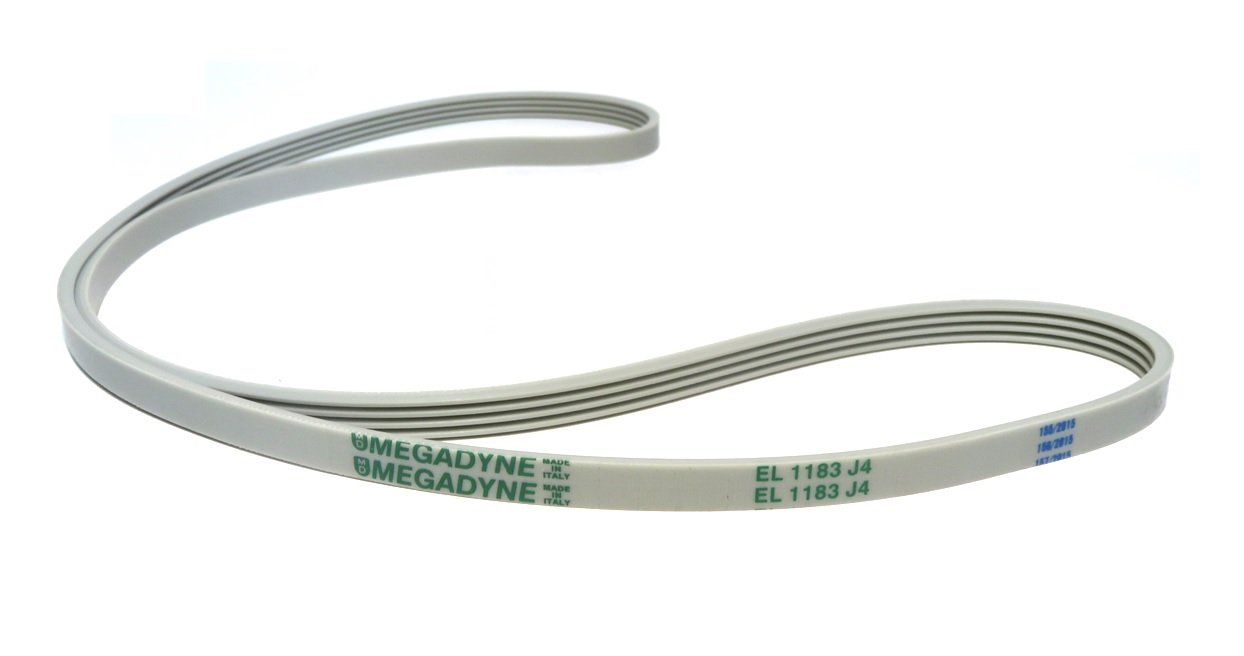

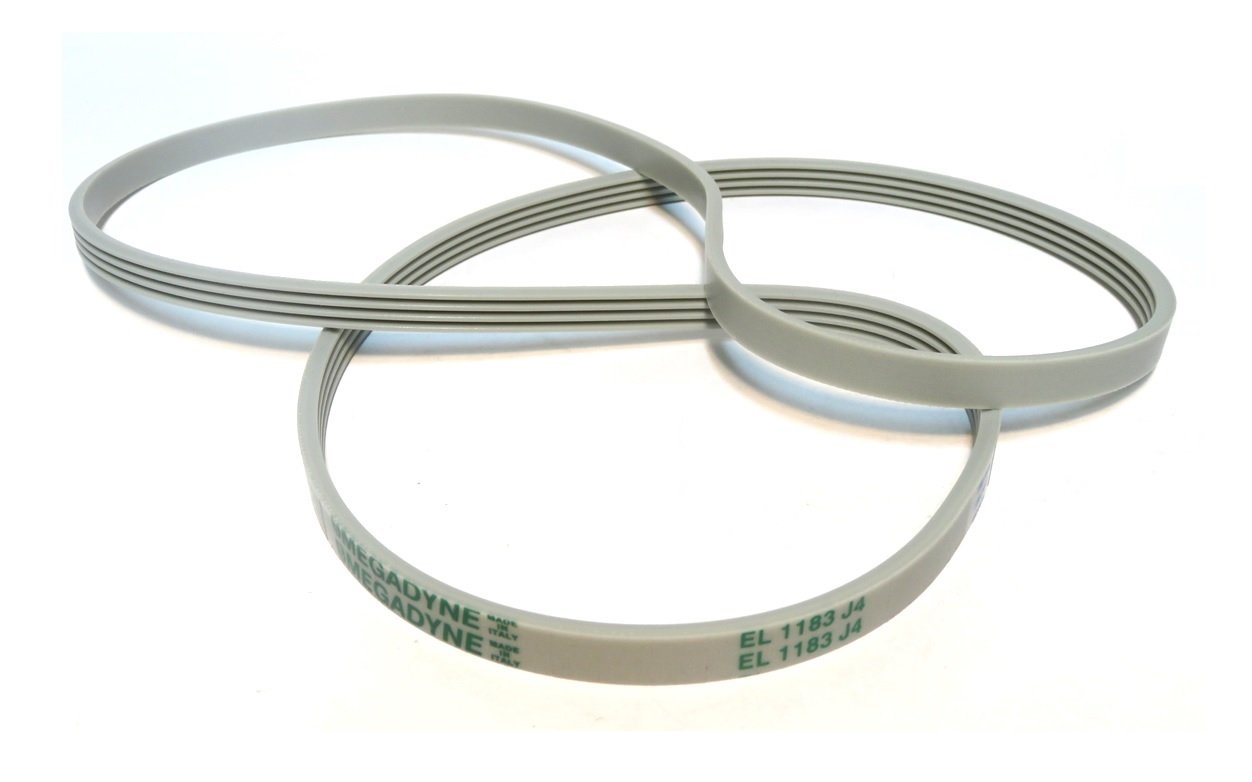

Megadyne - Washing machine drive belt EL 1183 J4

• Ribbed transmission belt, 1183 mm of development
• Its function is to transmit the movement of the engine to the washing machine drum
• Teeth: 4 / Channels: 3 / Elasticity: EL / Slots: J type
• Compatibility: perfectly replaces 1183 J4, 1183 J belts
• Please find attached placement instructions

Transmission belt is ribbed, 1183 milimètres, with the function of the movement of the engine to the drum of the washing machine. It is installed in washing machines of brands SILTAL, BAUMATIC, BEKO, Epson, far, Unicline Vedette, Zanker, technics, INDESIT, ARISTON, HOTPOINT, Siltal, BALAY, BOSCH, SIEMENS, among many other brands. Length 1183 mm/slots: Type J: 3.3 mm/Height/Width: 2.34 mm/teeth: 4/channels: 3/elasticity – El/Manufacturer: Megadyne. Placement instructions Once you are inside the washing machine: 1. Spend the belt in engine pulley 2. Then the belt drive to the high pulley. It is important not to try and adapt the belt by the highest part of the pulley. What needs to be done is to support the belt in a corner of the pulley 3. And start slowly and forced. The belt will be as it has elasticity (it can be set up as a bicycle chain) (look at the photo)
