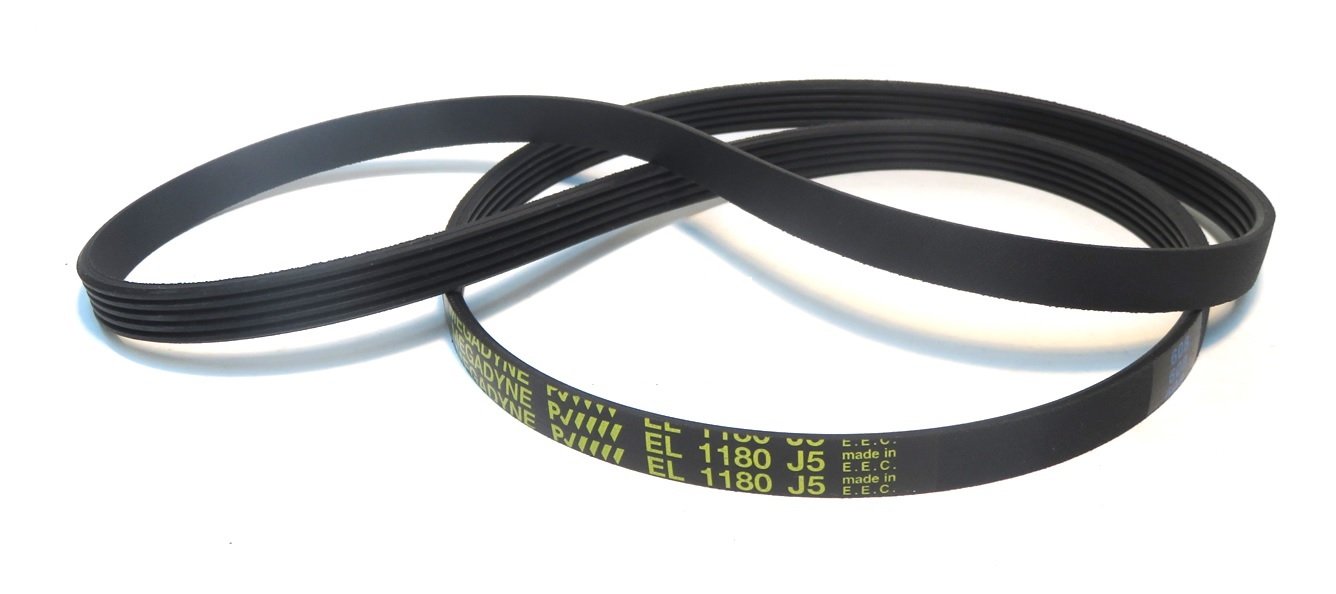

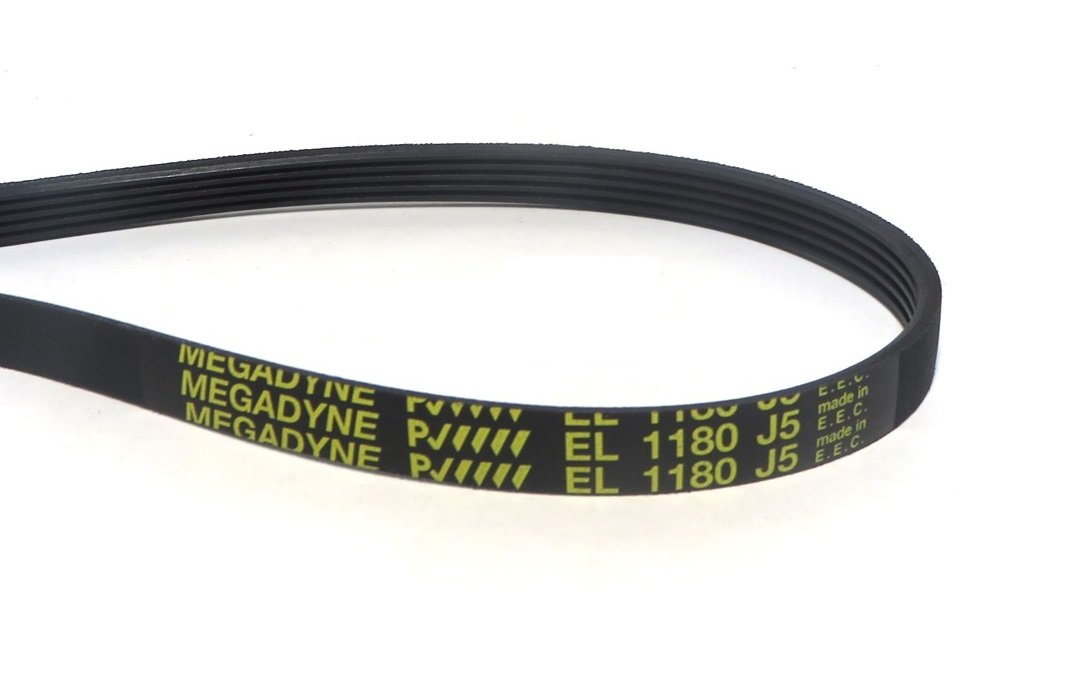

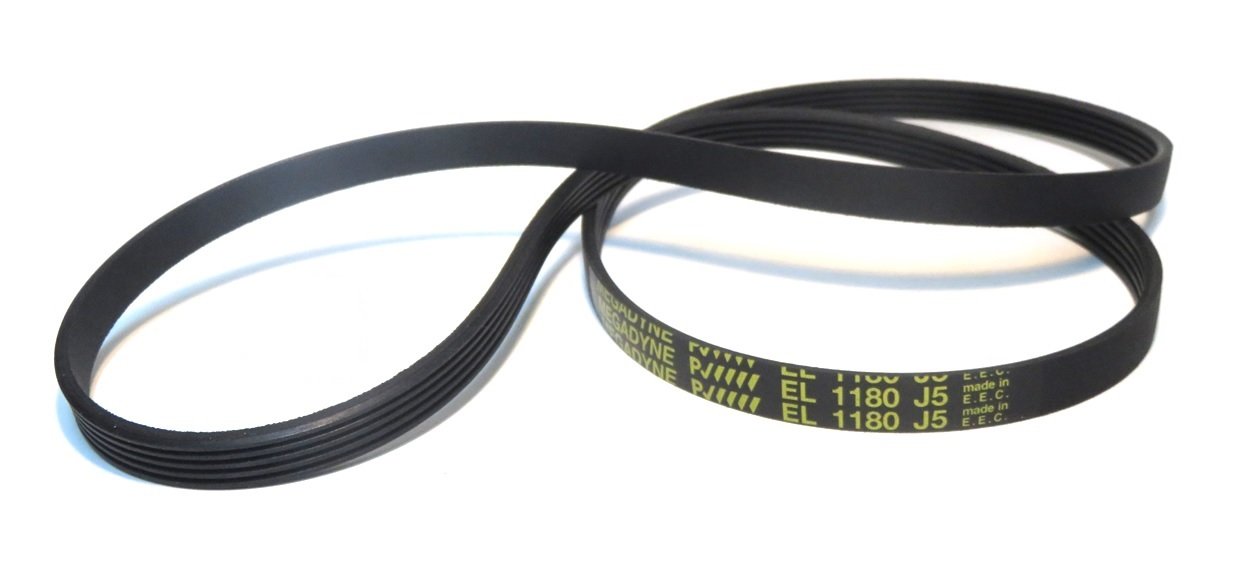

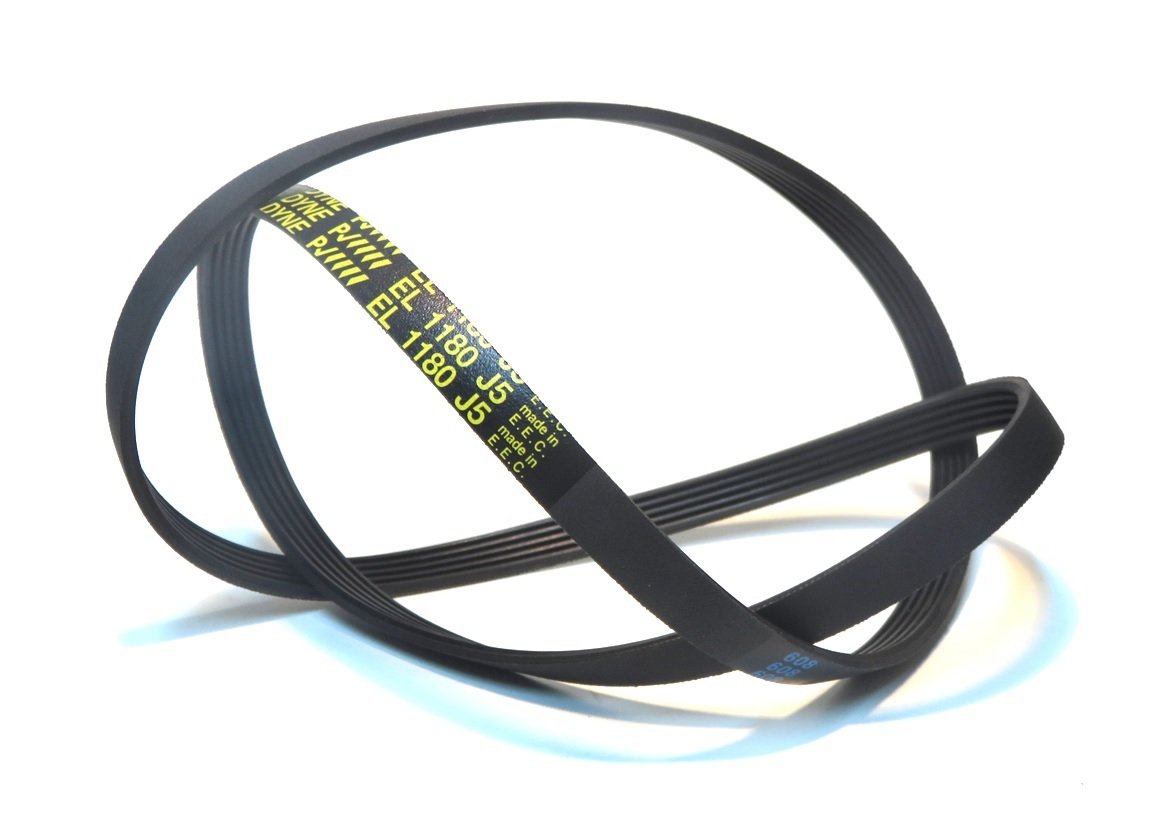

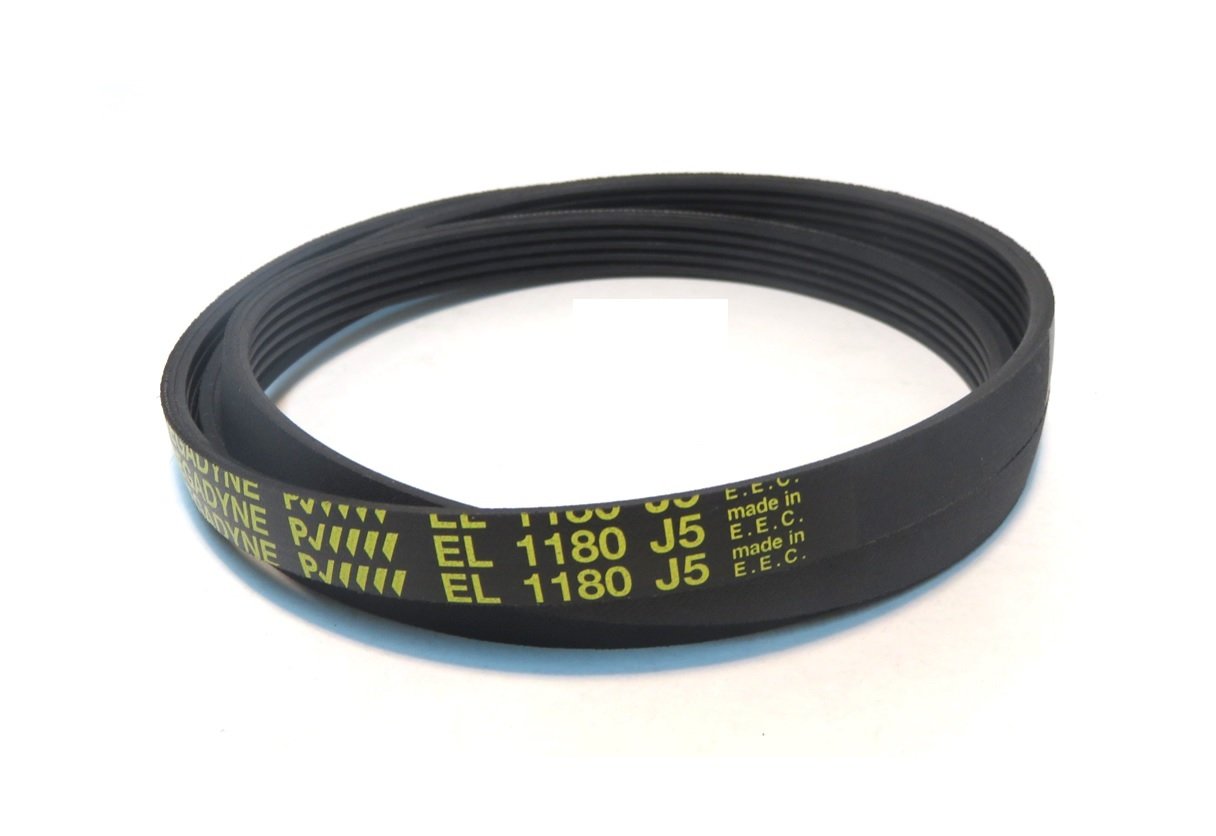

Megadyne - Washing machine drive belt EL 1180 J5

• With ribbed drive belt, 1180 milim tres development
• It has the function of transmitting the movement of the motor into the drum of the washing machine
• Z back: 5. Channel le: 4 / Elasticity: El/Slotted: Type J
• Compatible with: It is a good belt 1180 J MAEL, 1180 J5, 1180 PJE, EPJ 1180 cylinder gear
• Please find attached instructions for placement (English language not )

With ribbed drive belt, 1180 milimètres development, with the function of moving the engine into the drum washing machine. It is installed in the machines brands of Fagor, ASPES, kpl, Brandt, AEG, corberó, elecyrolux, Zanussi, Star, Dietrich, jumping, Thermor, Ocean, Singer, Lynx, among many other brands. Length: 1180 mm / Slotted: Type J / Height of teeth: 3.30 mm. Channel width: 2.34 mm / Teeth: 5/Channels: 4. Elasticity: El/manufacturer: Megadyne. Instructions for placement soon. You have on the inside of the washing machine: 1. Drive the belt into the pulley of the engine. 2. Then drive the belt until the large pulley. It is important that you do not have belt from more - the pulley. What to do is support the pulley in one corner 3. And start at a tourner slowly and forced. Strap the scratches position that you can adjust the elasticity (you like a chain) (in the photo)
