Megadyne - Tumble dryer belt EL 1985 H8

• With ribbed drive belt, 1985 milim tres development
• It has the function of transmitting the movement of the engine into the drum of the dryer
• Z back: 8 / Channel le: 7 / Slotted: Type H/Elasticity: El
• Please find attached instructions for placement (English language not )

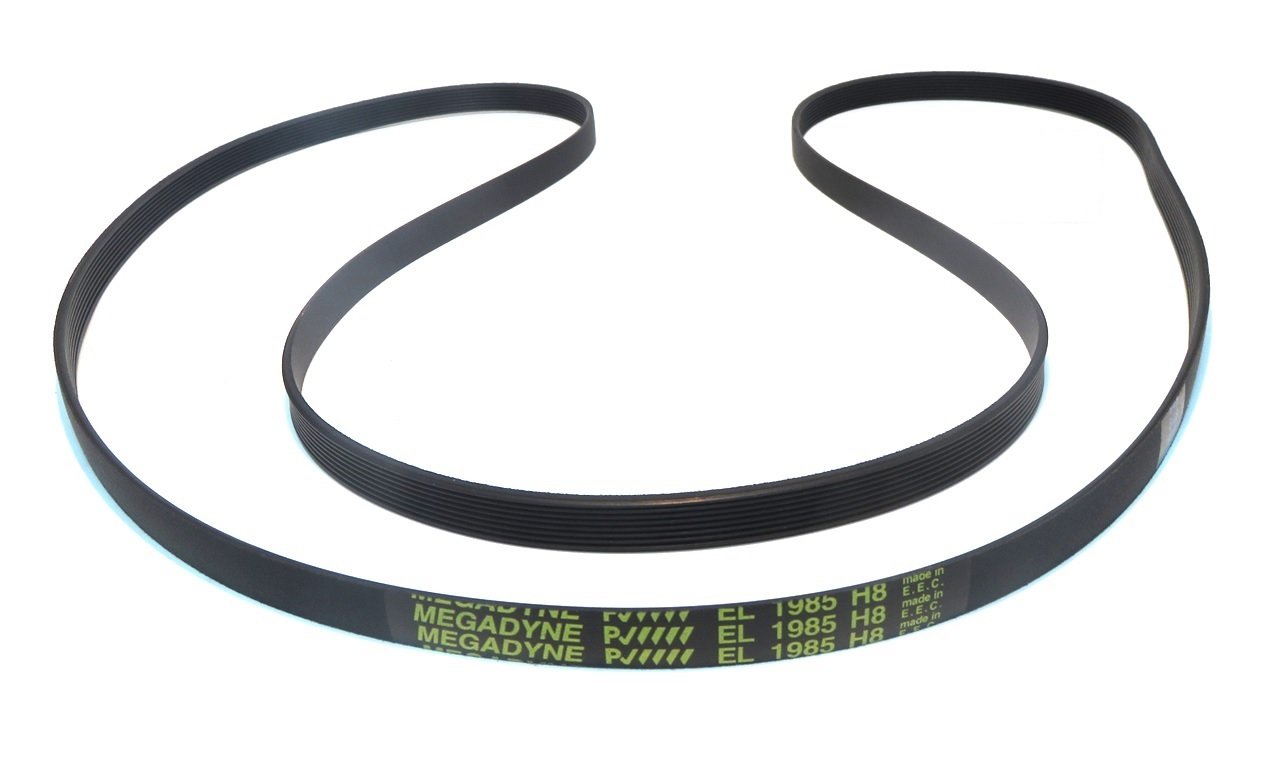

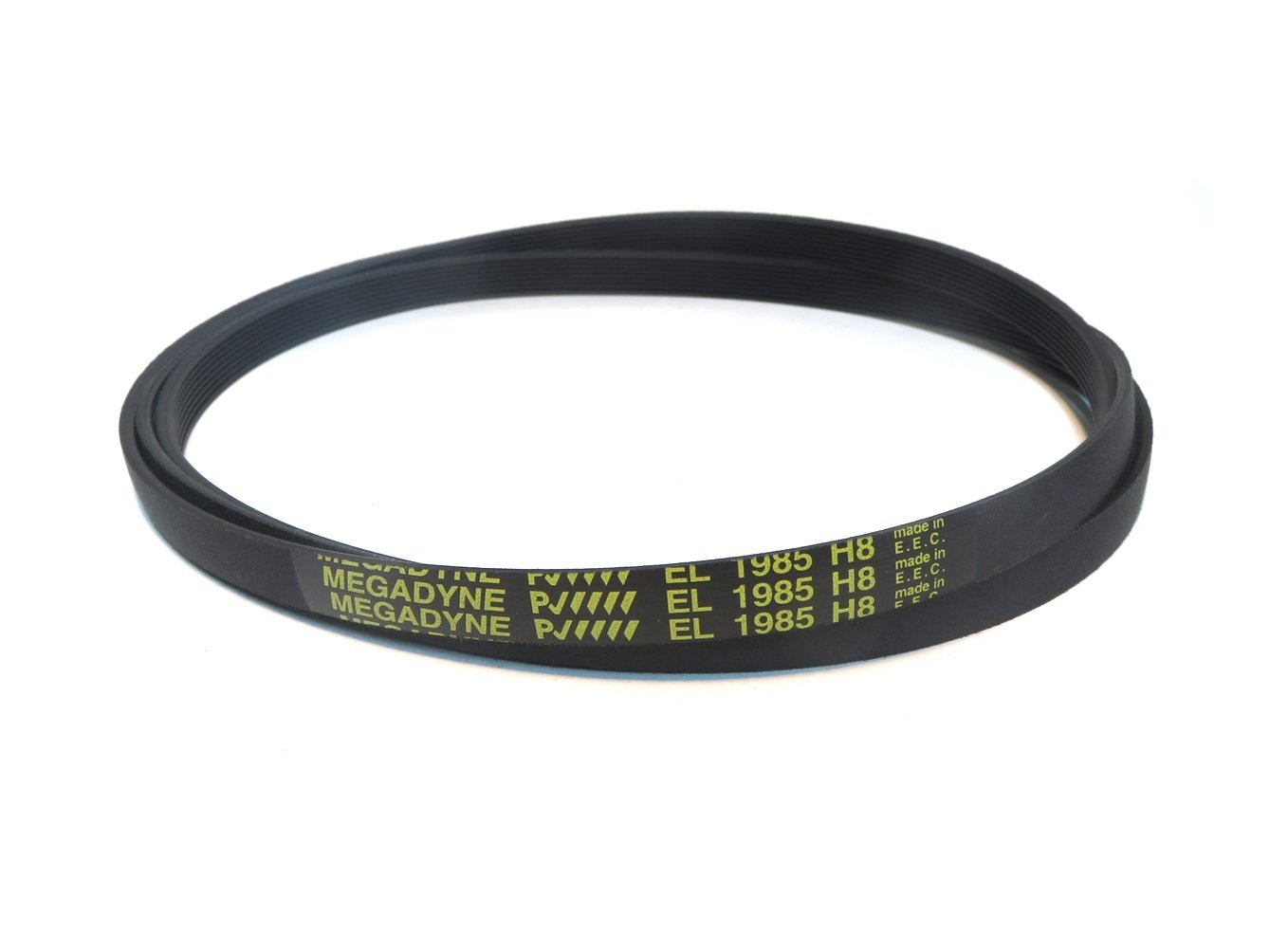

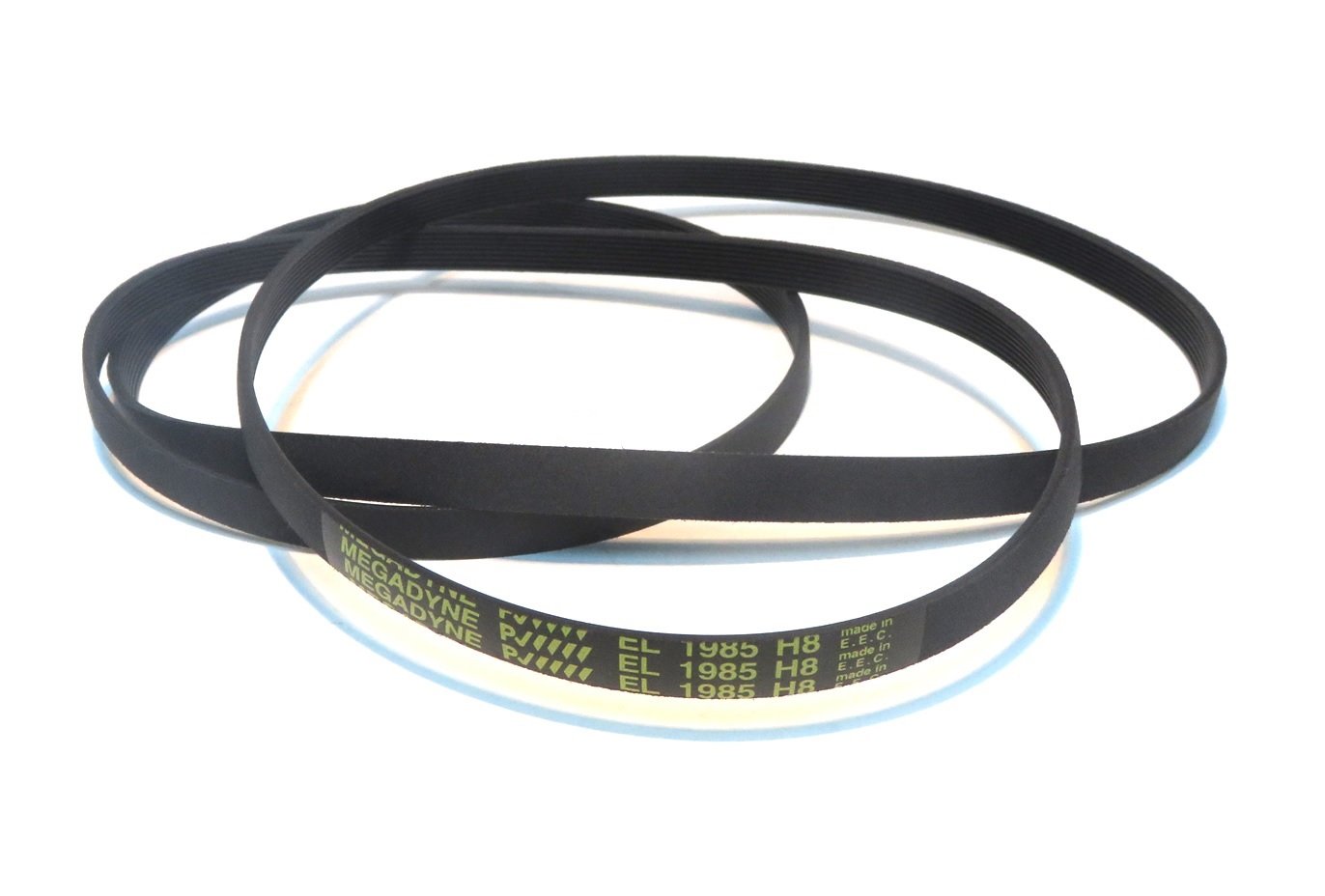

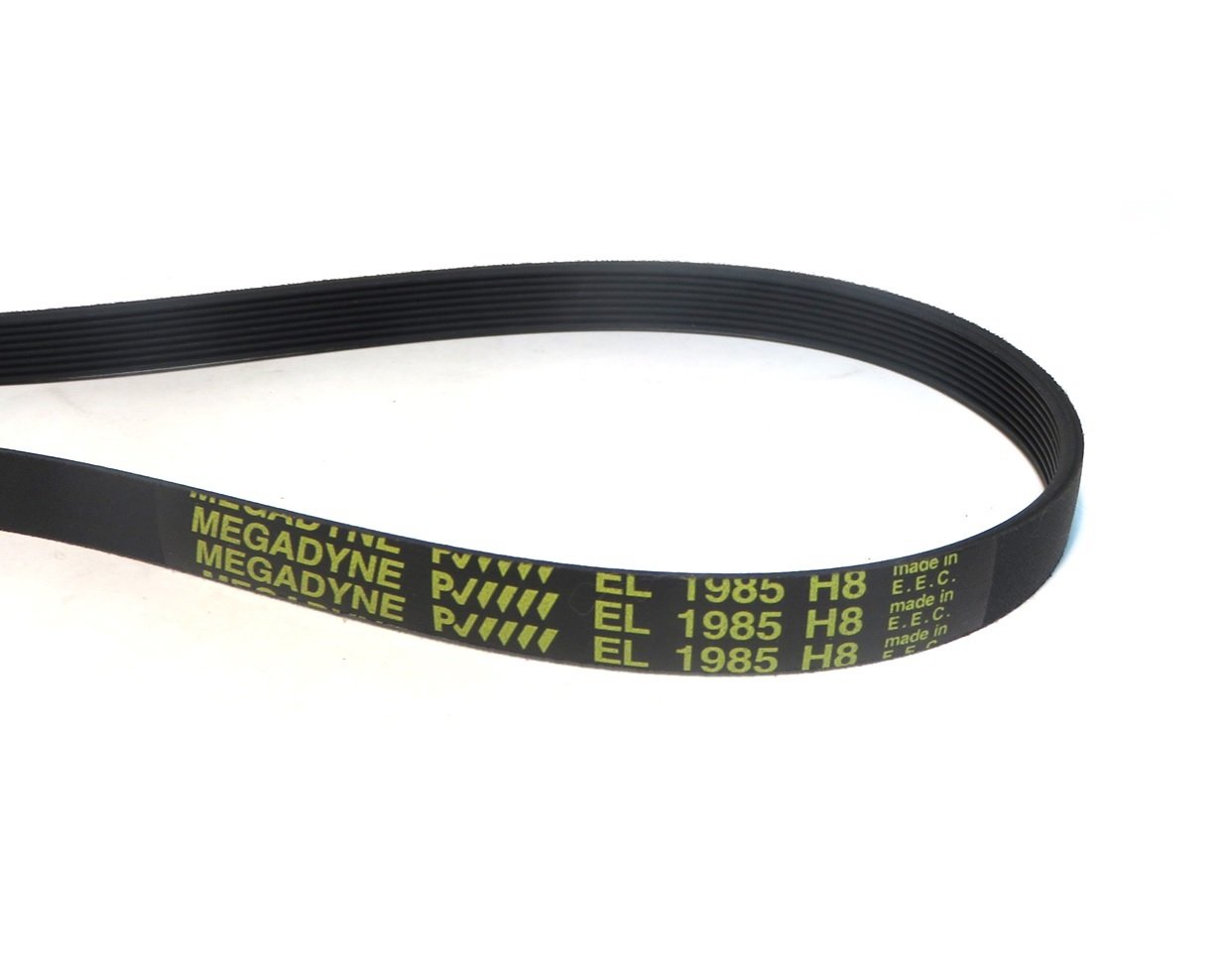

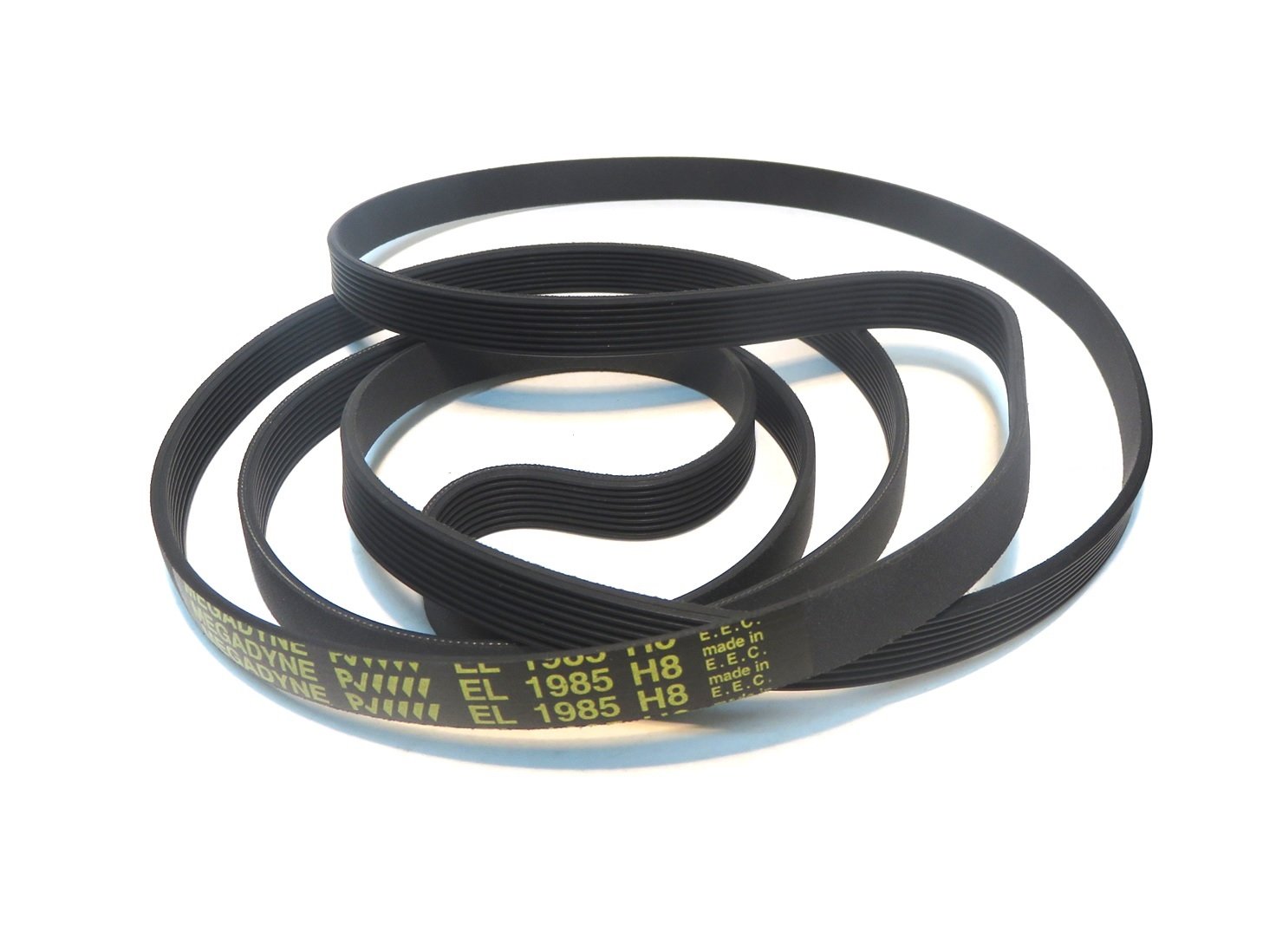

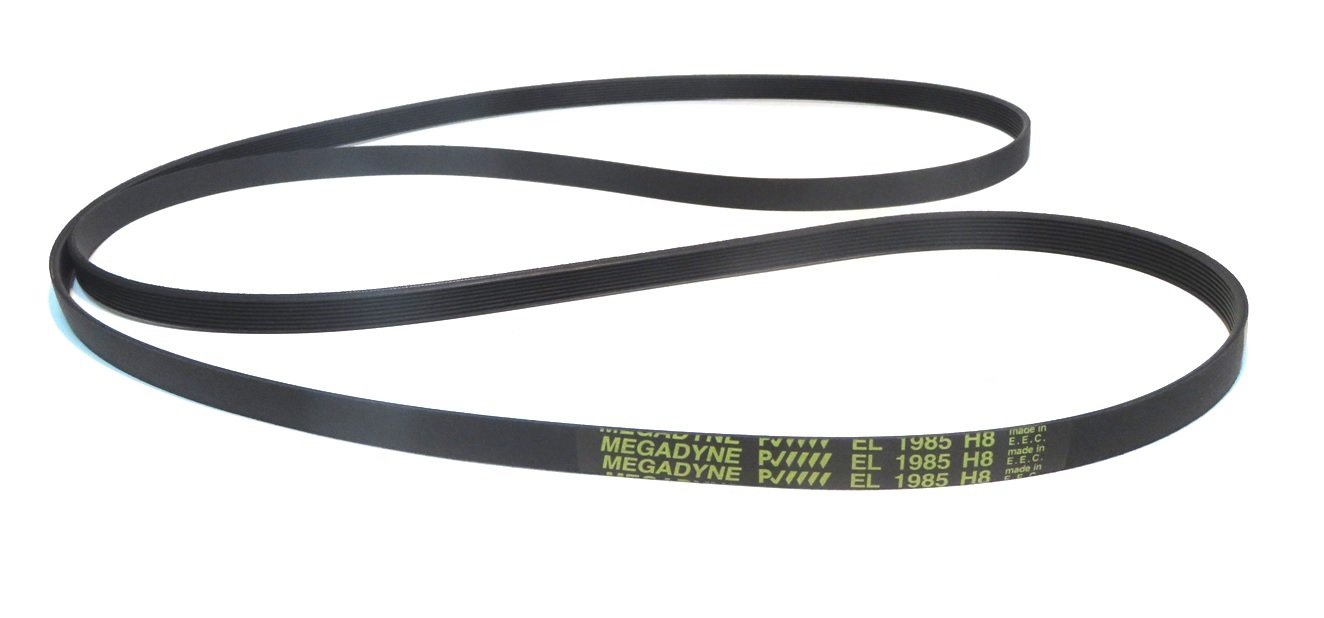

With ribbed drive belt, from 1985 milimètres development, with the function of moving the engine into the drum tumble dryer. It is installed in all kinds of Ardo, Ocean, Sangiorgio, AEG, Candy, Electrolux, New Pol, Otsein, rommer, Zanussi, Bauknecht, Brandt, Arthur Martin, Laden, Radiola, Ignis, LG, Whirlpool, Thomson, Zerowatt, among many other brands. Teeth: 8/Channels: 7 / Slotted: Type H/Elasticity: El/length: 1985 mm / Height of teeth: 2.5mm / Channel Width: 1.60 mm. Manufacturer: Megadyne. Instructions Placement Soon you have unlawfully access to inside the dryer: 1. Drive the belt into the pulley of the engine. 2. You can do this, at the side of the drum (* the dryer can have more than one and can not have in). 3. And start at a tourner slowly and forced. Strap the scratches position that gives you the elasticity (you can wear it like a chain). (see photo)
