MechKit Brushless Motor Controller Kit, 36V 48V 250W 350W 15A Motor Controller S900 LCD Display Panel 130X Thumb Throttle 8C Power Assist Sensor Kit for Electric Bike Scooter Vehicle

• Wide Applications: Brushless motor controller kit is suitable for 250W, 500W motor, suitable for DIY electric bicycle, electric vehicle, electric scooter, folding bike, etc. Easy to maintain, can improve the riding fun, suitable for cyclists who like challenges
• S900 LCD Display:The S900 LCD display panel makes it easier for you to view the data on the panel, such as speed display, power assisted gear display, battery indicator, fault prompt, total mileage, single mileage, headlight display, single driving time display, maximum speed setting, etc
• Multifunctional S900 Display: The S900 LCD display panel has multiple functions and can be used as a trip computer and control the entire electric bike system after conversion, compatible with 36V and 48V voltage
• Waterproof and Durable: The S900 LCD display meter is made of ABS material, light, strong and durable, with fine workmanship, good toughness and waterproof performance, providing better protection for the internal circuit

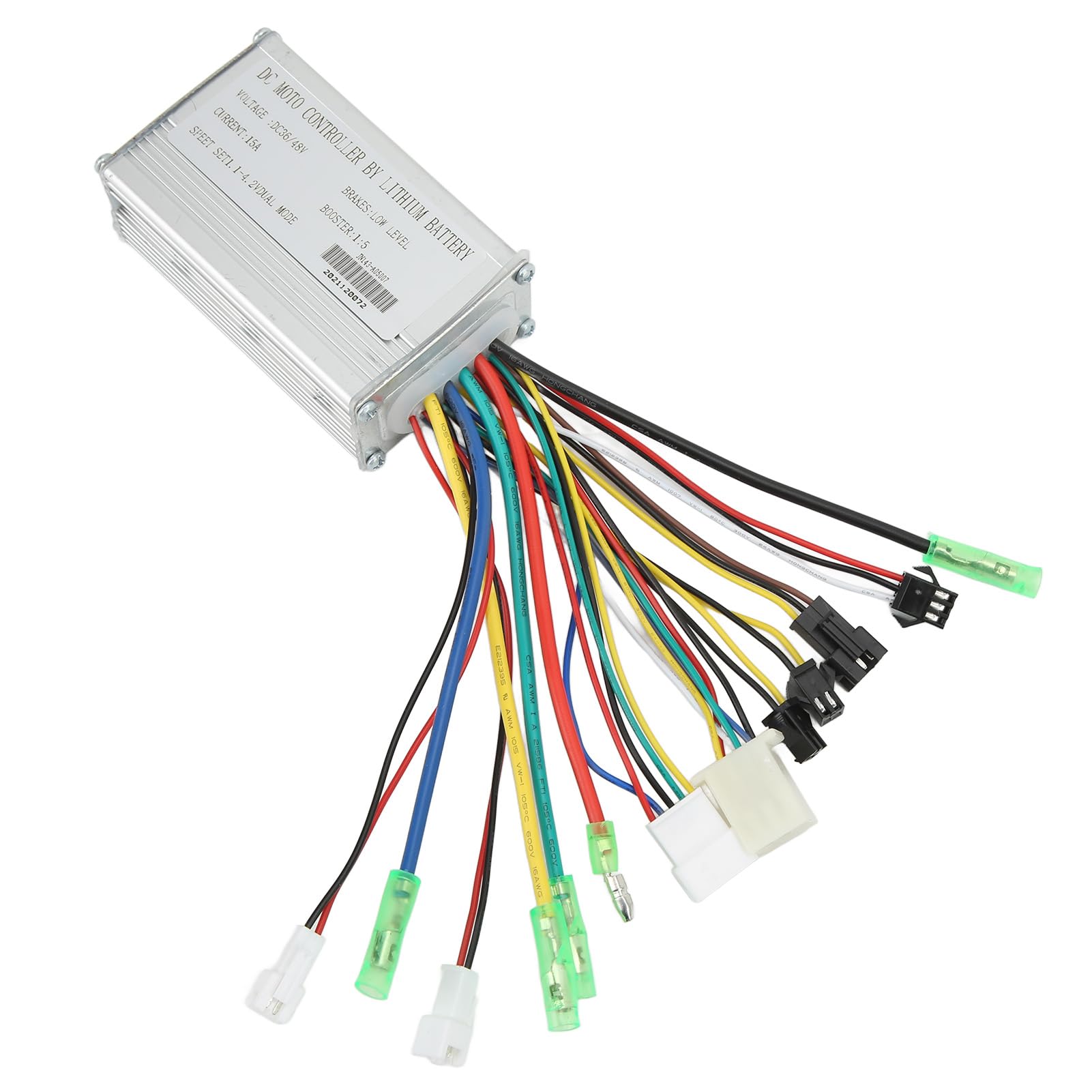

• Aluminum Alloy Housing: The brushless controller housing is made of aluminum alloy with a grooved design, which protects the internal circuits from thermal overload due to good heat dissipation

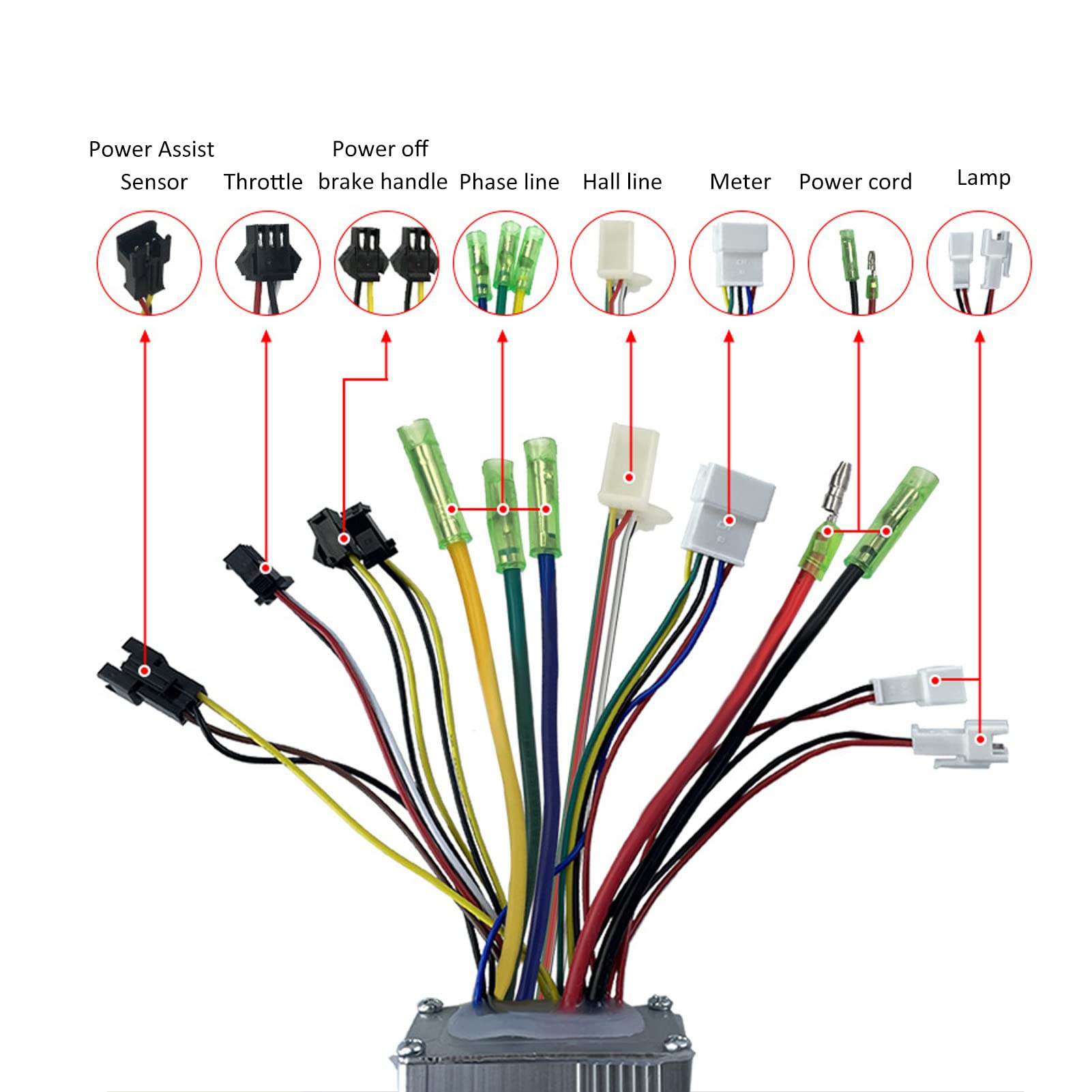

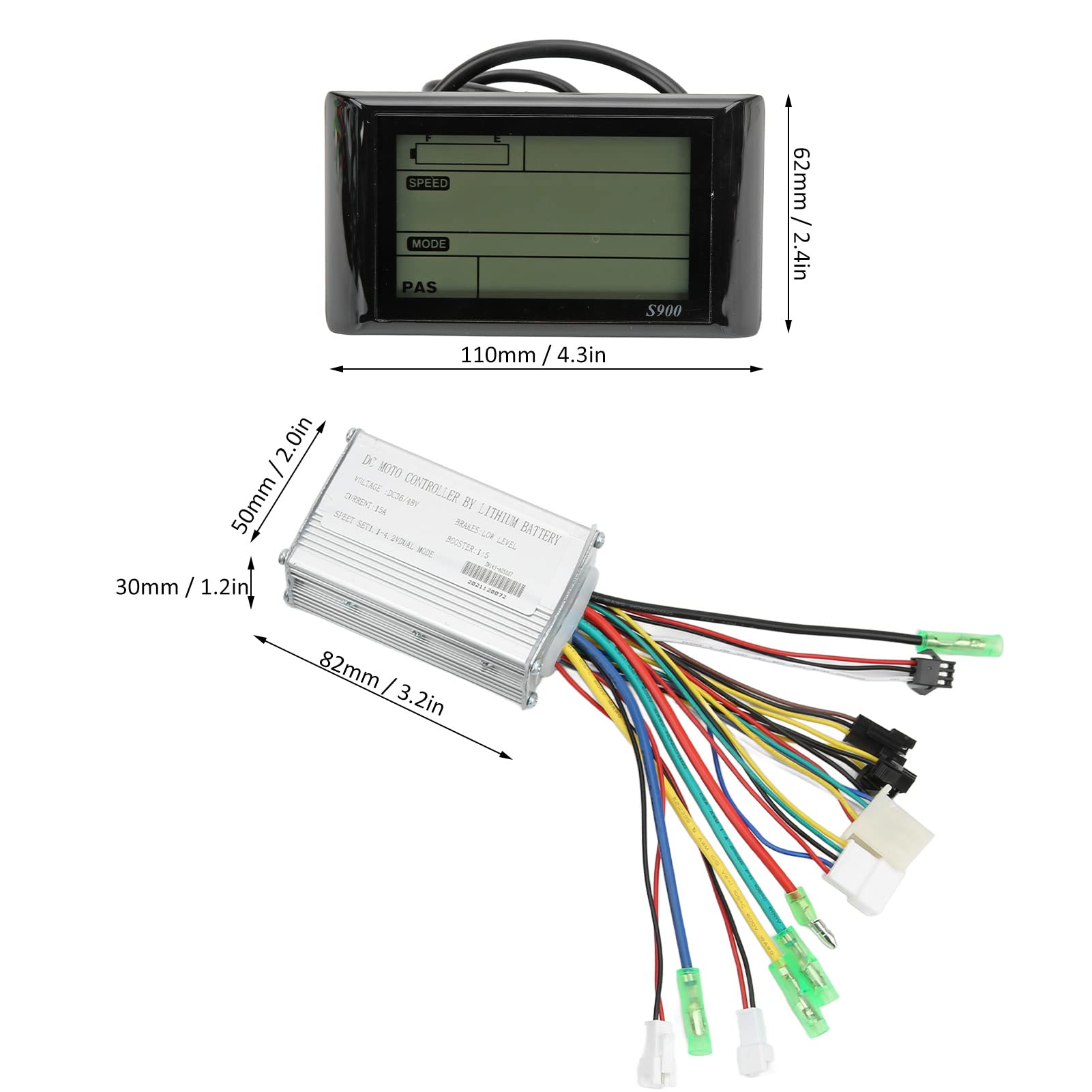

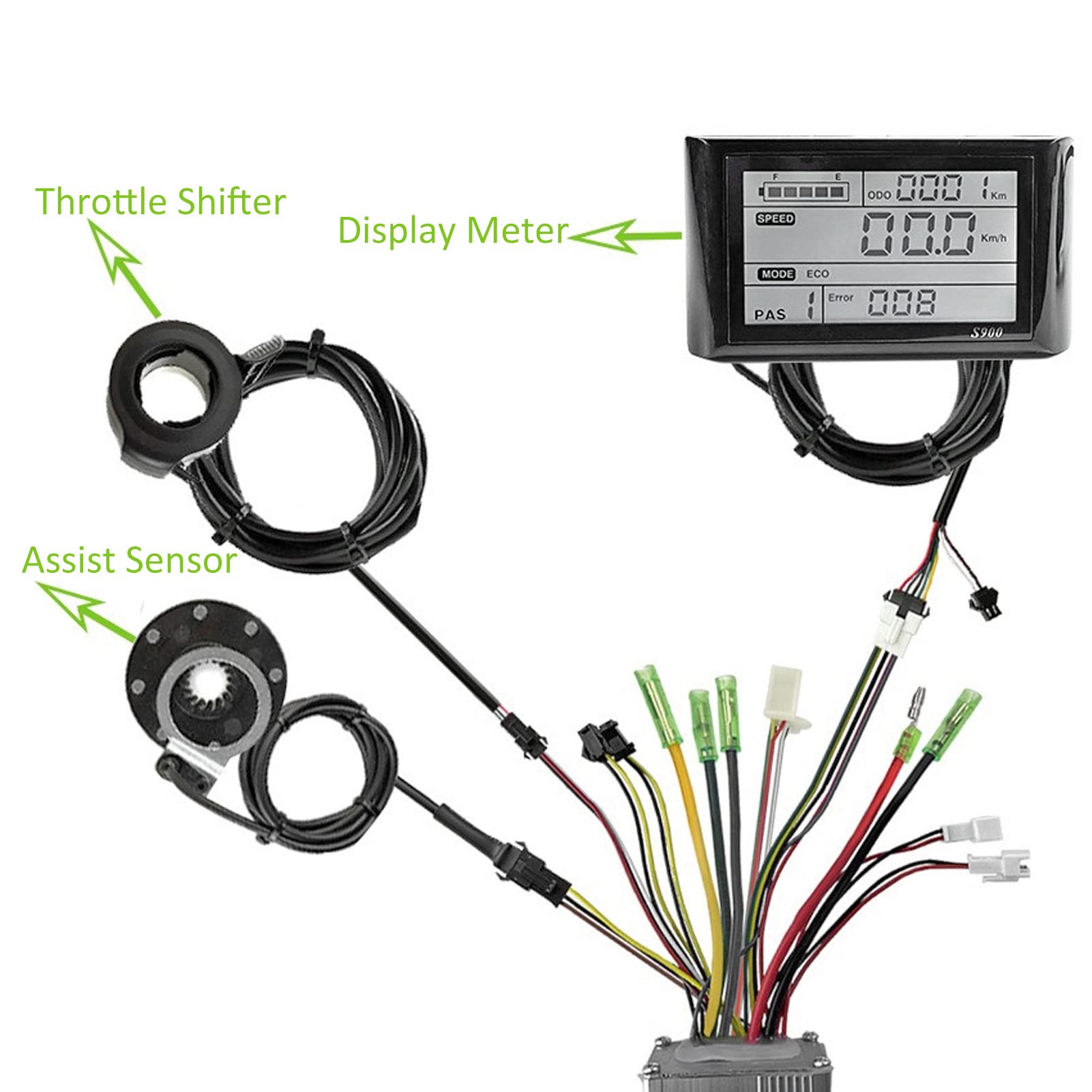

Spec: Item Type: 36V 48V 250W 350W Brushless Motor Controller LCD Panel Kit Material: Aluminum Alloy + ABS Plastic Color: As Pictures Shown Weight: Approx. 636g / 22.4oz Product Size: Controller Box Size: Approx. 82x50x30mm / 3.2x2.0x1.2in Display Size: Approx. 110x62mm / 4.3x2.4in Controller Rated Voltage: DC 36V/48V Controller Maximum Current: 15A Controller Speed Setting: 1-4.2V Controller Brake Input: Low Level Booster: 1:5 Applicable Motor Power: 250W, 350W Controller Wire Color Definition: 1. Yellow, green, blue single big head line: motor phase line 2. Red, white, black, blue, green, yellow double row six line port: motor Hall line 3. Red and black single big head line: power line 4. Red, blue, black, green and yellow single row five wire port: display line (5pin) 5. Black and yellow lines (two): power off brake lever line 6. Red, black and white lines: thumb throttle line (3pin) 7. Brown, black and yellow wire: power assist sensor wire (3pin) 8. Black and red lines (two): headlight lines S900 Display Function Description: 1. Display Function: Speed display, power assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlight display, single driving time display. 2. Control and Setting Functions: Power switch control, headlight switch control, 6Km/h jog control, wheel diameter setting, maximum speed setting, idle automatic sleep time setting, backlight brightness setting, voltage level setting, power assist sensor connect. Package List: 1 x Controller 1 x LCD-S900 Display 1 x Thumb Throttle 1 x Power Assist Sensor 1 x Controller Wiring Manual Note: 1. Note that the size of the motor matches the controller kit.
