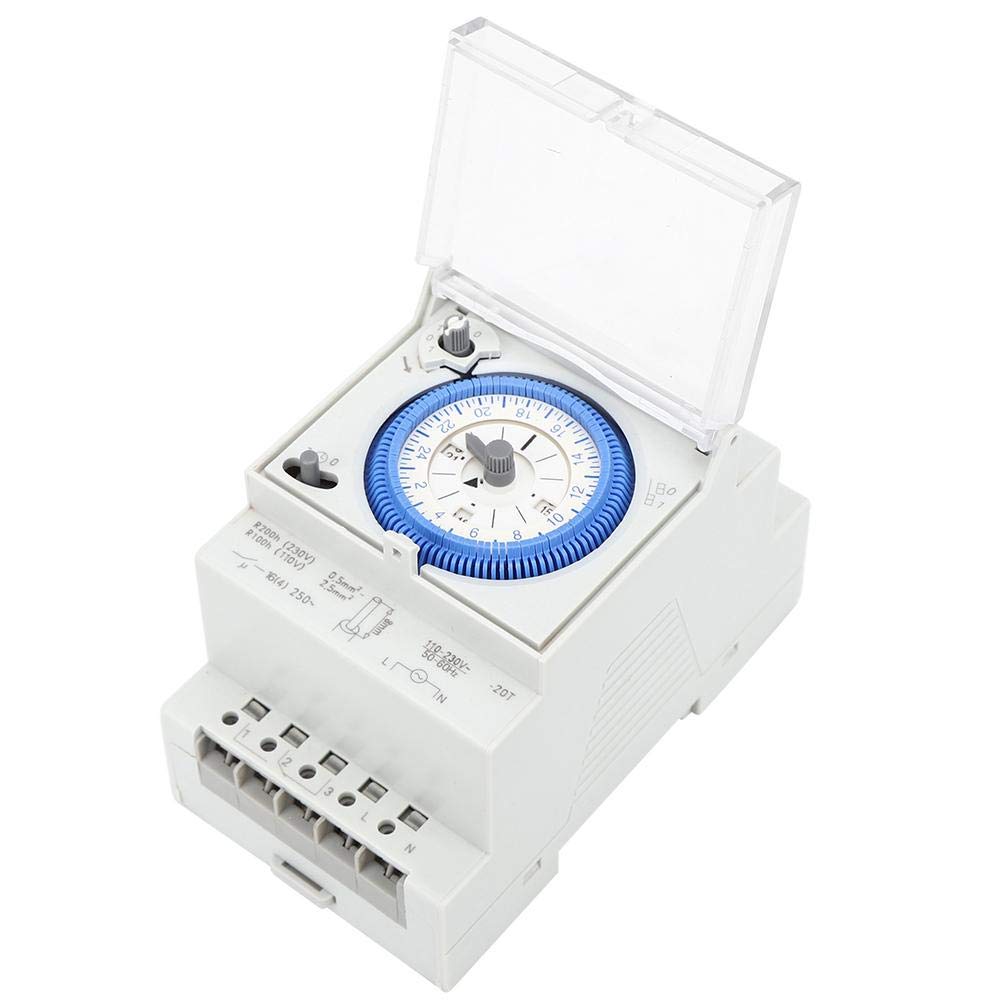

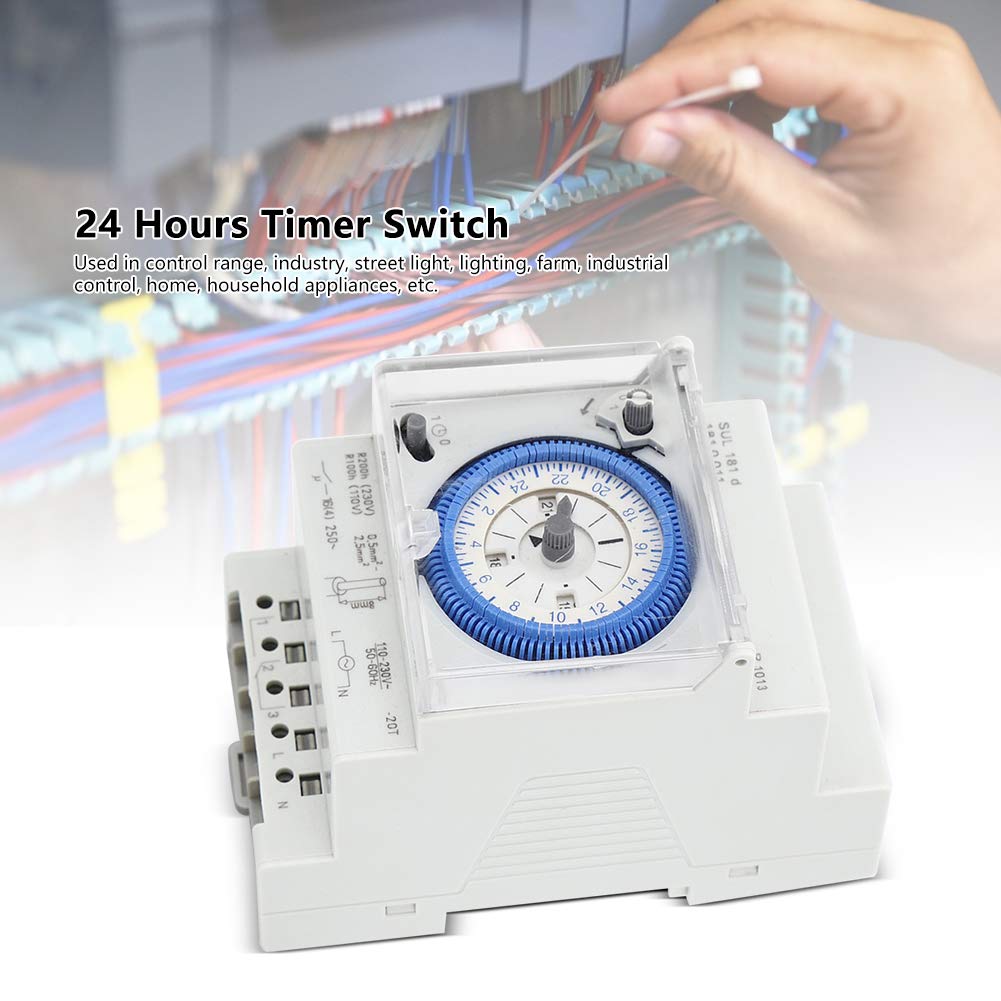

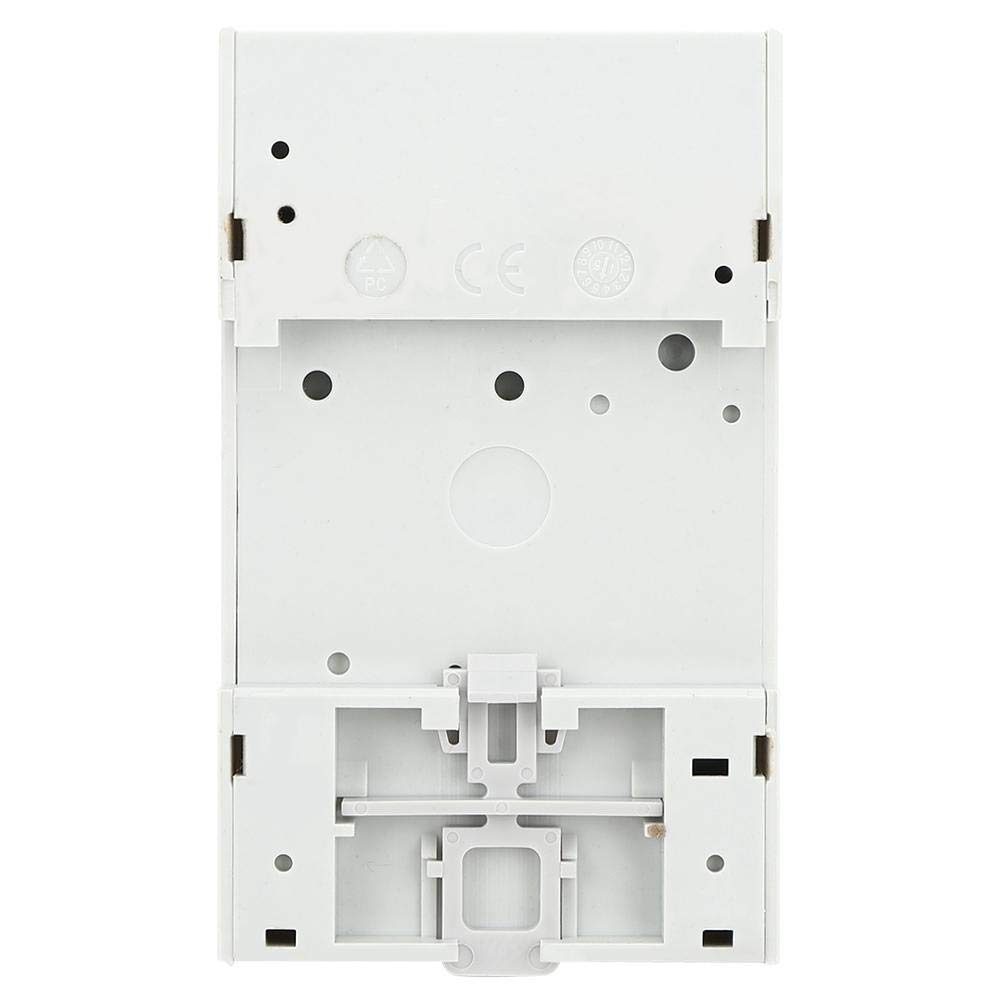

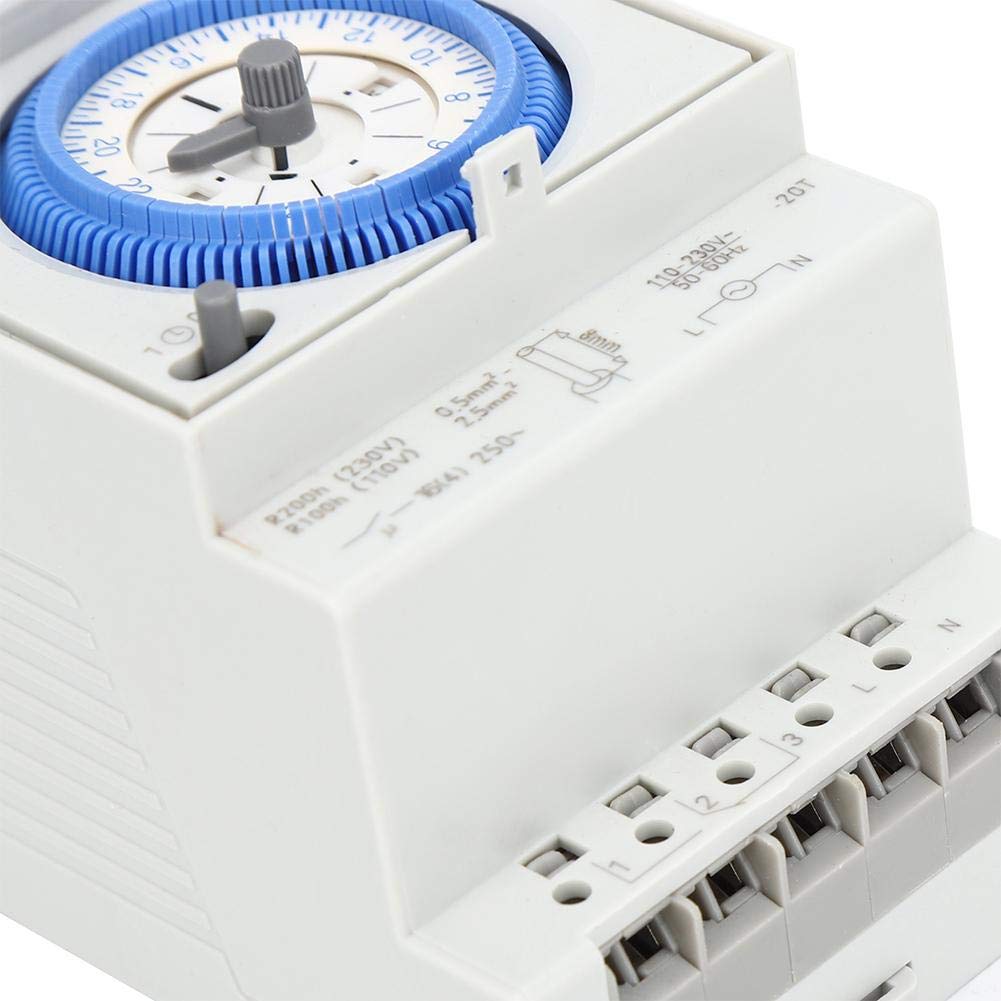

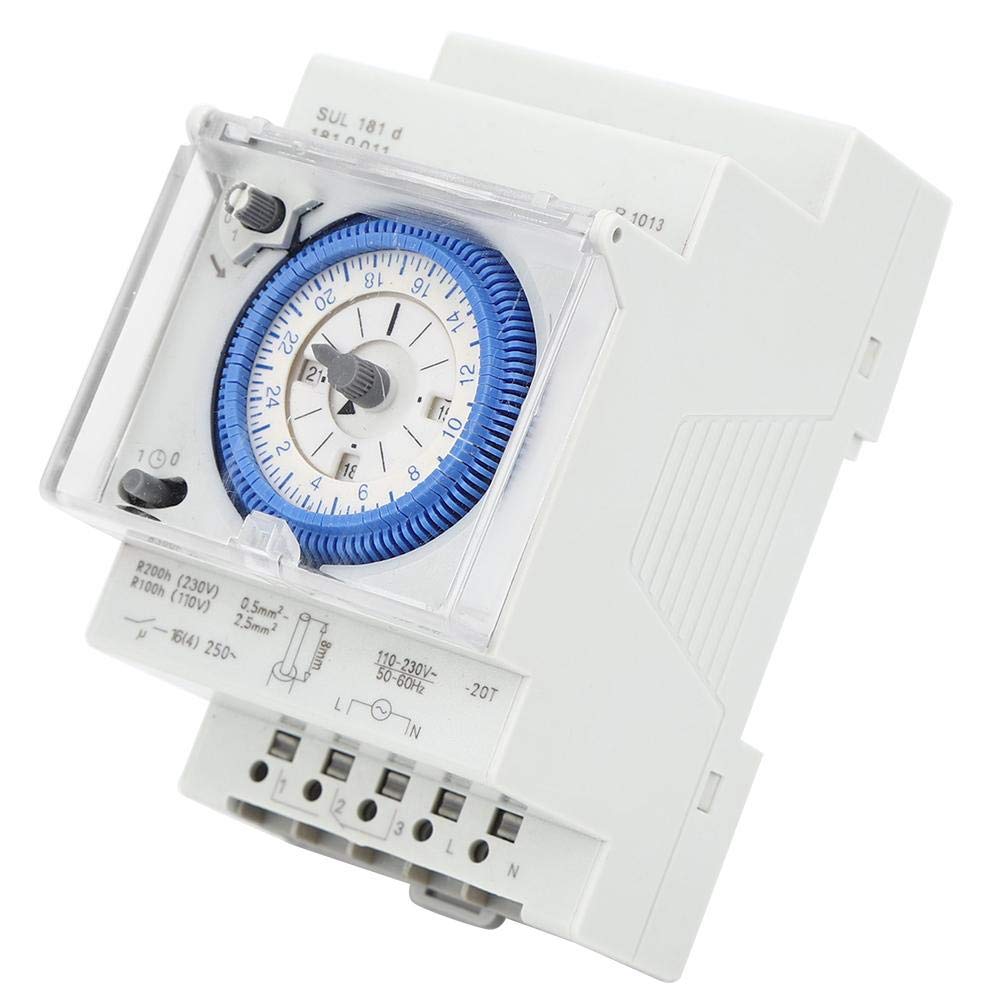

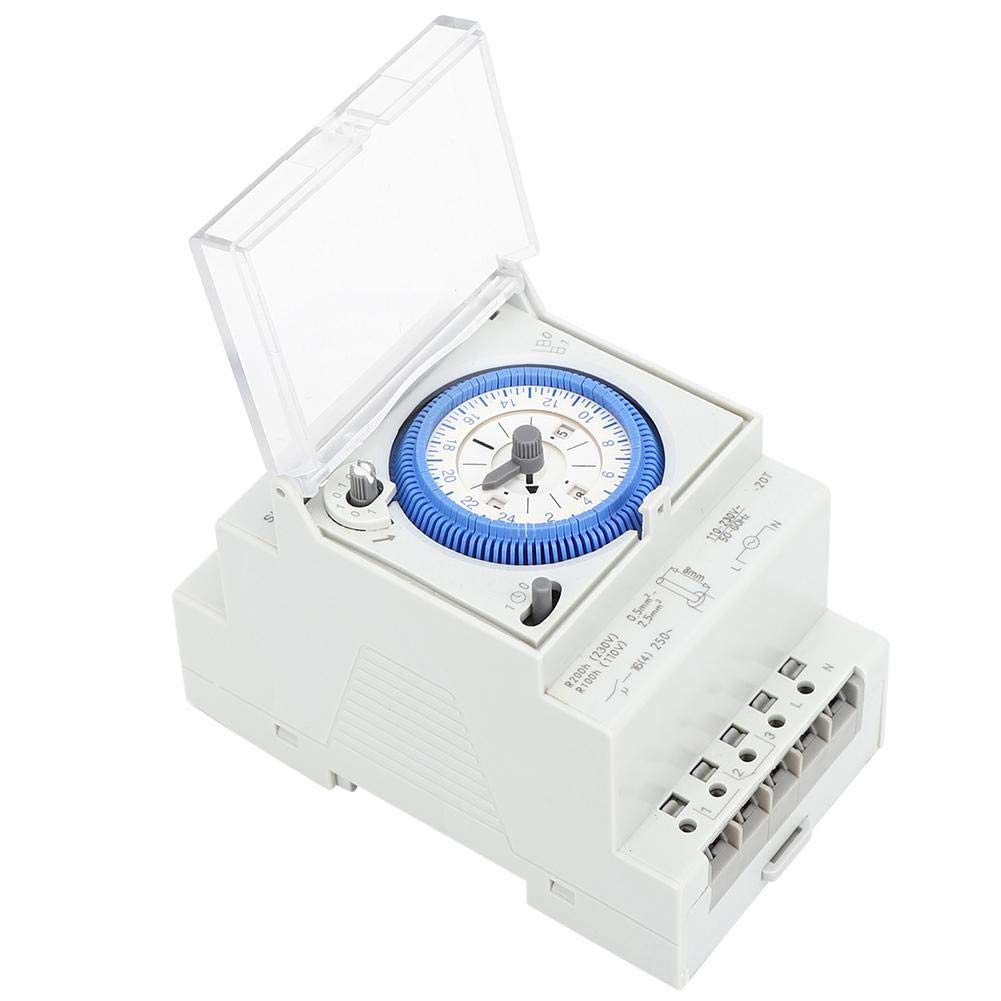

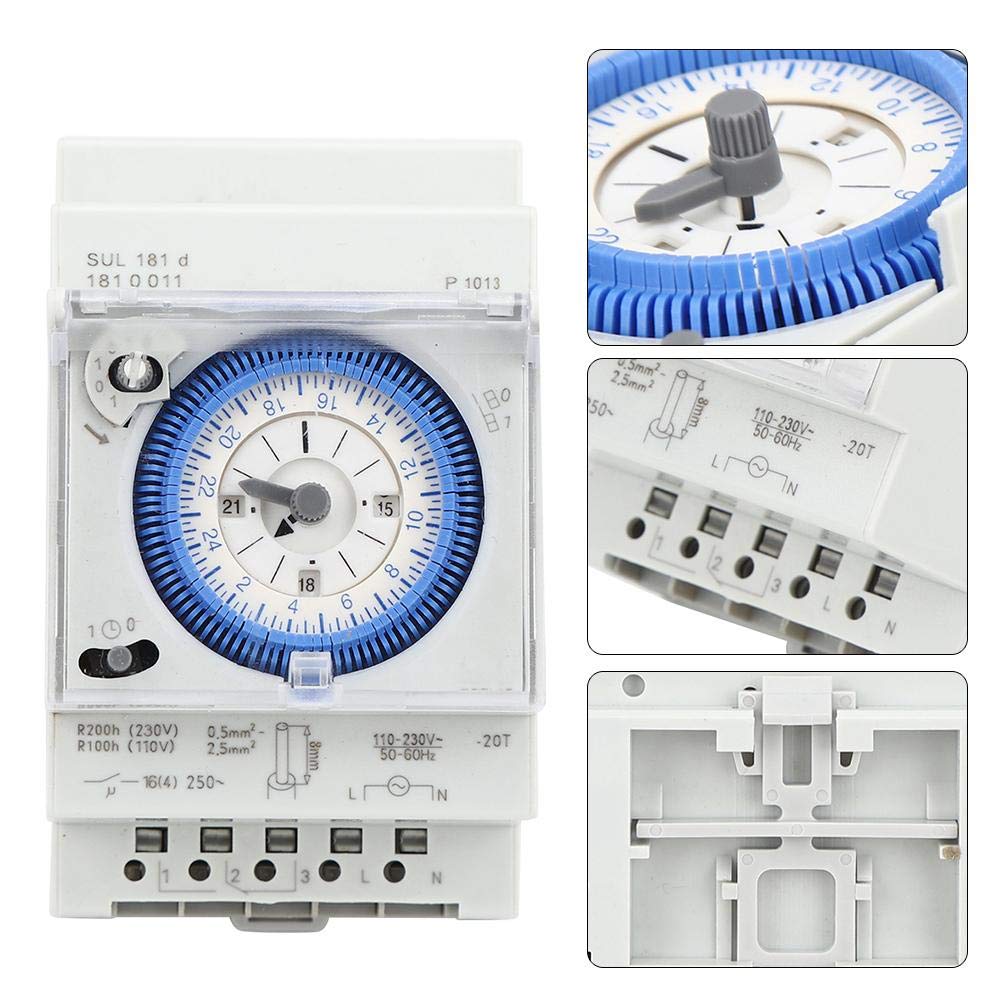

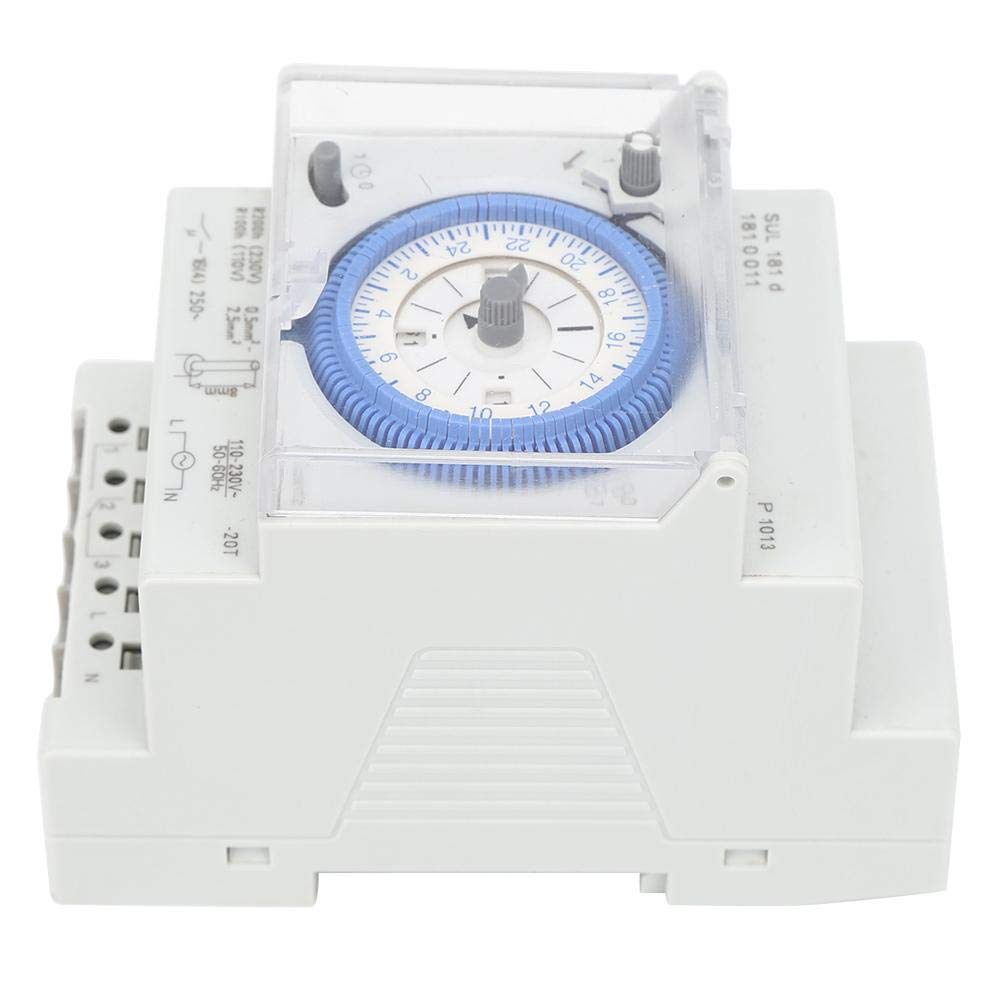

Mechanical Timer, 250VAC 16A Timer Relay Switch Relay High-end Control Chip 15 minutes 24 hours for Industry Street Lighting Fixtures etc.

• Used in industry, street lighting, lighting, farm, industrial control, home, home appliances, etc.
• Long electrical and mechanical life of products, electrical life: (under power load) more than 100,000 times, mechanical life: (DC and AC) = 10 million times or more.
• Housing and insulation material, high temperature resistance, high temperature resistance, flame retardant thermoplastic material.
• The timer adopts high-end control chip for accurate, stable and timing.
• Simple structure, compact size, easy to install and use.

Specifications: Item Type: Mechanical Timer Model No.: SUL181D Rated voltage: 250VAC Coil power: 230VAC Rated current: 16A. Coil power: 0.2 W Contacts switching current: 16A Switching voltage of contacts: 250VAC Protection features: plastic Contact load: 16A Contact form: 1H Electrical life: (under power load) more than 100,000 times Mechanical life: (DC) = 10 million times or more Mechanical life: (AC) = 10 million times or more Isolation voltage: (between coil and contact) ≤1000VAC Isolation voltage: (between contacts and contacts) ≤1000VAC Contact resistance ≤50Ω Ambient temperature: -20°C ~ +55°C Time range: 24h/24 hours, energy storage time 150, minimum setting unit 15 minutes/times, total 96 Frequency: 50~60Hz Number of contacts: 1 Cycle: 24 hours Installation form: DIN rail Terminal block shape: plug-in terminal Cycle: 4 hours Retention hours after power failure: approx. 100 hours at 110 V Contact capacity at 250 V AC, Cosφ = 1:16 A Contact capacity at 250 V AC, Cosφ = 0.6: 4 A Minimum switching time: 15 minutes Minimum setting interval: 15 min Hourly accuracy: ≤ ± 1 s/day (quartz) Switching output: potential-free and phase-independent Number of switching sections: 96 Standby consumption: 0.5 W Test recognition indicator: for VDE Housing and insulation material: high temperature resistance, high temperature resistance, flame retardant thermoplastic material Package list: 1 x Timer 1 x Manual
