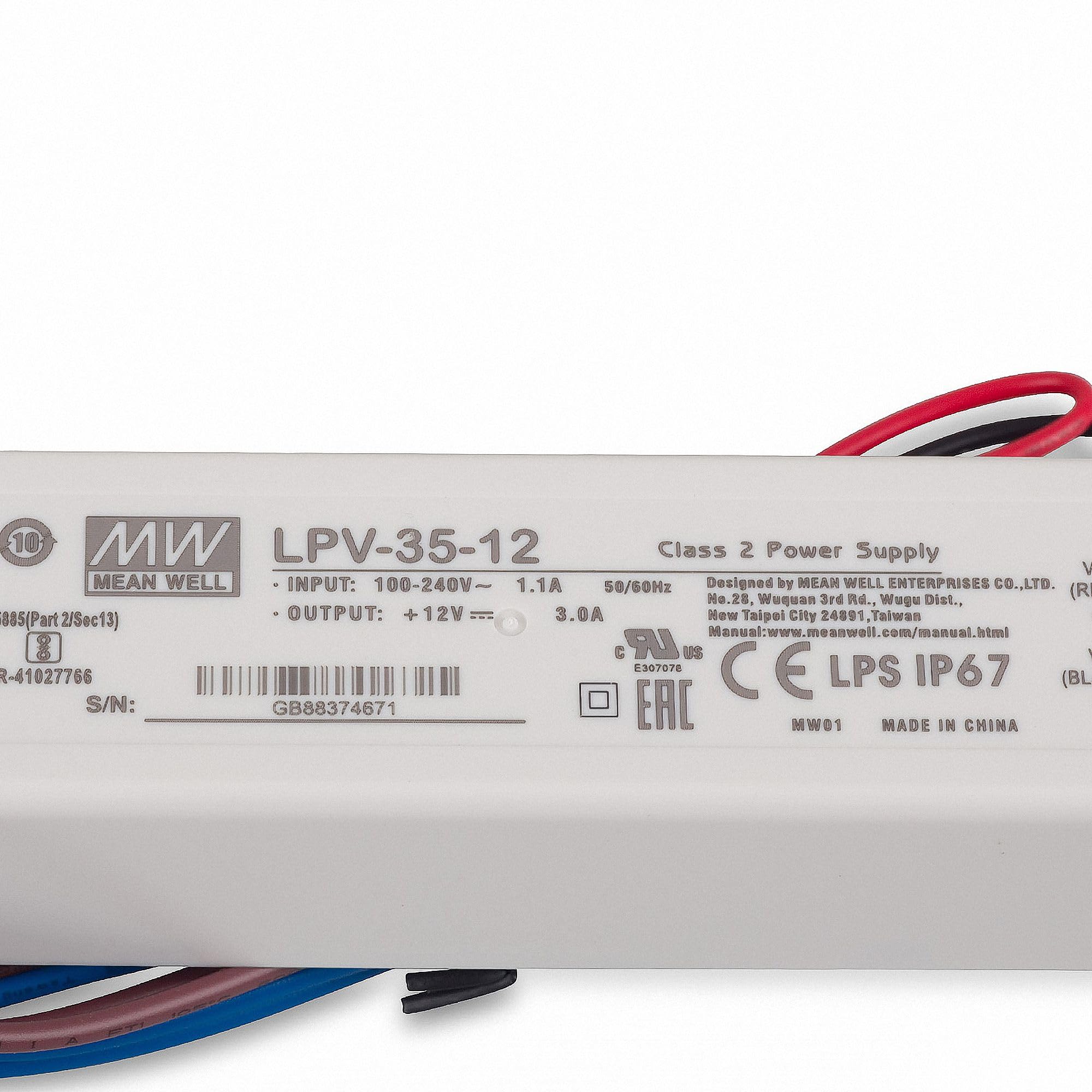

Mean Well LPV-35-12 Switching Power Supply 12 V / 3 A / 36 W IP67 LED Transformer for LED Lighting White

• Meanwell LPV-100-35V IP67 power supply (100W)
• Dimensions: L x W x H in mm: 148 x 40 x 30 mm
• Protected against short circuits, overload and overvoltage
• Built-in PFC circuit for LED and lighting applications
• Sold and dispatched by LEDTECH-SHOP in Germany within 24 hours

The LPV 35-12 switching power supply is suitable for use on lighting devices. It has a universal input, a fixed output voltage and protection class IP 67. As an IP67 power supply, it is conditionally waterproof, can be used in enclosed rooms and outdoor applications. It is recommended by the manufacturer MeanWell that the power supply should not be in the water for more than 30 minutes. At the same time, the LPV 35-12 power supply should be protected from intense sunlight and moisture caused by precipitation. The MeanWell LPV power supply at a glance: The IP67 power supply has the device approval according to UL 1310 Class 2 and is protected against overvoltage, overload and short circuit by the automatic switch-off auto recovery. The input voltage range is between 90 and 264 V AC and 127 and 370 V DC. This means that the MeanWell LPV power supply achieves an inrush current of a maximum of 60 A. The insulation voltage from input to output is 3000V AC. The overload protection is between 110 and 150 percent. The dimensions of the IP67 power supply are 148 × 40 × 30 mm (length x width x height) with a weight of 340 g. Inside the MeanWell LPV is a built-in PFC circuit designed for lighting and especially LED applications. The power range is maximum 36 W. The LPV 35-12 has an output and input each. The IP67 power supply is equipped with an open end cable. The LPV 35-12 power supply at a glance For installation in devices that have another first use. A plastic housing with protection class IP 67. Overload protection against overvoltage, short circuit and overload Auto recovery or automatic switch-off MeanWell LPV power supply clocked
