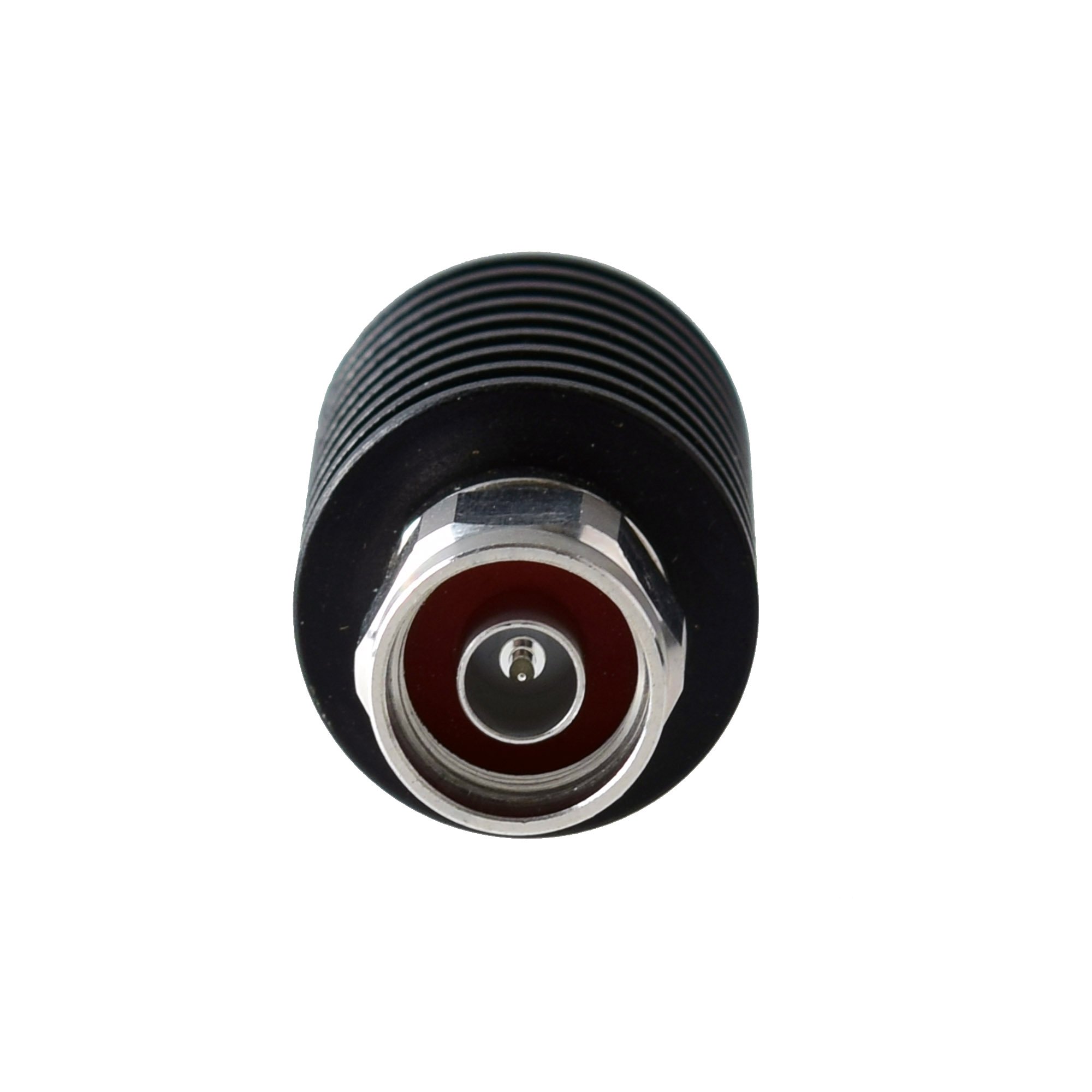

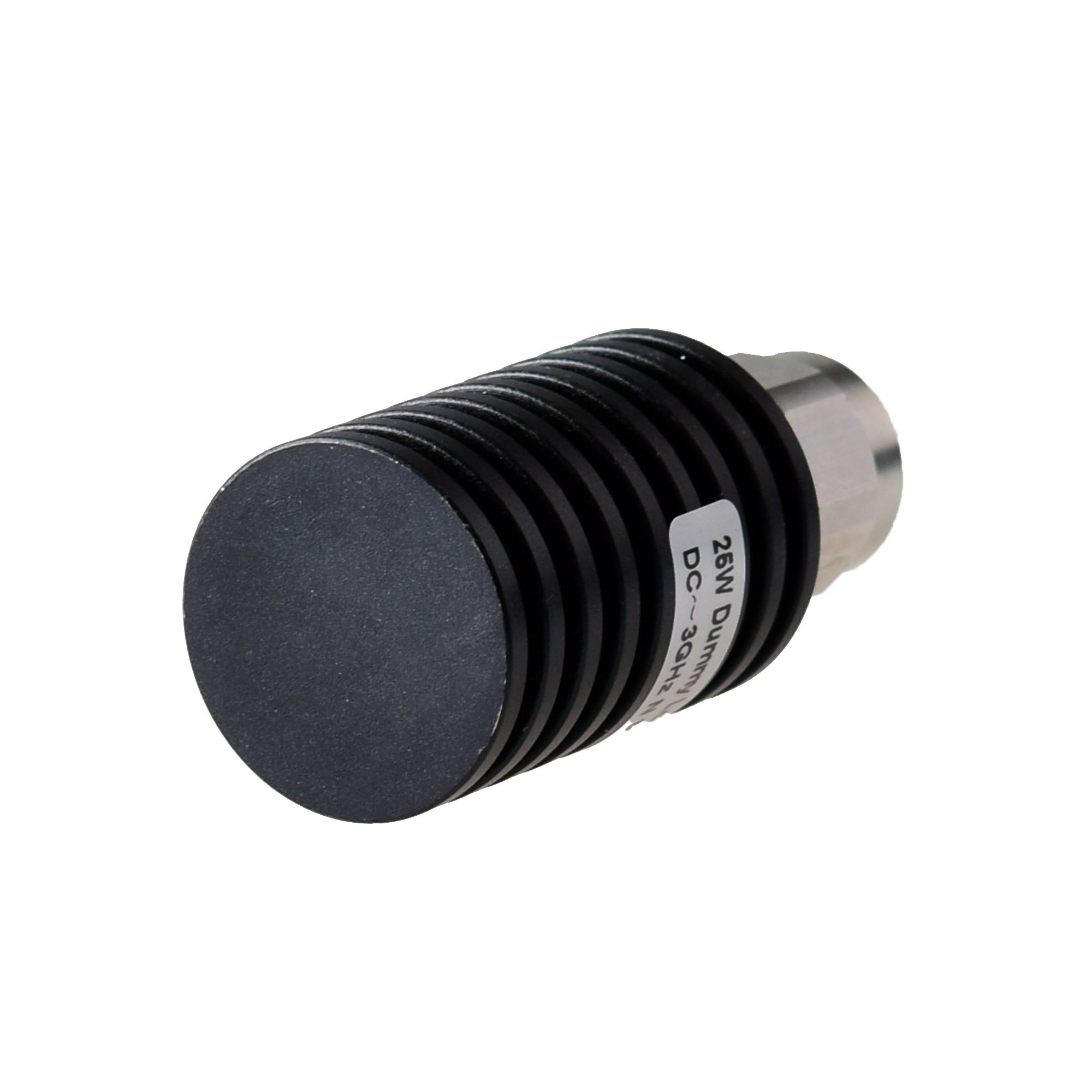

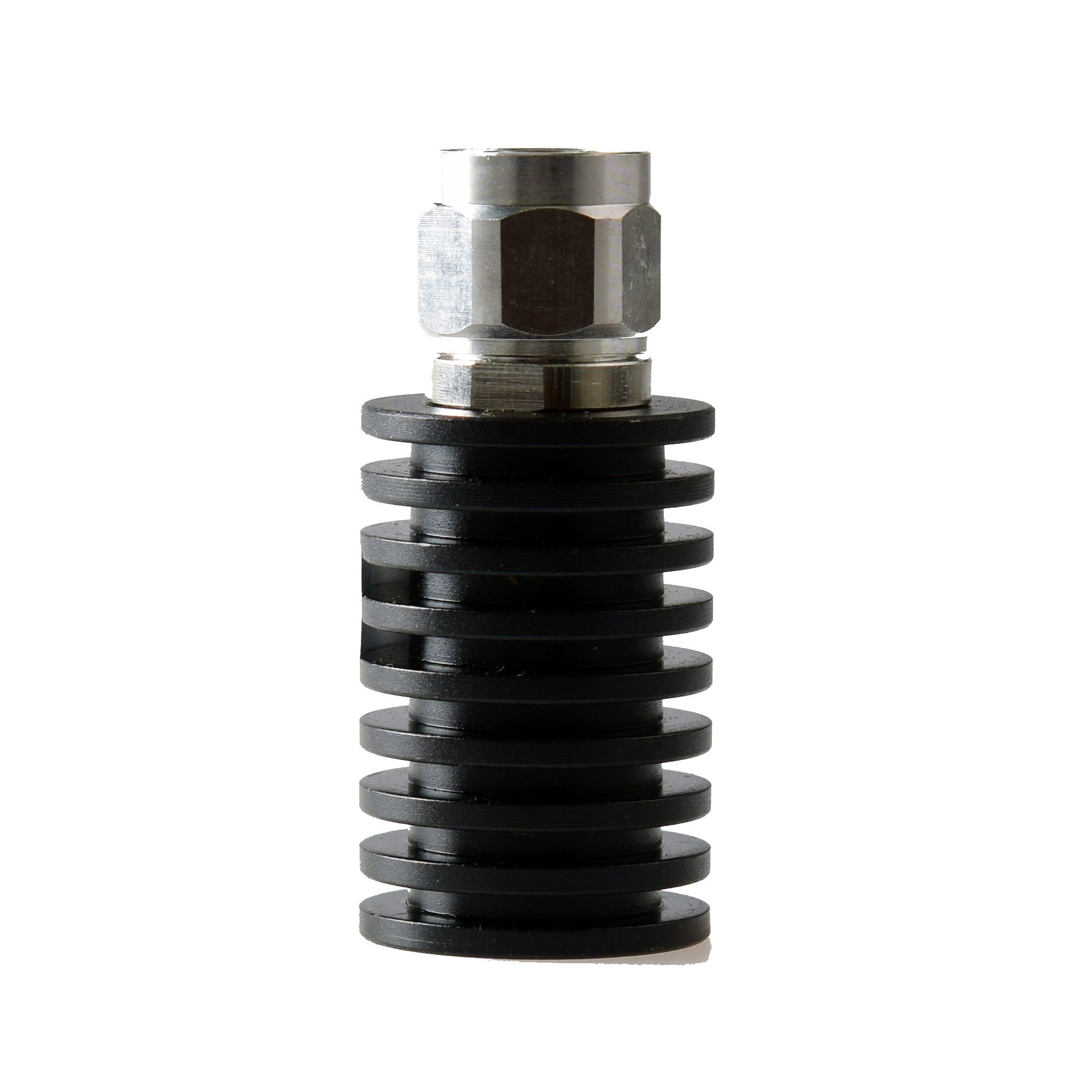

Mcbazel N Male Plug DC to 3.0GHz 25w Watt Dummy Load 50 Ohm Rf Coaxial Terminal (0014-0104)

• N Male Plug DC to 3.0GHz 25w Watt Dummy Load 50 Ohm Rf Coaxial Terminal
• Max input power: 25 Watt. Frequency Range: DC to 3.0GHz,VSWR: ≤1.20
• Connector: N, Impedance: 50Ω. Temperature range: -55°C to +125°C.
• Size:65x28mm

Description: N Male Plug DC to 3.0GHz 25w Watt Dummy Load 50 Ohm Rf Coaxial Terminal - Max input power: 25 Watt - Frequency Range: DC to 3.0GHz - Connector: N, Impedance: 50 - Temperature range: -55°C to +125°C - Size:65x28mm Packing Includes: 1 x 25W Watt 50 ohm Dummy Load Warning: When the input power is higher than the dummy provides , it will cause the damage of the product Why use the dummy load? A Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves. The Dummy Load is selected in a way so that it has a similar impedance to the real device that will be connected to the RF System.Not using a dummy load and leaving the port open, can result in some unwanted reflections which can damage the RF System. Also, using a real antenna in the testing phase can result in some unwanted transmission in the lab which will interfere with other devices and technologies being tested.
