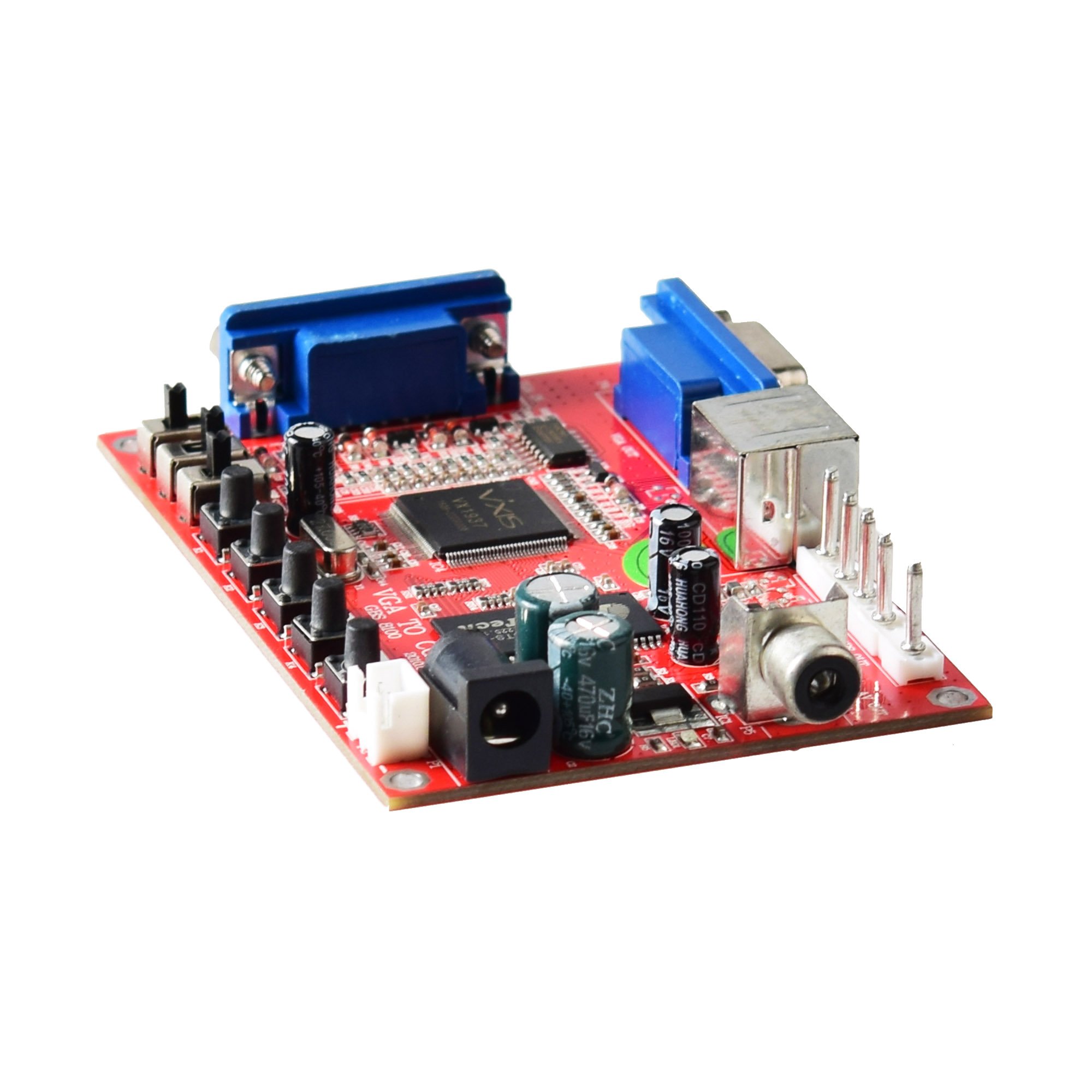

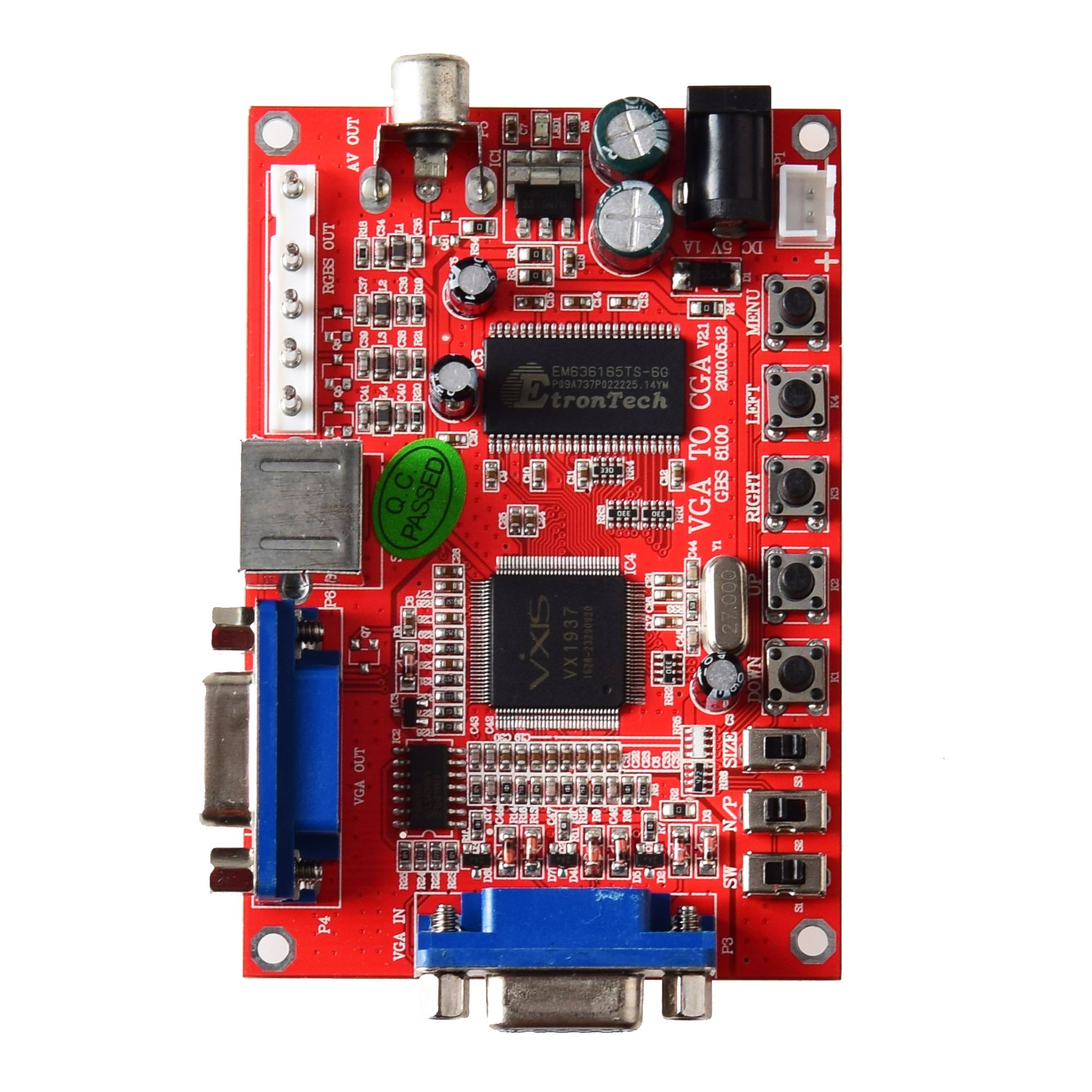

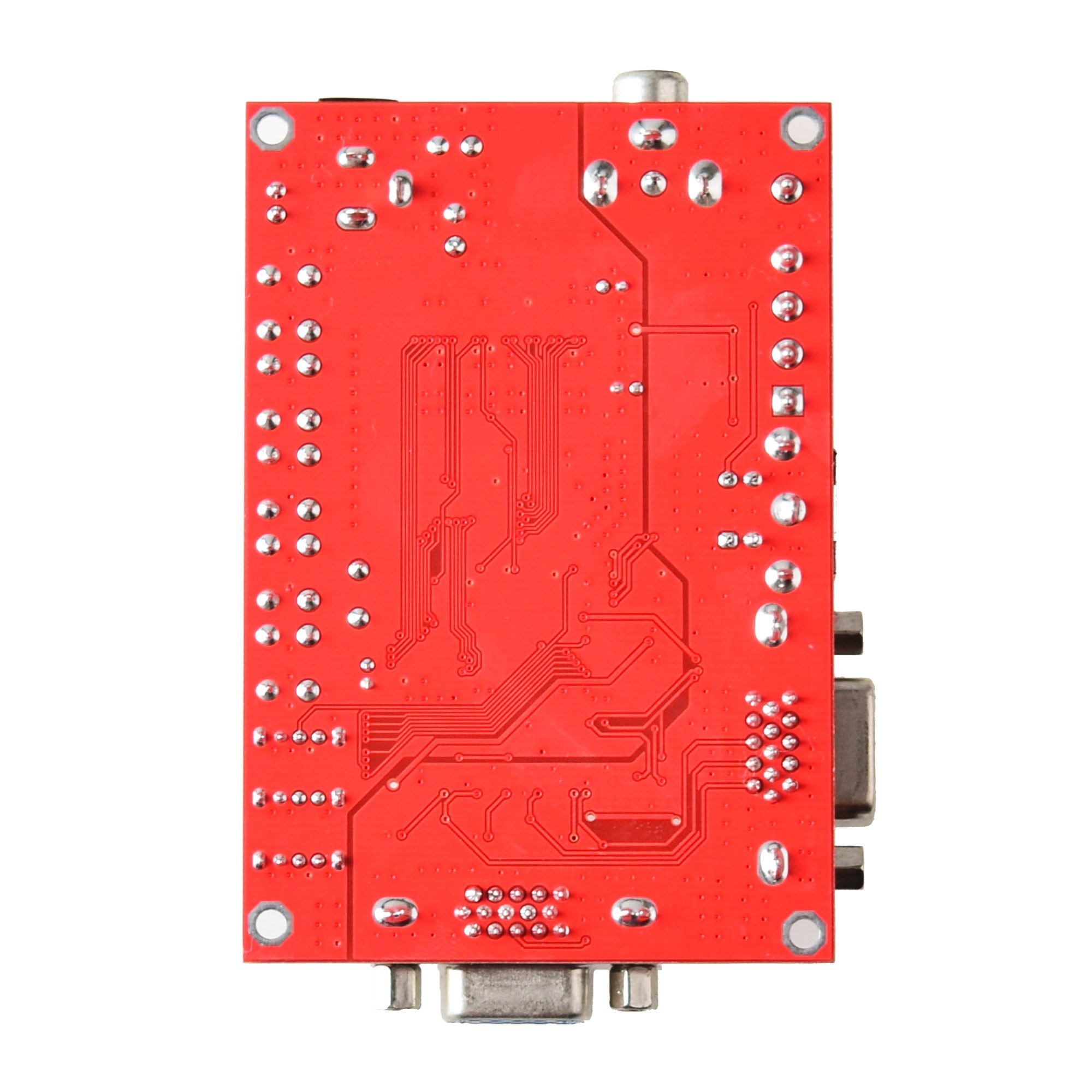

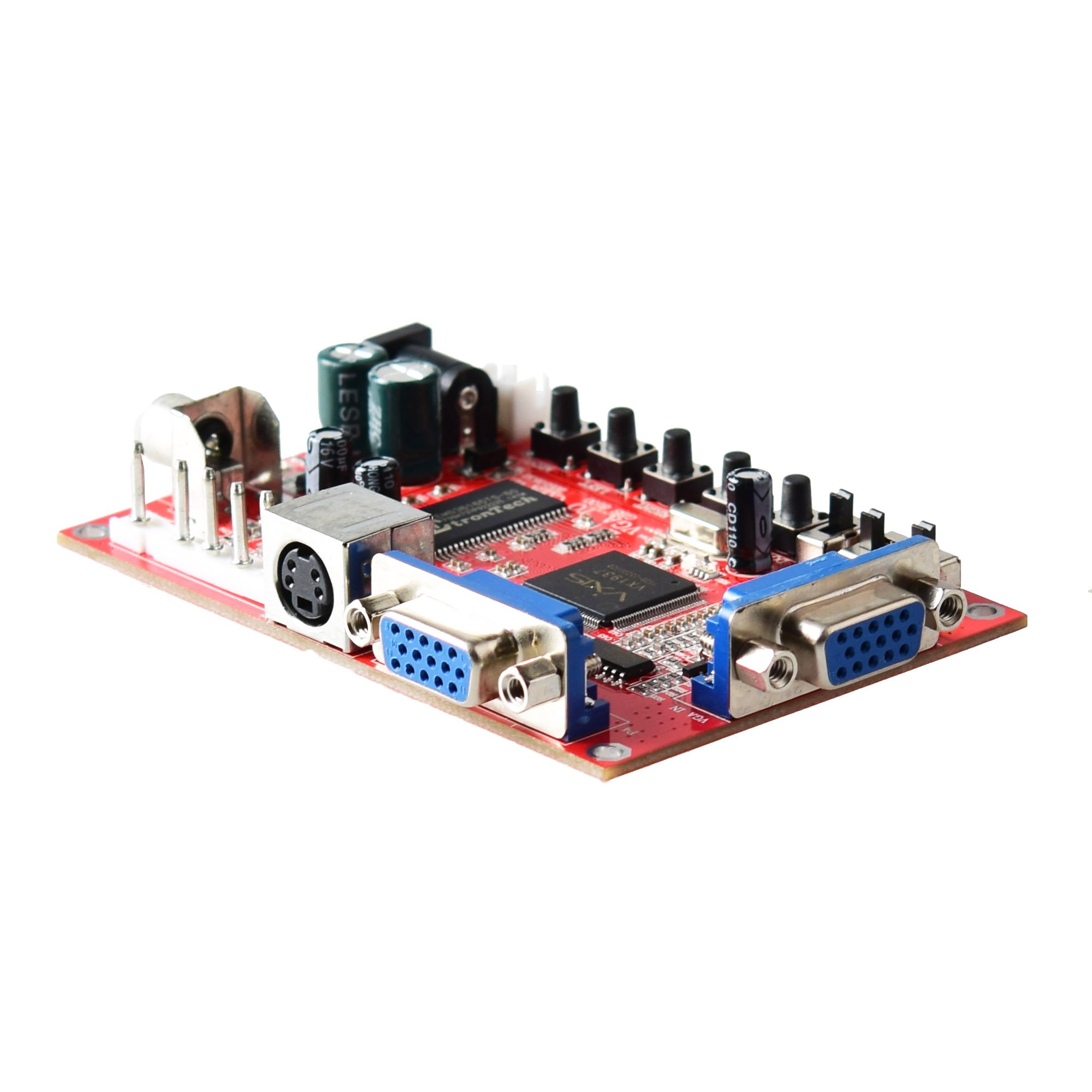

Mcbazel GBS-8100 Arcade Game VGA to CGA RGBS/CVBS/S-VIDEO Video Converter Board With 5 Pin RGB Cable,Red

• High definition GBS-8100 Video Converter Board is a professional game converter, which is specially designed for game industry.
• Supports VGA/SVGA/XGA/SXGA(640*480,800*600,1024*768,1280*1024) signal input. Supports VGA output by pass.
• CGA signal output(15K). Video/S-Video output. Supports NTSC & PAL. Supports position control & zoom control.
• True digital 24-bit A/D converter for true 16.7-million color conversion
• Play the VGA games (High resolution Arcade Game or PC games) on big-screen HD Monitors (CGA CRT Monitor, LCD Monitor PDP Monitor) It will bring you much fun and convenience.

Description: The high definition GBS-8100 Video Converter Board is a professional game converter, which is specially designed for game industry. And, it can convert VGA input signal to CGA RGBS/CVBS/S-VIDEO component signal. After connected, it will play the VGA games (High resolution Arcade Game or PC games) on big-screen HD Monitors (CGA CRT Monitor, LCD Monitor PDP Monitor) It will bring you much fun and convenience. Features: - Supports VGA/SVGA/XGA/SXGA(640*480,800*600,1024*768,1280*1024) signal input. - Supports VGA output by pass. - CGA signal output(15K). - Video/S-Video output. - Supports NTSC & PAL. - Supports position control & zoom control. - True digital 24-bit A/D converter for true 16.7-million color conversion - English OSD Adjust menu Specification: Model Number: GBS-8100 Input Power: DC 5V ±0.5V (2A) P1 or P2 Input signal: 640 * 480 @ 60 / 72 / 75 80 / 85 Hz, 800 * 600 @ 60 / 72 / 75 80 / 85 Hz, 1024 * 768 @ 60 / 72 / 75 80Hz, 1280 * 1024 @ 60 / 72 / 75 Hz (Auto scan) P3 Output Signal: CGA: 640 * 480 P7 VGA: By Pass P4 Video: 480p NTSC & PAL P5 S-Video: 480p NTSC & PAL P6 User controls (Menu Keys): Output Switch, Image Zoom, Image Position, Output adjust. Color: Red Main item size: 10.0 * 6.5 * 1.6 cm / 3.94 * 2.56 * 0.63in Package Weight: 51g / 1.8oz Package size: 20.0 * 10.0 * 3.0 cm / 7.87 * 3.94 * 1.18in Package weight: 107g MENU CONTROL: “MENU” open / close OSD menu. “UP” up move. “DOWN/AUTO” down move. “LEFT” add. “RIGHT” less For more functions control, please refer to OSD to operate. S2 to switch NTSC & PAL, output, S1 to switch S-Video / CGA output. Packing Includes: 1 x Video Game Converter Board 2 x 5 Pin RGB Cable 1 x Power Cable - 2 Pins Connector
