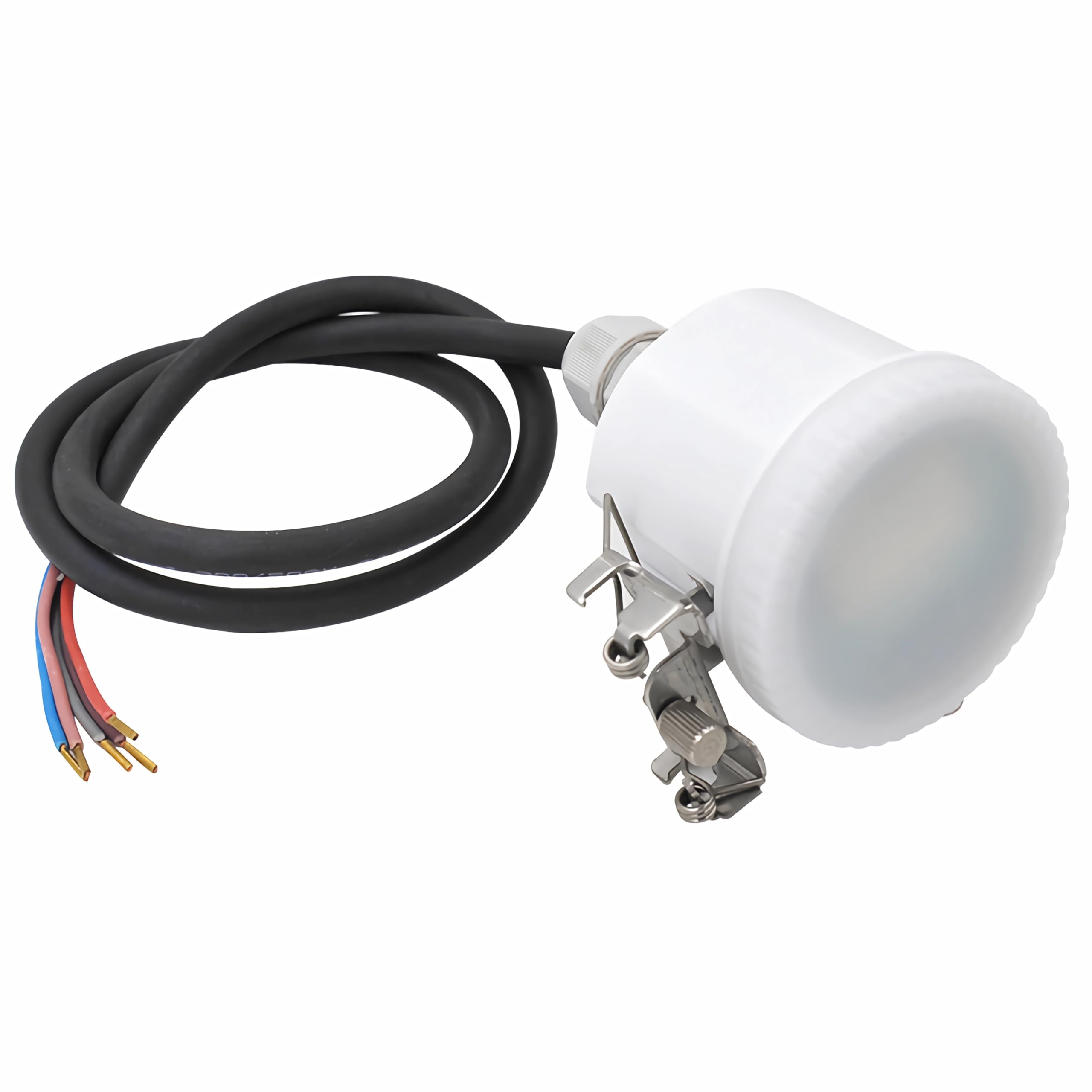

MC054VRC2A Merrytek Microwave Motion Sensor 1-10V Dimming Function IP65 Motion Switch LED Control 120-277V High Frequency Sensor Ceiling Industrial Warehouse Remote Control 15 m

• Intelligent Light Control & Energy Saving: Allows automatic lighting when motion is detected - ideal for saving up to 90% energy in warehouses, car parks and industrial environments.
• Wide Voltage Range & High Compatibility: Operates reliably with 120-277V AC - suitable for European and North American power grids, compatible with most LED drivers (1-10V dimming).
• FLEXIBLE MOUNTING & LONG REACH Optimized for ceiling heights up to 15 m, with patented antenna technology - perfect for high industrial halls, large warehouses and demanding applications.
• Adjustable sensitivity & dimming levels: supports different sensitivity modes, even with metal reflectors or ceilings. Two to three stage dimming function easily adjustable for individual lighting conditions.
• Remote control configuration & IP65 protection: Quick setup possible via patented remote control. Durable housing with IP65 protection - dustproof and splash proof, ideal for indoor and outdoor use.

TOP! Merrytek MC054V RC2 A Microwave Motion Sensor Motion Switch Sensor Dimming Function IP65 120-277Vac 800W/1,200W The high quality MERRYTEK MC054V RC2A microwave motion sensor allows intelligent light control with up to 90% energy savings - ideal for industrial halls, car parks, warehouses and more. Product Features: Operating voltage 120~277V AC, suitable for the Euro and North American market. Patented microwave antenna with a mounting height of maximum 15 m, suitable for installation in most warehouses. Supports high and low sensitivity modes (for metal ceilings, metal reflector attachments) Works with 1-10V dimmable LED driver, easy to achieve 2 or 3-stage dimming function. NEW PATENTED REMOTE CONTROL TO ADJUST THE STARTING ANGLE TO AVOID ABUSE: remote control with Merrytek MH10 Dim+/Dim- for adjusting the illuminance Note: When you buy more than 10 pieces, you will receive an additional discount. Please contact us in time for more information. We try our best to ensure that our customers are completely satisfied. If you have a problem, please contact us in time. We will be happy to help you! 😊 Technical data: - Type: motion detector - Technology: high frequency 5.8 GHz. - Input voltage: 120-270Vac 50Hz/60Hz. - Switching capacity: 800 W (LED, ESL), 1,200 W (light bulb, resistive load). - Power consumption: 1 W (operation), 0.5 W (standby). - Detection range (D x H): 30 x 15 m. - Detection angle: 150° (wall mounted), 360° (ceiling mounting). - Adjustable daylight sensor: 5lux / 15lux / 30lux / 50lux / 100lux / 150lux / off. - Adjustable waiting time: 0s / 10s / 1min / 3min / 5min / 10min / 30min / +∞ - Temperature range: -35°C to +55°C. - IP Rating: IP65 - Protection class: Class II. - Dimensions in mm: (diameter x height) 72 x 59 (see image). - Colour: Black or White (no request delivered randomly!!!) Box contents: - 1 x microwave motion detector MC054V RC2 A.
