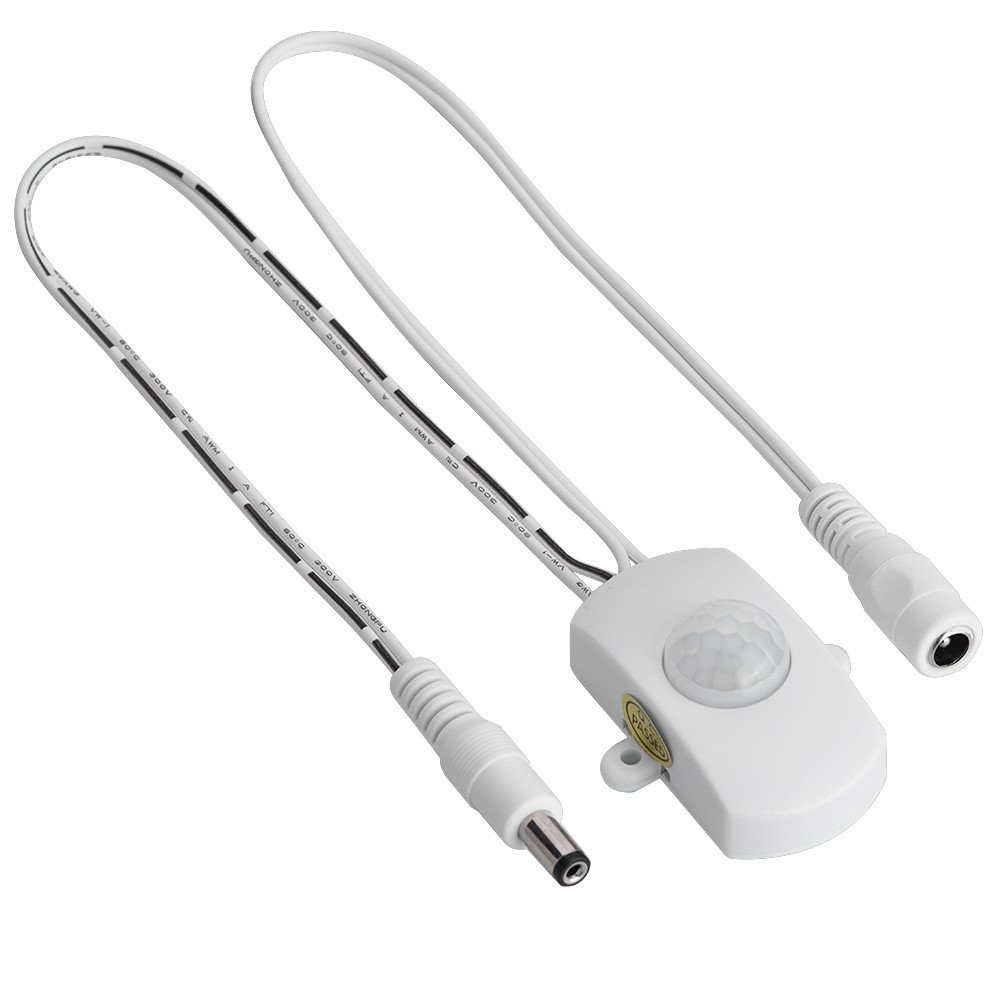

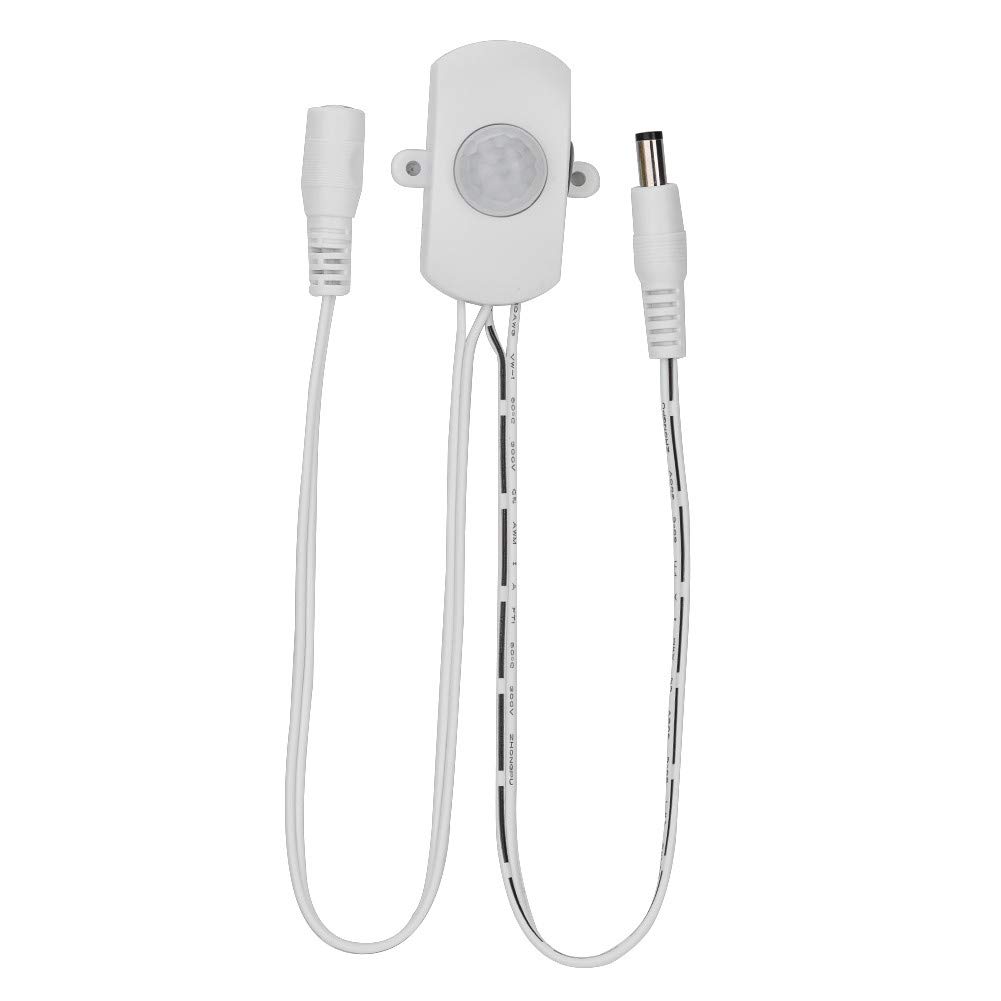

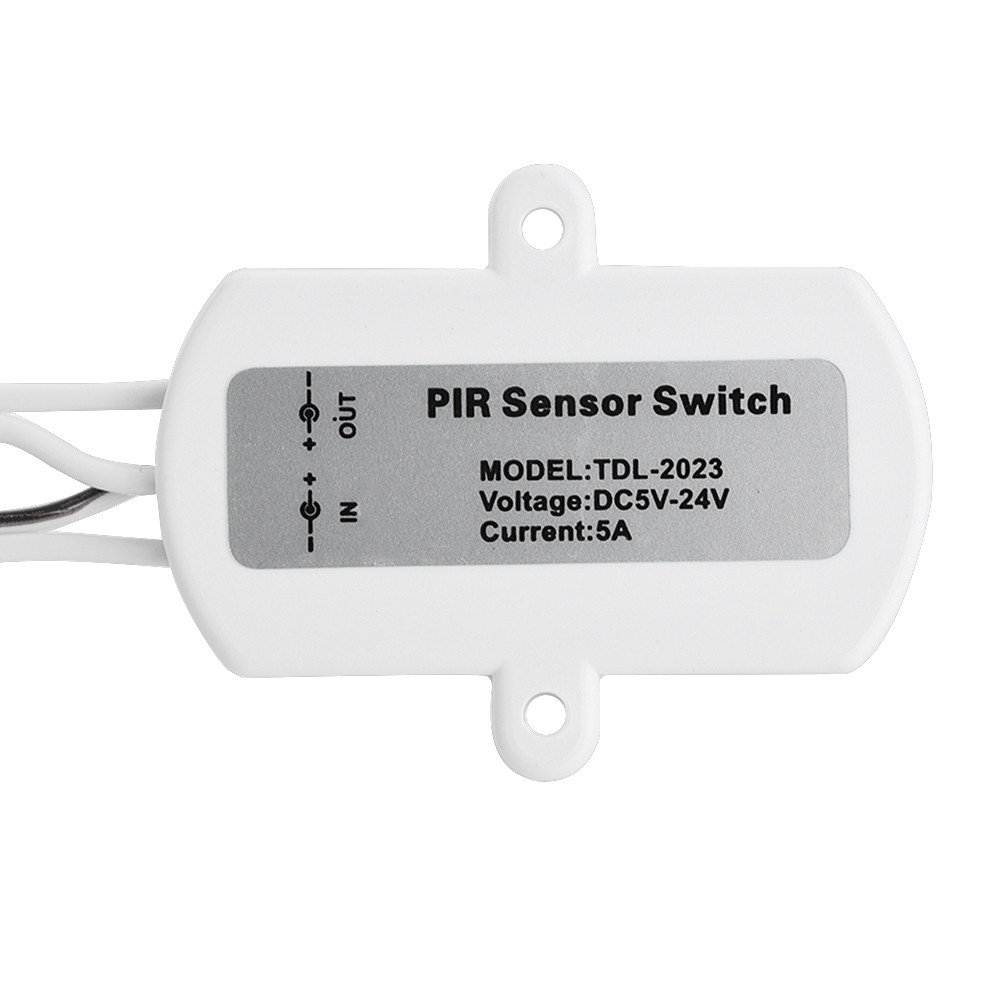

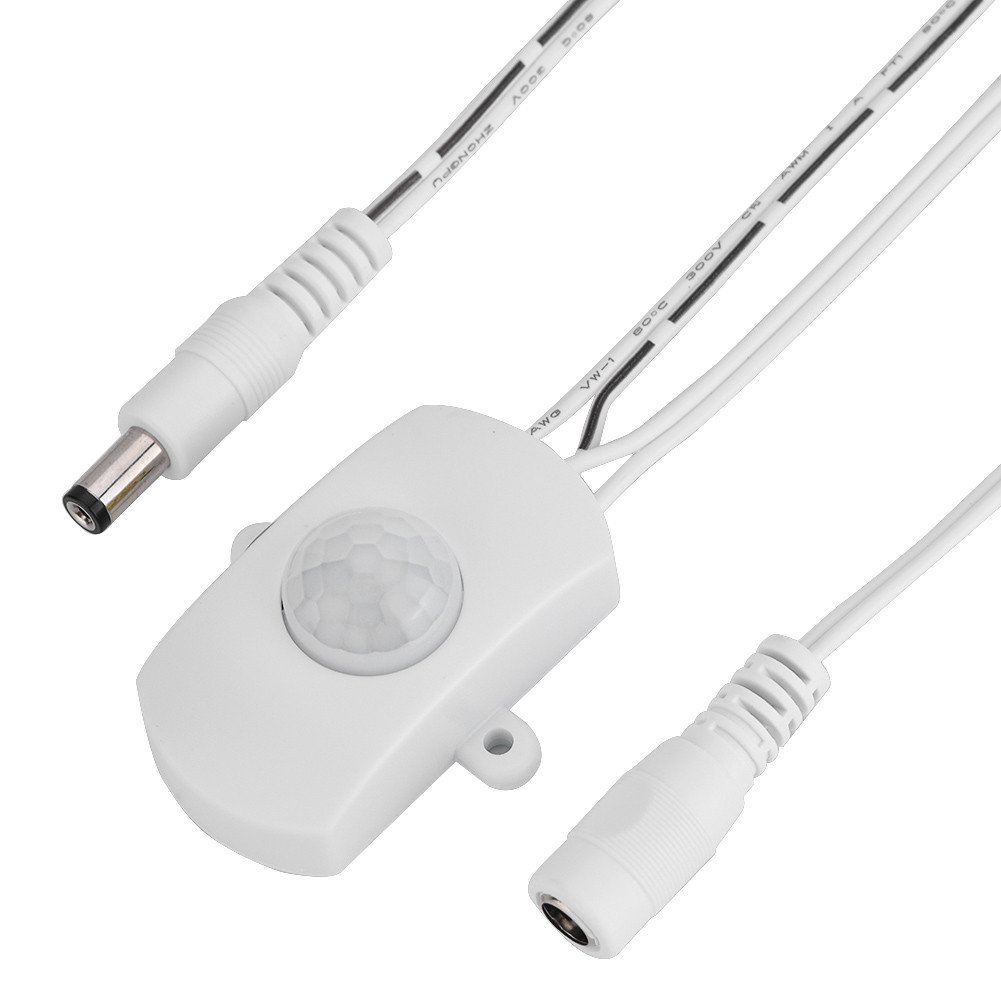

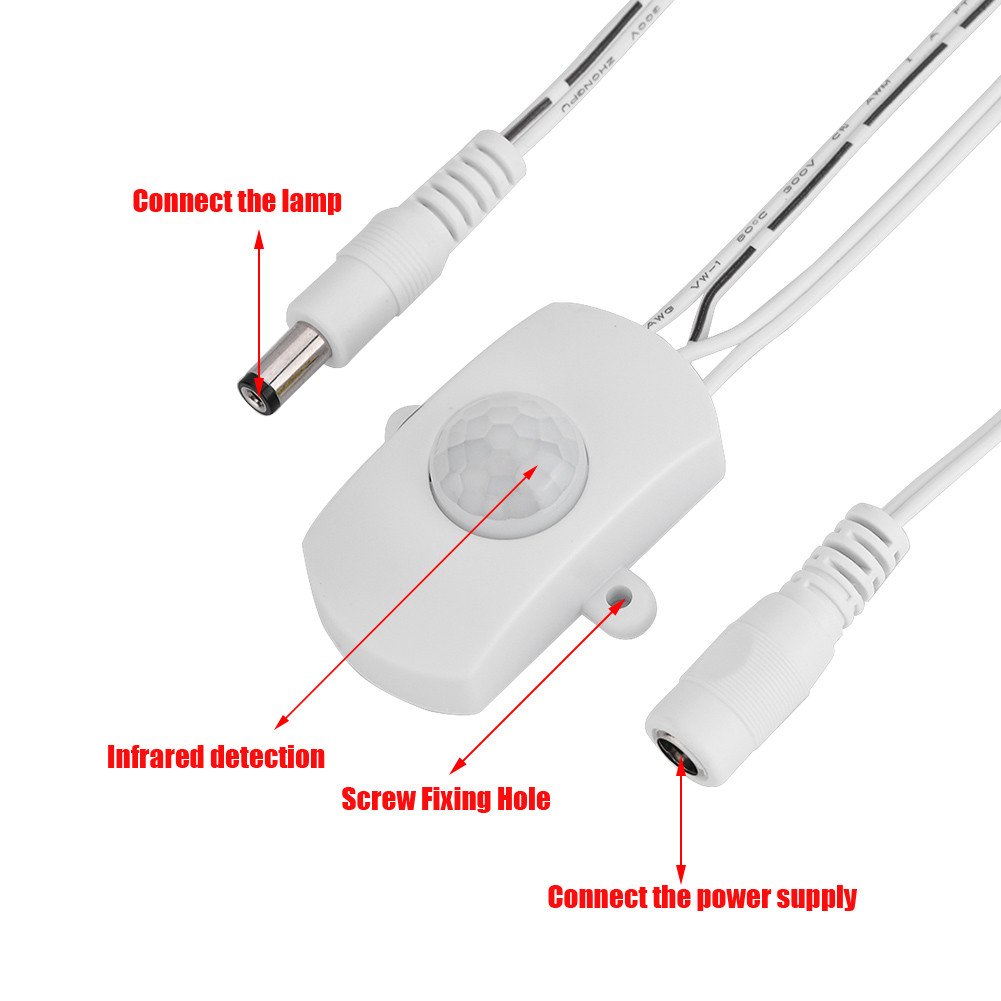

Mavis Laven 5A DC 5-24V Mini PIR Infrared Motion Sensor Detector Switch, LED Strip Automatic Sensor Switch for LED Strip Light(White)

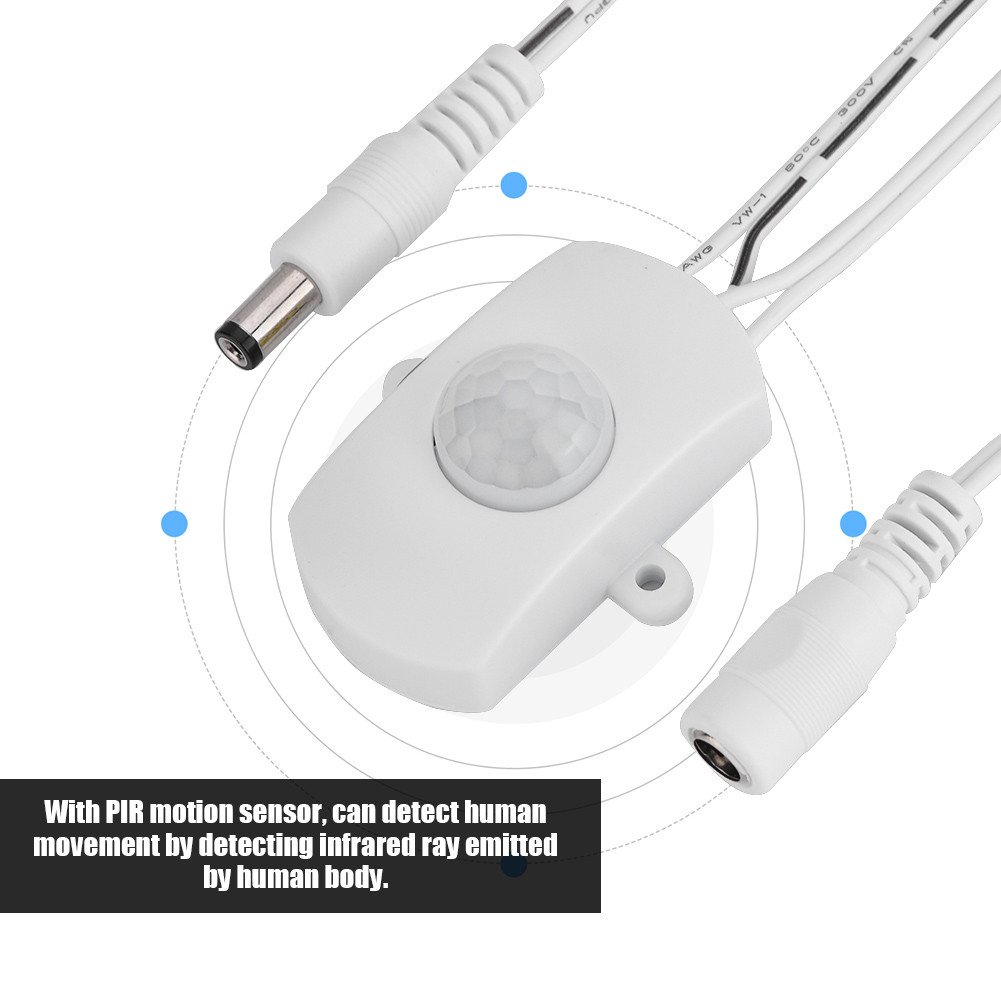

• PIR motion sensor can detect human movement by detecting infrared ray emitted by human body.

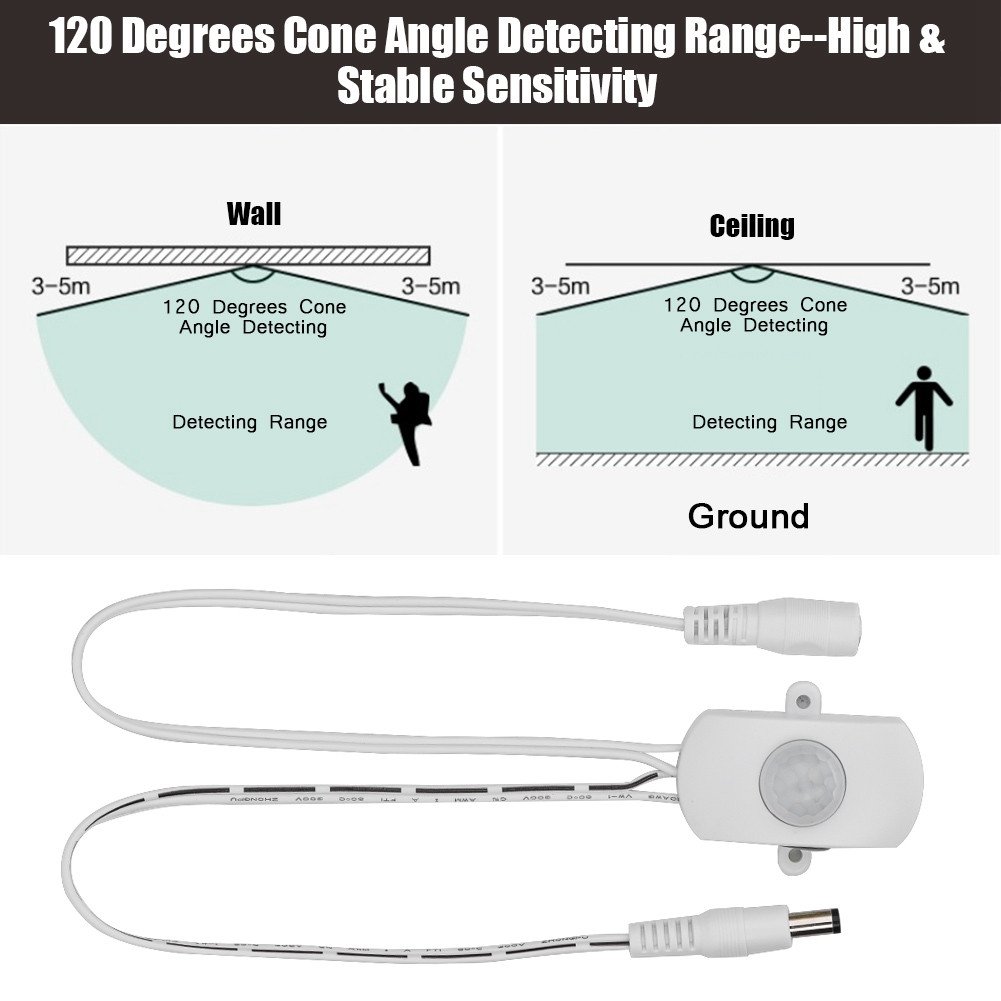

• 120 degrees cone angle detecting range and detecting distance is up to 5‑7m. High and stable sensitivity, effectively save energy and improve efficiency.

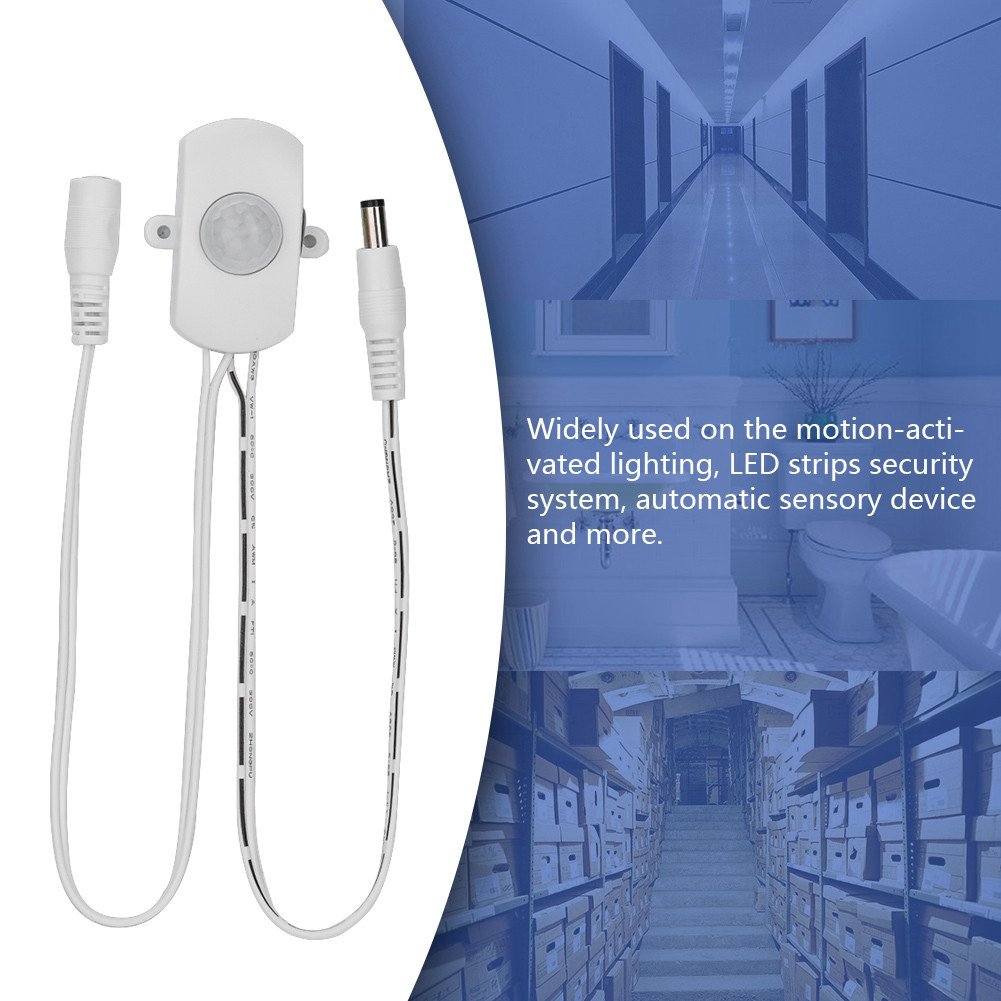

• Widely used on the motion‑activated lighting, LED strips security system, automatic sensory device and more.
• 15‑240 seconds adjustable delay range for you to choose a suitable time, more humance.
• Output voltage is equal to input voltage, low power consumption. Mini and compact so as to put it without destroying home decoration.

Description: This with PIR Infrared Motion sensor detector, can be used in corridors, bathrooms, basements, warehouses, garages and other places to achieve electrical automatic control functions. High and stable sensitivity, effectively save energy and money for you. Features: PIR motion sensor can detect human movement by detecting infrared ray emitted by human body. 120 degrees cone angle detecting range and detecting distance is up to 5-7m. High and stable sensitivity, effectively save energy and improve efficiency. Widely used on the motion-activated lighting, LED strips security system, automatic sensory device and more. 15-240 seconds adjustable delay range for you to choose a suitable time, more humance. Output voltage is equal to input voltage, low power consumption. Mini and compact so as to put it without destroying home decoration. Specifications: Operating voltage: 6V-24VDC (wide voltage) Working temperature: -20 °C ~ +38 °C Quiescent current: <50uA Output current: 5A Trigger mode: Continuous trigger Output Mode: Inductive Output Delay range: Default setting 15S (15-240 seconds adjustable) Induction mode: passive Sensing angle: 120 degree cone angle Sensing distance: 5-7m Size: 50x40x22.5mm/1.97x1.57x0.87inch Package List: 1 x PIR Motion Sensor Power 1 x Screw
