MASUNN XMT7100 Digital PID Temperature Control Controller with K Type Thermocouple

• Material: Plastic
• Color: Black
• Modle: XMT7100
• Measuring Range: -200~1300°C
• Operating voltage: AC / DC85 ~ 260V (other voltage can be customized) (V)

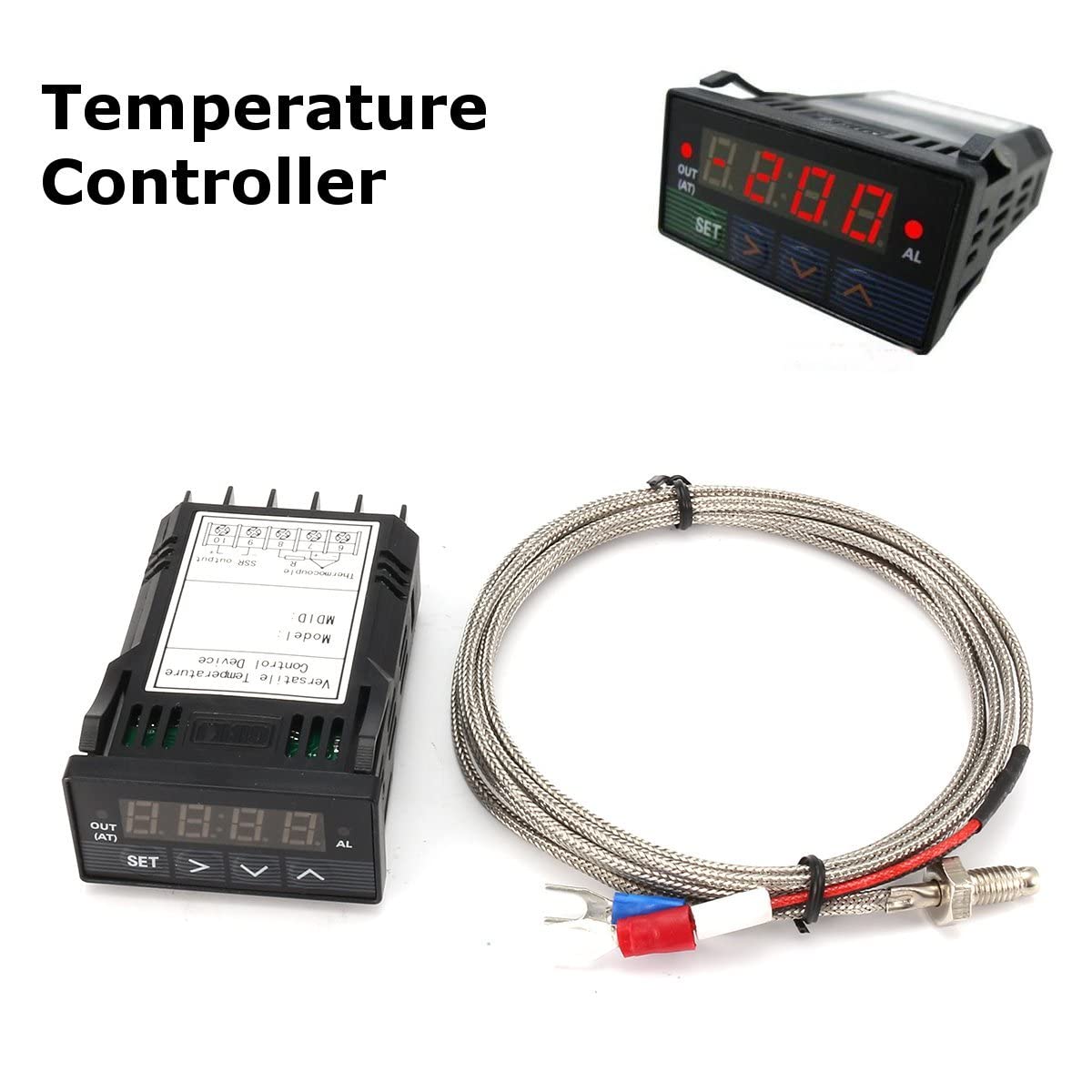

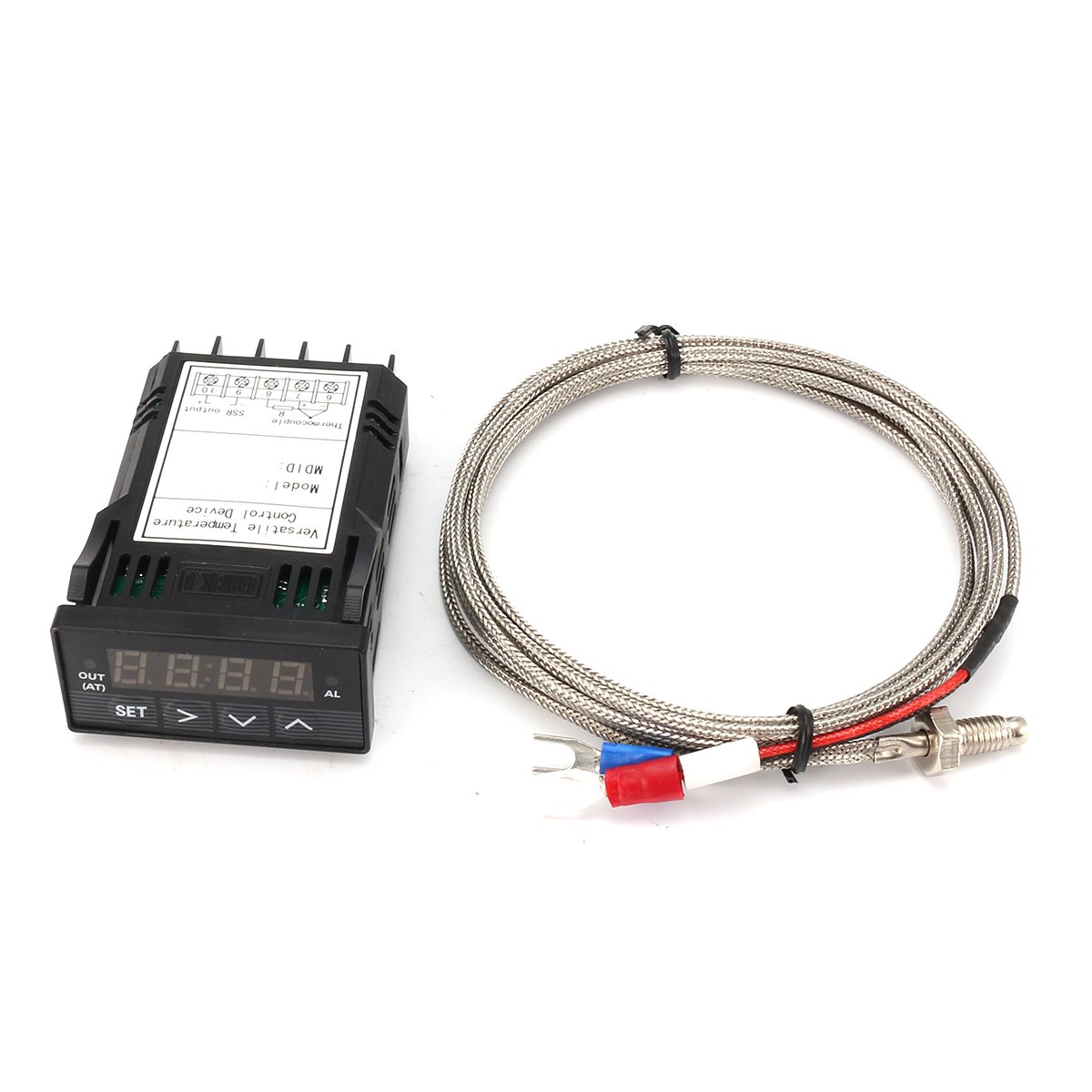

Features : Alarm: Process high/low alarm. Easy to install and operate. Ultra-bright RED LED digits display. Input type can be RTD input (Cu50, Pt100) or thermocouple input (T, R, J, B, S, K, E and Wre-Wre25). This instrument can display ºC or ºF. Artificial intelligence enhanced PID algorithm for accurate and stable temperature control. Auto-tune function can find the best PID parameter automatically. On/Off control mode for refrigerator, motor and solenoid valve control application. Limit control mode for safety protection and special applications. The PID, on/off, or limit control output can be configured by user for either relay contactor or SSR control. 5 kinds of Control modes. Type-K Thermocouple (Length=2 meters; 0ºC ~ 800ºC) included. Ideal for use with: Uses in Swimming Pool, Aquarium, Refrigerator, Chiller, Furnace, Heating, Cook Device, Various Test and Industrial Equipment...etc. Specification : Material: Plastic Color: Black Modle: XMT7100 Measuring Range: -200~1300°C Operating voltage: AC / DC85 ~ 260V (other voltage can be customized) (V) type: Temperature Control mode: Intelligent temperature control regulator Installation type: embedded Display range: -1999 ~ 9999 Display Type: RED LED Digits Display Power Source: 12V DC Display Selectable: ºC or ºF Sensor Input: T,R,J,B,S,K,E,WRe3-25,Cu50,Pt100 Accuracy: 0.2% FS Resolution: 1ºC, 1?, or 0.1°C, 0.1? with Pt100,LED Indicators Control mode: PID, On-off, Limit Output mode: Relay contact: 3A at 240VAC, SSR: 8VDC, 40 mA. Power consumption: <2 Watt Size: Panel Cutout Size: 44 mm x 21 mm/2*0.8'' Dimensions: 75mm (W) x 47mm (H) x 23mm(D)/3*1.9*0.9'' Wire length: 188cm/74'' Package includeds : 1 x XMT7100 Temperature Controller 1 x K Type Thermocouple 1 x User Manual
