MASUNN DF96D AC220V 5A Din Rail Mount Float Switch Auto Water Level Controller with 3 Probes

• This product uses the integrated circuit, the sink (water tower) is designed to enhance the level classification has joint control under the sink, can automatically tank water, drainage, and effective pool water level to prevent water overflow or pump idling high damage, is an industrial.
• Well Water Project, is widely used in printing and dyeing, chemical, food, beverage, wine, sugar and other industries.
• Model: DF-96D

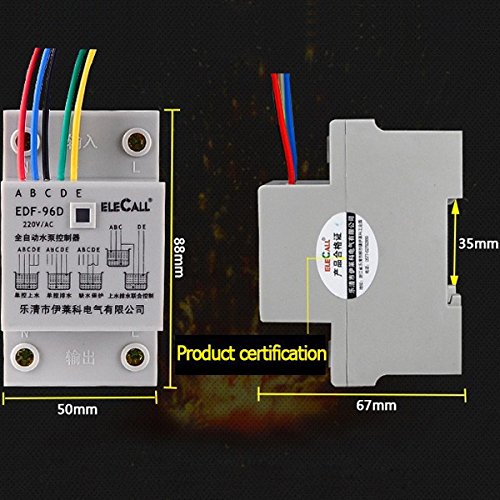

• Dimensions: 126 x 88 x 74mm
• Operating Voltage: 220V

This product uses integrated circuit, combined with high-rise buildings, the sink (water tower) is designed to improve the level classification has joint control under the sink, sink drainage and water protection and other functions, can automatically tank water, drainage, and pool water efficient level to prevent water overflow or idling pump high damage, is an industrial, household products are applicable ables very suitable for urinary bath, rural, school, where mining enterprises and domestic water wells. Well water project, is widely used in printing and dyeing, chemical, food, beverage, wine, sugar and other industries. Specifications: (D) Control of the joints up and down the pool installation instructions for installing the probe is shown in Figure III: A-is the pool ceiling level control point (water tower), the water level rises to reach the point one water level, water control head contact, the controller automatically closes the water they pump; B-Does the pool (water tower) limit their fluid control point, the water level drops below the groundwater to point b, the disengagement of water and probe, the automatic level control pump, the pool filled with water; C-Upper, without the public swimming pool (water tower) online, on the lowest point of contact with the bottom of the washbasin; D-limit for the next pond level control point, the water level dropped to d level, water and probe release, the water level controller automatically closes the pump to stop the drainage basin; Package includes: 1 x DF96D AC220V 5A DIN rail float switch.
