MASUNN 5W DC 9-12V COB Chip LED Light Source on Board 50x7mm for Wall Lamps Table Lantern - Warm White

• 1. COB strip for DIY

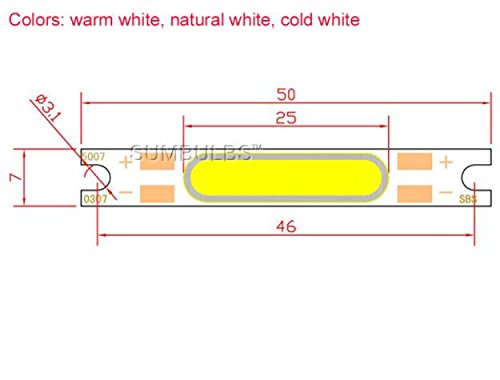

• 2. Size: 50*7mm
• 3. Lingting area: 25*6mm
• 4. Power: 5W
• 5. Voltage: DC 9-11V

Specification 1. COB strip for DIY 2. Size: 50*7mm 3. Lingting area: 25*6mm 4. Power: 5W 5. Voltage: DC 9-11V 6. Max current: 500mA(5W), 300mA(3W) 7. Color temperature: 2700K-6500K 8. Lingt color: Warm white(2900-3100K/) Nature white(4000-4500K)/ Cool white(6000-6500K) 9. Low attenuation, 1000h attenuation<1% Feature Super bright COB LED chips Ultra long lasting design Low power consumption, saving energy Suit for back lighting, car light and others Package Included 1 x 5W COB LED lamp What is COB? COB (Chips on Board) is a new technology of LED packaging of LED light engine. Multi LED chips are packaged together as one light module. When it lights up, it looks like a lighting panel. How COB LED light source works? In COB lighting, single LED chips are placed directly on a circuit board (or substrate) which has thermal properties to disperse heat. Heat dissipation is a very important aspect of LED lighting since it can have a major impact on the life expectancy of the luminary. Therefore, COB lighting can have a higher LED chip density and achieve higher light level while maintaining or improving life expectancy.
