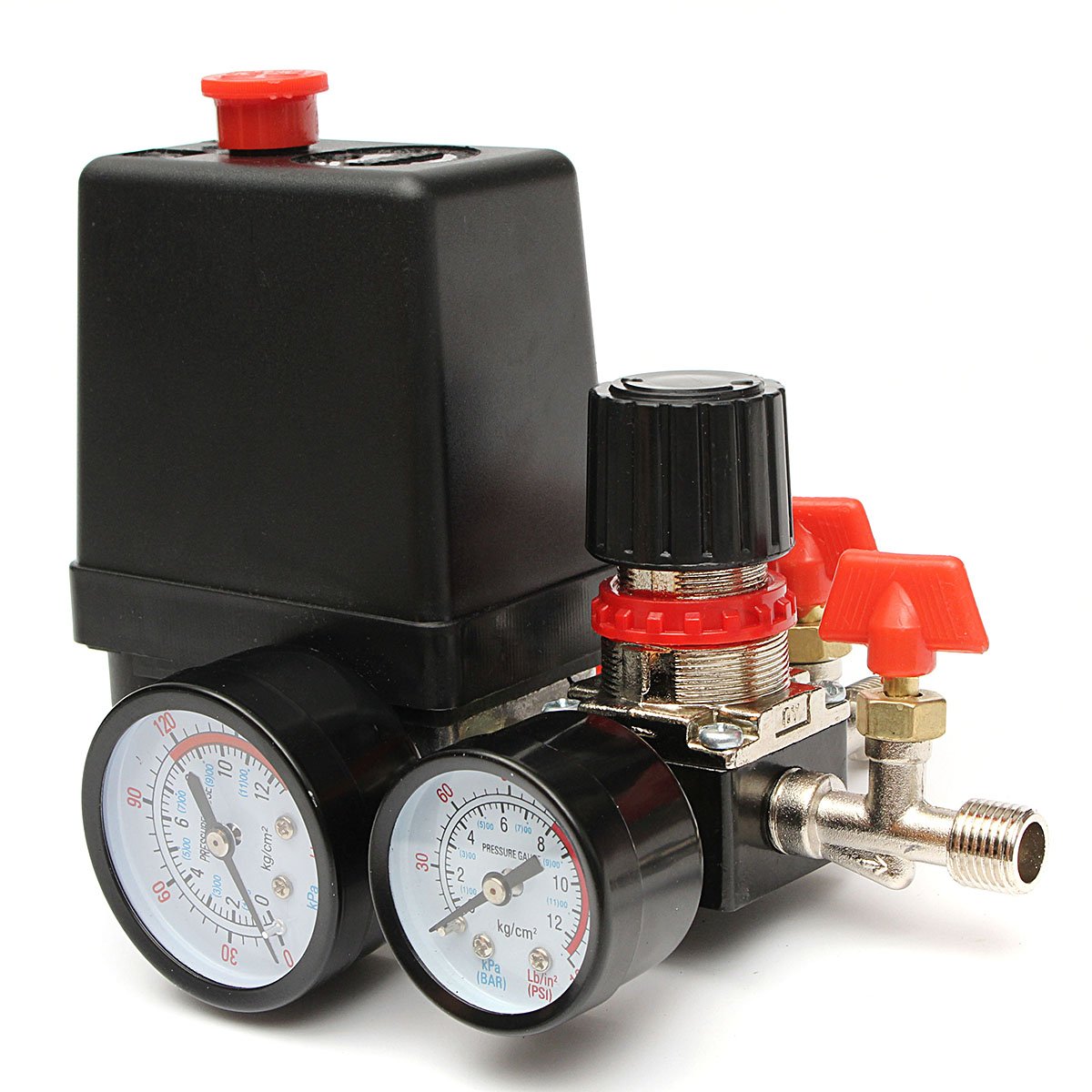

MASUNN 125PSI Air Compressor Pressure Valve Switch Control Manifold Regulator Gauges

• Maximum Voltage of Switch: 240V； Max AMP Rating of Switch: 20A
• Pressure Switch control range: 95-125 PSI(If the pressure is lower than 90 PSI, turn off the compressor. If the pressure exceeds 120 PSI, turn off the compressor. It is not adjustable.)
• Relief Regulator adjust Pressure Range: 30-120PSI
• Inlet and Outlet Port: 1cm/0.4"
• Material: Plastic, Electroplating Aluminium, Iron（Note: The small parts of the product are made of aluminum alloy. When installing, do not use raw material tape to wrap the seams too tightly, otherwise the seams will break easily）

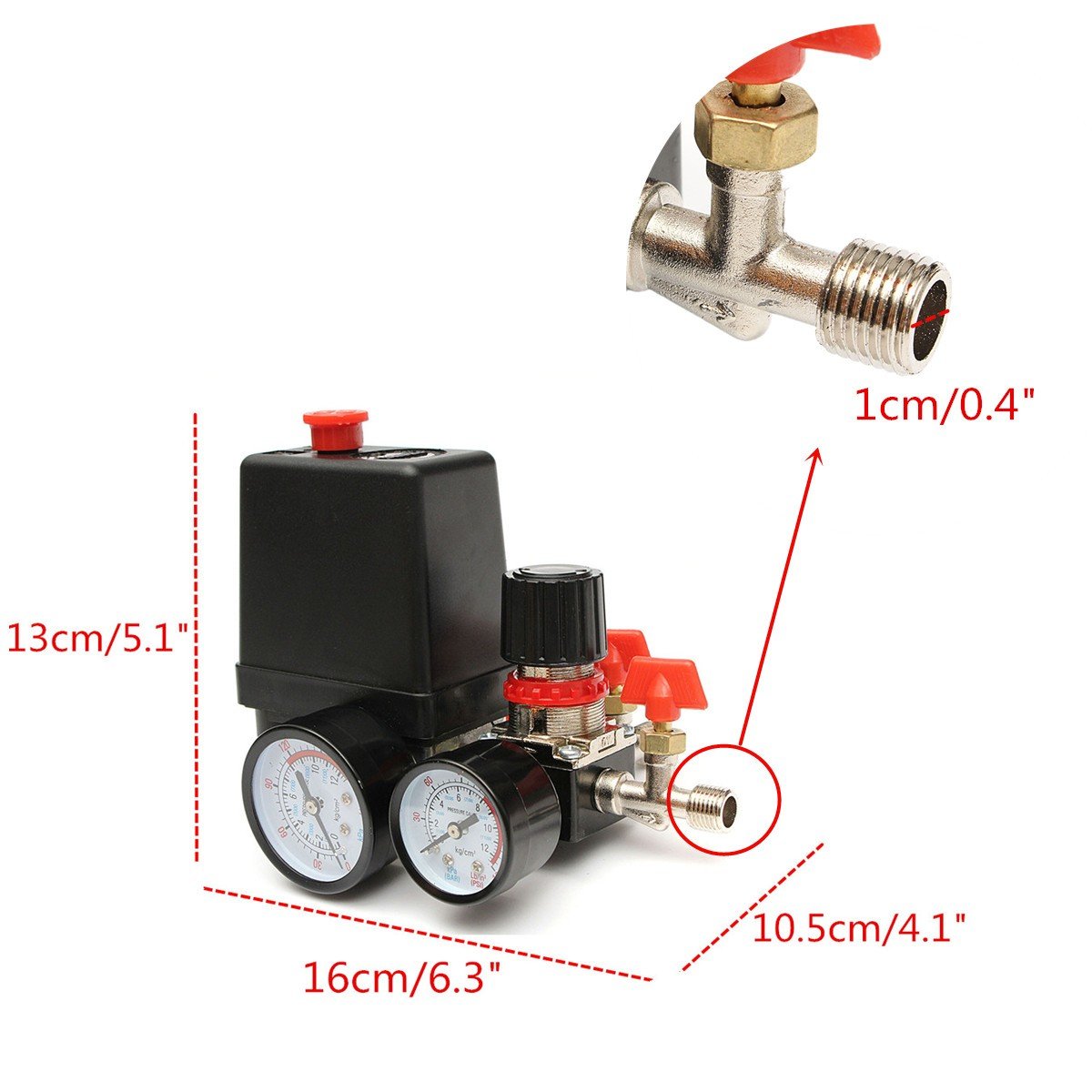

Description: 125PSI Air Compressor Pressure Valve Switch Control Manifold Regulator Gauges Suitable for piston compressor - There is a red ON/OFF switch knob, convenient design for use. - Auto control, Auto load/unload. Pressure lower than 90PSI, turn on the compressor. Pressure over 120PSI, turn off the compressor. Specifications: Material: Plastic, Electroplating Aluminium, Iron（Note: The small parts of the product are made of aluminum alloy. When installing, do not use raw material tape to wrap the seams too tightly, otherwise the seams will break easily） Maximum Voltage of Switch: 240V Max AMP Rating of Switch: 20A Pressure Switch control range: 95-125 PSI (If the pressure is lower than 90 PSI, turn off the compressor. If the pressure exceeds 120 PSI, turn off the compressor. It is not adjustable.) Relief Regulator adjust Pressure Range: 30-120PSI Size:(Length x Width x Height)16cm x 10.5cm x 13cm / 6.3" x 4.1" x 5.1" Inlet and Outlet Port: 1cm/0.4" Technical parameter: Inlet diameter (G): 1/4" internal thread Pressure gauge caliber (RC/G): 1/8"; 1/4" Pressure switch interface (R): R1/4" external thread Applicable pressure range: 0.05-1.2Mpa Maximum flow: 3000L/min Features: 1. The pressure valve switch of the air compressor is small in size, light in weight, simple in design, and easy to install and disassemble. 2. In the piston structure, the flow rate is 30% higher than that of the traditional diaphragm type. The valve body structure has an overflow port, which can quickly decompress. Tips: When installing small parts, it is recommended to use thread glue for installation. After some adjustments, it can be used after the glue is dry. There is no need to wrap the raw materials too tightly. Package Included: 1 x Air Compressor Pressure Valve Switch
