Masterwon RGBW LED Strip Light Connectors 5-Pin 12mm Solderless Clips for COB Strip-to-Wire Joints (Pack of 20)

• 12mm 5-Pin RGBW COB LED Strip Connector Kit: This 20-piece connector set is customized for 12mm wide COB LED strips with 5 solder pads. It is not compatible with 3mm, 5mm, 8mm, 10mm,SMD 5050 or other COB LED strip types.

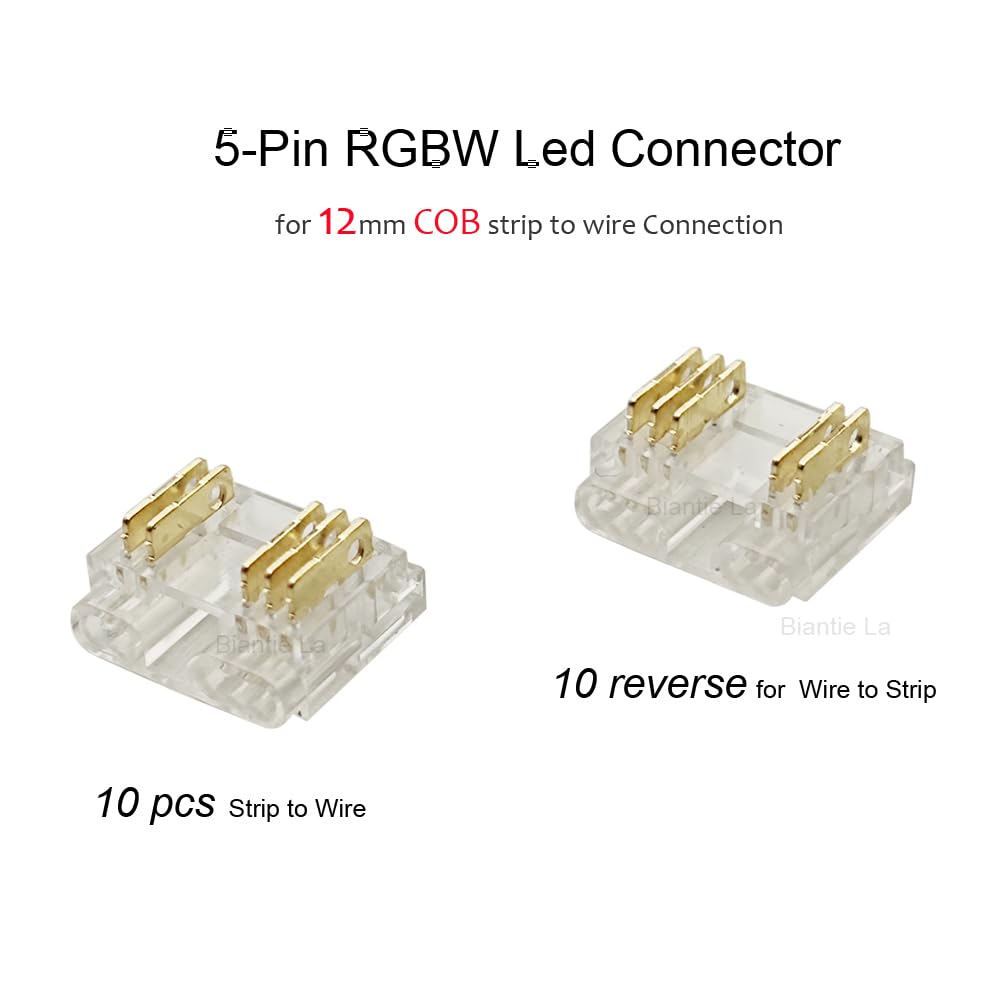

• Comprehensive 5pin Connectivity Solution: This kit includes 20 strip-to-wire connectors (10 of which are reverse, for wire-to-strip joints) to provide connectivity to power supply or controllers. Easily create jumper connections or 90-degree angled corner connection.

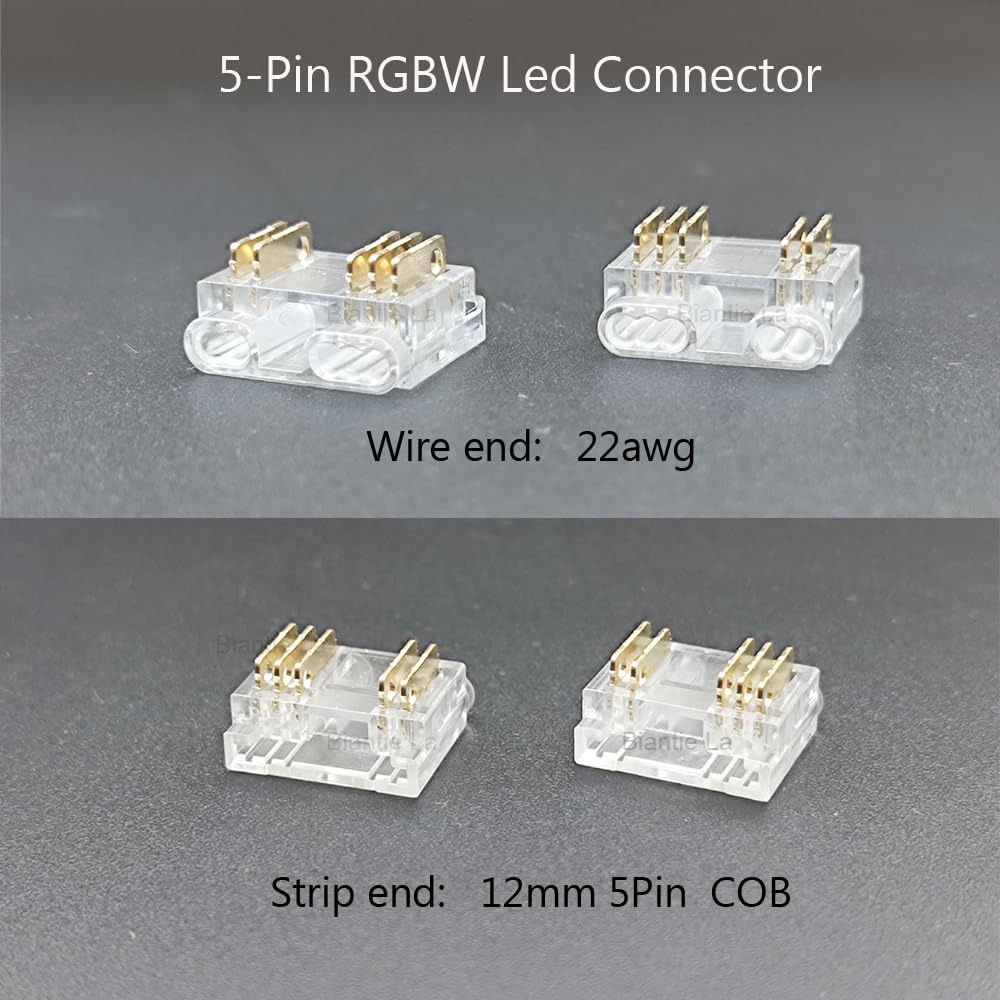

• Made for Standard 22 AWG Wire: These RGBW COB LED strip connectors are designed for standard 22 AWG wire. Non-standard or other gauge wires such as 20 AWG or 18 AWG may not fit securely into the connectors.
• Transparent Solderless Design: These 5-pin splices do not require any soldering. Use pliers (not included) to firmly press down and secure the copper tabs to pierce the strips and wires for conductivity. Press down slowly until the copper tabs are level with the surface of the connectors. Once secured, the clips cannot be detached or reused.
• Compact and Low Profile: Measuring only 14mm x 12mm x 5mm, these space-saving connectors maintain a streamlined profile after installation without protruding or blocking surrounding light. Their transparent housing minimally impacts the LED strip lighting.

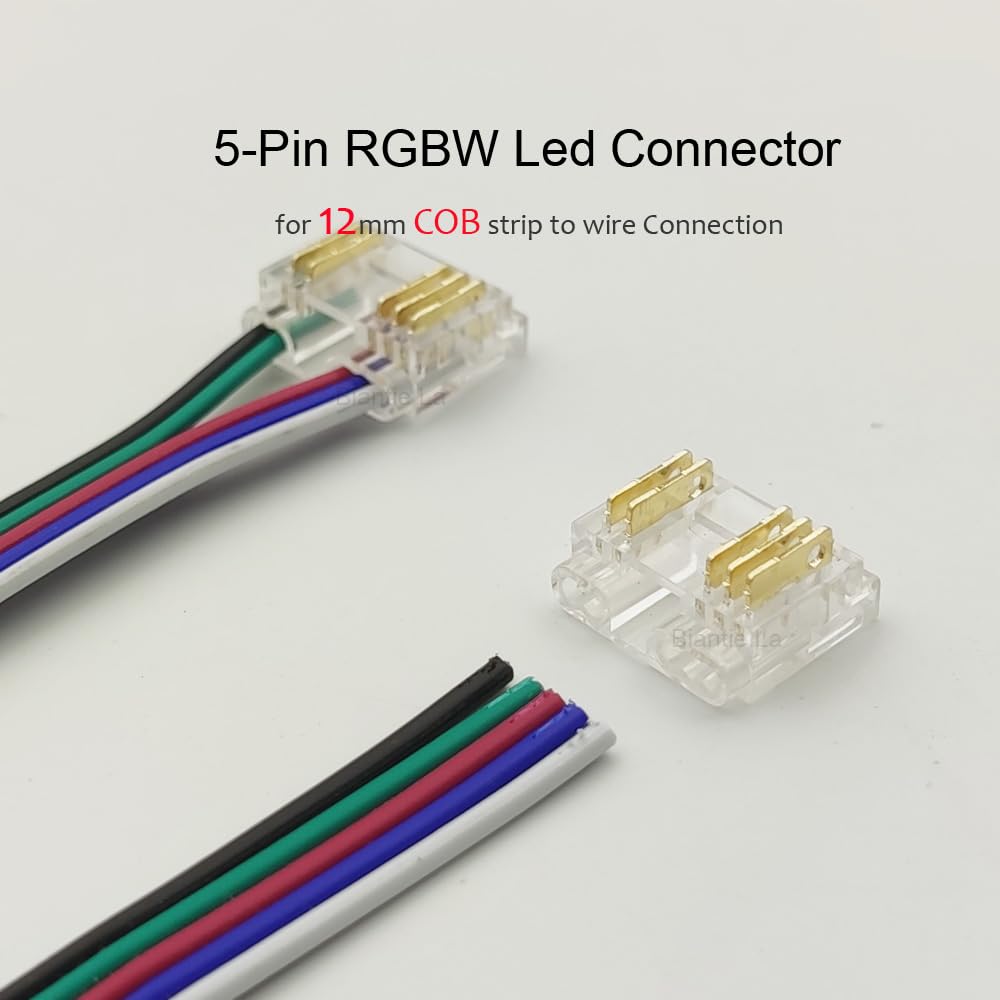

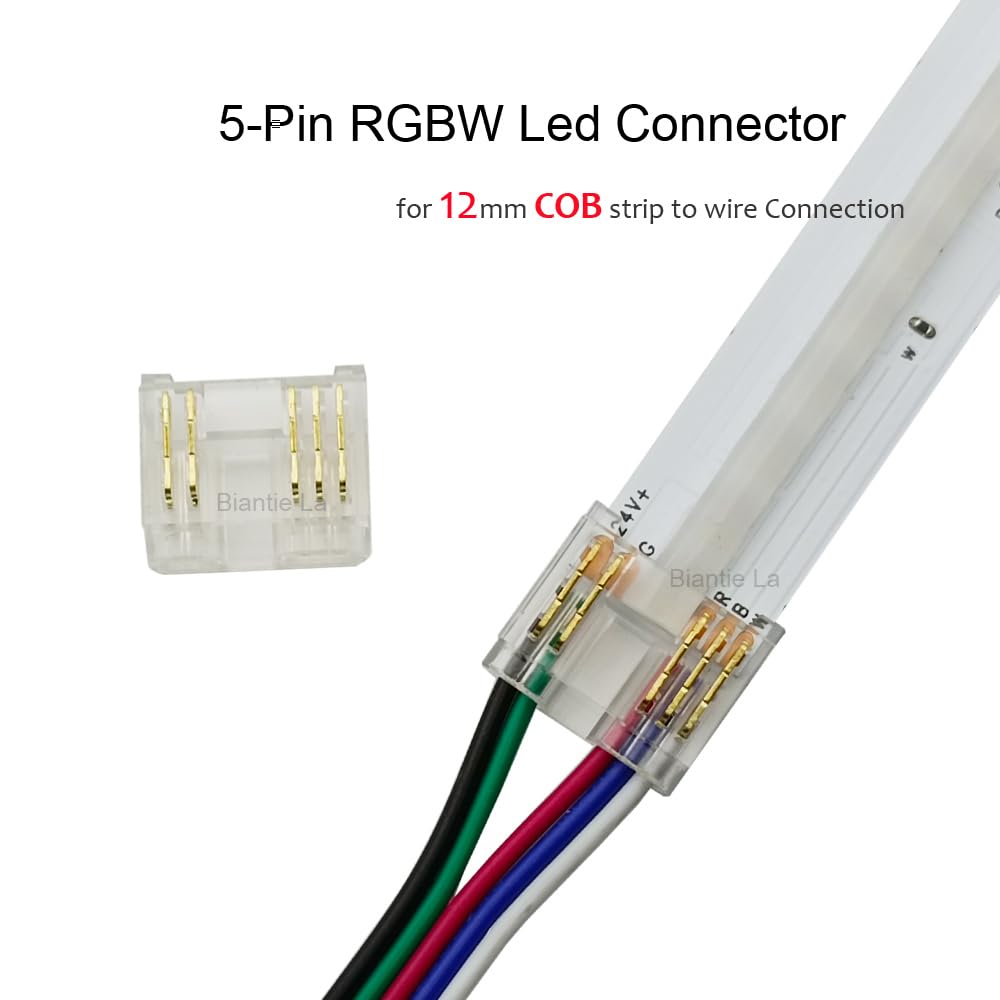

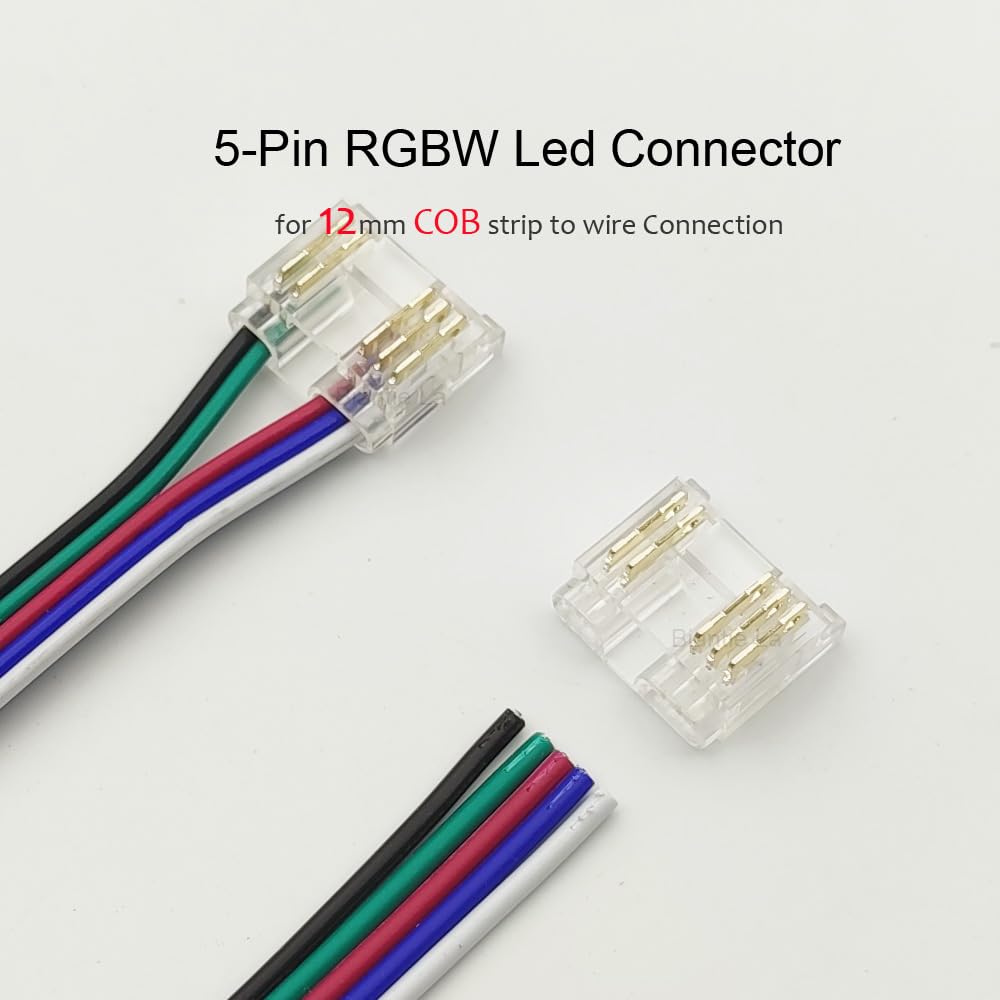

Masterwon - Simply connect and illuminate! 12mm 5-pin RGBW COB LED Strip Connector Kit This 12mm COB LED strip connector kit provides everything needed for a professional DIY installation. Featuring a range of 20 compact connectors to join strips end-to-end or attach to power supply and controllers, you can easily configure custom lighting for residential, retail or commercial spaces. Featuring an innovative clamp-on design, these 5-pin connectors simply snap onto the copper pads of your LED strip to create a permanent joint. Slowly clamping down the connectors with a pair of pliers (not included) presses the contacts together, allowing power to flow freely through the connection. Once secured, the connectors cannot be detached. Only works with 12mm wide COB LED strip lights with 5 soldering pads. Not compatible with 10mm 8mm or 5mm LED strips. What's Included: 20 Strip-to-Wire Connectors - For connecting 12mm RGBW COB LED strips to 22 AWG power wires or controllers. How to Use the LED Strip Splicing Connectors 1. Select the appropriate length of 22 AWG wire without stripping the insulation. 2. Insert the wires into the wire slot on the connectors. Use pliers to gently clamp down and secure the wires in place. 3. Insert your LED strip into the strip holder end of the connectors, aligning the solder pads on your strip with the 5 pin needles in the connectors. 4. Use pliers to firmly press on the pin needles of the connectors slowly to ensure they fully pierce the wires and LED strip. 5. The connection is now complete. Contact customer support with any product questions. We provide comprehensive answers and tech support.
