Masterwon 2-Pin 5mm COB LED Strip Connector Kit - 25 Pack Solderless Gapless Clips for Strip-to-Wire Joints | Compatible with 5V 12V 24V DC Single Colour LED Light Strip

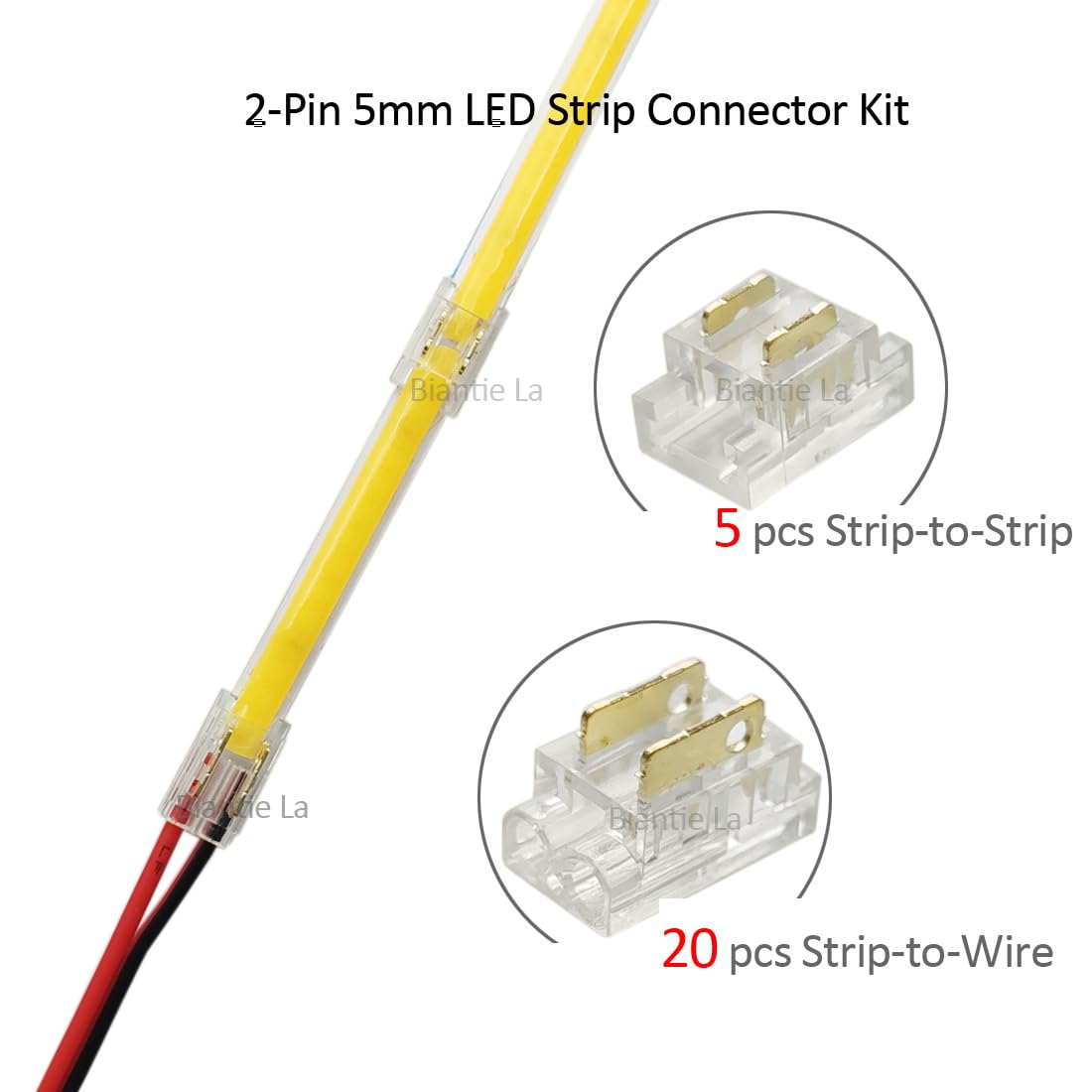

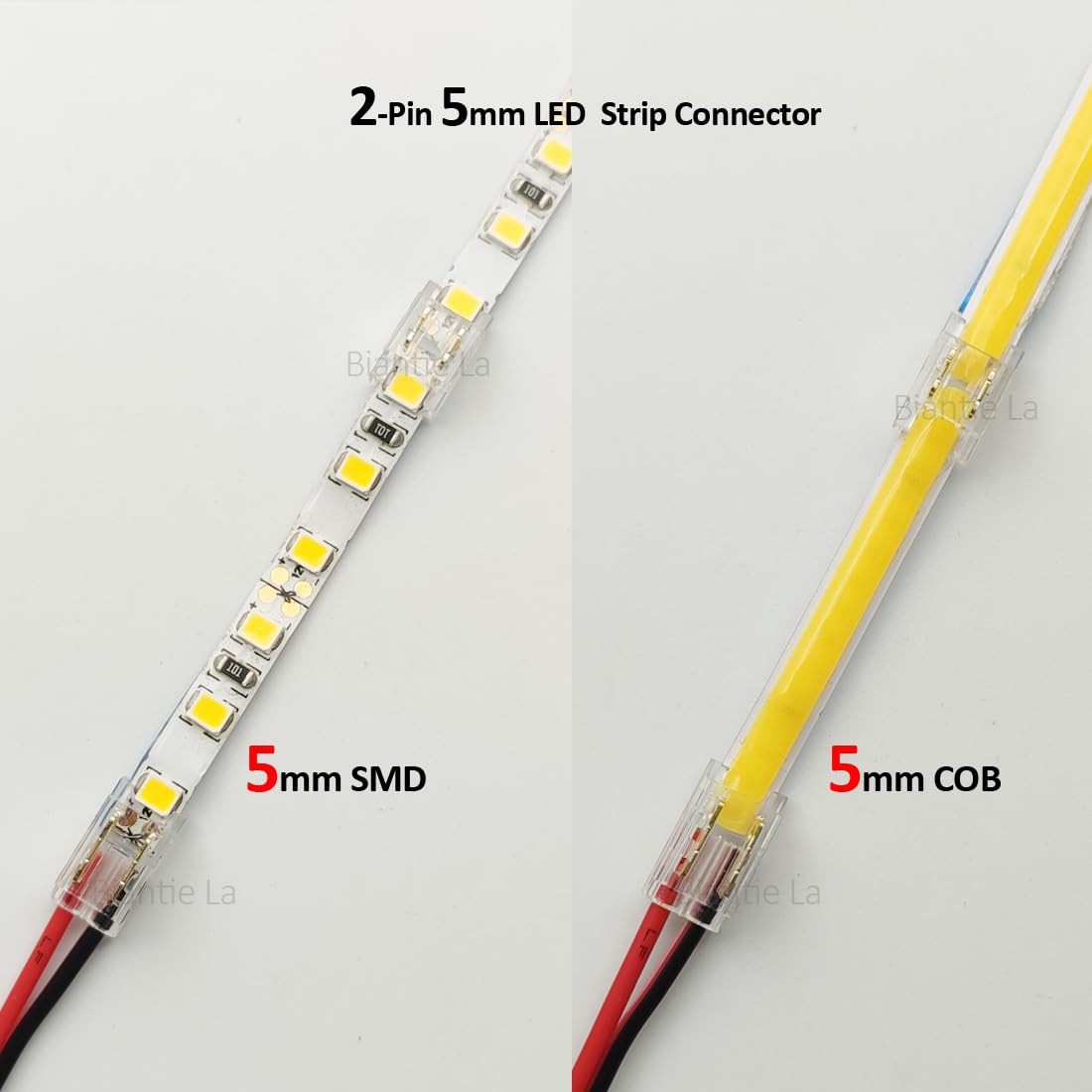

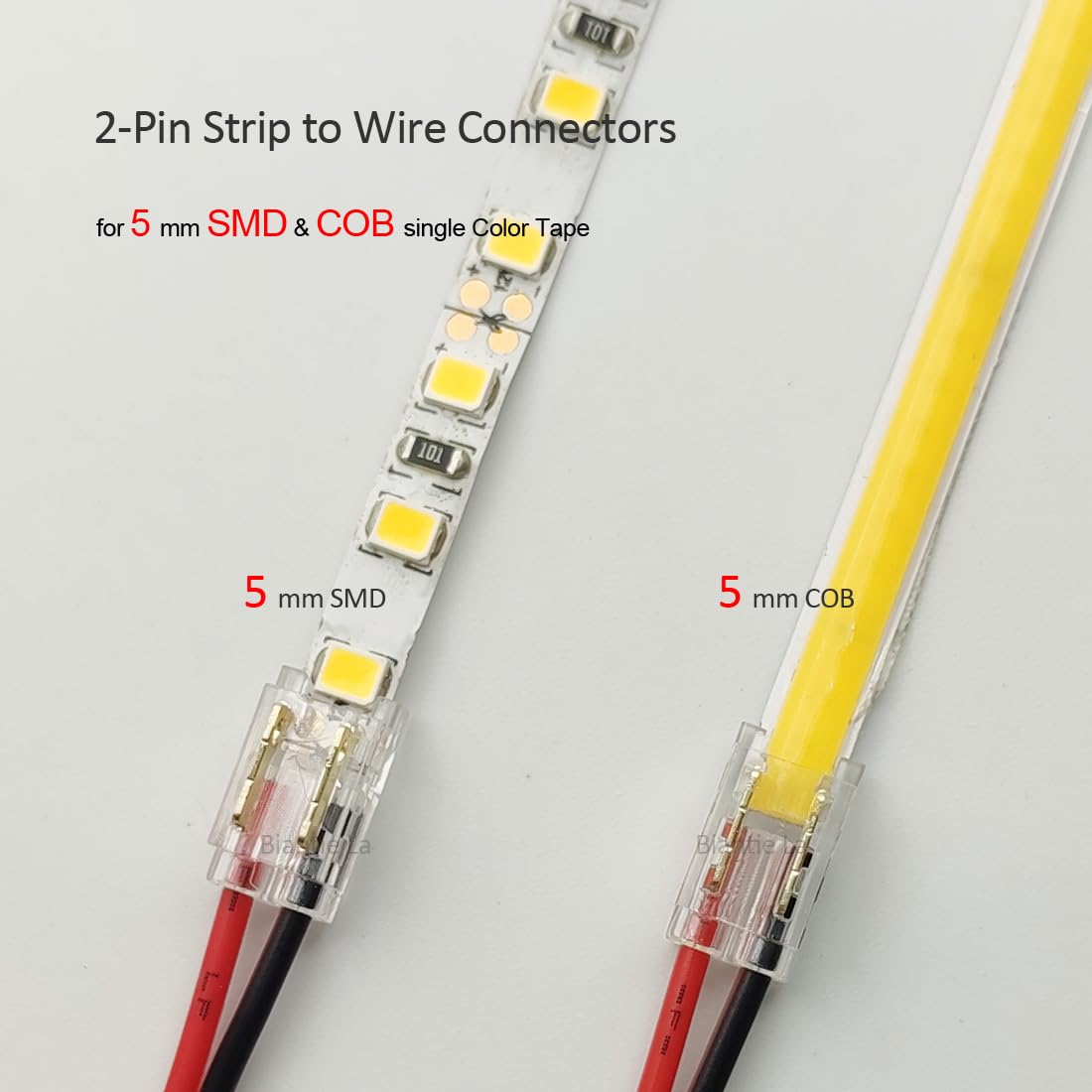

• 5mm 2-Pin COB LED Strip Connectors: This pack of 25 connectors is specialized for 5mm wide single colour LED strips. 20 pieces are for strip-to-wire connections and 5 pieces are for direct strip-to-strip joints. They are compatible not only with 2-pin COB LED strips but also conventional SMD 2835, 3528 and 3014 single colour LED strips. They provide a secure splicing method to instantly connect a strip to a power wire or jumper join two strips together.
• Solderless Clamp-on Design: These 2-pin connectors feature an innovative clamp-on design that does not require any soldering. Simply use a pair of pliers (not included) to slowly clamp down and secure the copper pads to pierce the contacts—once clamped, the connectors cannot be detached.
• Compact and Low Profile: Measuring only 10mm x 12mm x 5mm, these space-saving connectors maintain a streamlined profile after installation without protruding or blocking surrounding light. Their transparent housing minimally impacts the LED strip lighting.
• Designed for Standard 22 AWG Wires: These LED strip splice connectors suit standard 22 AWG power wires. Be aware that non-standard or other gauge wires such as 20 AWG or 18 AWG may not fit securely into the connectors.
• Universal Voltage Compatibility: This pack of 2-pin connectors works with single-colour LED strip lights of 5V, 12V and 24V. Their snap-on design and high-quality construction allow for consistent power transmission across the various voltage levels.

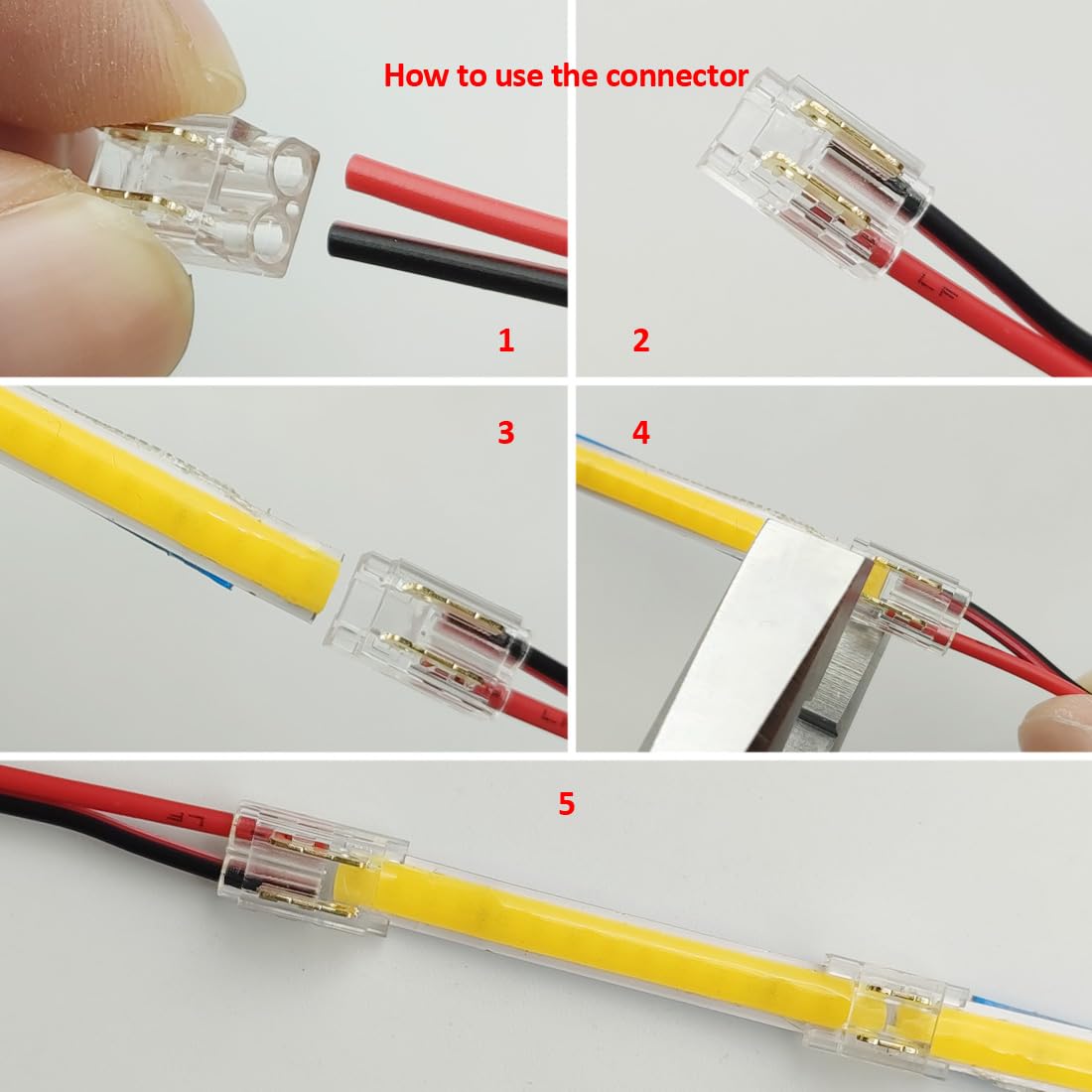

Masterwon - Simply connect and illuminate! This pack of 25 compact LED strip connectors provides a secure method for joining 5mm wide 2-pin COB LED strips or conventional SMD 2835, 3528 and 3014 single color LED tape lights. They instantly connect two strips together or attach a strip to a power wire without any soldering required. Featuring an innovative clamp-on design, these 2-pin connectors simply snap onto the copper pads of your LED strip to create a permanent joint. Slowly clamping down the connectors with a pair of pliers (not included) presses the contacts together, allowing power to flow freely through the connection. Once secured, the connectors cannot be detached. Only works with 5mm wide COB or SMD 2835 LED strip lights with dual soldering pads. Not compatible with 12mm 10mm or 8mm LED strips. How to Use the LED Strip Splicing Connectors 1. Select the appropriate length of 22 AWG red and black wire without stripping the insulation. 2. Insert the red and black wires into the wire slot on the connectors. Use pliers to gently clamp down and secure the wires in place. 3. Insert your LED strip into the strip holder end of the connectors, aligning the solder pads on your strip with the 2 pin needles in the connectors. 4. Use pliers to firmly press on the pin needles of the connectors to ensure they fully pierce the wires and LED strip. 5. The connection is now complete. Contact customer support with any product questions. We provide comprehensive answers and tech support.
