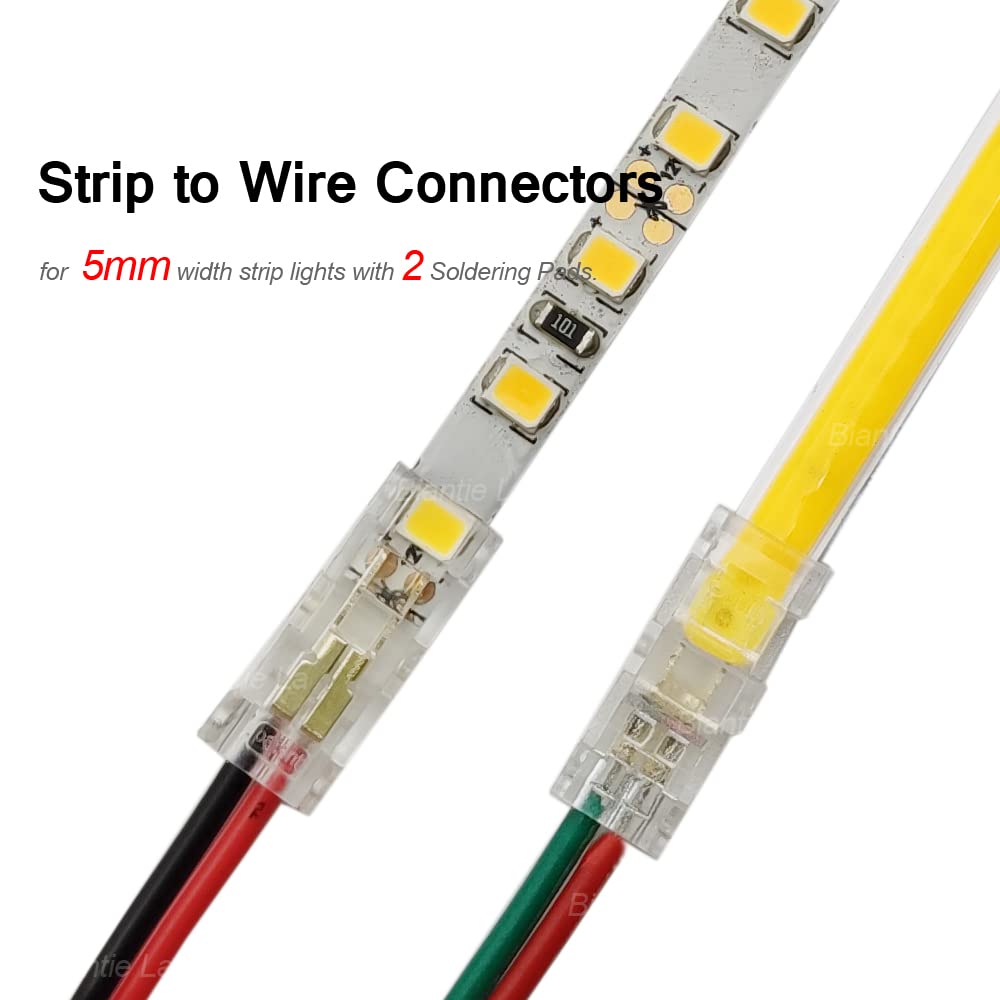

Masterwon 2-Pin 5mm LED Light Strip Connectors Unwired Clips DIY Strip to Wire Solderless Adapter Terminal Extension Connection for 12v 24v Single Colour COB LED Strip Lights

• CONNECT TAPE TO WIRE - No soldering, quick and flexible connection. The Alightings 2 pin Led Strip Connectors are suitable for 5mm width SMD 3528 2835 3014 5630 COB single color LED light strip. One end connect 2-conductor 22 AWG flat extension cable and another end for led light strip. These led strip connectors can not work with 8mm 10mm led strips, rgb led strip.
• EASY TO OPEN AND REUSABLE - Work for 24awg, 22awg, solid wire, multi-core wire . Only need to insert the stripped wire into the slot, then press the transparent cover to firmly connect and conduct. It avoids the dilemma that other connectors can't pierce the wires or can't be turned on or difficult to reuse.

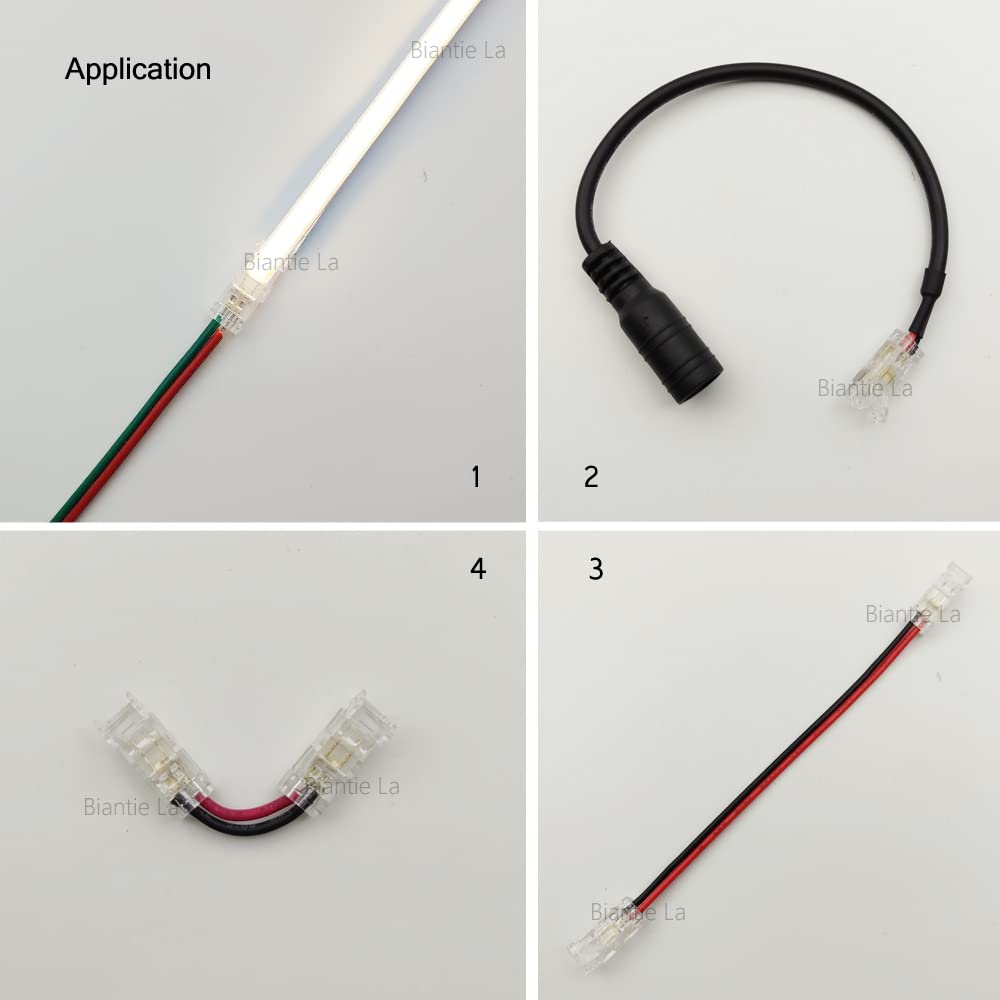

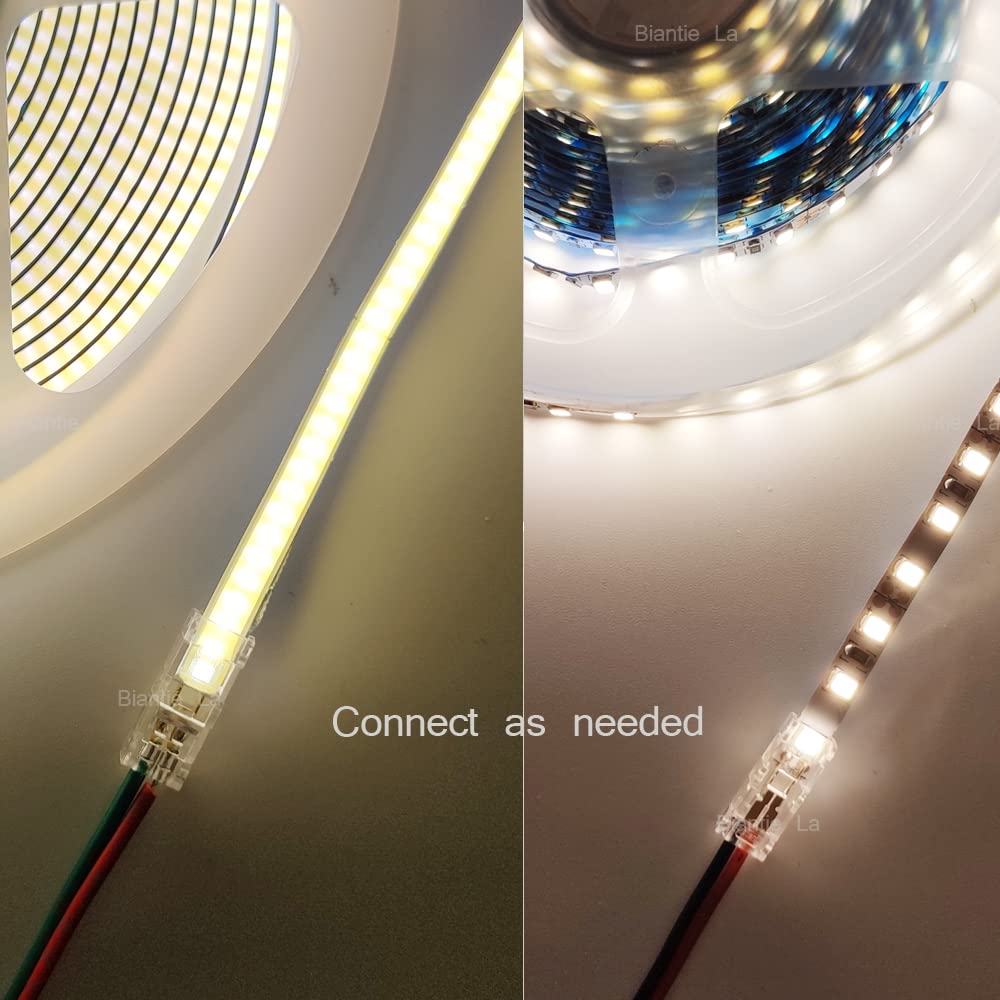

• FREE FROM THE LIMIT OF TERMINAL POSITION: Connect wire by yourself as need, use these COB 2pin led connectors with 22 gauge 2 conductor extension cable to get lighting exactly where you want it. No mater board to wire input or strip to strip jumper, extension distance and angle are no more problems to you.

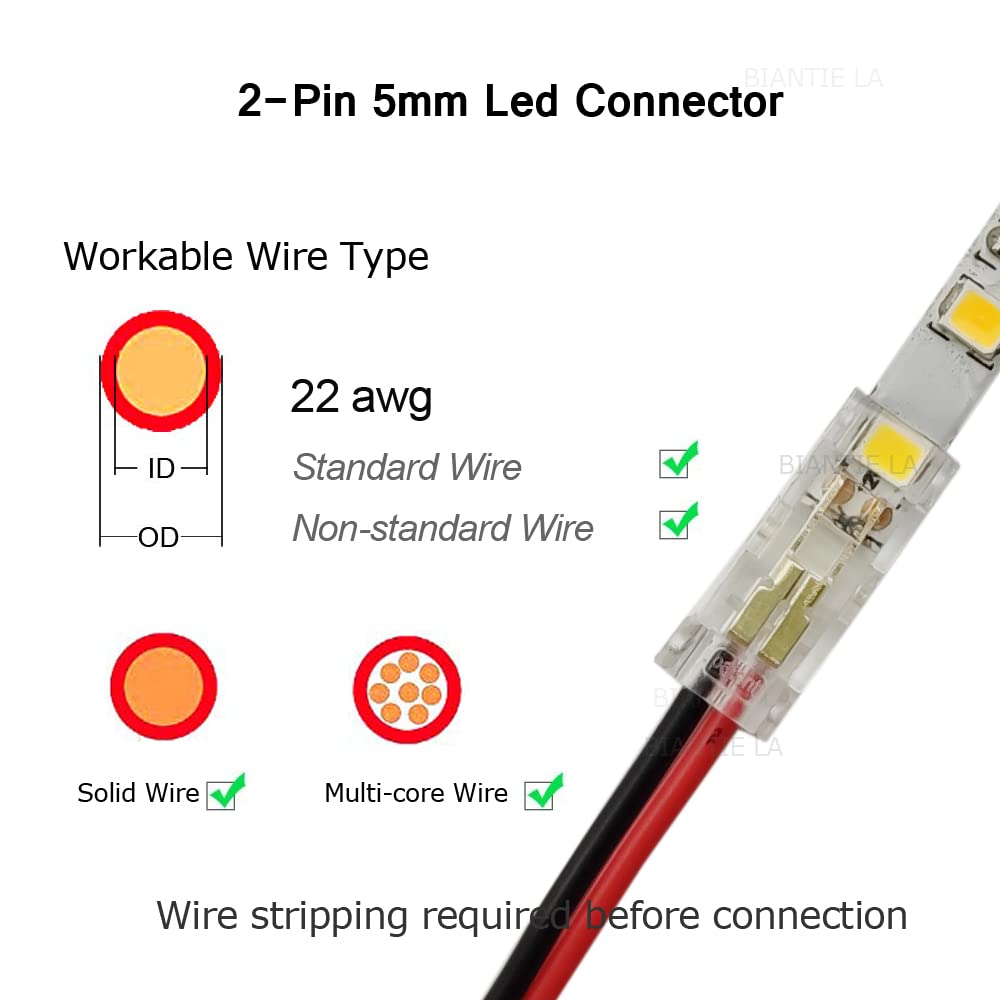

• STRONG COMPATABILITY: The led strip connector compatible with 5v, 12v, 24v led light strips, work for 5mm width COB strips and SMD 2835 3528 2 Soldering Pads tape lights. You only need to align the front side (led surface) of the light strip with the pins of the connector, and then buckle the transparent cover to achieve a stable and good connection. Suit for 22 awg 2 conductor wire, solid wire and multi-core wire.
• SOLID & EFFECTIVE CONNECTION: High quality tin plated copper core and PVC plastic wire cover ensure steady, safety and long-lasting connection, firmly bite through the led light strip, much stronger than old style lights connectors, The clear terminal is easier to pierce the wire, and the one-time success rate is higher.

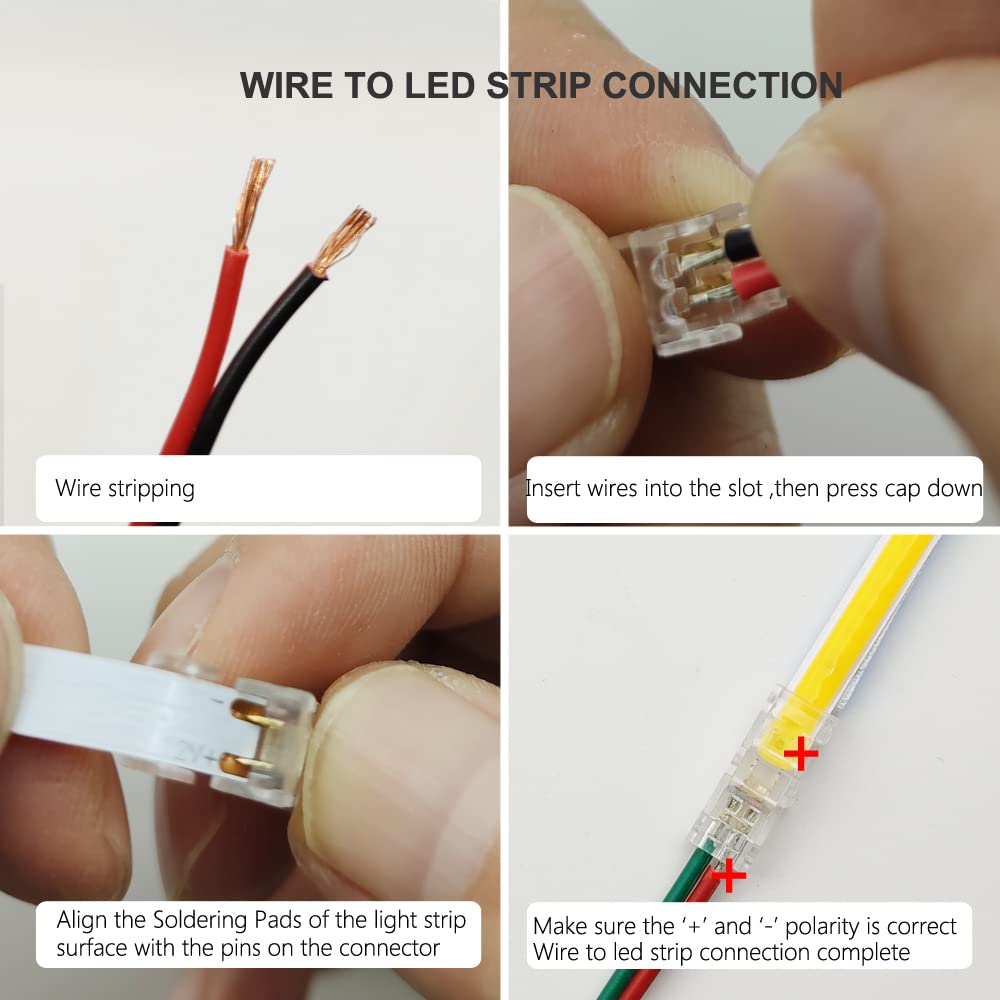

LED Strip Connector 2-Pin 5mm - DIY Strip to Wire Quick Connection for COB SMD 3528 2835 Led Strip Lights (Pack of 10) NOTE: 1.Make sure your section of led light strip is 5mm width COB strip lights with 2 Soldering Pads. Not work for 8mm or 10mm width led light strips. Installation Tips: Wire End: 1.Cut the desired wire length you need. 2.Separate 2 wires and stripping around connection part. 3. Insert wires into the connector guide slot, Avoid metal contact of the two wires.Close the transparent cap Strip End: 1.Open the wire clip. 2.Insert the light strip, align the 2 Soldering Pads of the light-emitting surface of the lights with the 2-pins on the connector. Then press down the transparent cover, making sure the + and - symbols align. Reminder: Wire stripping required. Just be sure polarity nodes are matched up "+" to "+" and "-" to "-". If you have any problem about installation, pls feel free to contact me. Package: 10pcs Strip to Wire Connectors (BL-TM5XB-2)
