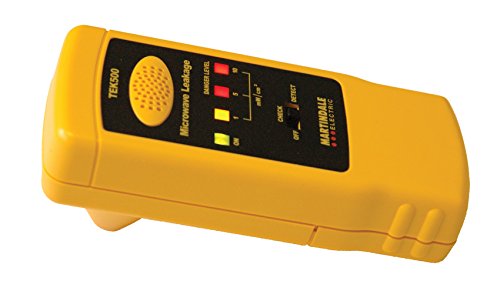

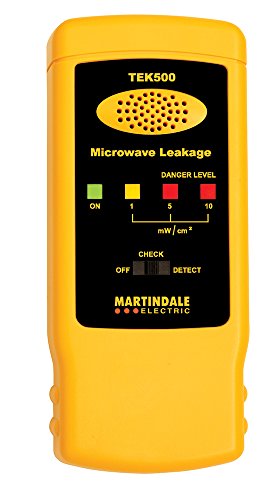

Martindale TEK500 Microwave Leakage Detector

• Low pass/fail microwave leakage detector
• Suitable for commercial and domestic microwave ovens
• designed to comply with national standards on permitted exposure levels
• Includes a self test which simulates a real microwave input to ensure the unit is working correctly

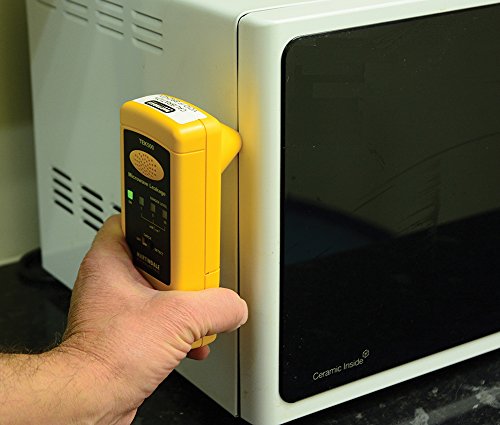

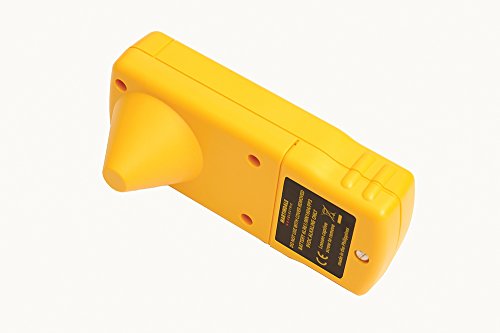

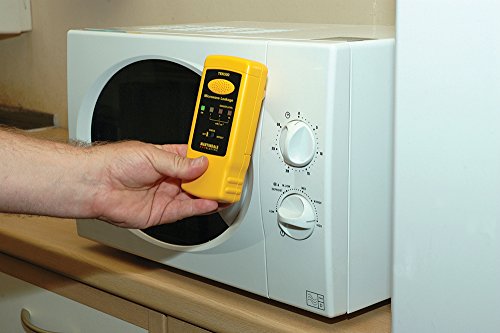

An easy to use, low pass/fail microwave leakage detector suitable for commercial and domestic microwave ovens. It is designed to comply with national standards on permitted exposure levels. The Martindale TEK500 includes a self test which simulates a real microwave input to ensure the unit is working correctly at all times. The Martindale TEK500 can test microwave ovens for potentially dangerous leaks with the accessories supplied. Using the measuring beaker and thermometer supplied, microwave power output may be assessed. Indicates at 1, 5, 10mW/cm2. Tests to BS 5175. Detection Frequency Range 2450MHz +/-25MHz Sensor Distance Fixed cone on rear of unit should be in gentle contact for standard 50mm separation Indicators Test Position All four LEDs should light and an audible tone will be emitted On Position PASS: Green "sys" LED only (<1mW per cm2 Green "sys" LED & yellow "1mW" LED (<5mW per cm2 FAIL: Red "5mW" LED (>5mW per cm2, audible tone Red "10mW" LED (>10mW per cm2, audible tone General Specifications Supply: 9V alkaline battery, PP3/MN1604 or equivalent Dimensions: 150 x 64 x 30mm Weight: 170g approx. Supplied with digital thermometer, water beaker, carry case, battery & instruction manual.
