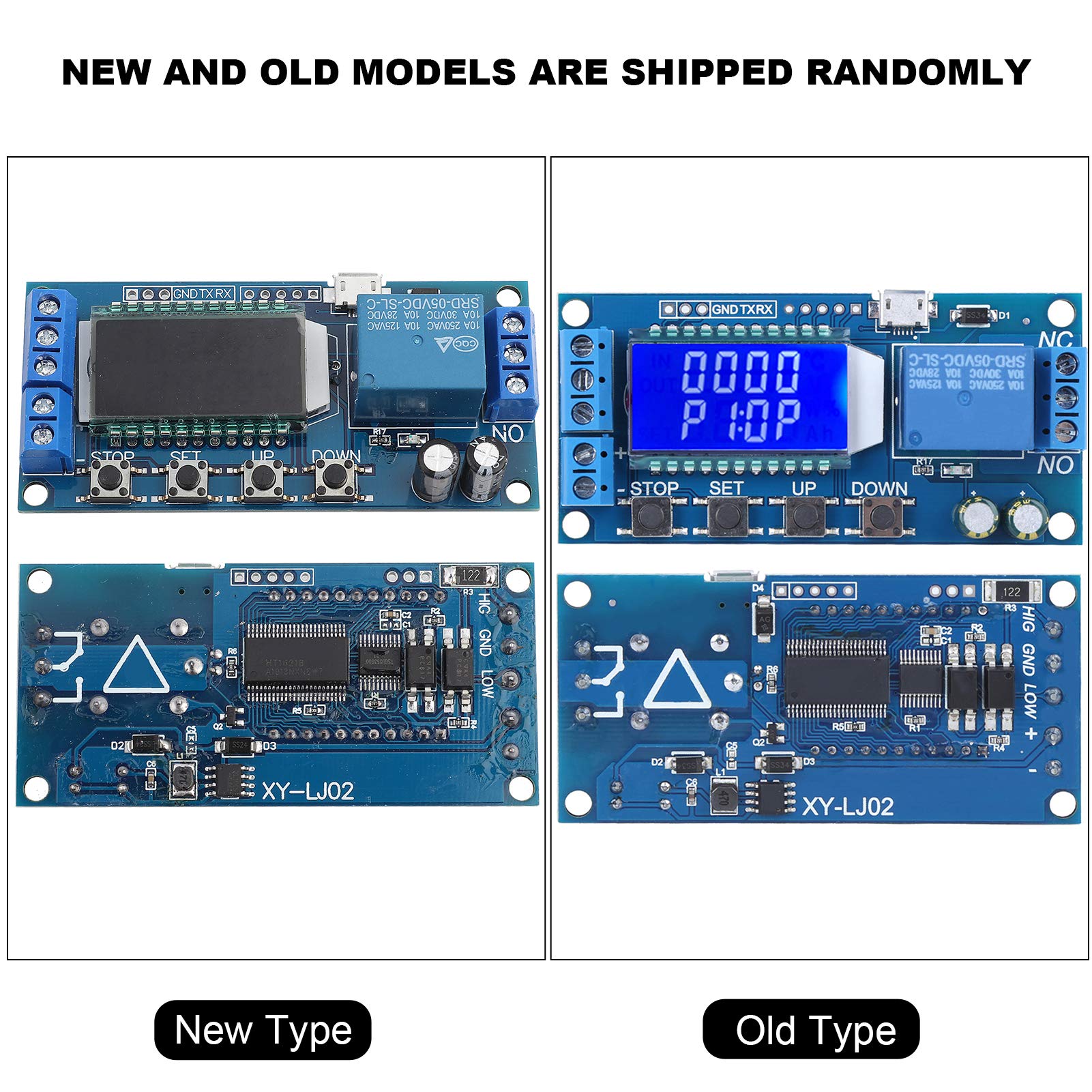

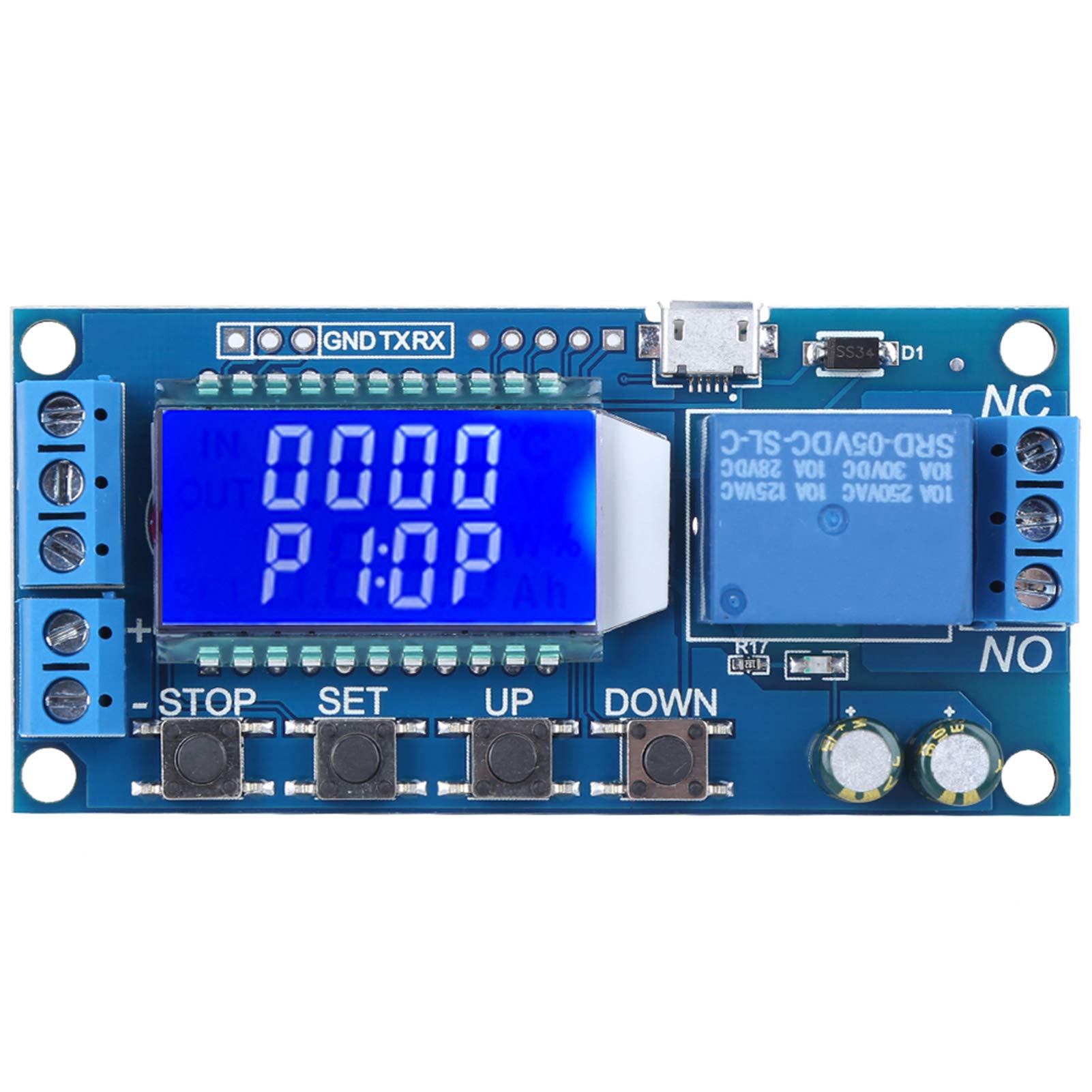

Marhynchus Loop Timing Module Cycle Trigger Delay Timer Switch Circuit Electronic Relay Module Delayed Power Off XY-LJ02

• SUITABLE FOR MOST OCCASIONS: The wide voltage power supply (6-30V) supports 5.0V micro USB power supply, which is very convenient to use. Supports high and low level triggers, switch control, suitable for most occasions.
• With reverse connection protection: the switch has an emergency stop function (stop button). With reverse protection, the reverse gear does not protect the circuit.

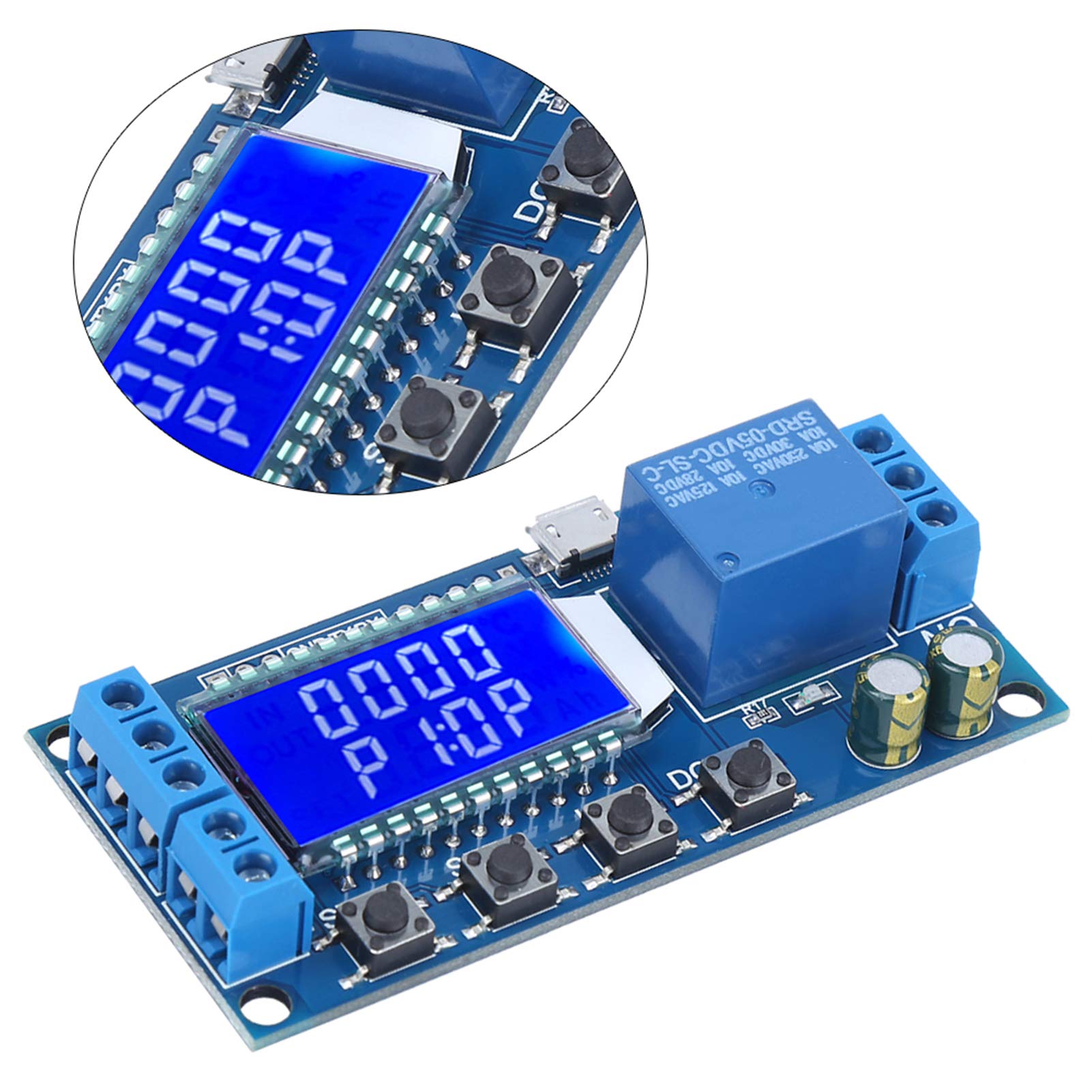

• Very clear: with the LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical. The added sleep mode automatically turns off the LCD backlight after no operation has been activated within 5 minutes. each key to wake up.
• IMPROVED ANTI-INTERFERENCE CAPABILITY: Various OP, CL and LOP parameters can be adjusted. These parameters are independent of each other and are stored separately. All set parameters are automatically saved after switching off. With the isolation of the optocoupler, the improved anti-interference ability and the industrial grade circuit board, the set parameters are always stored after switching off.
• NOTE: We are confident that the quality of our product is too qualified. If you have any questions, please feel free to contact us. We provide the best service for you.

Specification:Conditon: 100% Brand New Item Type: Loop Timing Module Material: Plastic Color: As Pictures ShownSize: Approx. 8.0 x 3.8 x 1.9cm/3.1 x 1.5 x 0.7inWorking Voltage: 6-30V support micro USB 5.0V power supply Trigger Signal Source: High level trigger (3.0V-24V), low level trigger (0.0V-0.2V), switch control (passive switch)Output Capability: Control devices within 30V 5A DC or within 220V 5A ACQuiescent Current: 15mA Working Current: 50mAService Life: More than 100,000 timesWorking Temperature: -40-85 ℃ Timing Range: 0.01 seconds (minimum) - 9999 minutes (maximum) continuously adjustableHow to Choose the Timing Range: In the OP/CL parameter modification interface, short press the STOP button to select the timing range; XXXX has no decimal point, and the timing range is 1s - 9999s XXX.X Decimal point in the tenth place, timing range 0.1s - 999.9s XX.XX Decimal point is in the hundredth place, timing range 0.01s - 99.99s X.X.X.X full decimal point, timing range 1min - 9999minFor example, if you want to set the OP to 3.2 seconds, then move the decimal point to the ten, the LCD display 003.2Parameter Description: OP on time, CL off time, LOP cycle times (1-9999 times, "----" represents infinite cycles) Function:Remote data upload and parameter setting function: The system supports UART data upload and parameter setting function (TTL level); Package List:1 x Loop Timing Module4 x Locator
